GPUCONNECT Bespoke

Asus RX 6600 6600XT 6700XT 5-Pin Fan Adapter Deshroud GPU Cable

Asus RX 6600 6600XT 6700XT 5-Pin Fan Adapter Deshroud GPU Cable

UK Express Shipping Express Shipping Item - more info
Regular price $20.00 USD
Regular price $26.00 USD Sale price $20.00 USD
Sale Sold out
Shipping calculated at checkout.

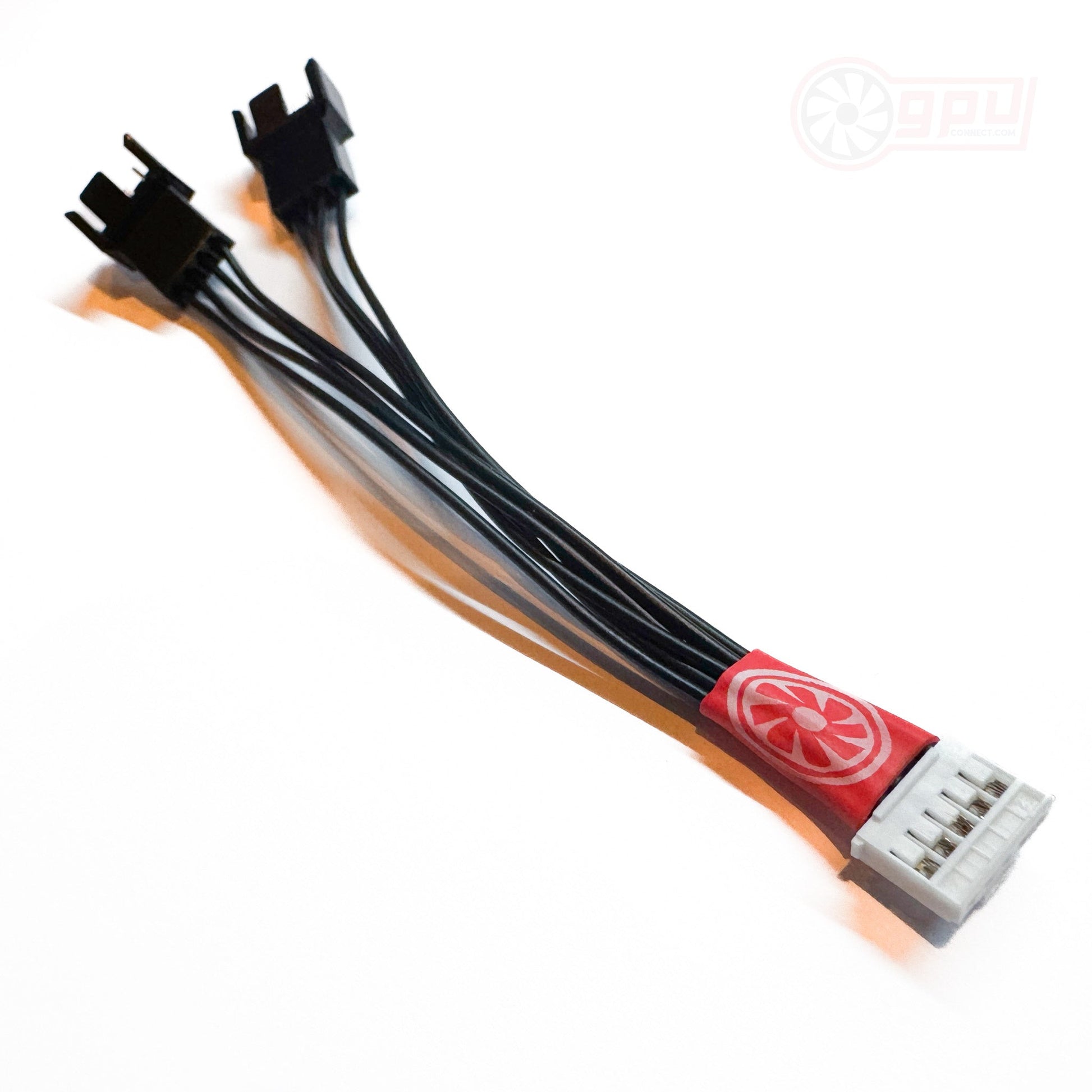

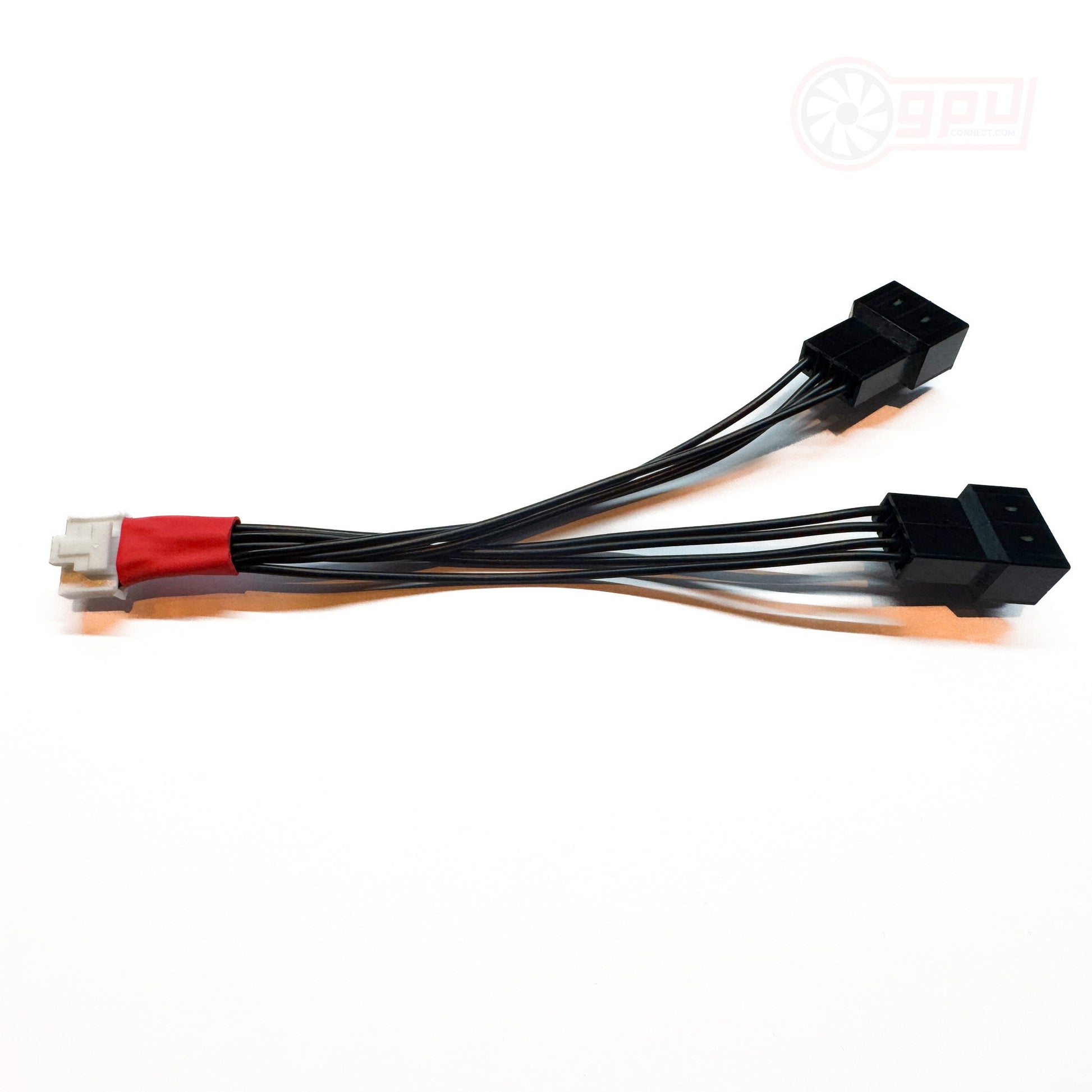

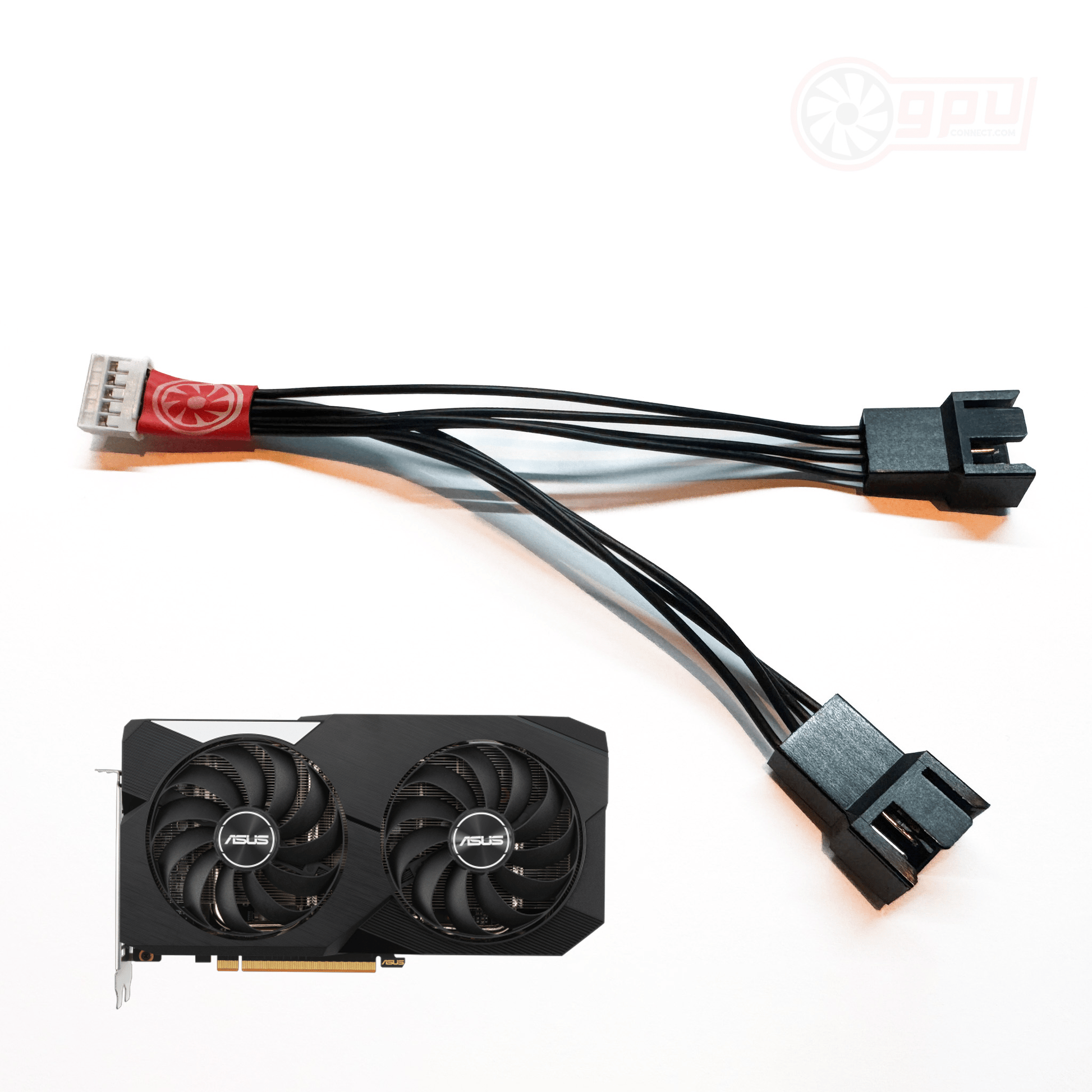

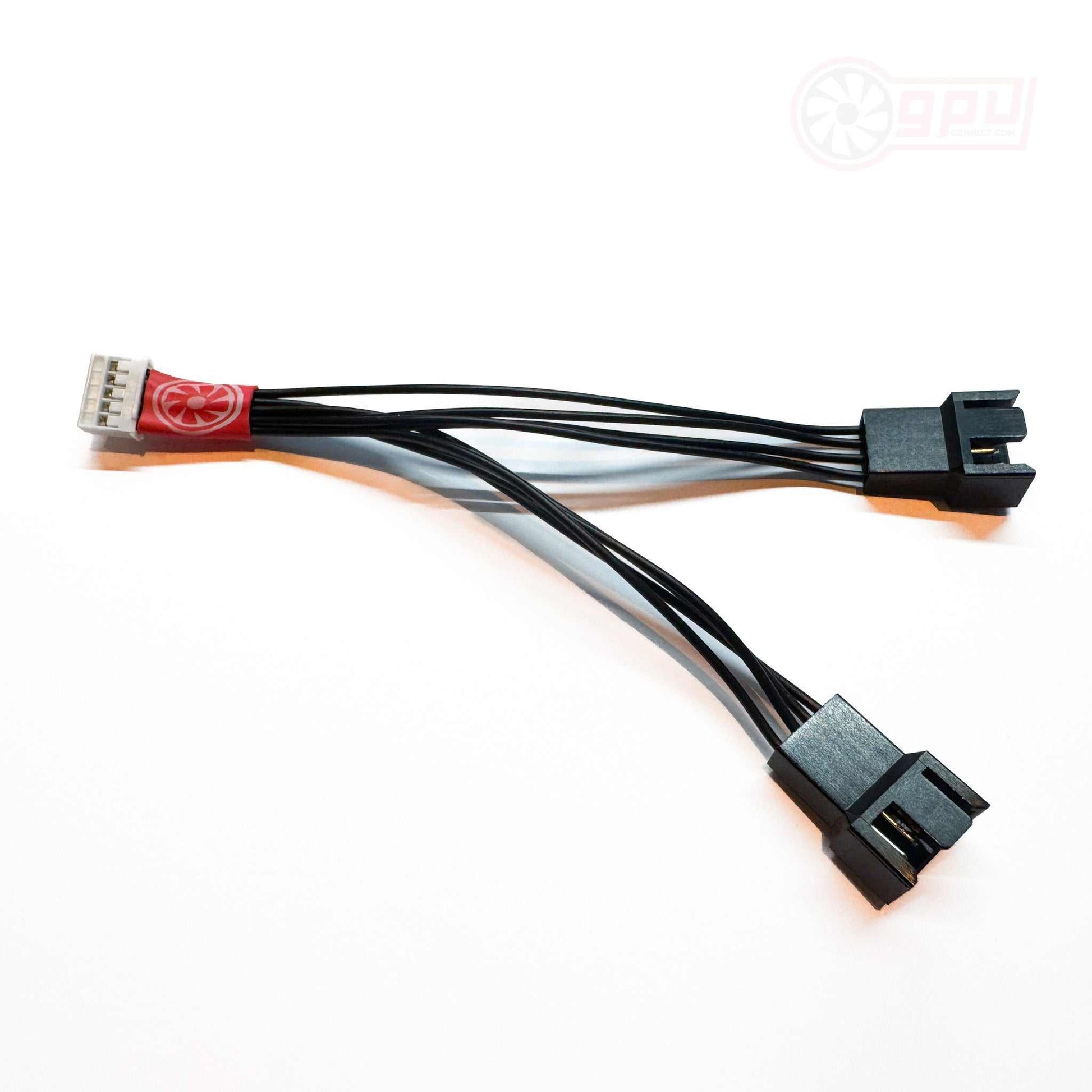

This is a 5 pin to dual 4 pin adapter for the Asus RX 6600 6600XT & 6700XT DUAL Series graphics cards, for use when DeShroud modding. This will connect directly into the GPU and provide a 2 fan standard fan outputs for use with 120mm or 92mm 12v PWM fans like the Noctua series. Full control can then be provided via the GPU firmware or can be changed with MSI Afterburner.

Features & Benefits:

  • Dual 4 pin PWM Outputs
  • Compatible with standard fans (12v)
  • Lower Noise
  • Better thermals
  • Increased Overclocks
  • Independent Fan Outputs


Deshrouding can reduce noise, increase thermal efficiency, overclocking headroom and performance. As standard this cable provides 2 independent outputs with independent monitoring via the GPU.

By using this type of cable, the GPU firmware controls the fan speed, which is directly linked the the GPU speed without additional 3rd party software. We would however recommend adjusting the fan curve using MSI Afterbuner following the completion of a deshroud mod.

A single fan splitter can be added to one of the outputs to allow connection to 3 fans, however please ensure the total max fan wattage does not exceed the recommended 10 Watts.

Compatibility guide:

  • Asus Radeon RX 6600
  • Asus Radeon RX 6600 XT
  • Asus Radeon RX 6650 XT
  • Asus Radeon RX 6700 XT
  • Asus Radeon RX 6750 XT

Note: Only compatible with 5-Pin Fan Headers

View full details

Collapsible content

Compatibility

The following products are known compatible with this deshroud adapter:

Asus Radeon RX 6600 Dual
Asus Radeon RX 6600 XT Dual
Asus Radeon RX 6650 XT Dual
Asus Radeon RX 6700 XT Dual
Asus Radeon RX 6750 XT Dual

Installation

Installation is simple... with the PC powered down and disconnected, connect the white end to the GPU header, being careful to check the direction of the plug is correct. If correct it should seat easily.

Connect the PWM black ends to your standard, 12v PWM fans. Please note whilst you can daisy chain to power up to 3 fans going above this can create an unnecessary power draw on your fan header and is not recommended.

Following install, with the case open, power on the system and check the fans start to spin. If they don't power down immediately and check the GPU against the compatibility list or contact us.

Dimensions

Cables are provided as standard with black cable, white GPU connection and black PWM sockets.

Approx length is 10 cm

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Returns

If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.

Find Out More

Why deshroud?

Motherboard fan headers can often be reassigned to monitor GPU temperatures, however will require an often unwanted 3rd party application to be installed to do this.  The control of fans by motherboard headers often can cause overheating or other issues due to the software processing required to maintain control, and the fan curve is not directly linked to overclock or under-volt settings which would be required from a secondary application.  A deshroud mod will also require 2 fan headers to be used, preventing them from being used elsewhere in the system.
