Universal Deshroud Adapter - GPU Mini 4-Pin to Dual PWM Fan Cable

Universal Deshroud Adapter - GPU Mini 4-Pin to Dual PWM Fan Cable

UK Express Shipping Express Shipping Item - more info
Colour
Regular price $9.00 USD
Regular price $0.00 USD Sale price $9.00 USD
Sale Sold out
Shipping calculated at checkout.

Deshroud any graphics card using the standard 4-pin mini GPU fan header and connect standard Noctua fans for lower noise and cooler thermals.  This is a standard mini 4-Pin GPU cable to convert to a dual standard 4-pin PWM output quickly and easily.  No need use valuable motherboard fan headers!

  • Dual 4 pin PWM Outputs
  • Compatible with standard fans (12v)
  • Replace original GPU fans
  • Suitable for Deshrouding
  • Available in Red / Grey / White / Black
  • 5 Year Warranty

This is a standard mini 4-Pin GPU cable to convert to a dual standard 4-pin PWM output. This ideal when deshrouding a graphics card that uses a standard 4 pin header.  If you are not sure the header your GPU uses, please message us with the full model name / part number.

The adapter allows for fan control controlled and powered directly via the graphics card.  This should be used with matching fans to ensure the RPM reads correctly, although will still function if using different fans.

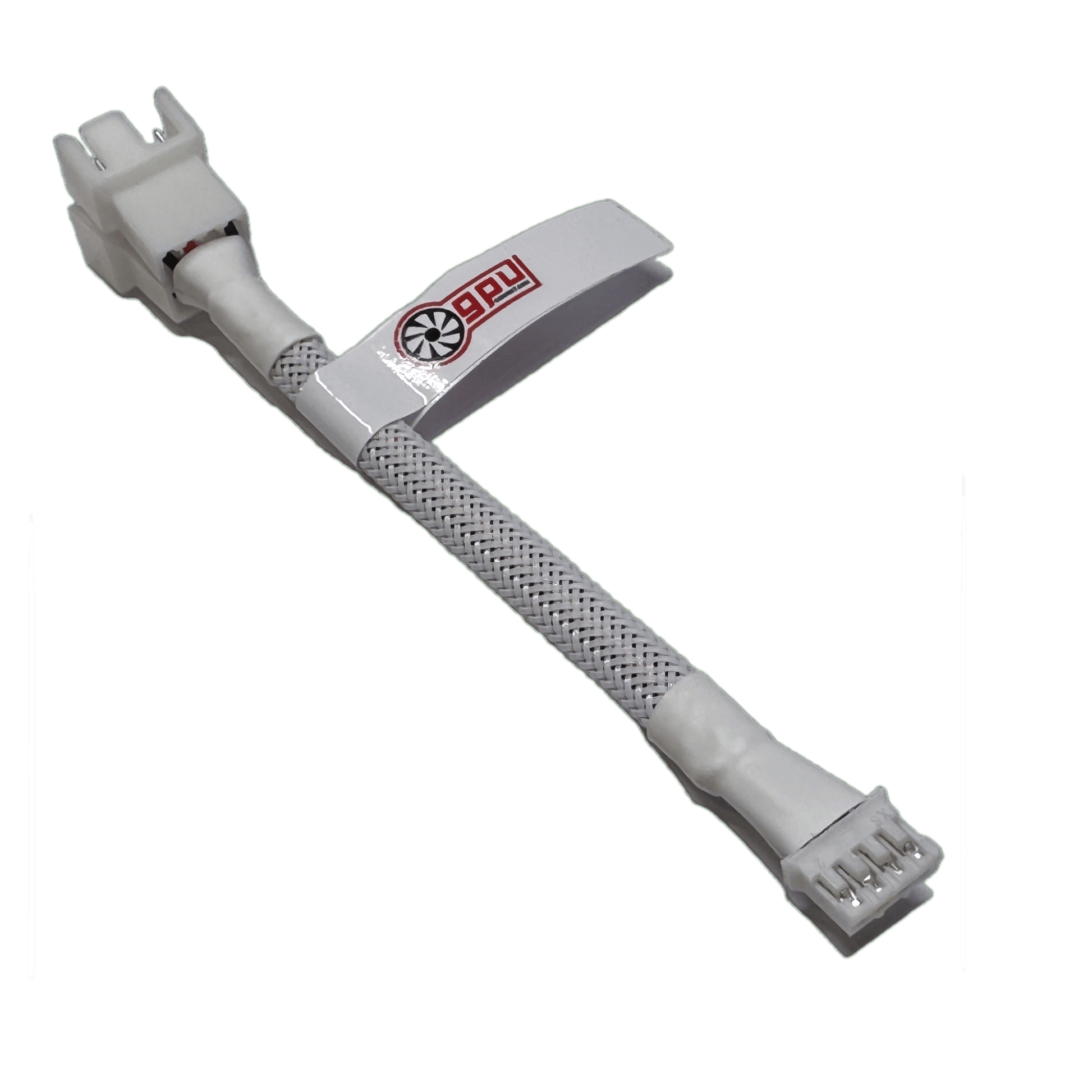

Note: New white version includes all white heatshrink and matching white connectors.  Selection product in the dropdown  for latest visuals.

View full details

Collapsible content

Compatibility

The following products are known compatible with this deshroud adapter:

This is a Universal adapter using a standard mini 4-Pin GPU header, and as such can be used with the majority of graphics cards.

Installation

Installation is simple... with the PC powered down and disconnected, connect the white end to the GPU header, being careful to check the direction of the plug is correct. If correct it should seat easily.

Connect the PWM black ends to your standard, 12v PWM fans. Please note whilst you can daisy chain to power up to 3 fans going above this can create an unnecessary power draw on your fan header and is not recommended.

Following install, with the case open, power on the system and check the fans start to spin. If they don't power down immediately and check the GPU against the compatibility list or contact us.

Dimensions

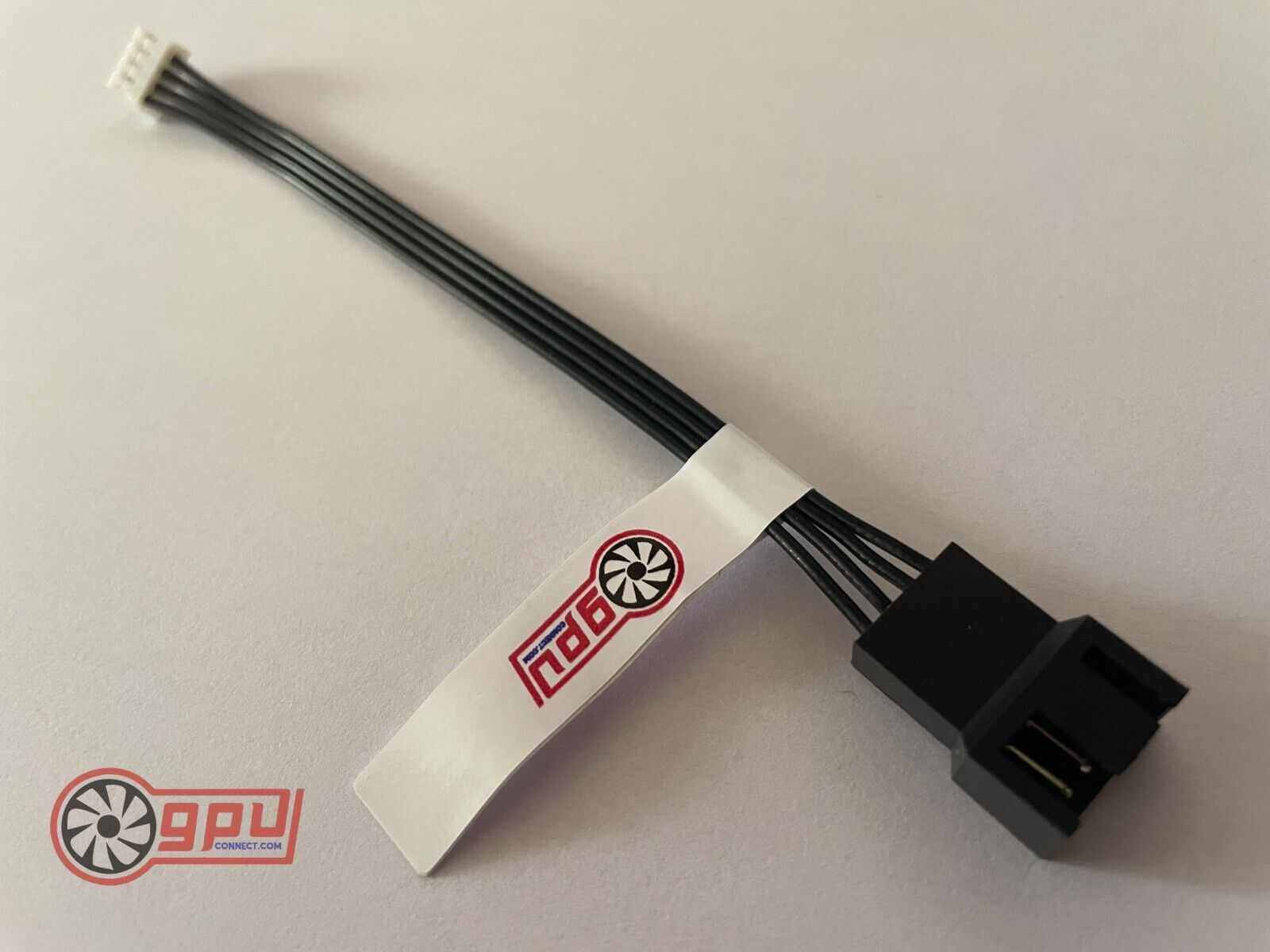

Cables are provided as standard with black cable, white GPU connection and black PWM sockets.

Approx length is 10 cm

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Returns

If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.

Find Out More

Why deshroud?

Motherboard fan headers can often be reassigned to monitor GPU temperatures, however will require an often unwanted 3rd party application to be installed to do this.  The control of fans by motherboard headers often can cause overheating or other issues due to the software processing required to maintain control, and the fan curve is not directly linked to overclock or under-volt settings which would be required from a secondary application.  A deshroud mod will also require 2 fan headers to be used, preventing them from being used elsewhere in the system.
