Asus RTX 2060 2070 DUAL Mini OC / GTX 1660 Super GPU Fan Set

Asus RTX 2060 2070 DUAL Mini OC / GTX 1660 Super GPU Fan Set

RTX 2060 Series and RTX 2070 Series

For: Asus
Power Connector: 6 Pin
Dimensions: 87 mm
Depth: 12 mm
Mounting Distance: 28 mm
Part Number(s): FDC10H12S9-C
Rating: 12V @ 0.45A

AS-2K-MINI-F/b

Standard Shipping Standard Shipping Item - more info
Type
$17.00 USD
$17.00 USD
Sale Sold out
Shipping calculated at checkout.

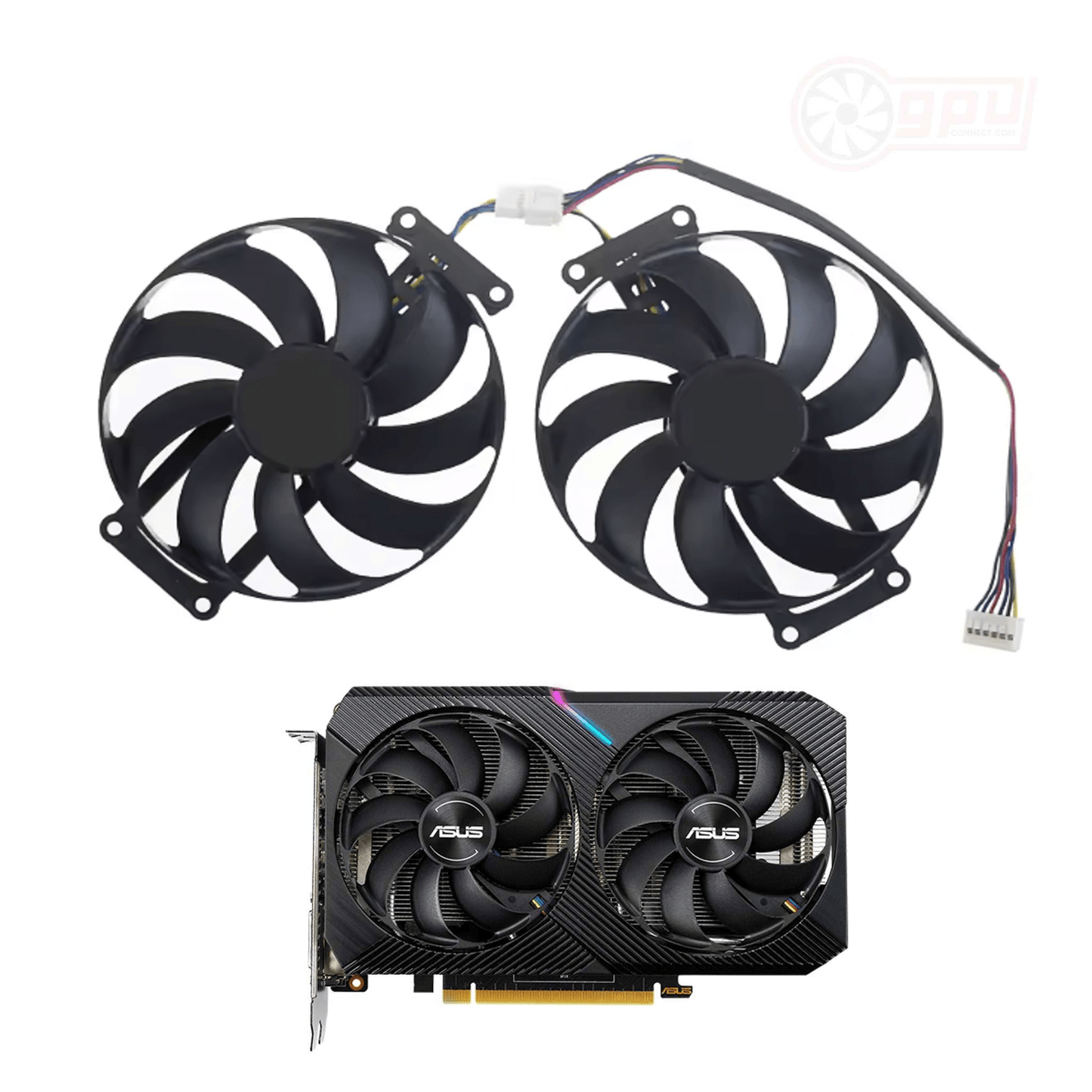

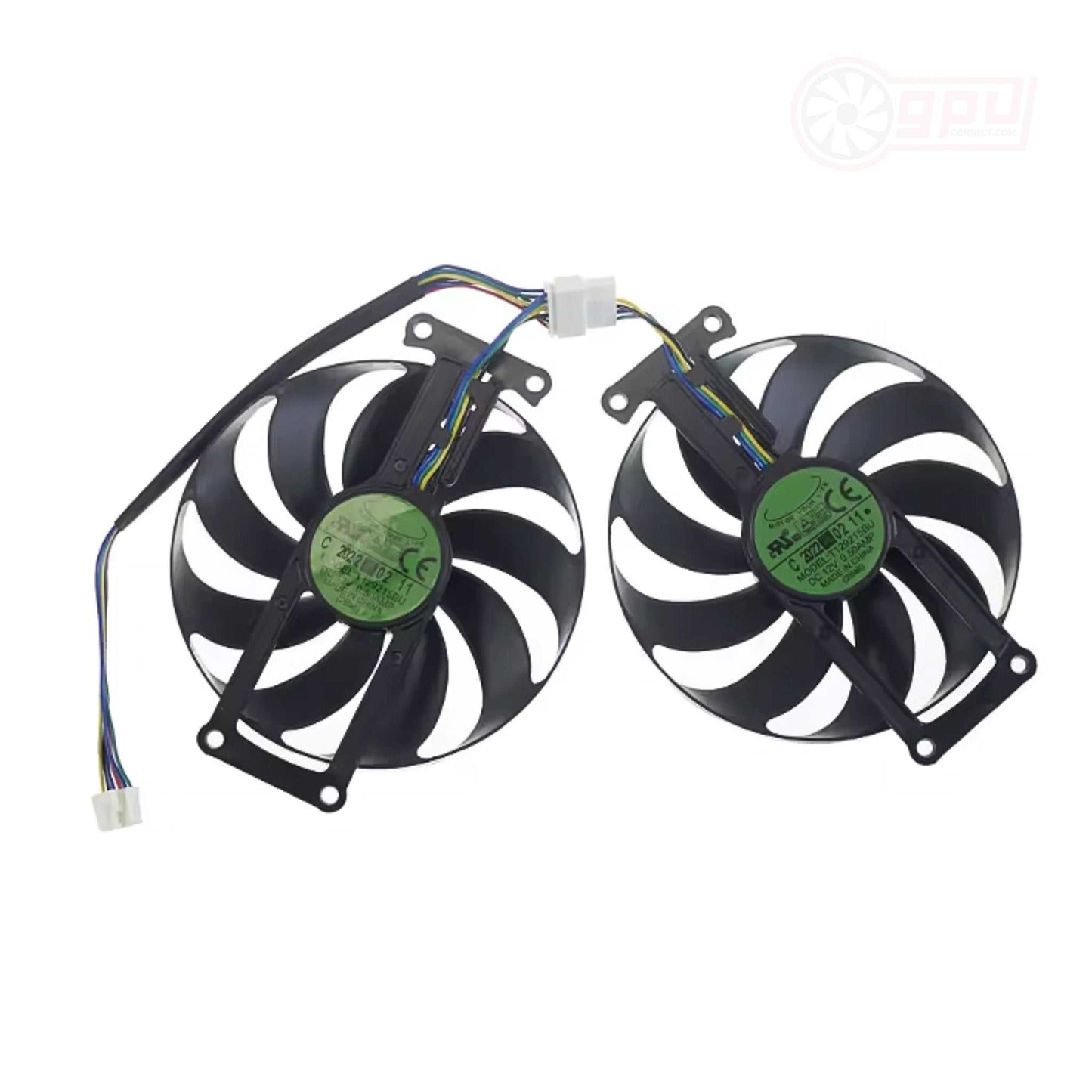

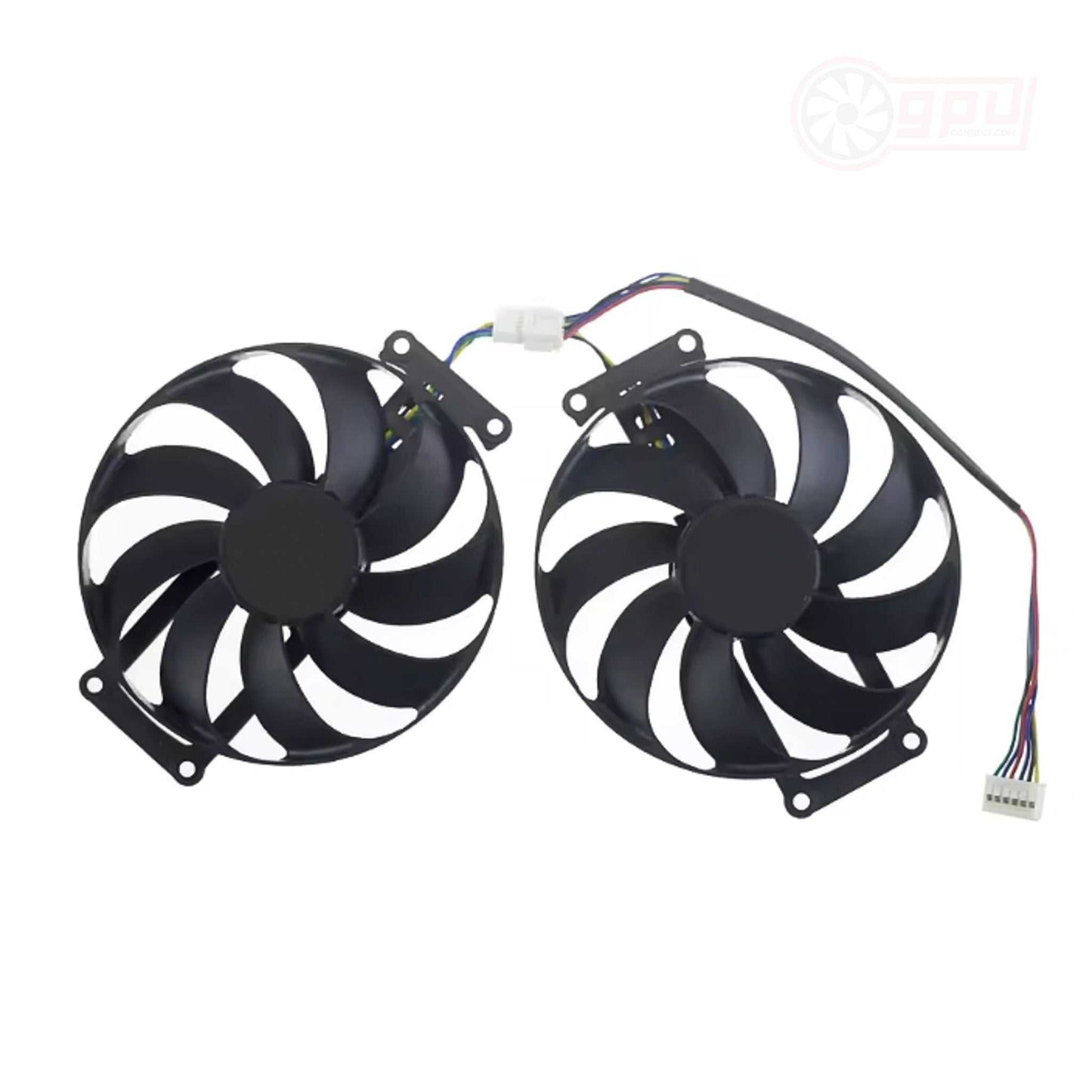

This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers compatible with Asus RTX 2060 2070 DUAL Mini OC and GTX 1660 Super Series GPU. Note the specific fans for left and right are show below.

  • Fan B - Left hand side fan (6 Pin)
  • Fan A - Right hand side (6 Pin with LED Loom)

Please check the compatibility carefully as there are similar fans with different wiring for the Mini GPU series.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

ASUS GeForce RTX 2070 8GB DUAL MINI OC
ASUS GeForce RTX 2060 6GB DUAL MINI OC
ASUS GeForce GTX 1660 SUPER 6GB DUAL MINI OC

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
