Gigabyte RX6600XT 6700 6700XT RTX 3070 EAGLE GPU Fan Replacement Set

Gigabyte RX6600XT 6700 6700XT RTX 3070 EAGLE GPU Fan Replacement Set

RX 6600 Series, RX 6700 Series, and RTX 3070 Series

For: Gigabyte
Power Connector: 4 Pin
Dimensions: 75 mm
Depth: 10 mm
Mounting Distance: 40 x 40 x 40 mm
Part Number(s): T128010SU
Rating: 12V @ 0.35A

GB-6KEAGLE-F

UK Express Shipping   Express Shipping Item - more info
$23.00 USD
$0.00 USD $23.00 USD
Sale Sold out
Shipping calculated at checkout.

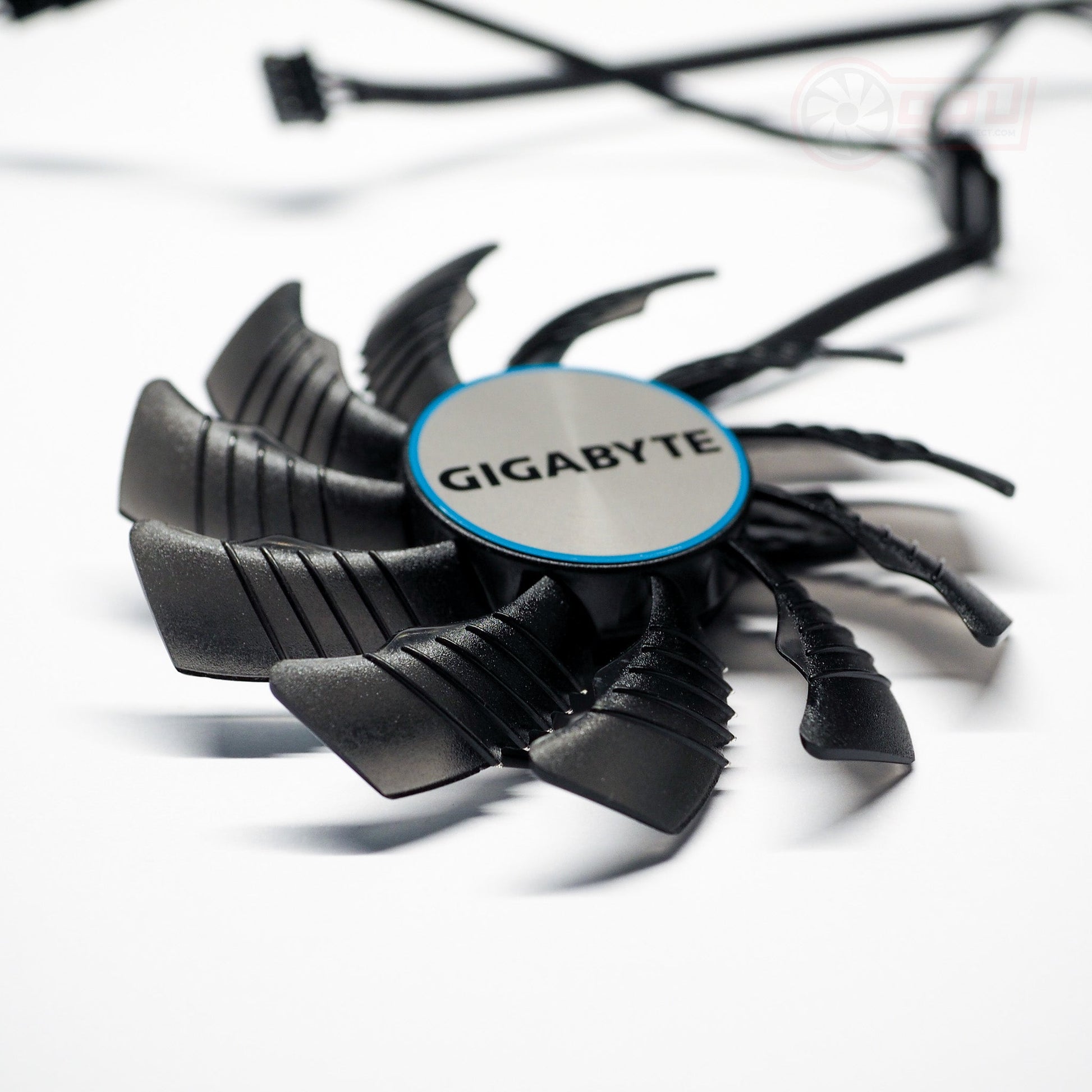

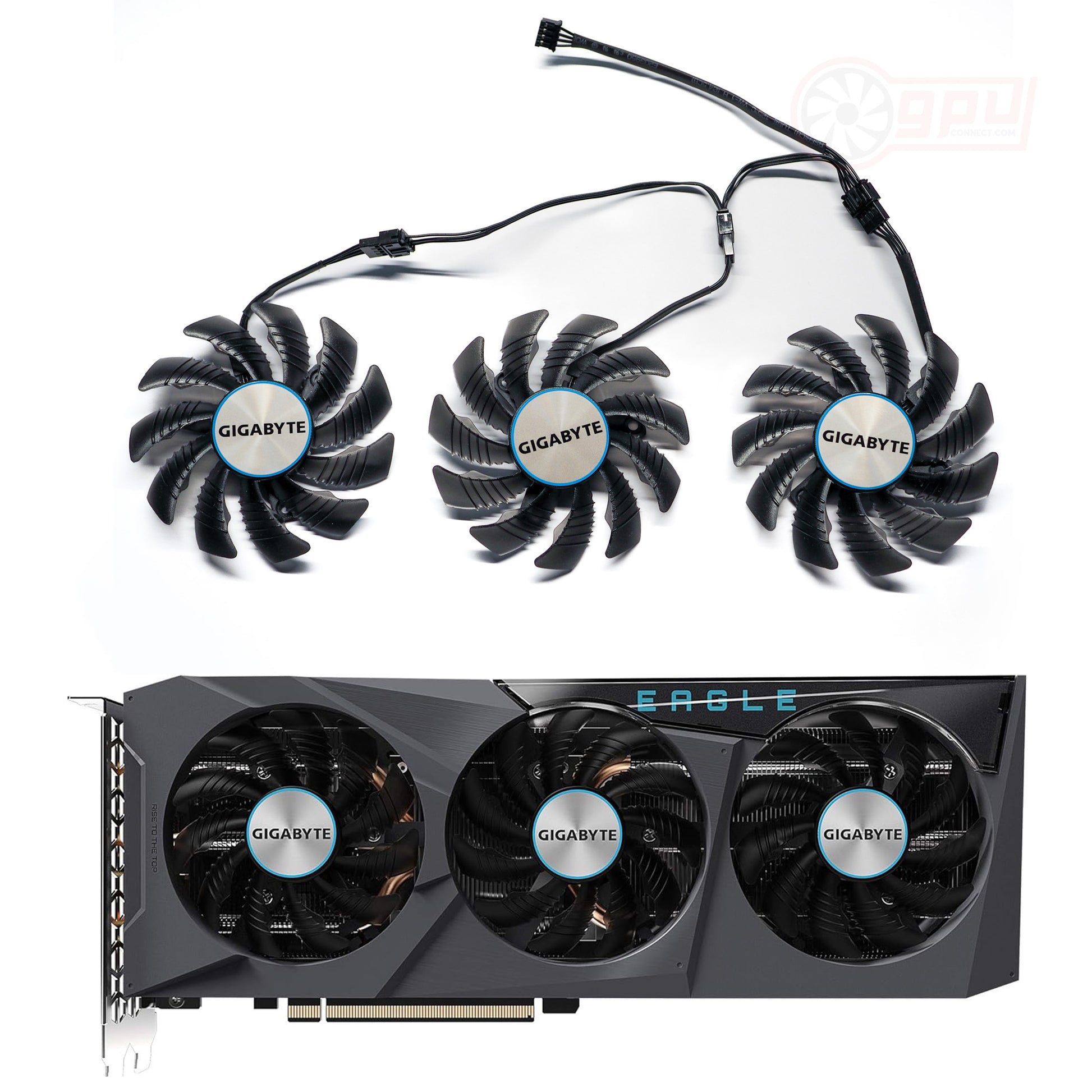

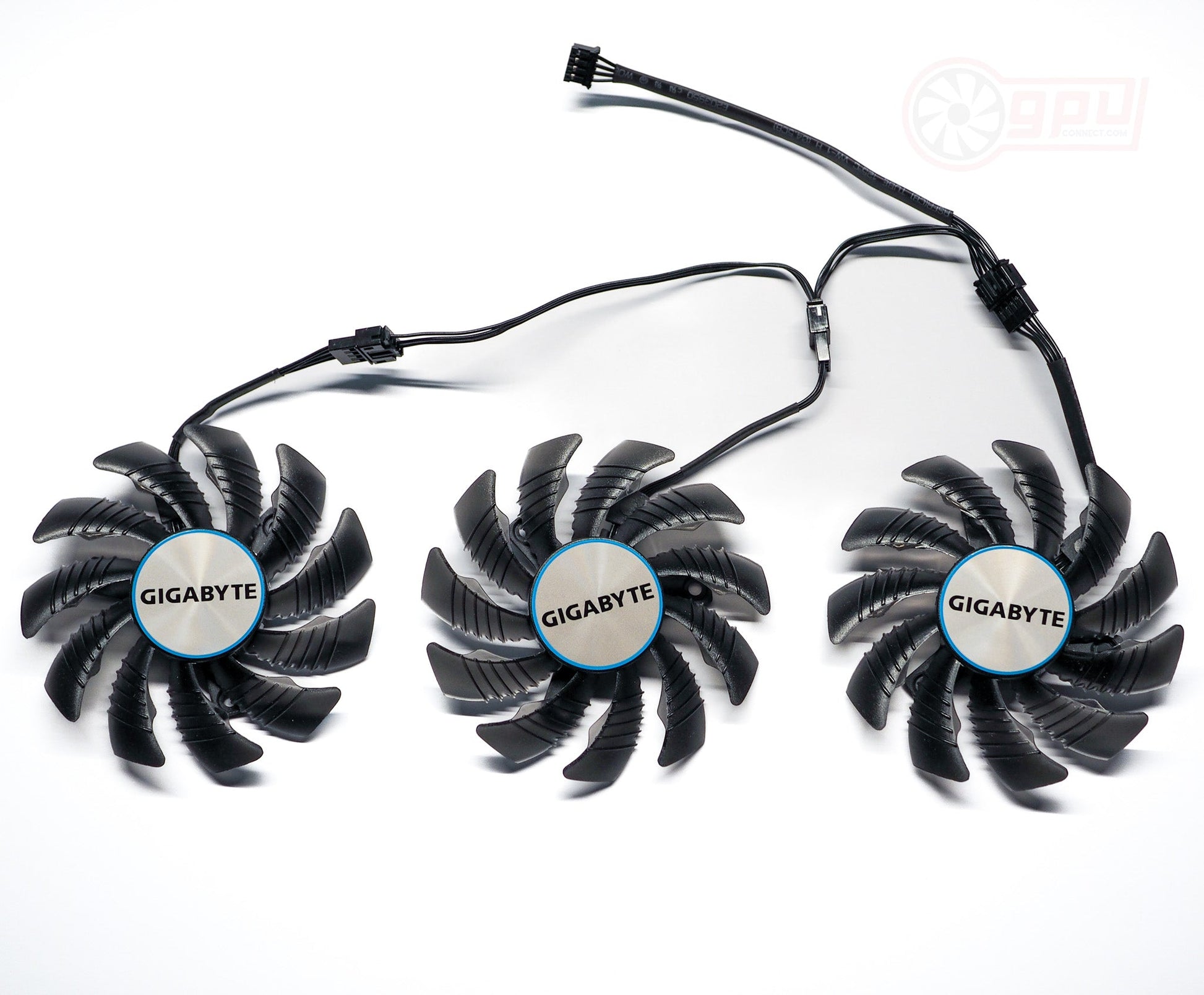

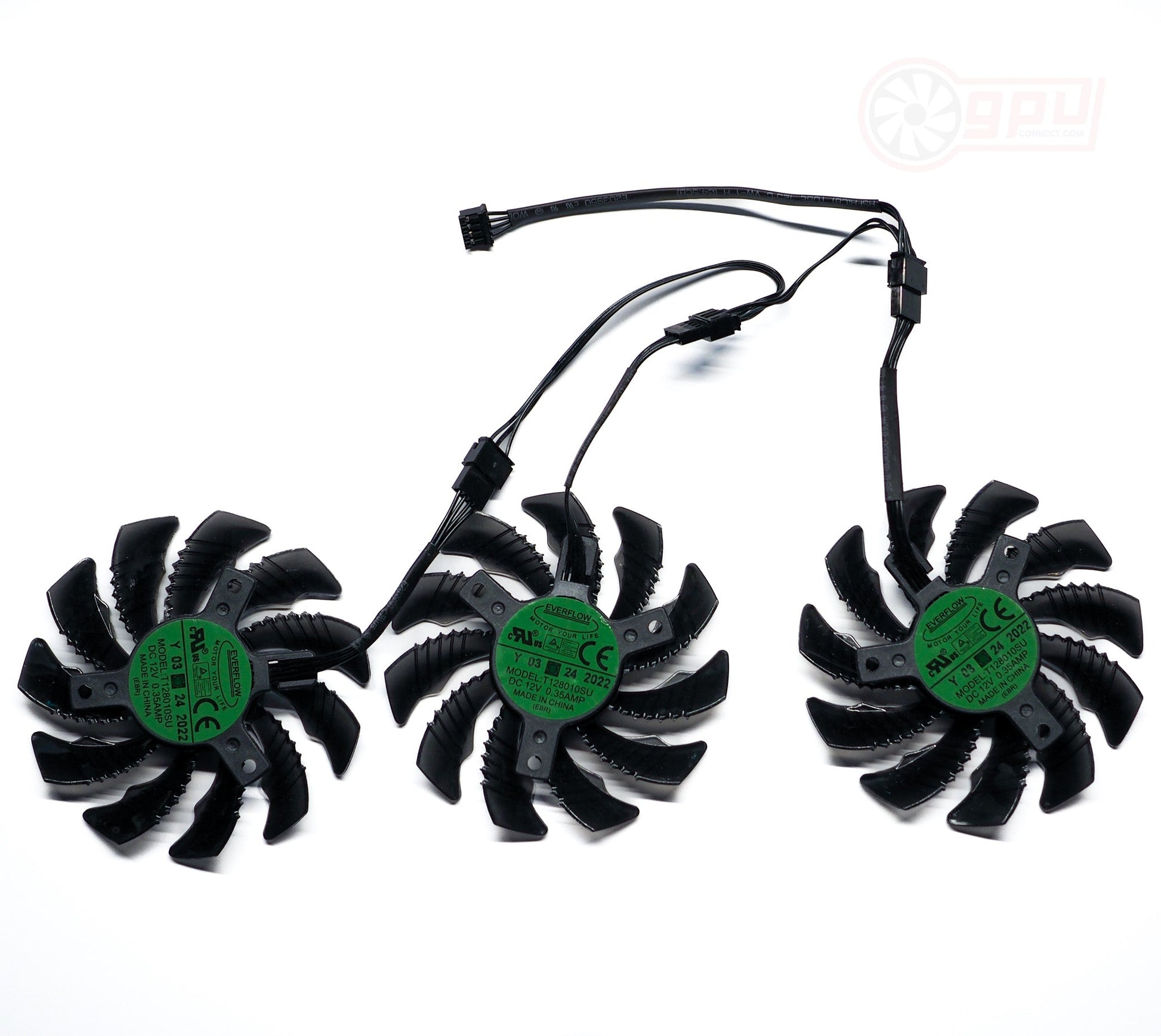

Replacement GPU fan set for poor performing, damaged or faulty Gigabyte RX6600XT, 6700, 6700XT, and RTX 3070 EAGLE series graphics card coolers.

These high quality replacement fans can simply be replaced for the originals to restore thermals and performance to your Gigabyte graphics card.

Please carefully check dimension and model compatibility before purchase, noting your GPU should match that shown in the headline listing image.

Note: many Gigabyte fans looks similar but are in fact different.  Please carefully check compatibility or message us if you need to confirm.
View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

Gigabyte Radeon RX 6700 XT EAGLE 12G
Gigabyte Radeon RX 6700 XT EAGLE OC 12G
Gigabyte Radeon RX 6600 EAGLE 8G
Gigabyte Radeon RX 6600 XT EAGLE 8G
Gigabyte GeForce RTX 3070 Ti EAGLE OC 8G
Gigabyte GeForce RTX 3070 EAGLE OC 8G

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
