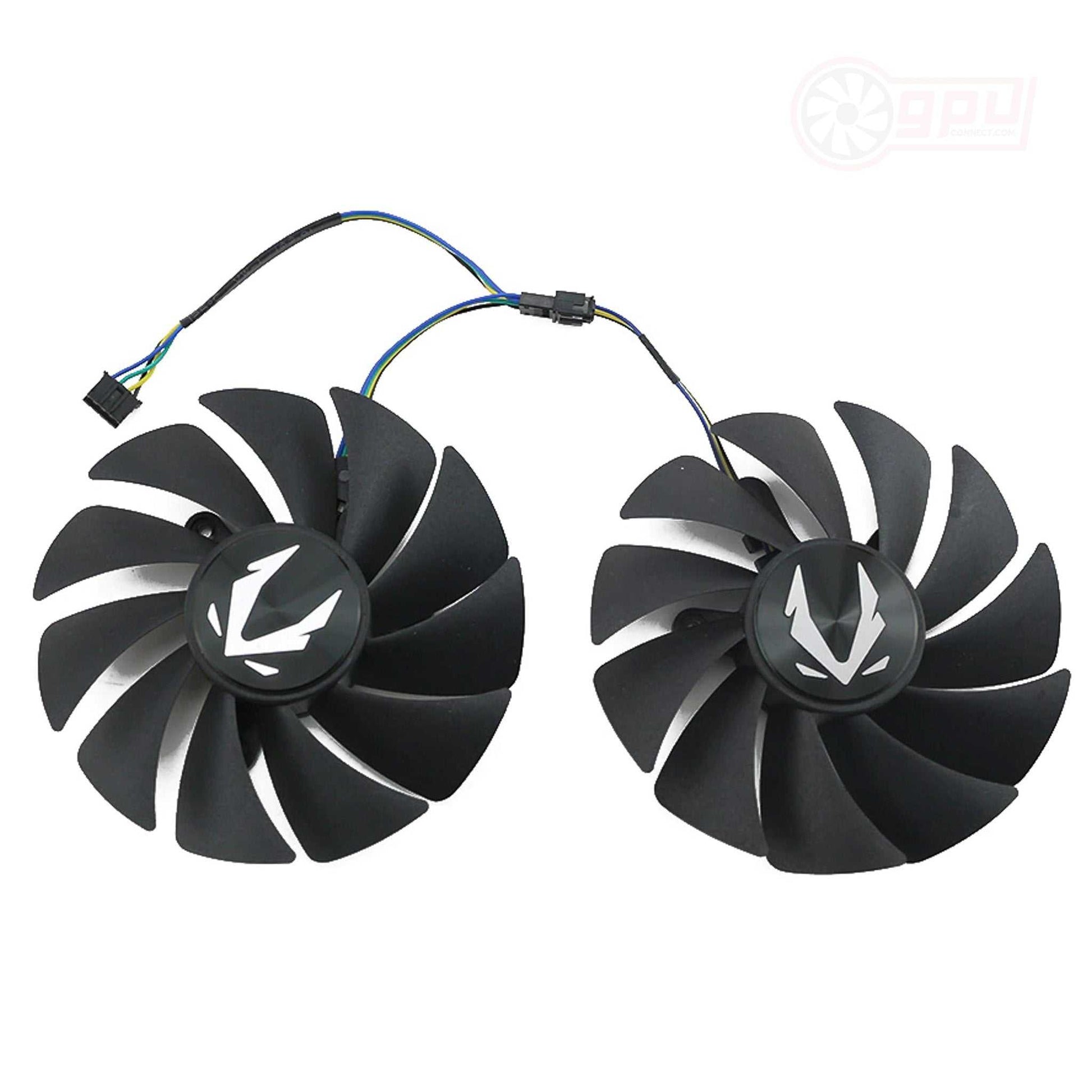

Zotac RTX 3070 Ti 3080 Ti 3090 GAMING Trinity OC Replacement Fans

Zotac RTX 3070 Ti 3080 Ti 3090 GAMING Trinity OC Replacement Fans

RTX 3070 Series, RTX 3080 Series, and RTX 3090 Series

For: Zotac
Power Connector: 4 Pin
Dimensions: 87 mm
Depth: 12 mm
Mounting Distance: 42 x 42 x 42 mm (triangle)
Part Number(s): GA92S2U
Rating: 0.46A @ 12V

ZO-3080TRI-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
$26.00 USD
$26.00 USD
Sale Sold out
Shipping calculated at checkout.

This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

ZOTAC GAMING GeForce RTX 3070 Ti AMP Holo
ZOTAC GAMING GeForce RTX 3080 AMP Holo
ZOTAC GAMING GeForce RTX 3080 Ti AMP Holo
ZOTAC GAMING GeForce RTX 3070 Ti Trinity OC
ZOTAC GAMING GeForce RTX 3080 Trinity OC
ZOTAC GAMING GeForce RTX 3080 Ti Trinity OC
ZOTAC GAMING GeForce RTX 3090 Trinity OC

Note: This maybe compatible with other cards, however please check the specs and wiring loom match your card before purchase.

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.

Returns

If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.
