Linkwylan RJ45 Toolless Industrial Field Connector Shielded Plug CAT 7/8 40G

Linkwylan RJ45 Toolless Industrial Field Connector Shielded Plug CAT 7/8 40G

UK Express Shipping Express Shipping Item - more info
Speed
£4.95 GBP
£4.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

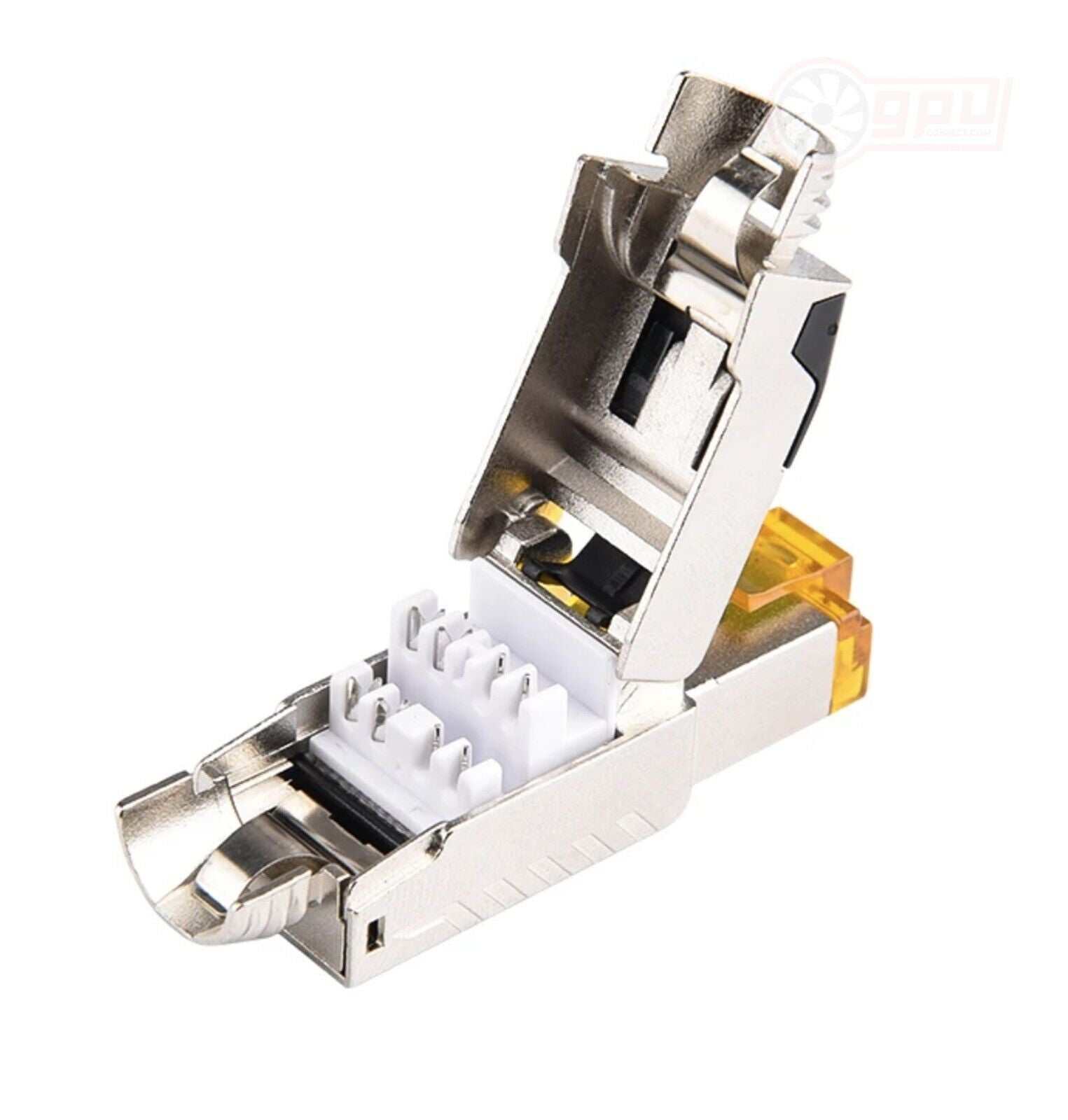

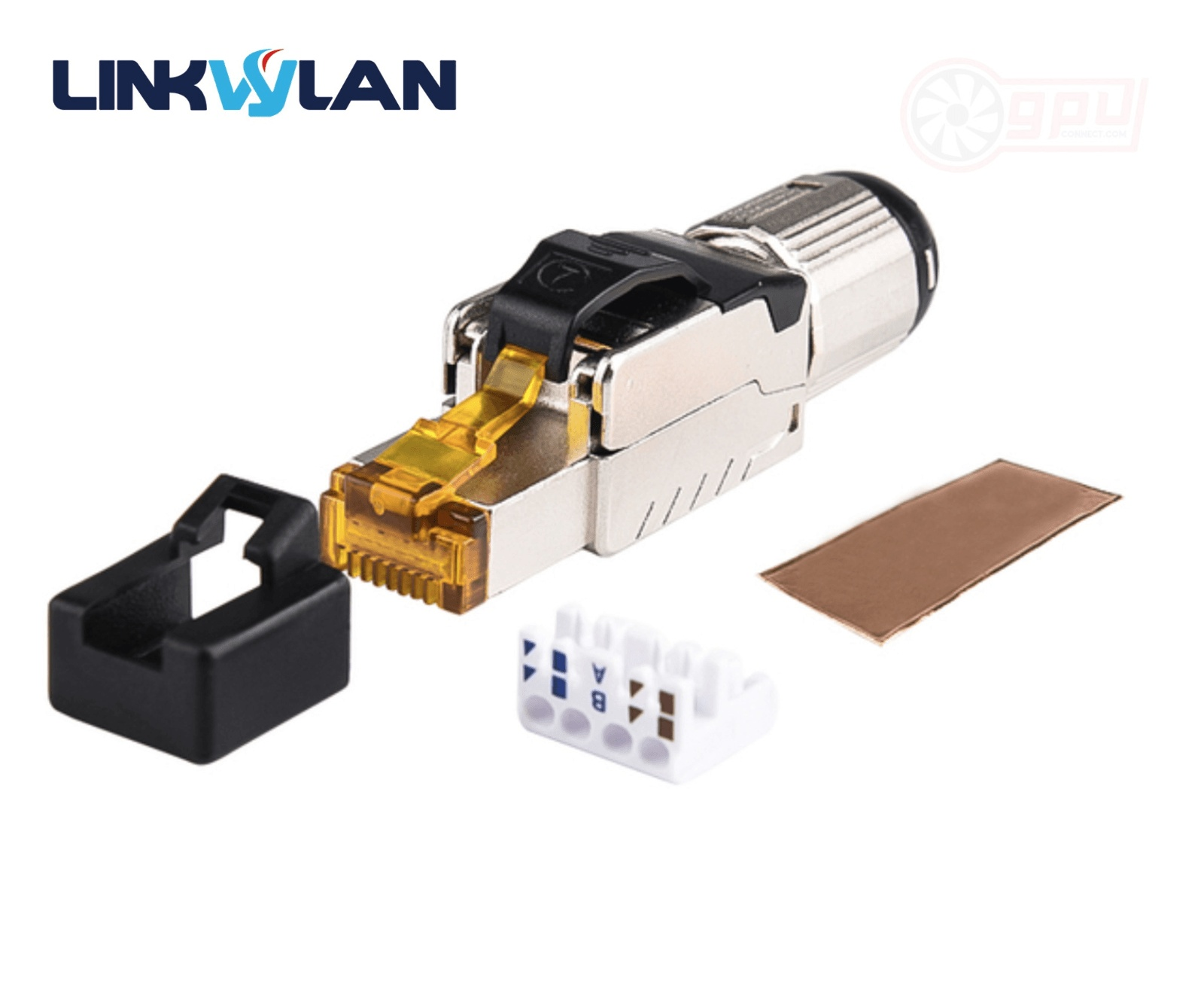

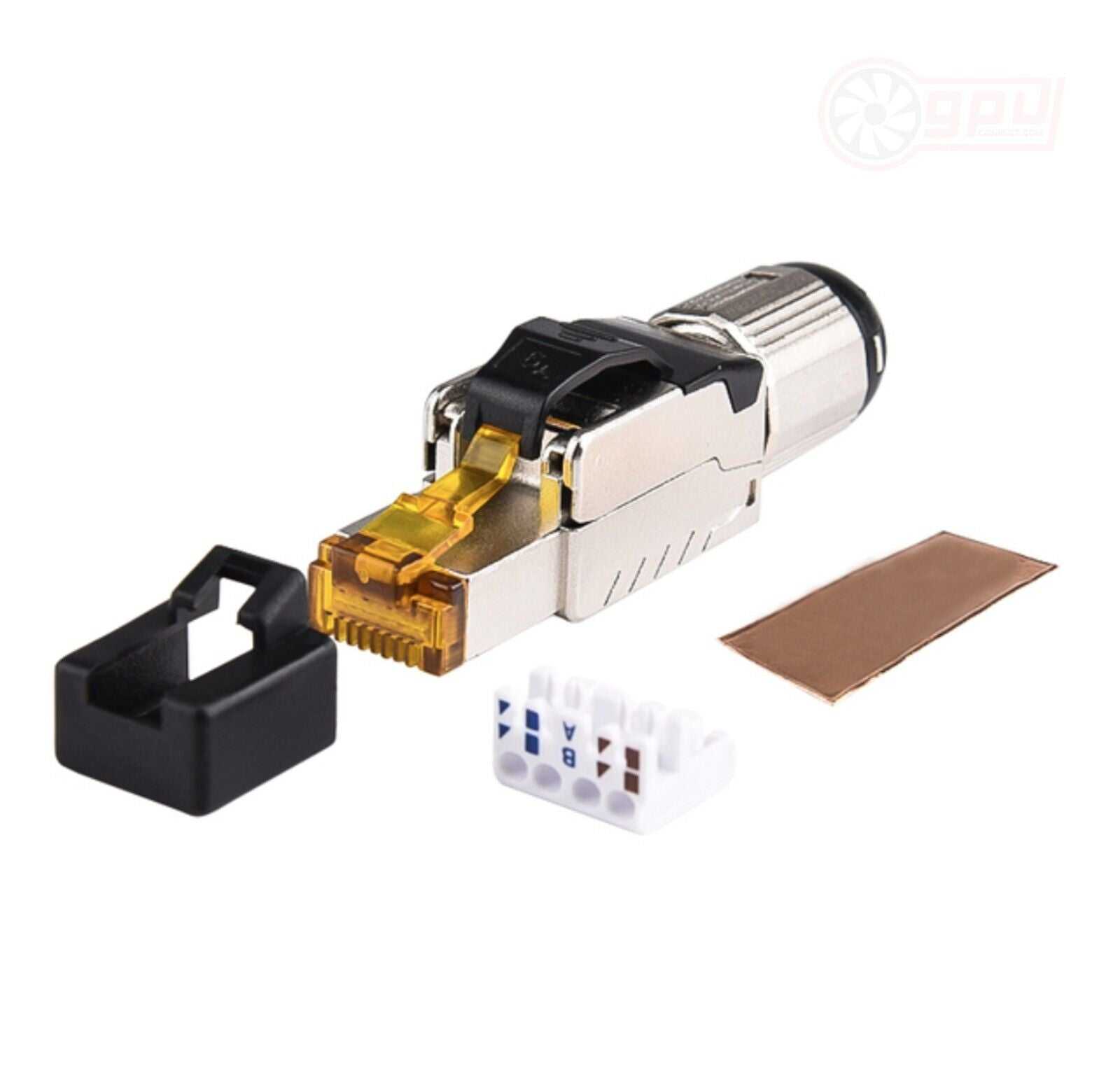

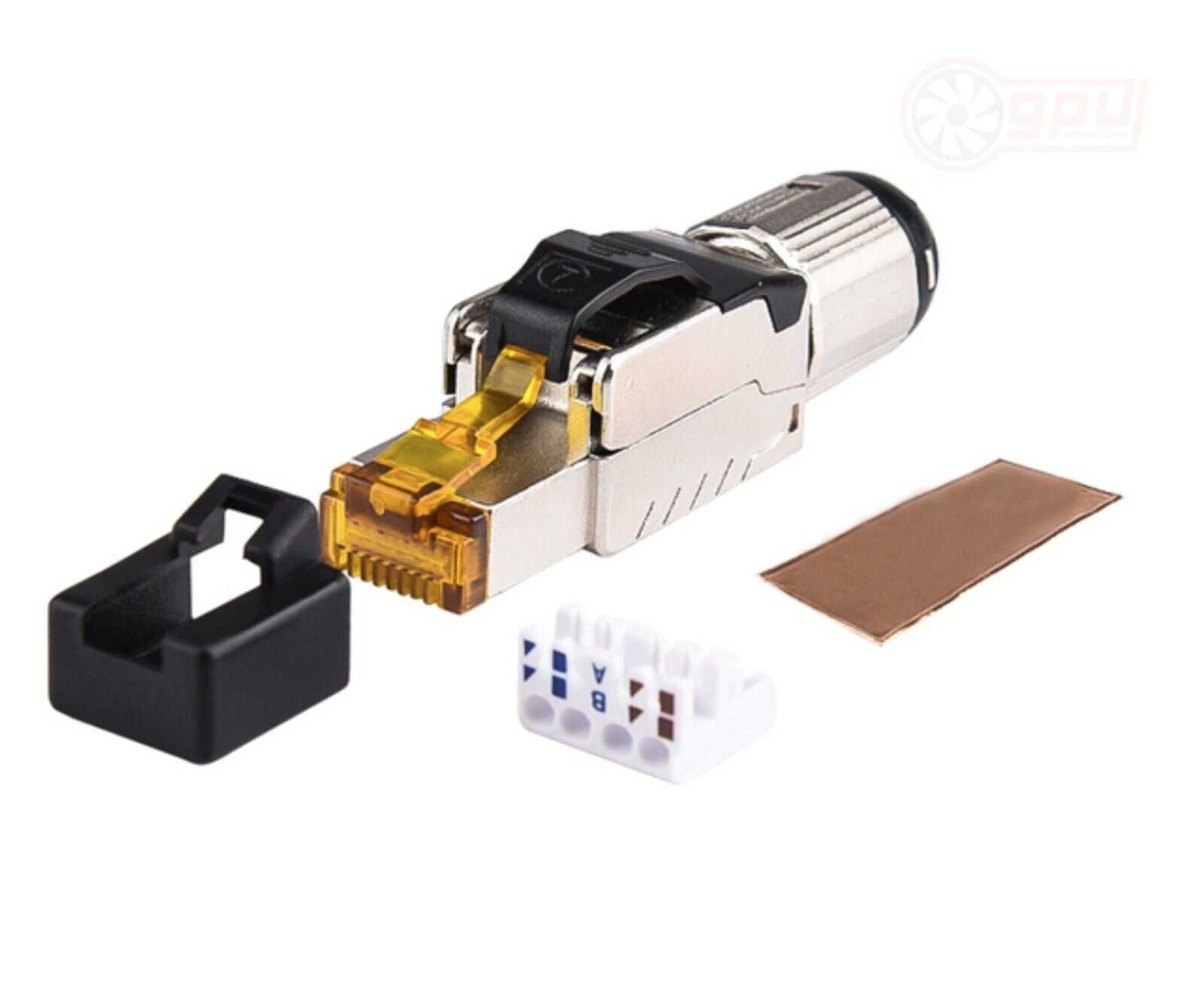

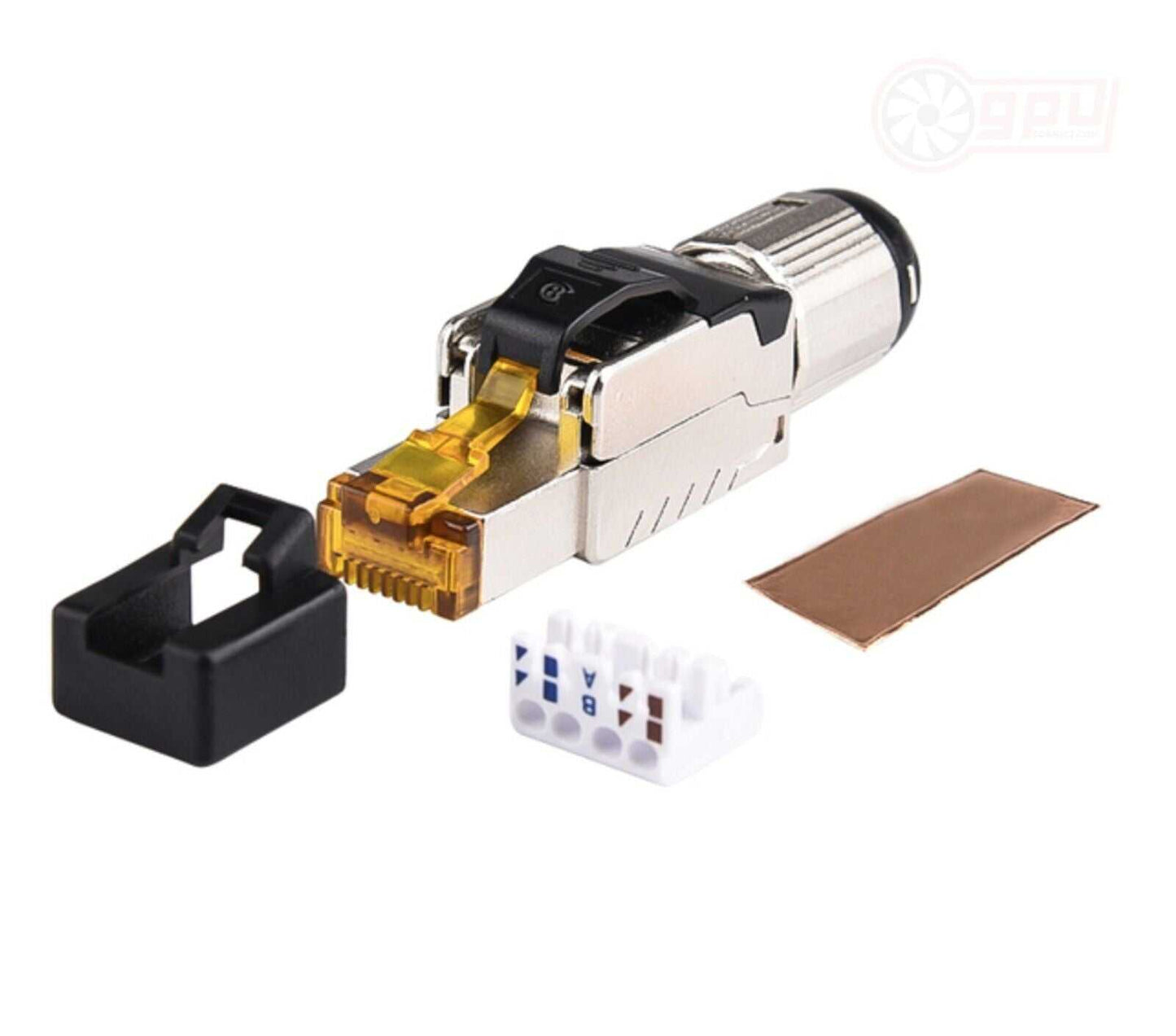

Linkwylan® Field Termination Plugs are high quality, certified keystones designed for use in commercial network systems to delivery high speed network connectivity with speeds up to 40 Gigabit per second.

  • Tool Free Connection
  • Certified Speed Guarantee
  • STP with Full Shielding
  • PoE / PoE+ Support up to 100W
  • Lifetime Warranty

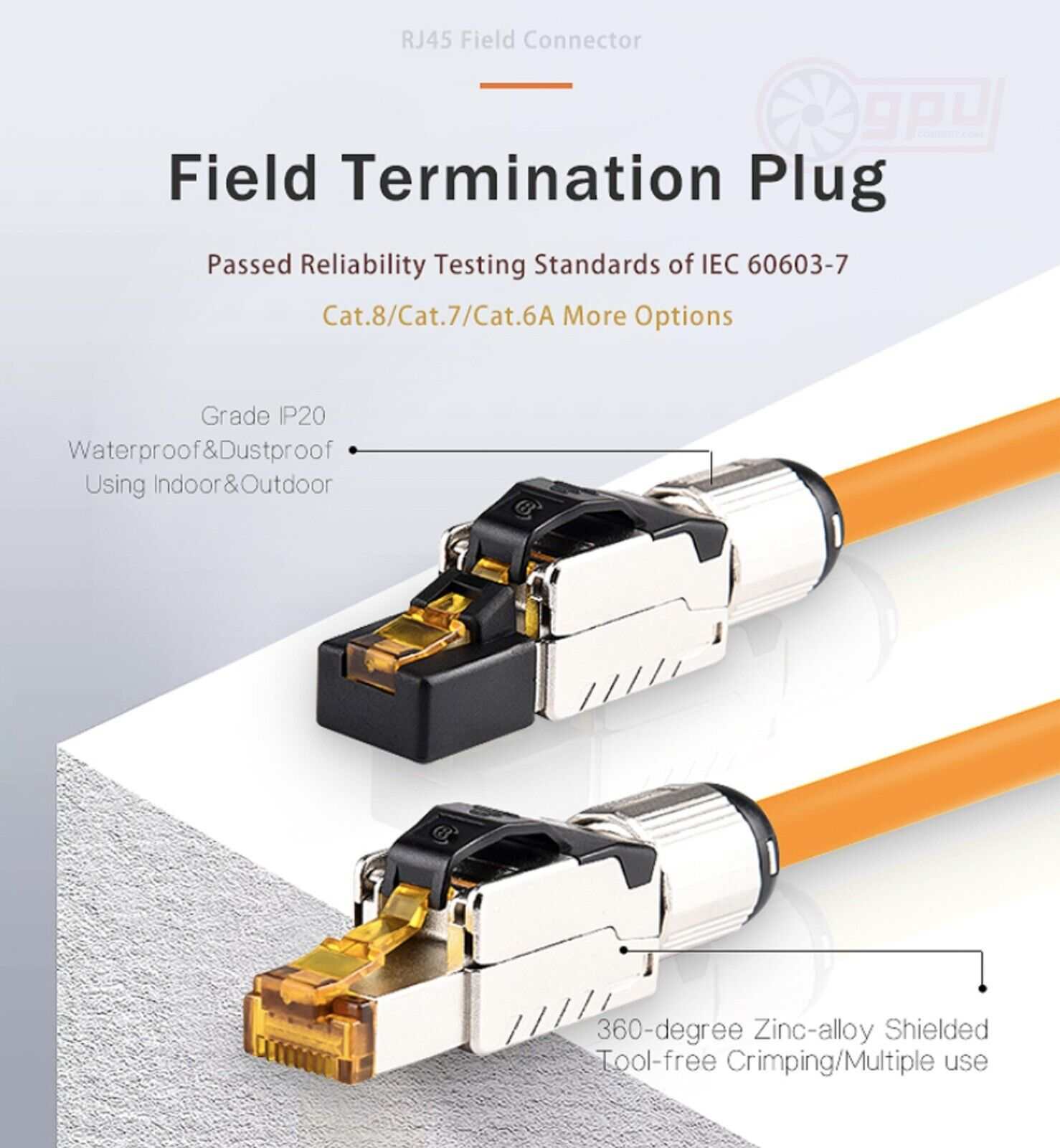

Fully shielded field terminator with tool-free installation, commercial grade, certified network connector.  IP20 Industrial grade protection with Zinc-alloy diecasting supporting PoE/PoE+/4PPoE power over ethernet up to 100W.  Conforms to TIA Category 8 channel & ISO/IEC Class I channel 25/40GBase-T.

Please ensure the keystone is paired with the correct cable to ensure secure fitting.  The toolless design punches down without the need for any crimping tool.

Backed by a lifetime (15 Year) warranty for any manufacturing defects.



 Category

Transmission

Frequency

PoE Max

Cable

CAT 7

10Gbps

600 Mhz

100 Watts

23-24 AWG

CAT 8

40Gbps

2000 Mhz

100 Watts

22-24 AWG



Note: It is recommended to only use single core, shielded network cable opposed to stranded for any connections

View full details

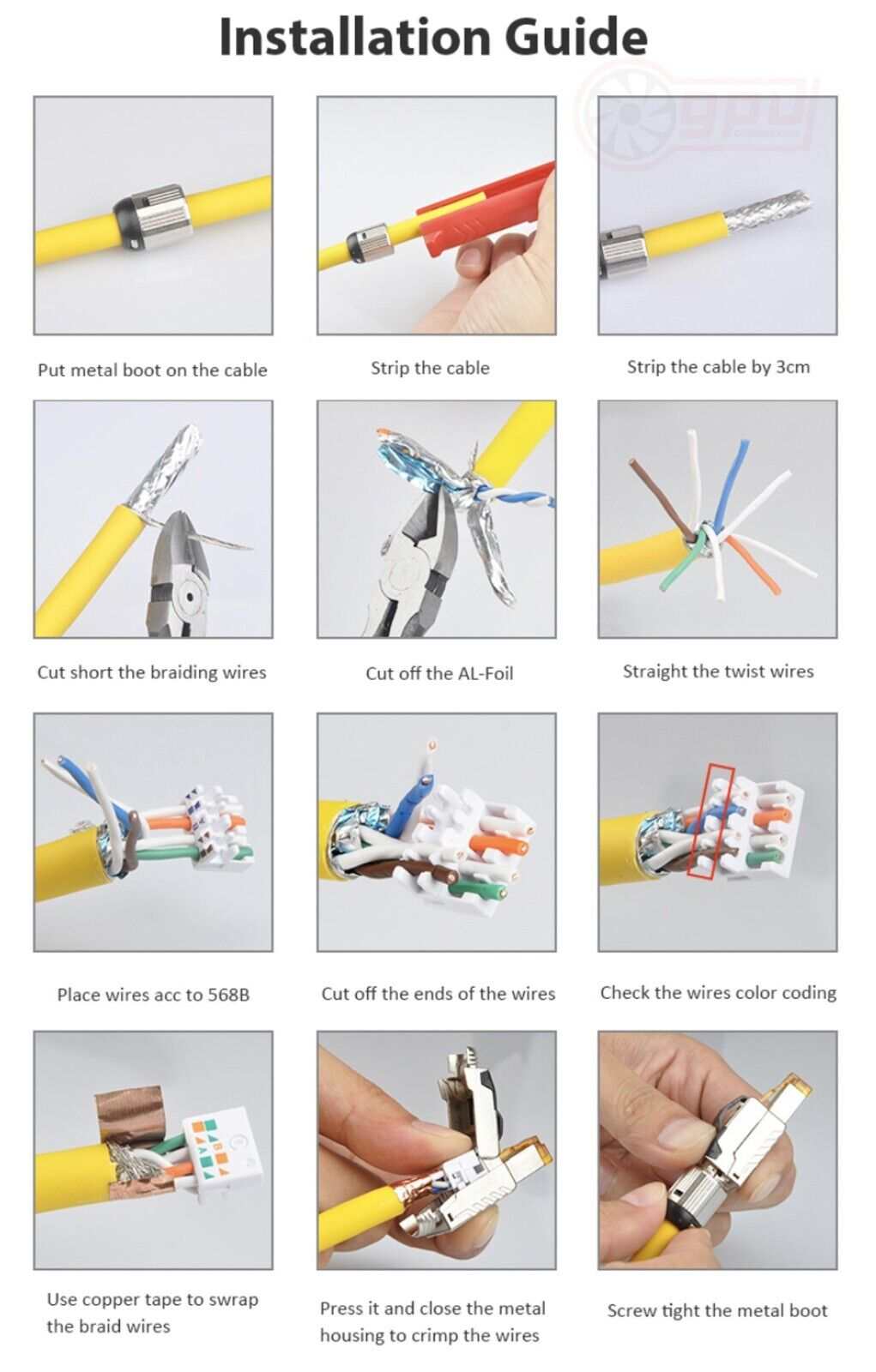

Installation

Installation does vary by product, however all our networking range have universal compatibility to 568B or 568A specifications and are labelled as such.

Specific product tutorials and video guides can be found here:

Networking Installation Guides
