Asus RTX 3090 Ti TUF 7-Pin to 4-Pin Deshroud Adapter Fan Cable

Asus RTX 3090 Ti TUF 7-Pin to 4-Pin Deshroud Adapter Fan Cable

UK Express Shipping Express Shipping Item - more info
Regular price £14.95 GBP
Regular price £0.00 GBP Sale price £14.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

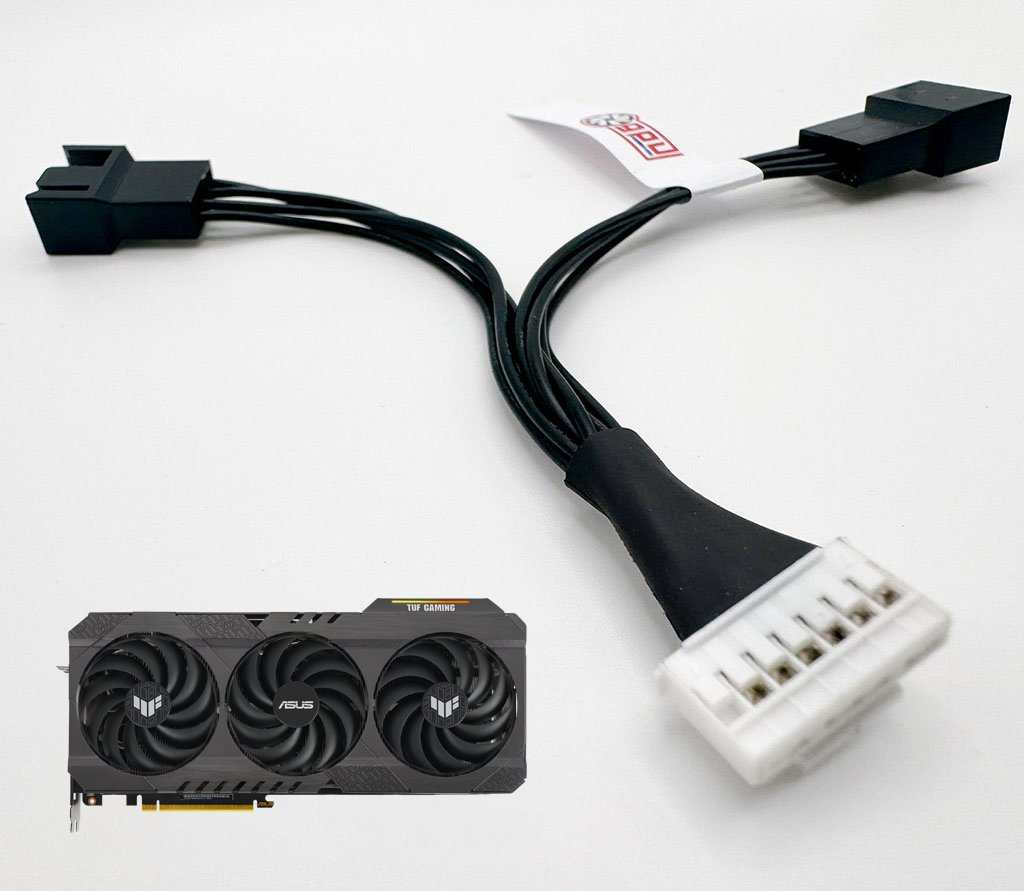

This is a 7 pin to dual 4 pin adapter for the Asus RTX 3090 Ti TUF Series graphics cards, for use when DeShroud modding. This will connect directly into the GPU and provide a 2 fan standard fan outputs for use with 120mm or 92mm 12v PWM fans like the Noctua series.  Full control can then be provided via the GPU firmware or can be changed with MSI Afterburner.

Features & Benefits:

  • Dual 4 pin PWM Outputs
  • Compatible with standard fans (12v)
  • Lower Noise
  • Better thermals
  • Increased Overclocks
  • Independent Fan Outputs

Deshrouding can reduce noise, increase thermal efficiency, overclocking headroom and performance. As standard this cable provides 2 independent outputs with independent monitoring via the GPU.

By using this type of cable, the GPU firmware controls the fan speed, which is directly linked the the GPU speed without additional 3rd party software. We would however recommend adjusting the fan curve using MSI Afterbuner following the completion of a deshroud mod.

A single fan splitter can be added to one of the outputs to allow connection to 3 fans, however please ensure the total max fan wattage does not exceed the recommended 10 Watts.

    View full details

    Collapsible content

    Compatibility

    The following products are known compatible with this deshroud adapter:

    TUF-RTX3090TI-24G-GAMING
    TUF-RTX3090TI-O24G-GAMING

    Installation

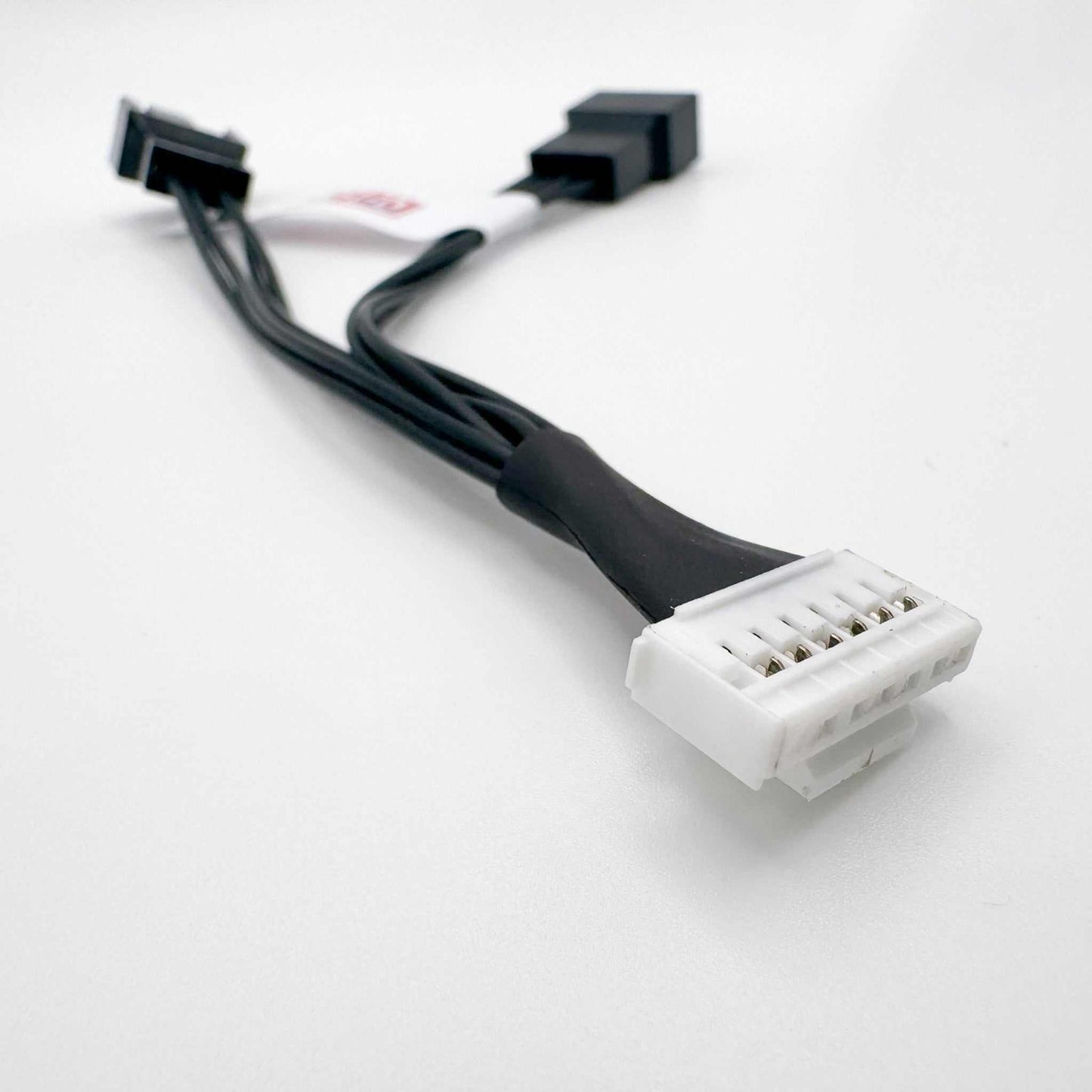

    Installation is simple... with the PC powered down and disconnected, connect the white end to the GPU header, being careful to check the direction of the plug is correct. If correct it should seat easily.

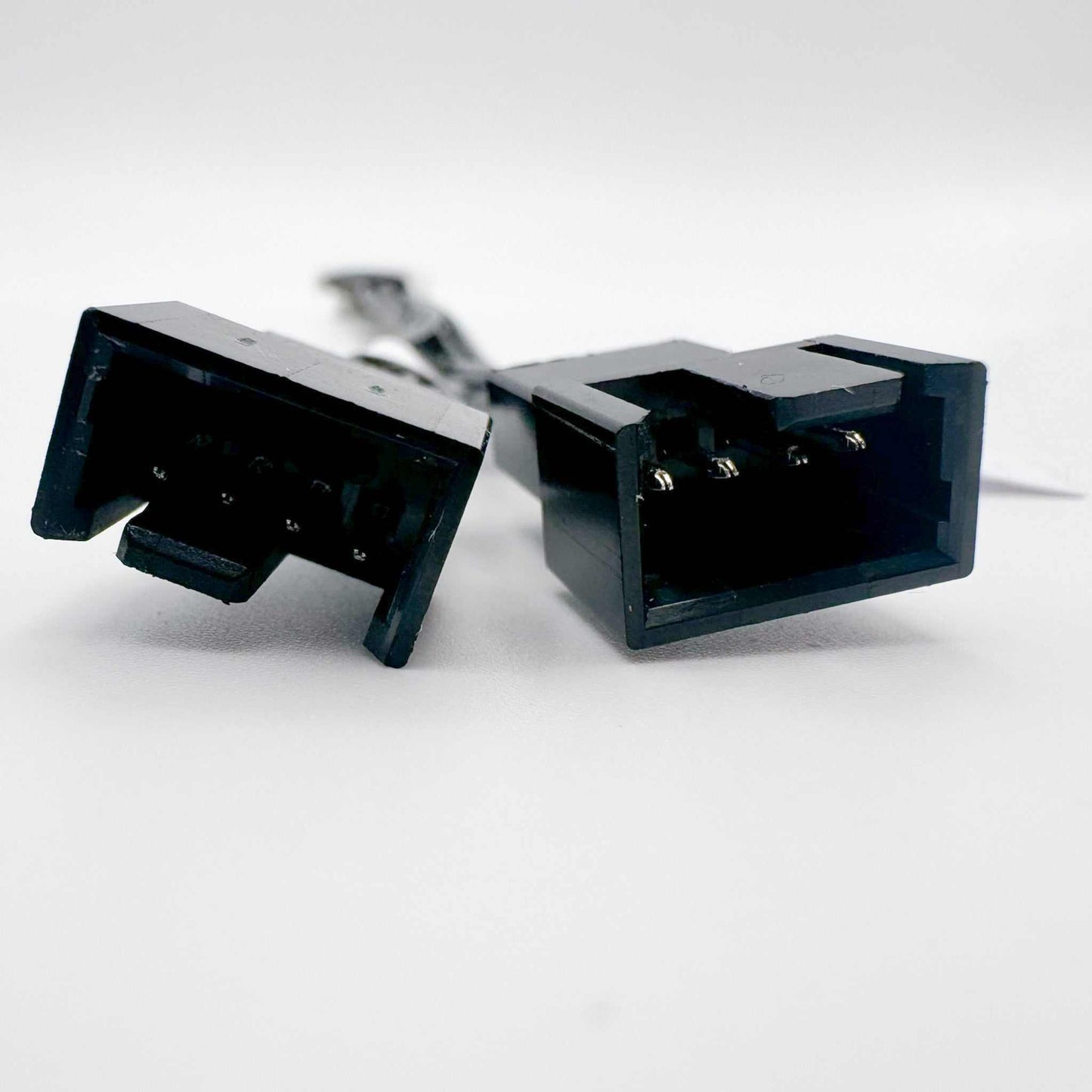

    Connect the PWM black ends to your standard, 12v PWM fans. Please note whilst you can daisy chain to power up to 3 fans going above this can create an unnecessary power draw on your fan header and is not recommended.

    Following install, with the case open, power on the system and check the fans start to spin. If they don't power down immediately and check the GPU against the compatibility list or contact us.

    Dimensions

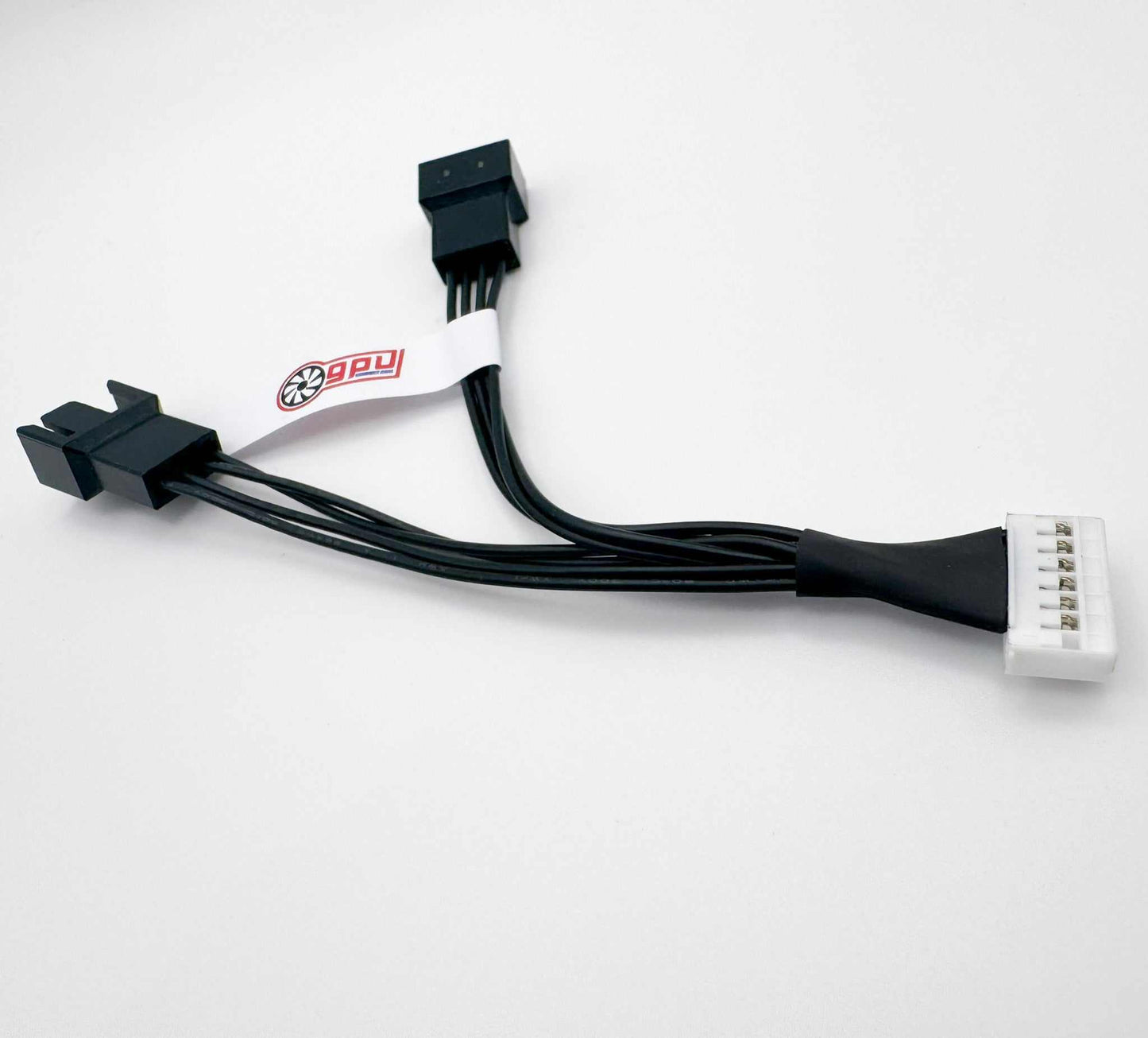

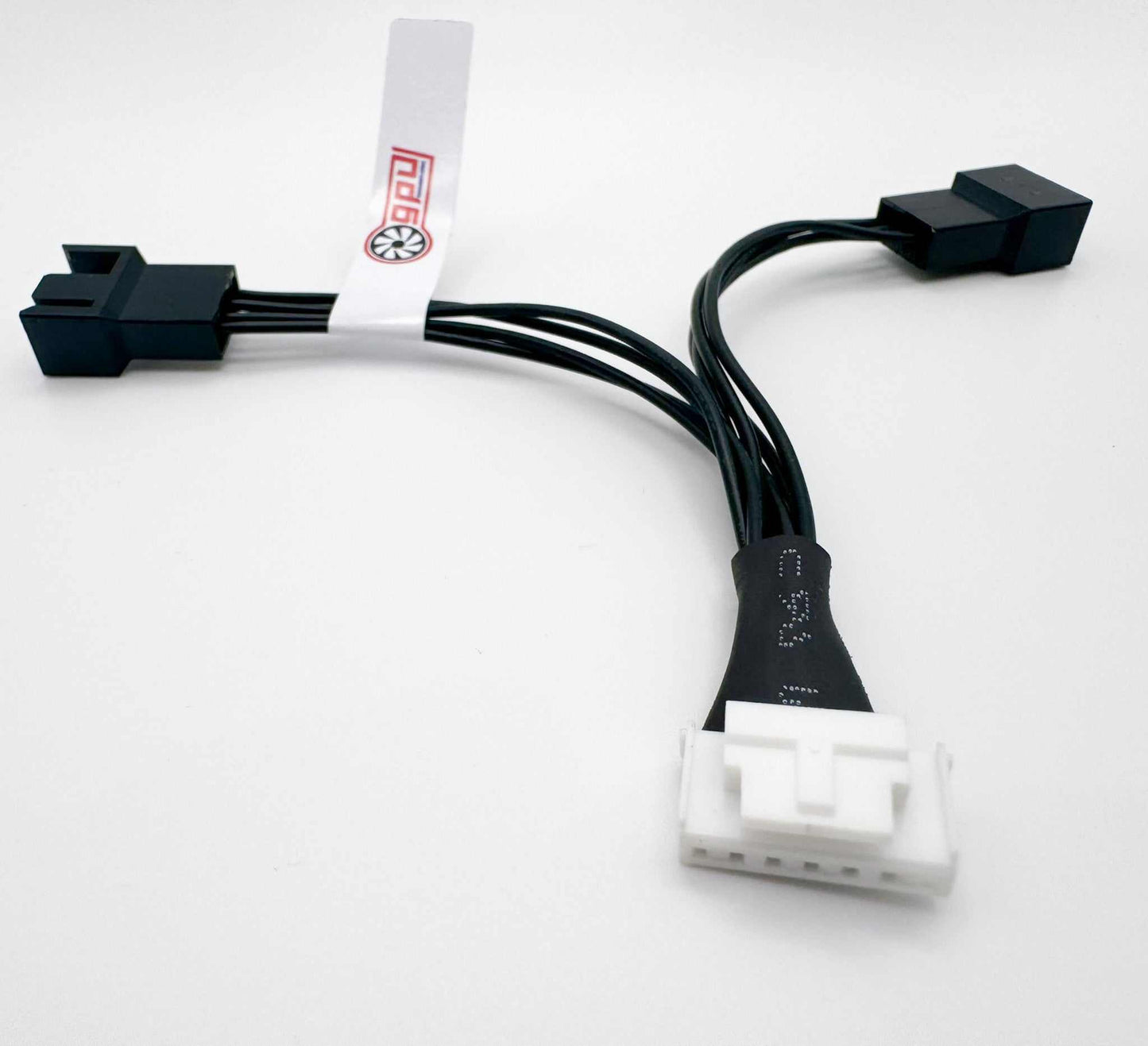

    Cables are provided as standard with black cable, white GPU connection and black PWM sockets.

    Approx length is 10 cm

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here

    Returns

    If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.

    Find Out More

    • Guaranteed Compatibility

      Guaranteed to work with the compatibility list or we give you your money back!

    • International Shipping Options Logo

      International Shipping

      From free UK delivery and just £10.95 worldwide. EU Tax included on all orders under €150

      Shipping Costs
    • Customer Service Logo

      Customer Service

      Have a deshroud requirement for a card we don't sell, we can make it for you! Just get in touch

      Contact us

    Why deshroud?

    Motherboard fan headers can often be reassigned to monitor GPU temperatures, however will require an often unwanted 3rd party application to be installed to do this.  The control of fans by motherboard headers often can cause overheating or other issues due to the software processing required to maintain control, and the fan curve is not directly linked to overclock or under-volt settings which would be required from a secondary application.  A deshroud mod will also require 2 fan headers to be used, preventing them from being used elsewhere in the system.
