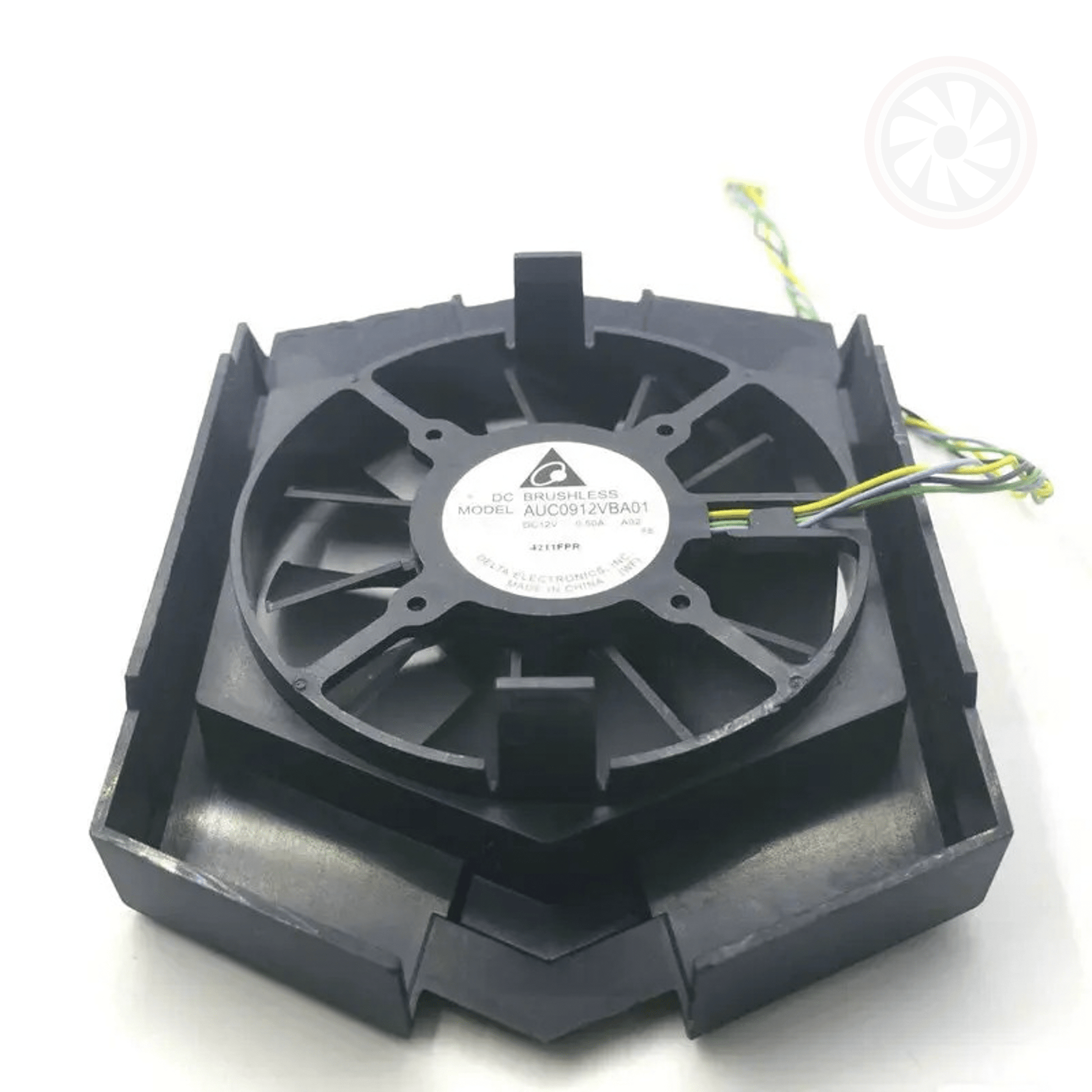

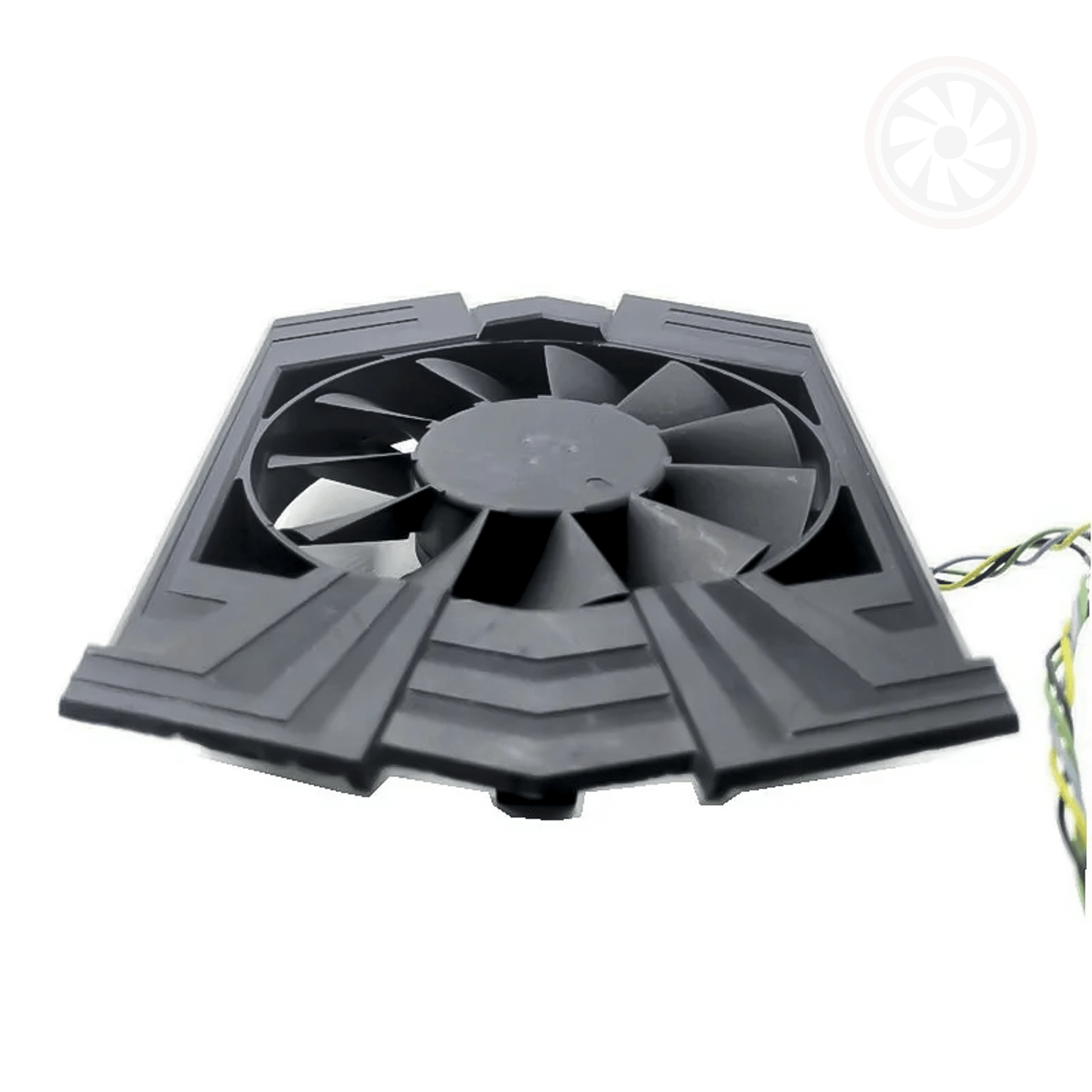

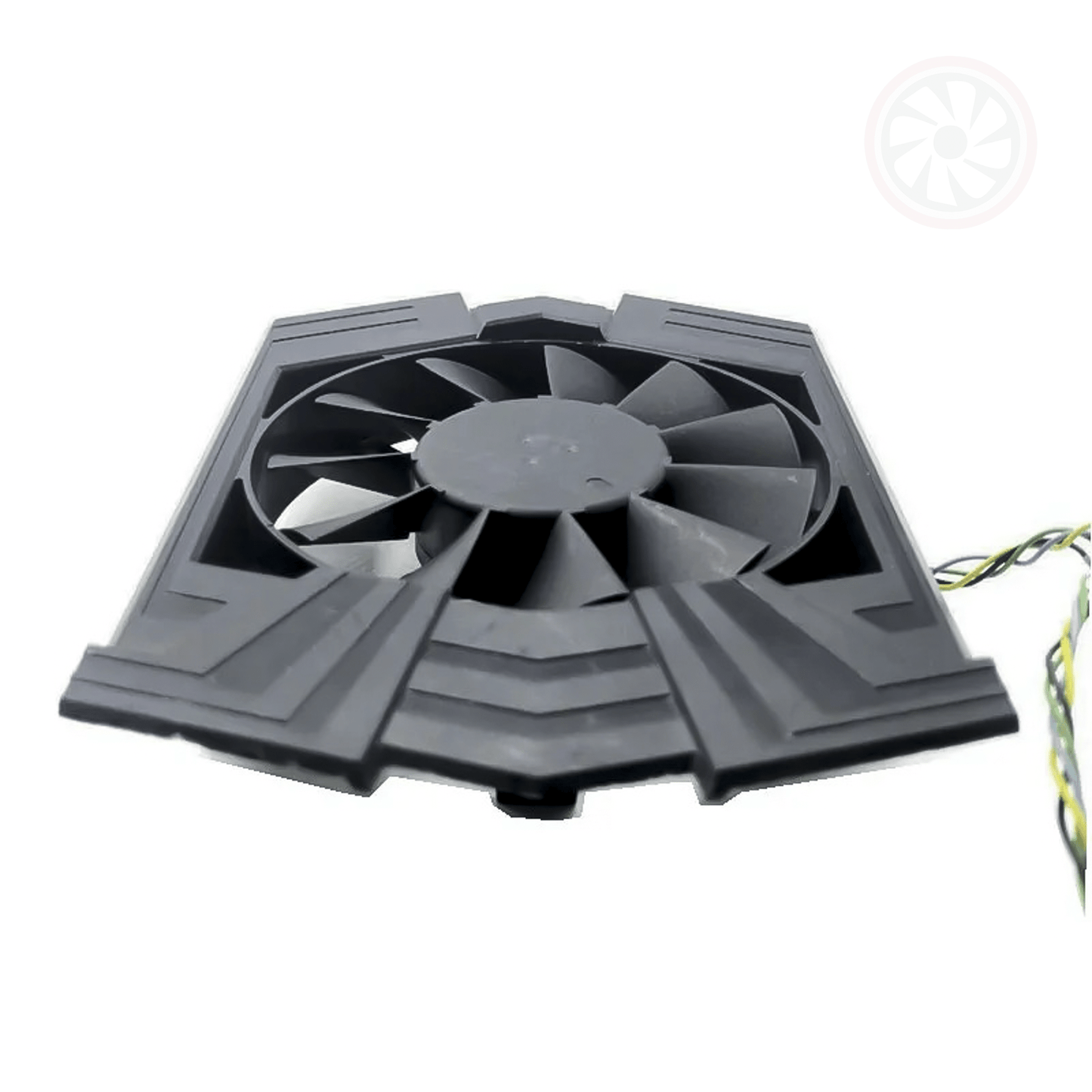

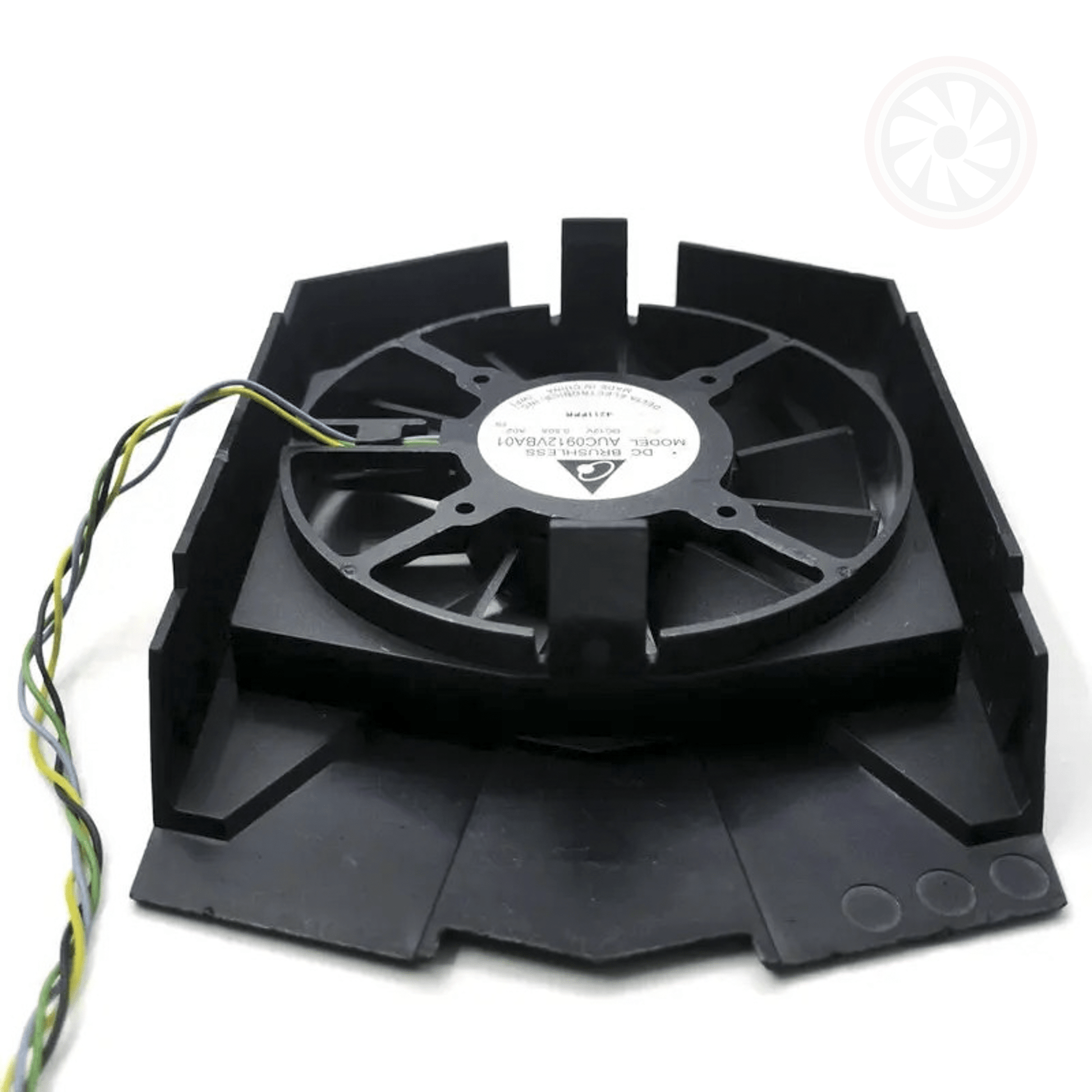

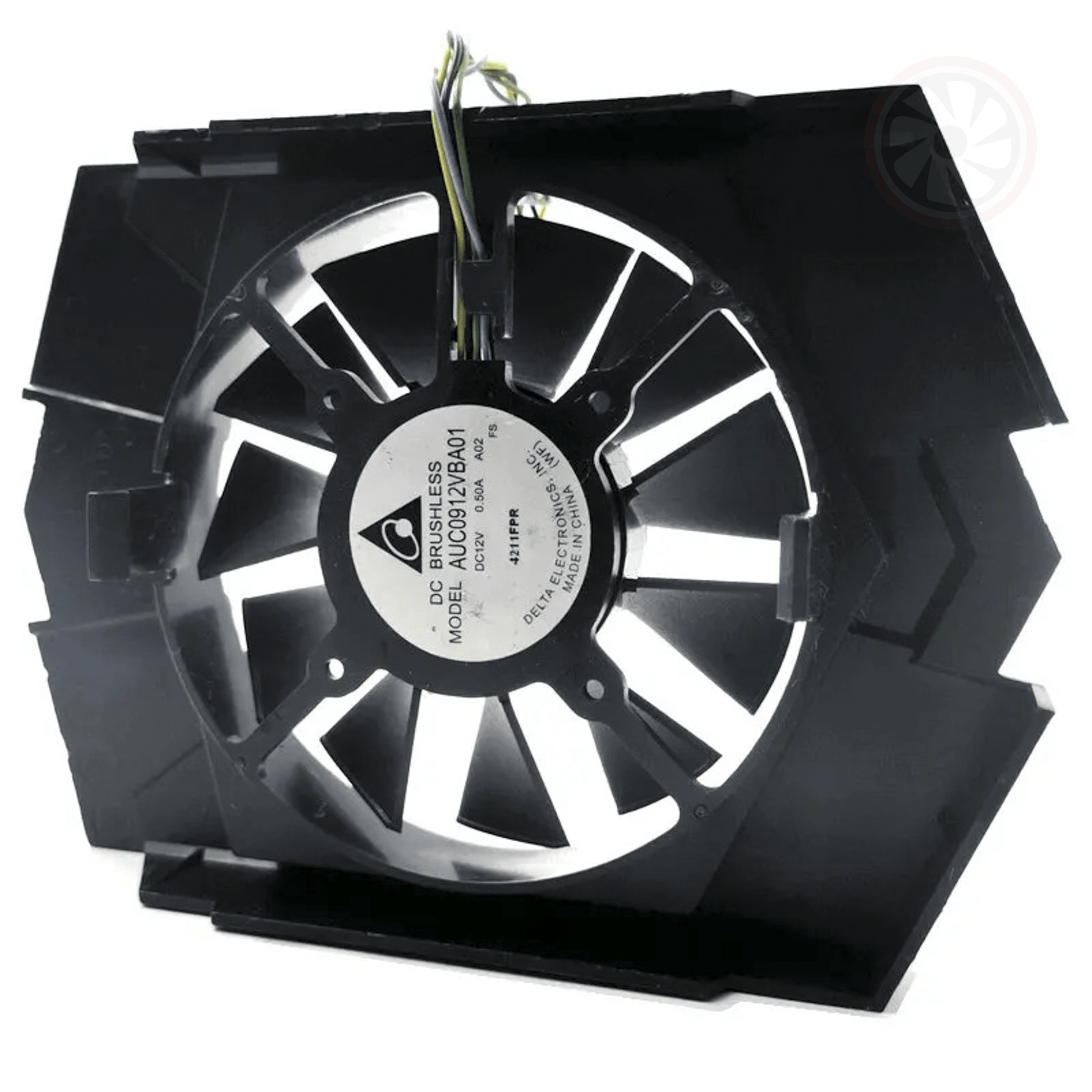

ASUS GTX 750 Ti Replacement GPU Fan and Shroud
ASUS GTX 750 Ti Replacement GPU Fan and Shroud
GTX 750 Series
For: Asus
Power Connector: 4 Pin
Dimensions: 135 x 96mm (with shroud)
Depth: 20 mm
Mounting Distance: Full Shroud
Part Number(s): PLA08015S12HH / FD8015U12S
Rating: 12V @ 0.35A / 12V @ 0.5A
SKU:AS-750S-F
Couldn't load pickup availability

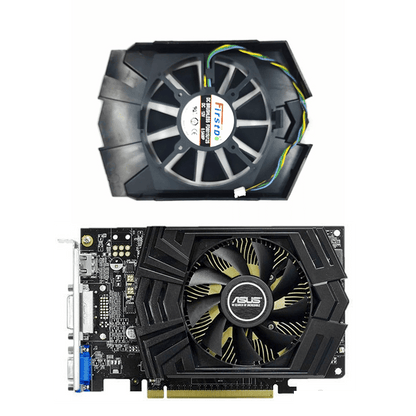

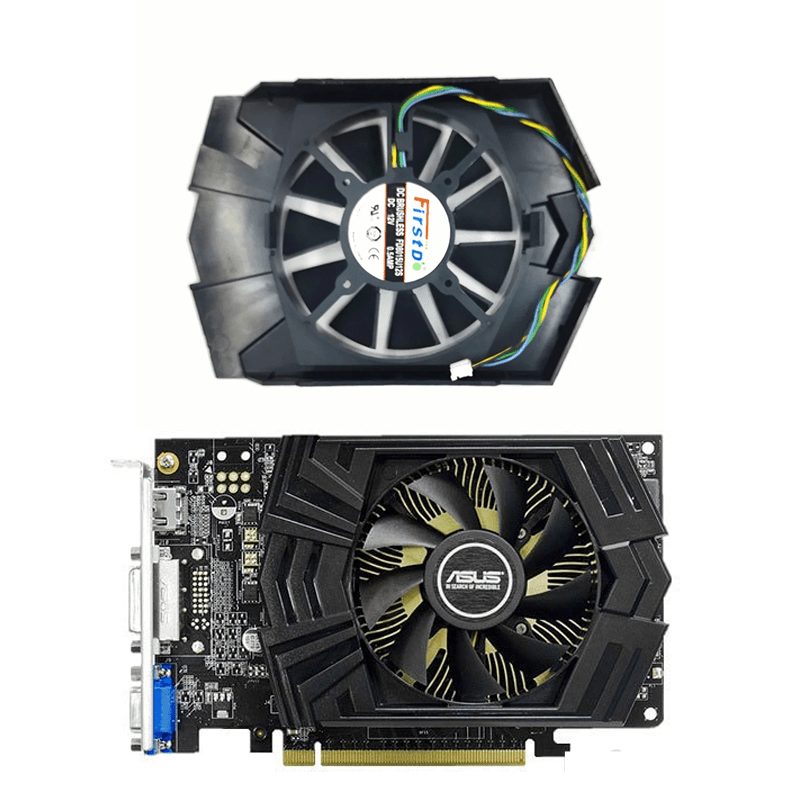

Replacement GPU fan and shroud for the ASUS GTX 750 / Ti graphics cards. Please check your card matches the graphics card image specifically to ensure compatibility.
Share
Collapsible content
Compatibility Guide
The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:
ASUS GTX 750 Ti
ASUS GTX 750
GTX750-PH-1GD5
Shipping Information
Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.
- UK - 1-4 working days (Depending on method selected)
- Europe - 3-7 working days (typical)
- USA - 6-7 working days (typical)
- Australia - 6-7 working days (typical)
- Other - 6-12 working days (typical)
Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.
For full information on shipping times please click here
Installation
Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.
Please ensure you keep note of the screw replacement locations as you do along.
The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).
At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.
Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.
Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
