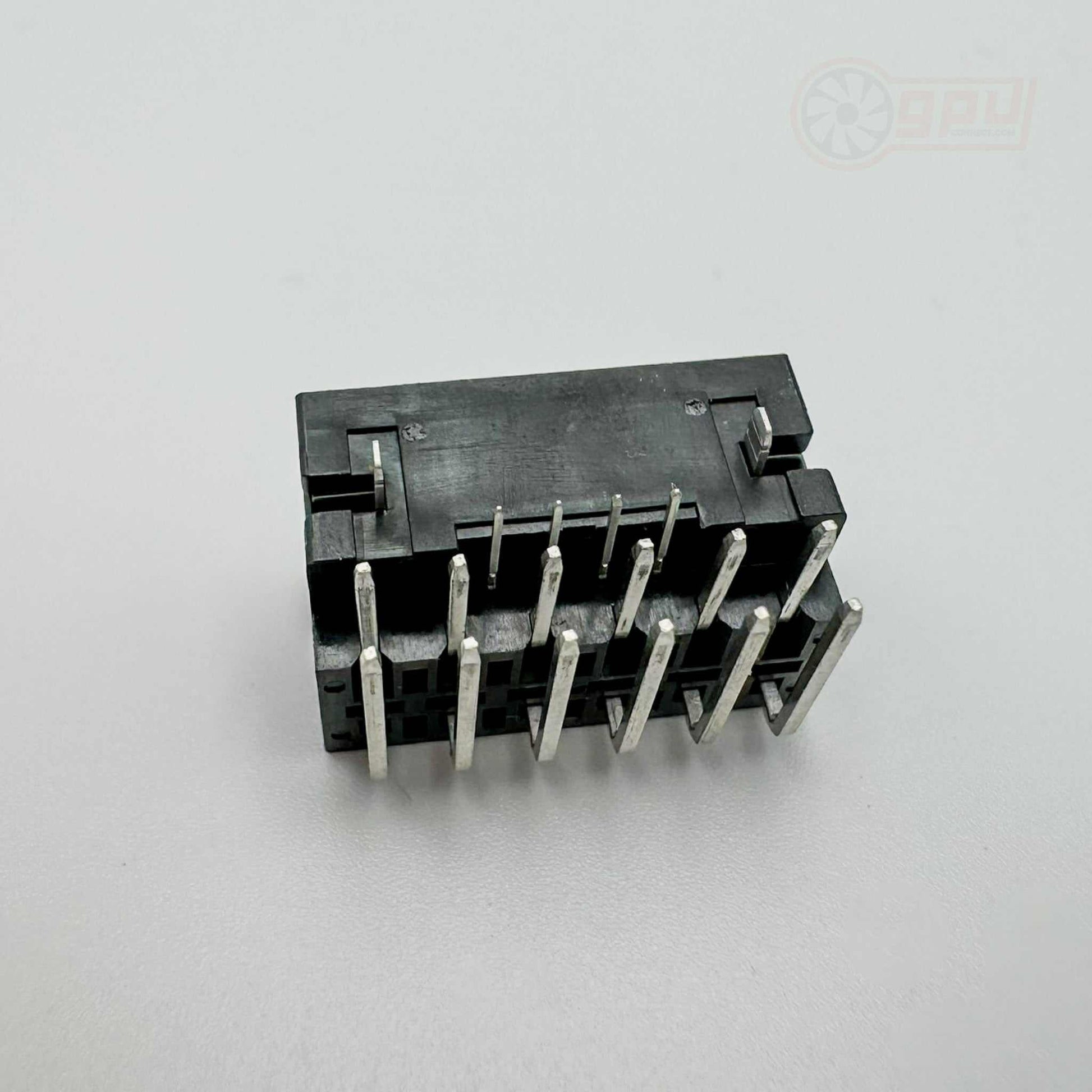

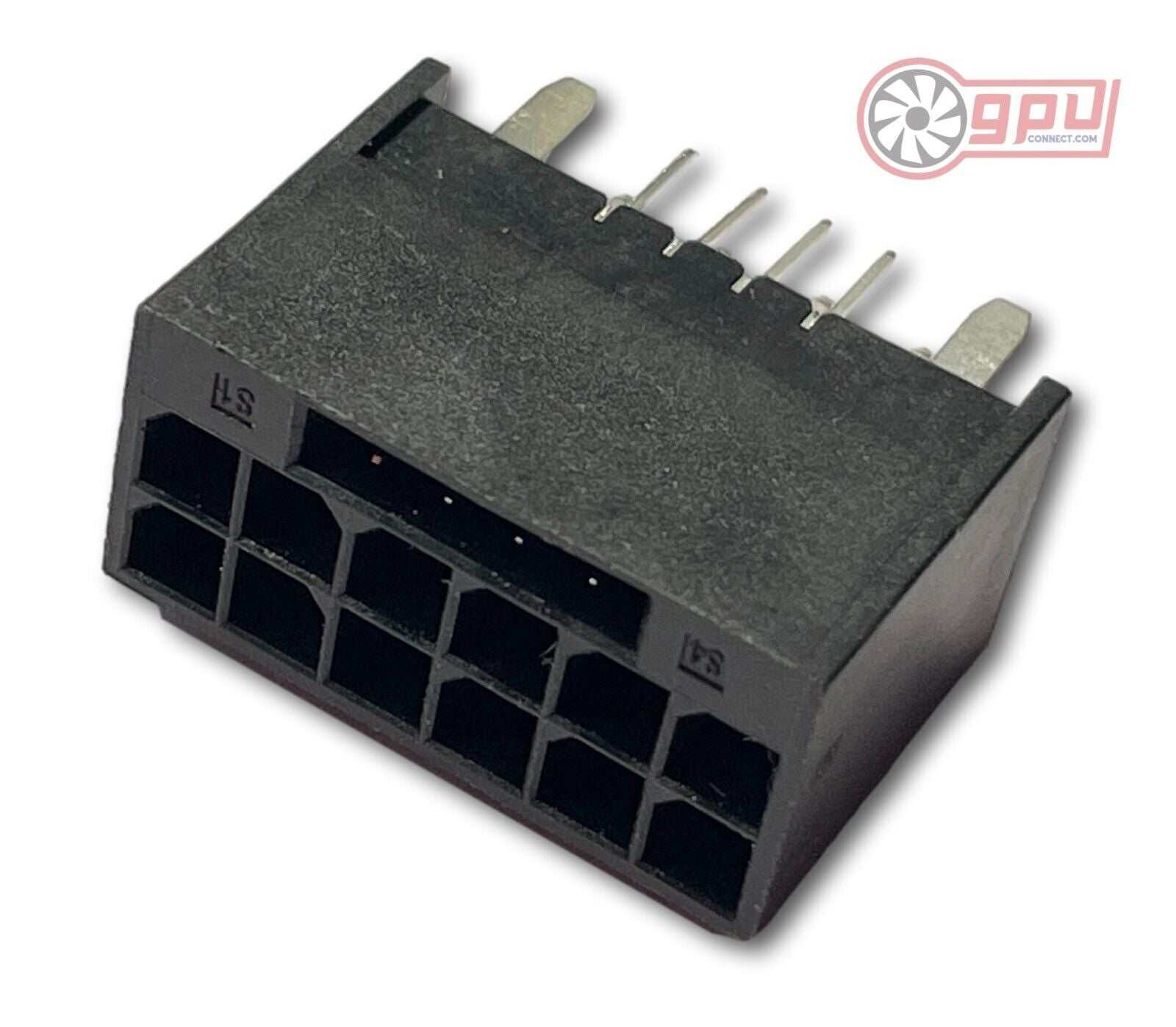

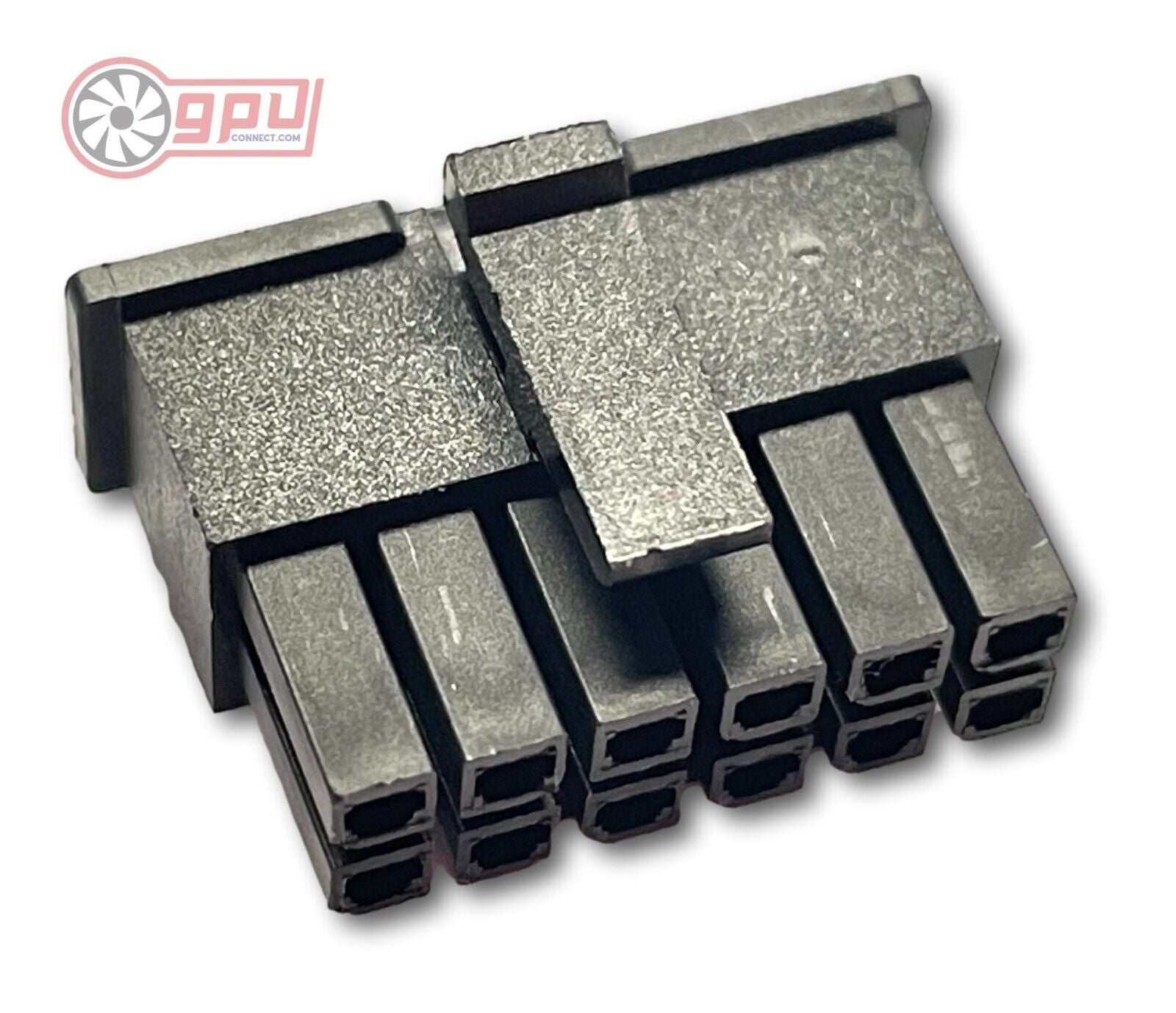

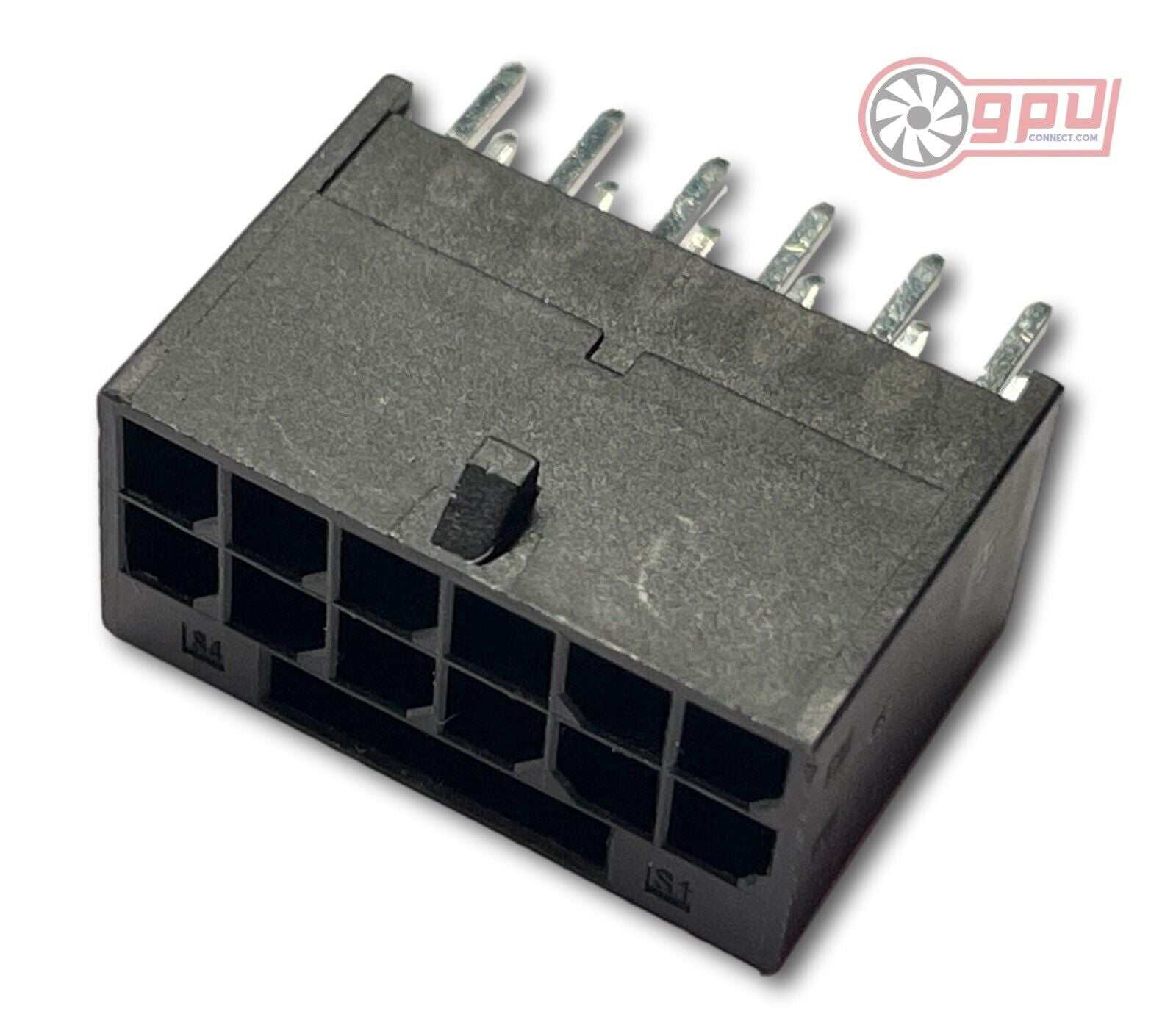

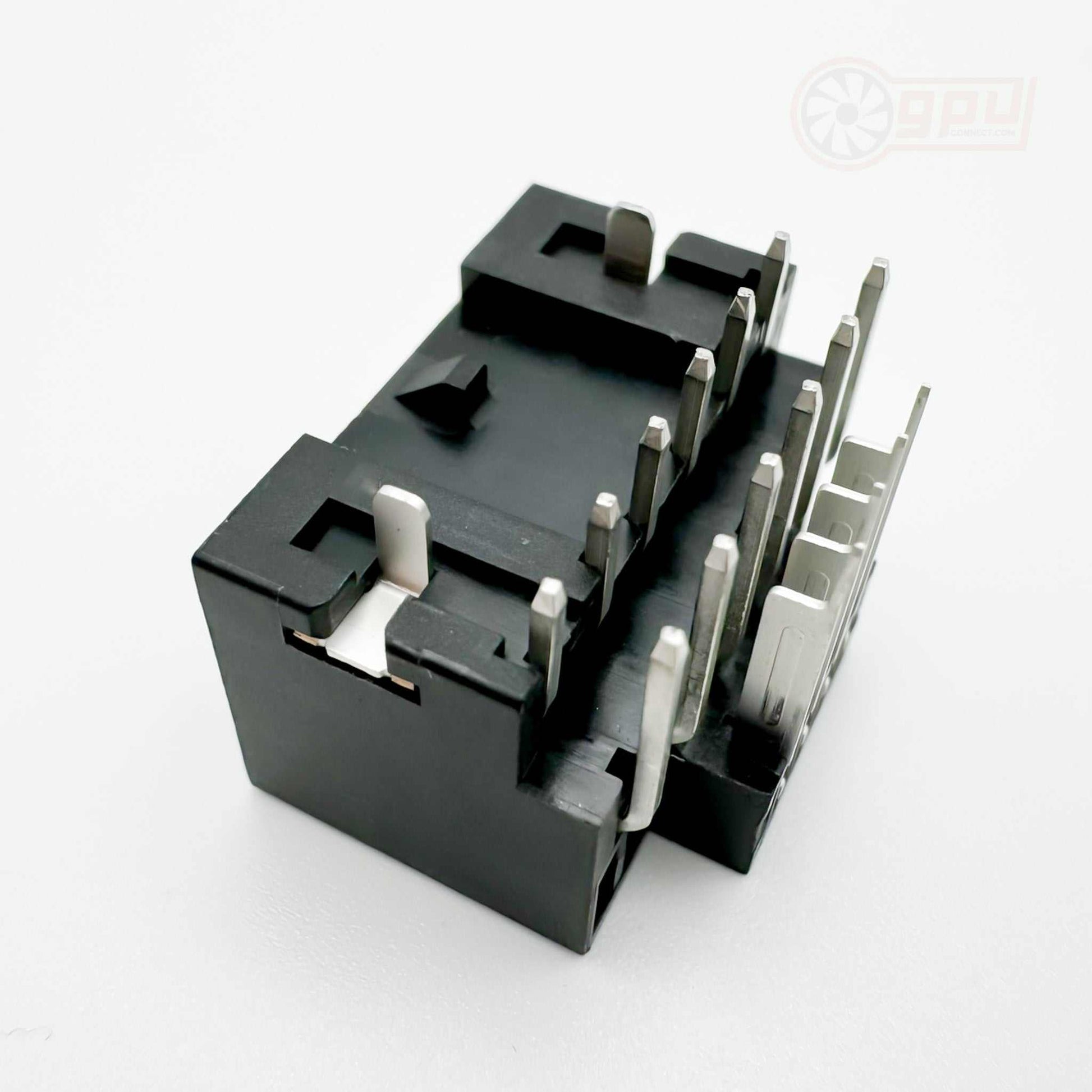

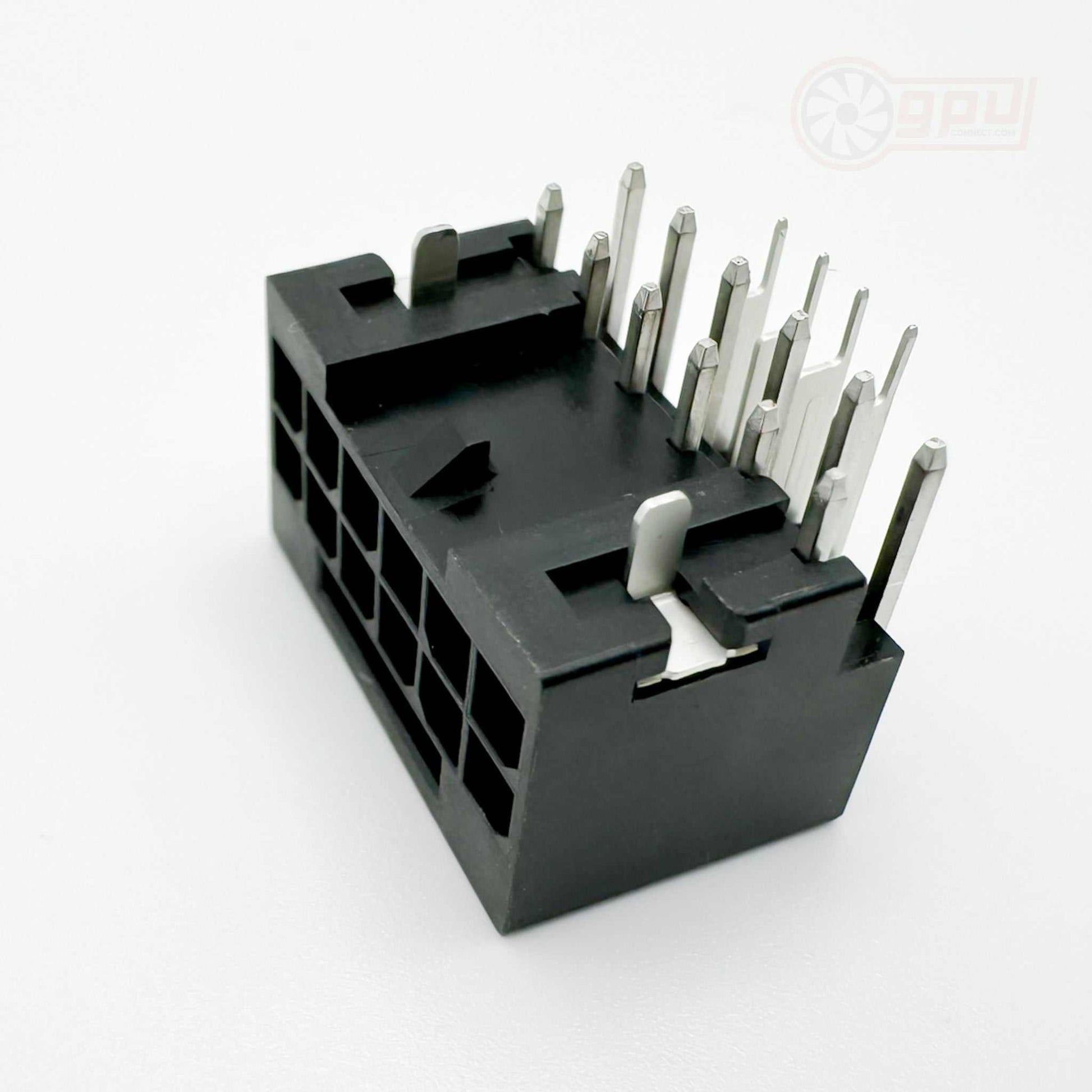

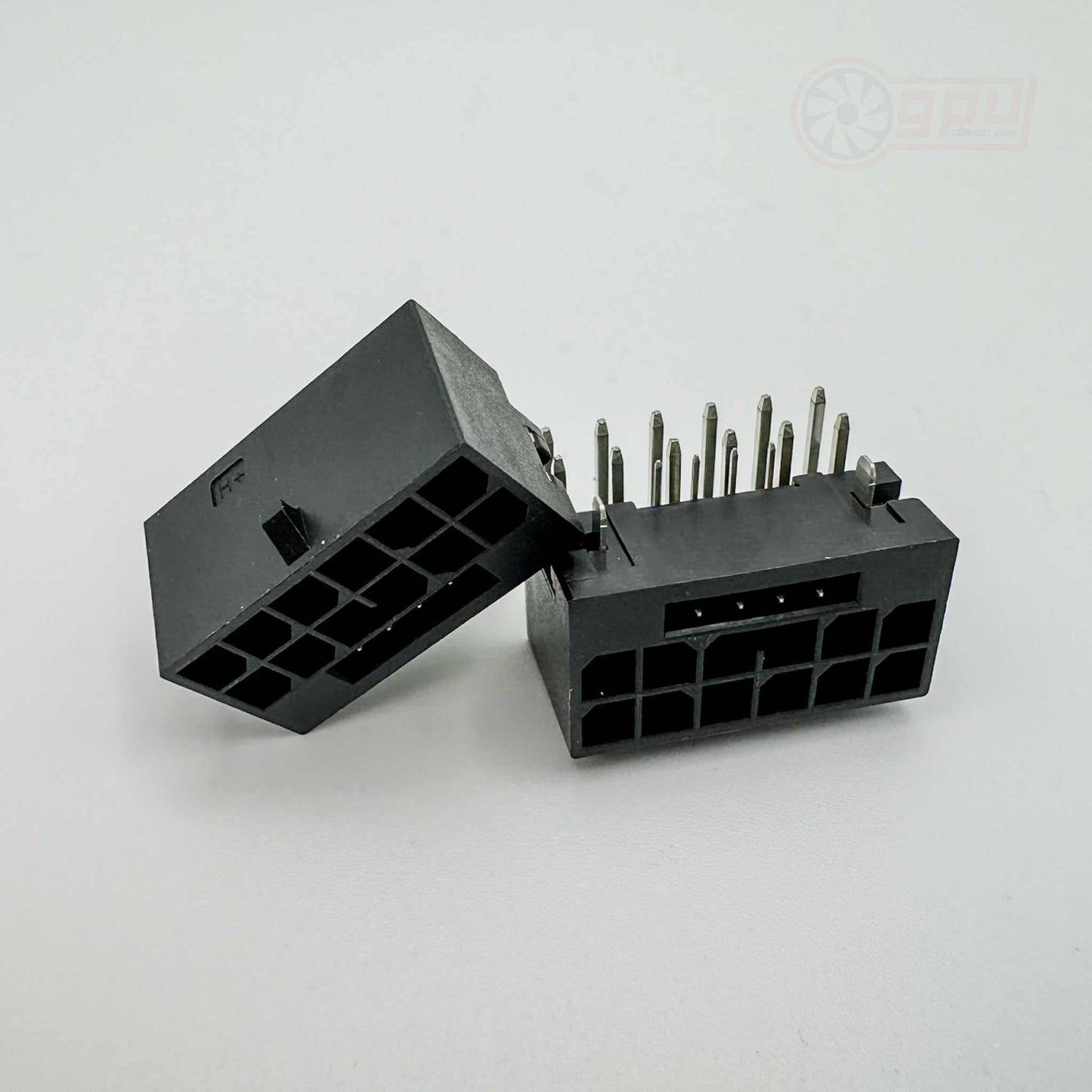

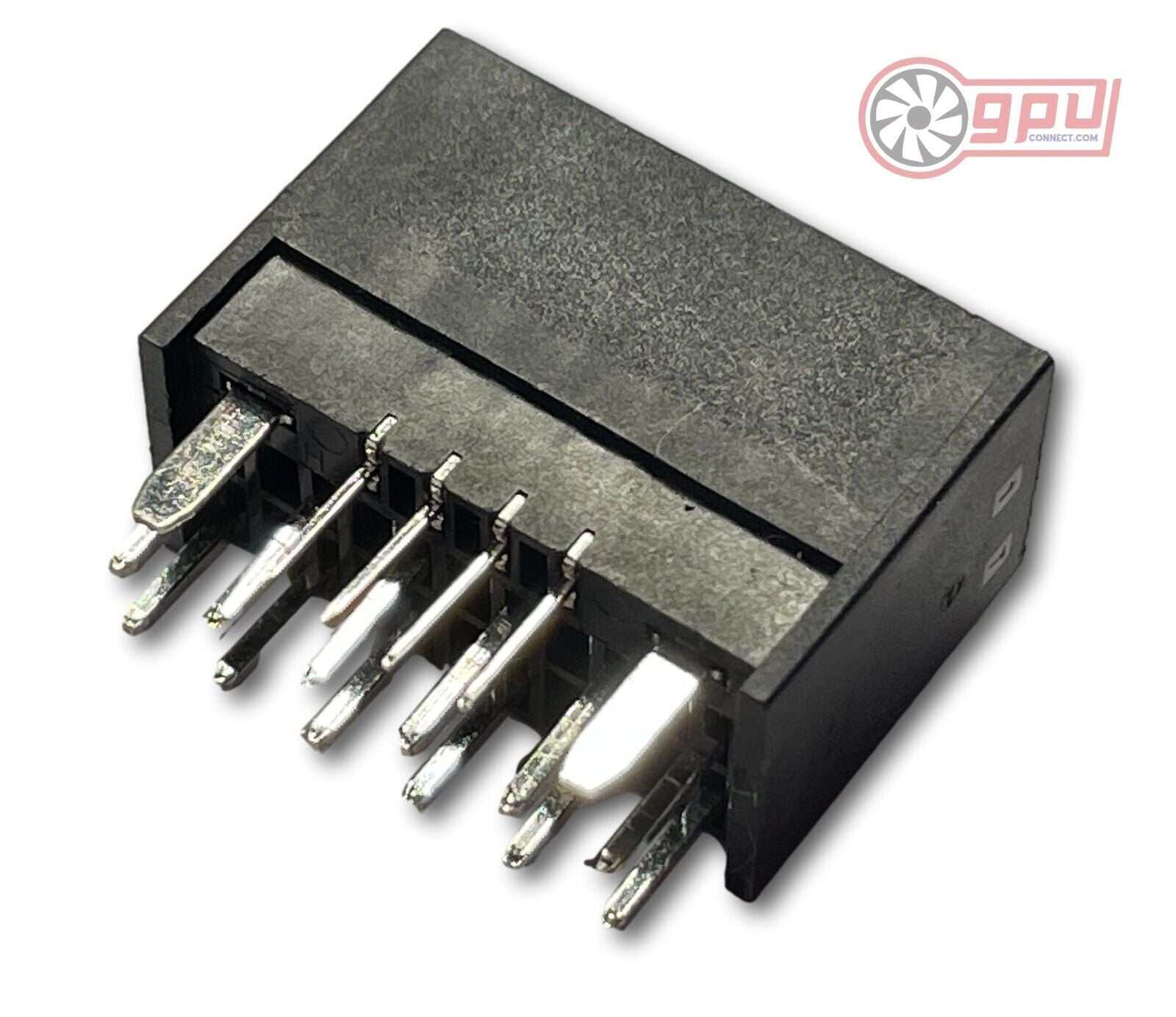

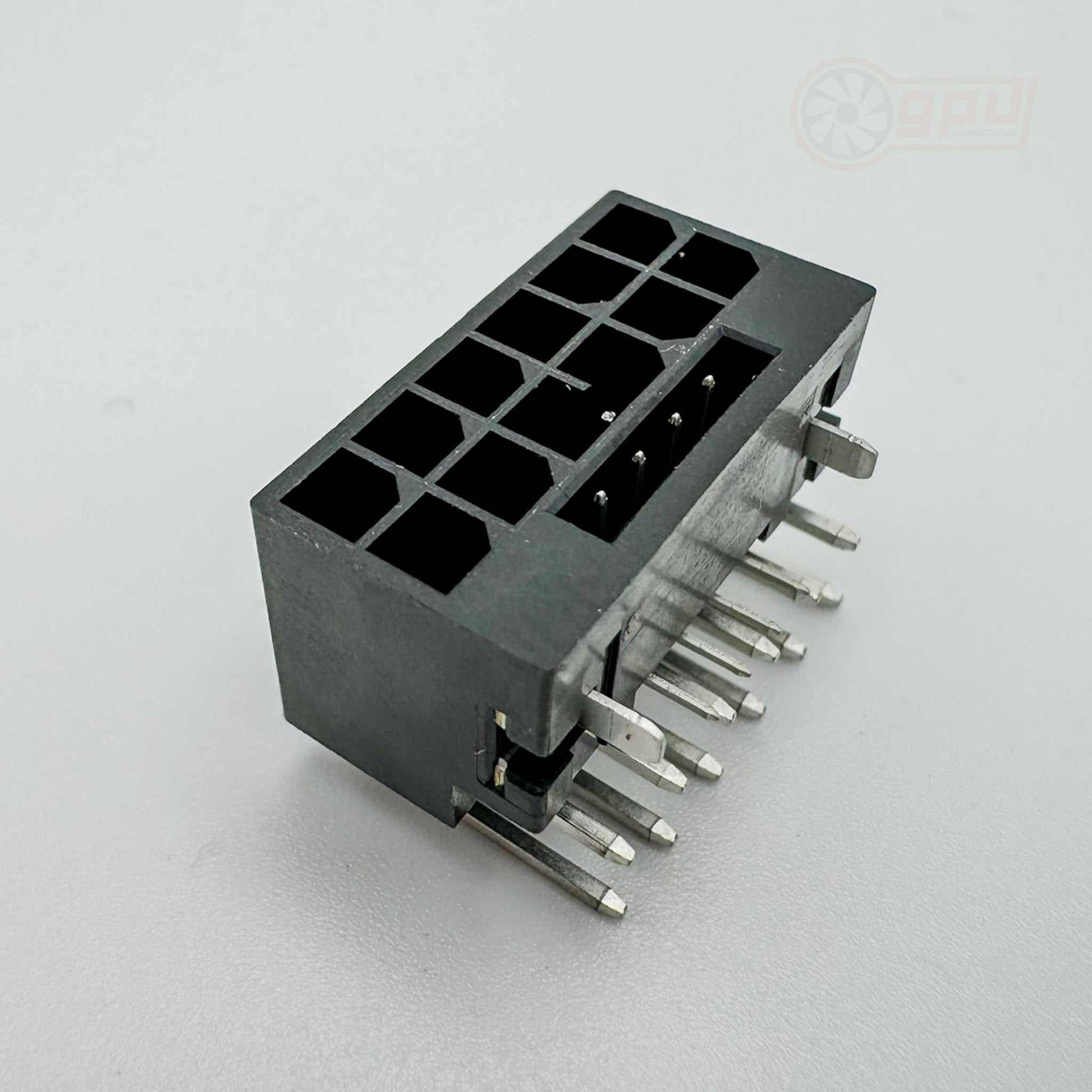

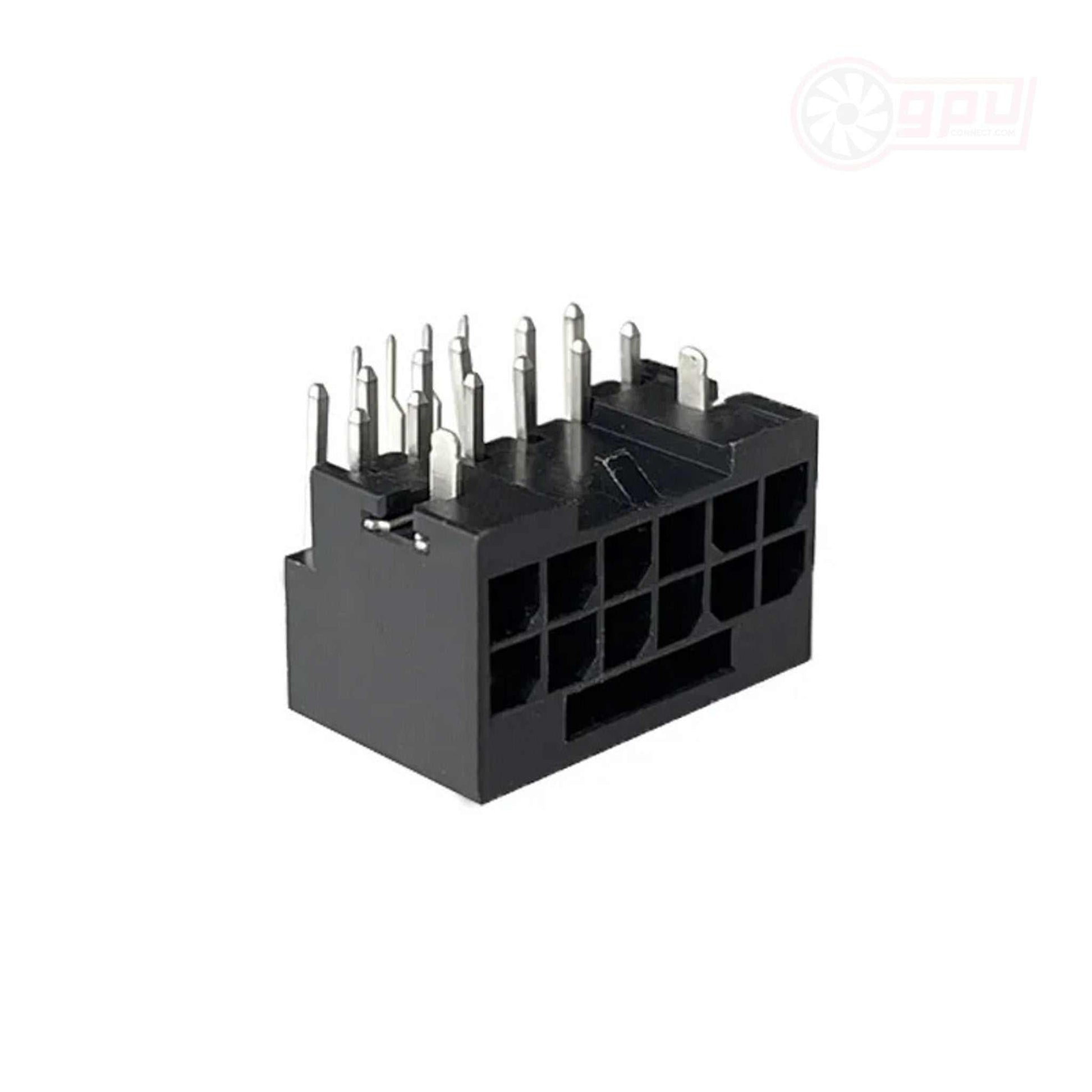

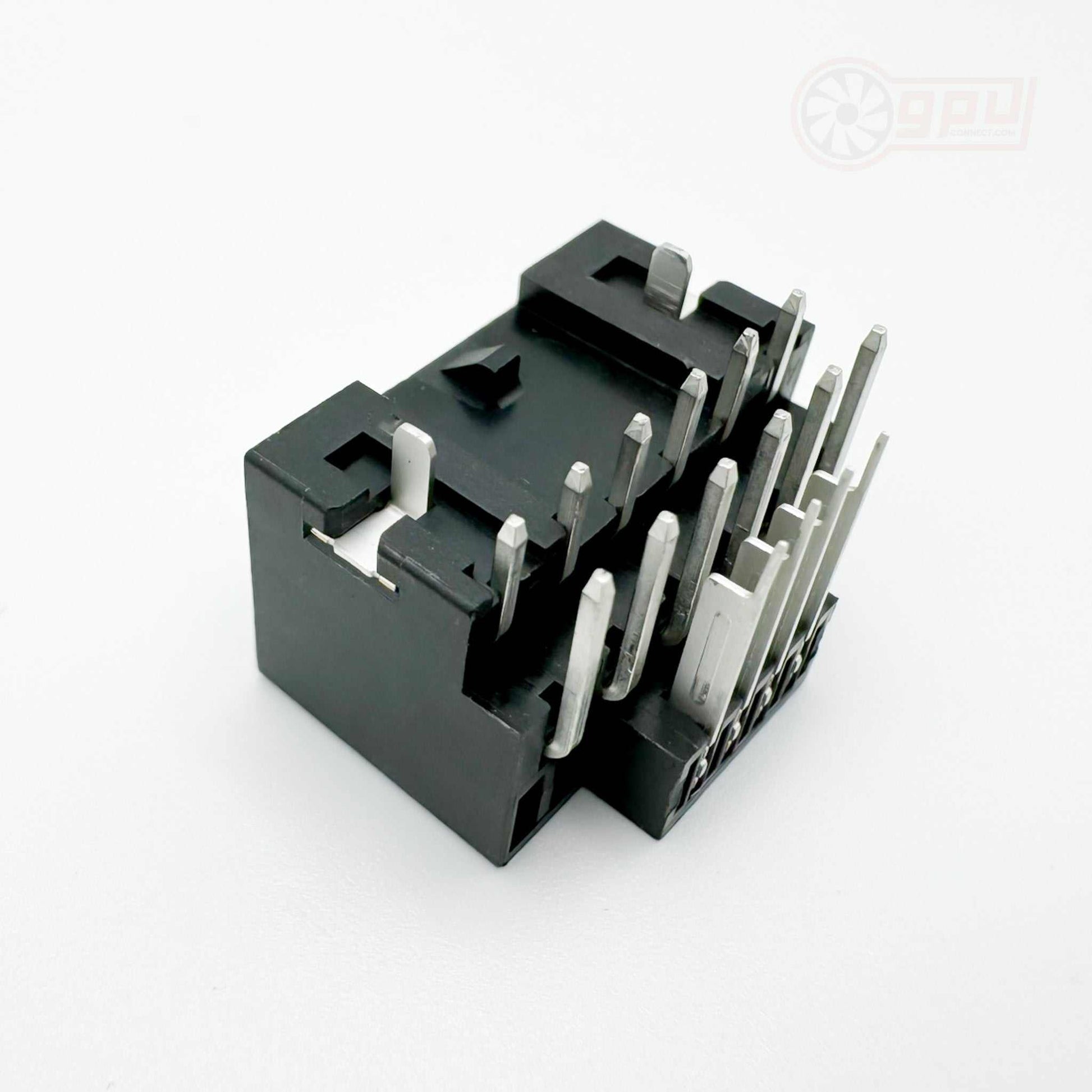

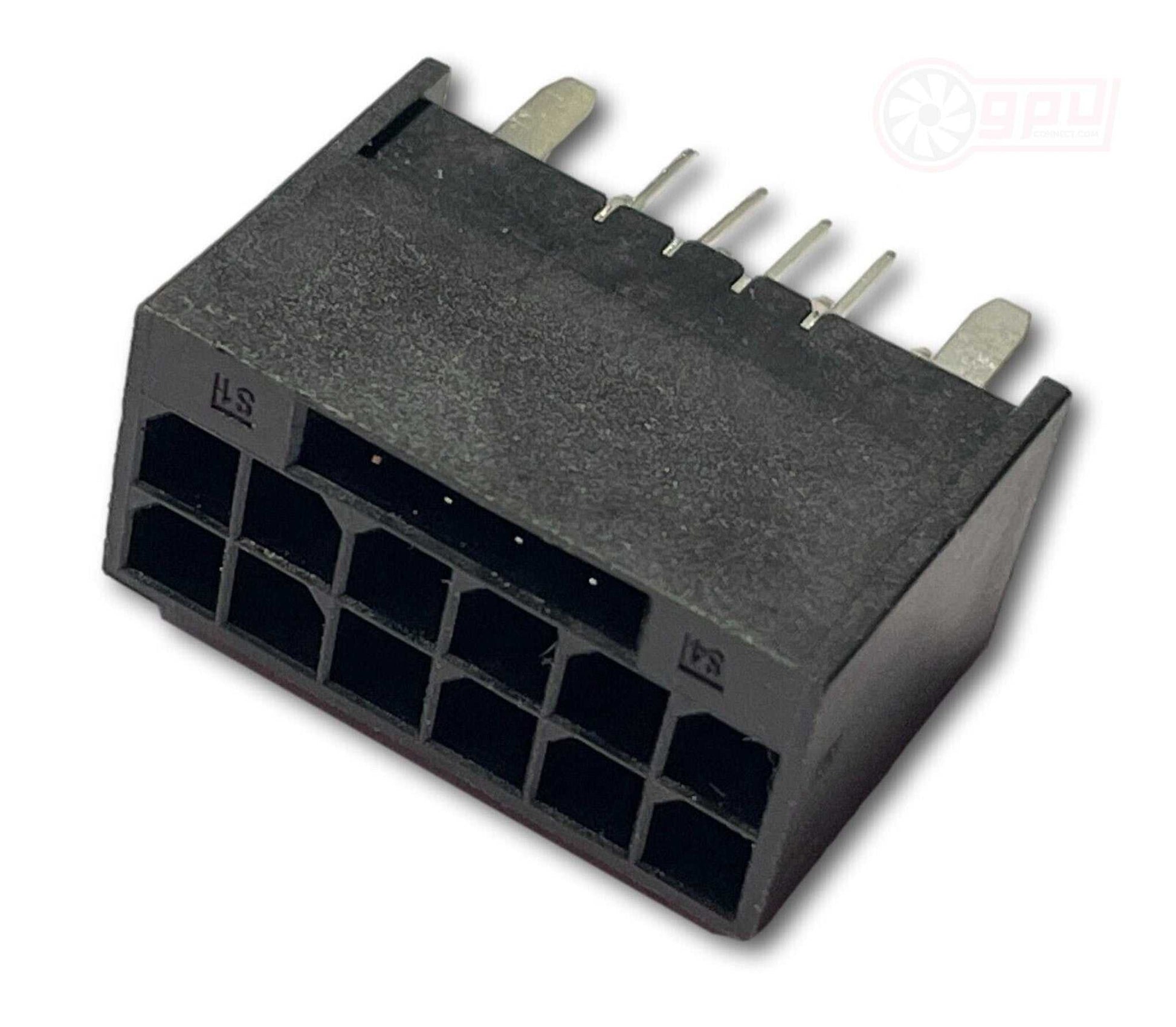

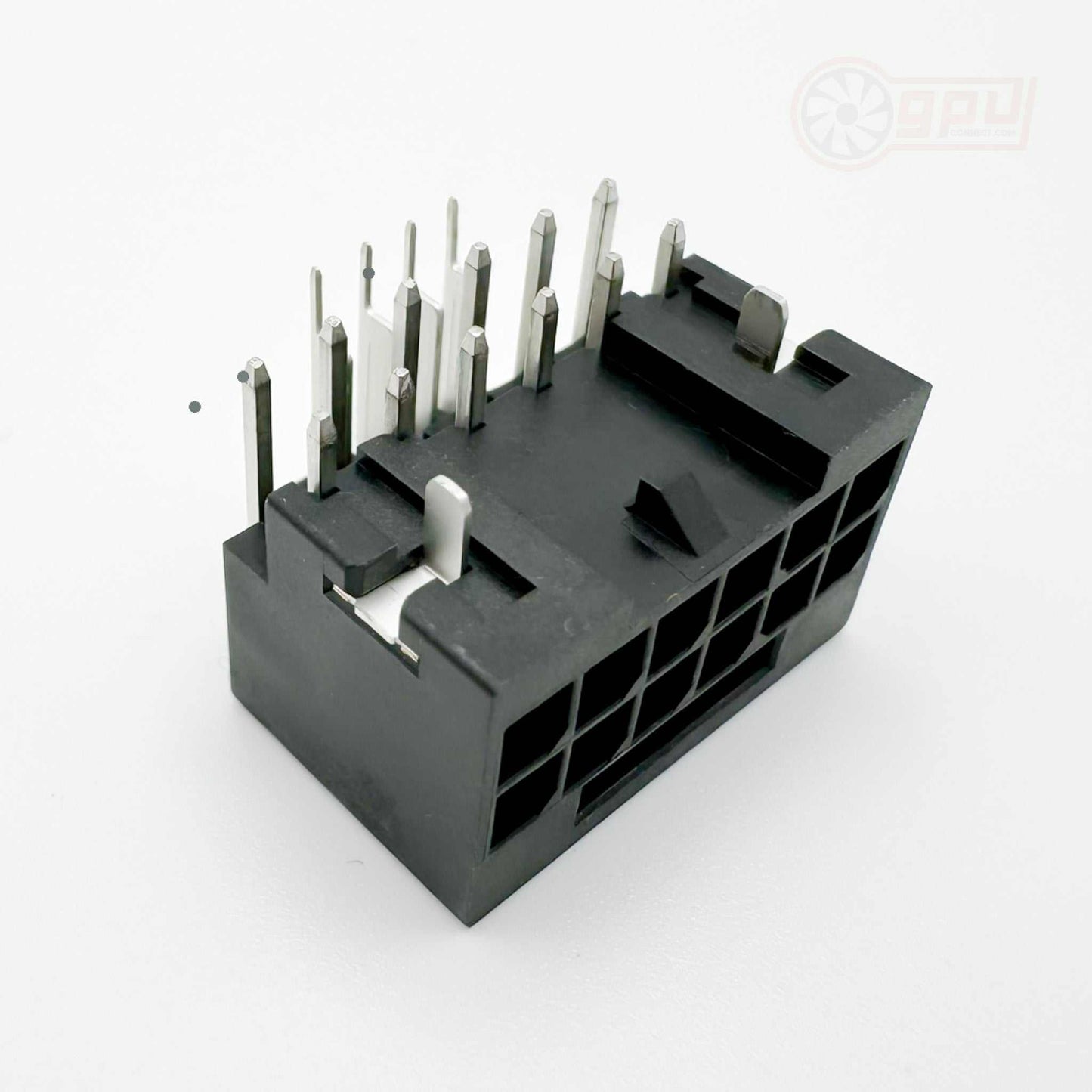

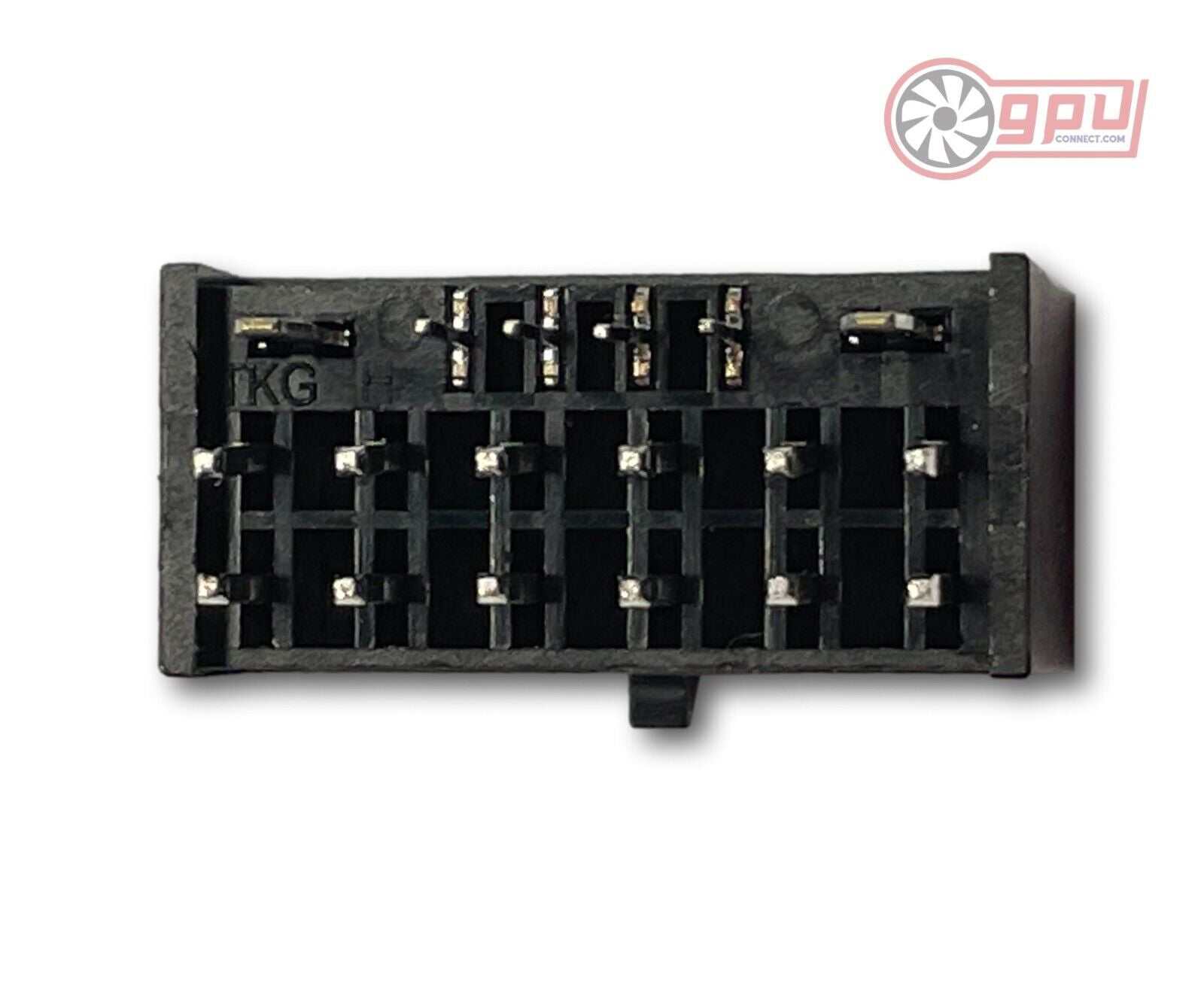

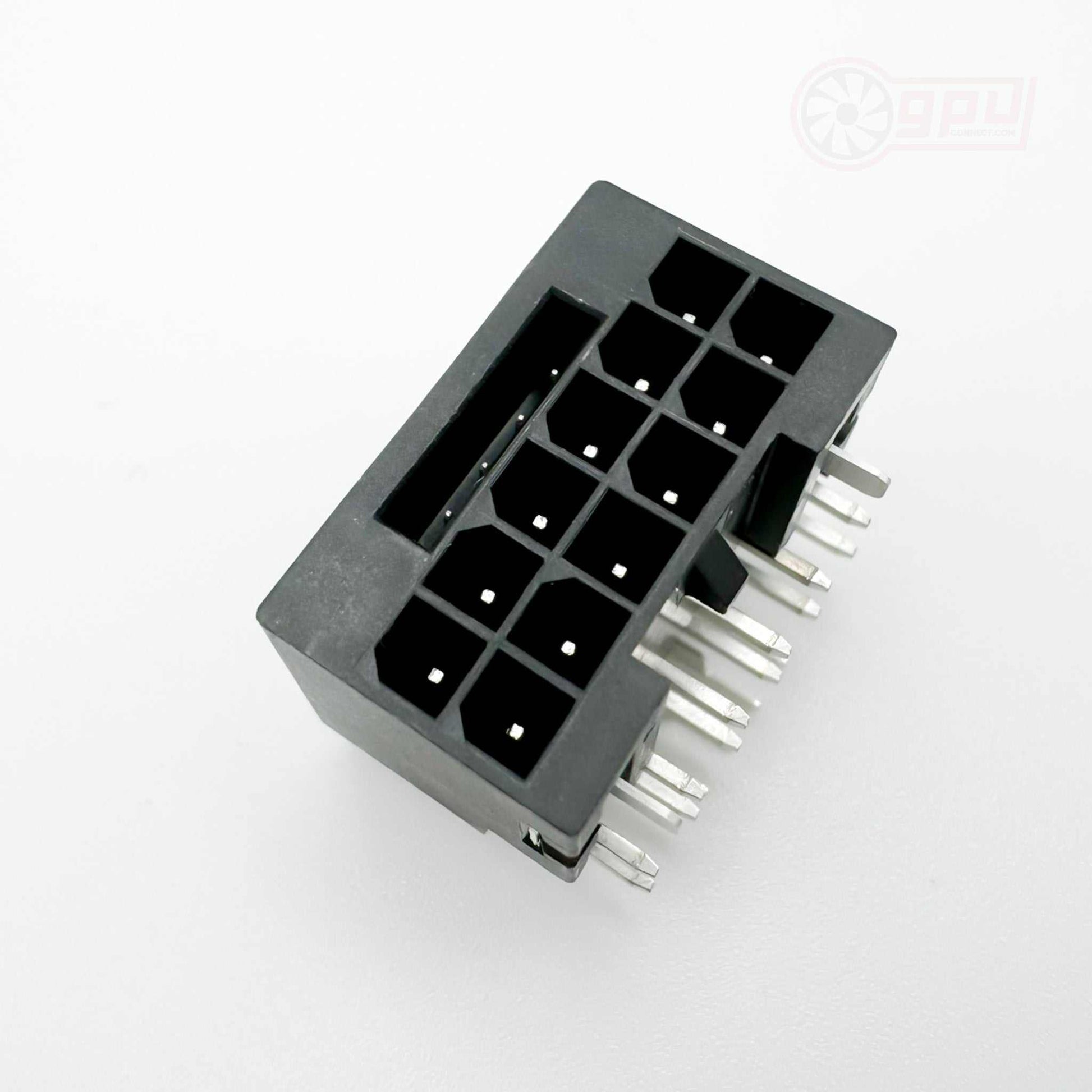

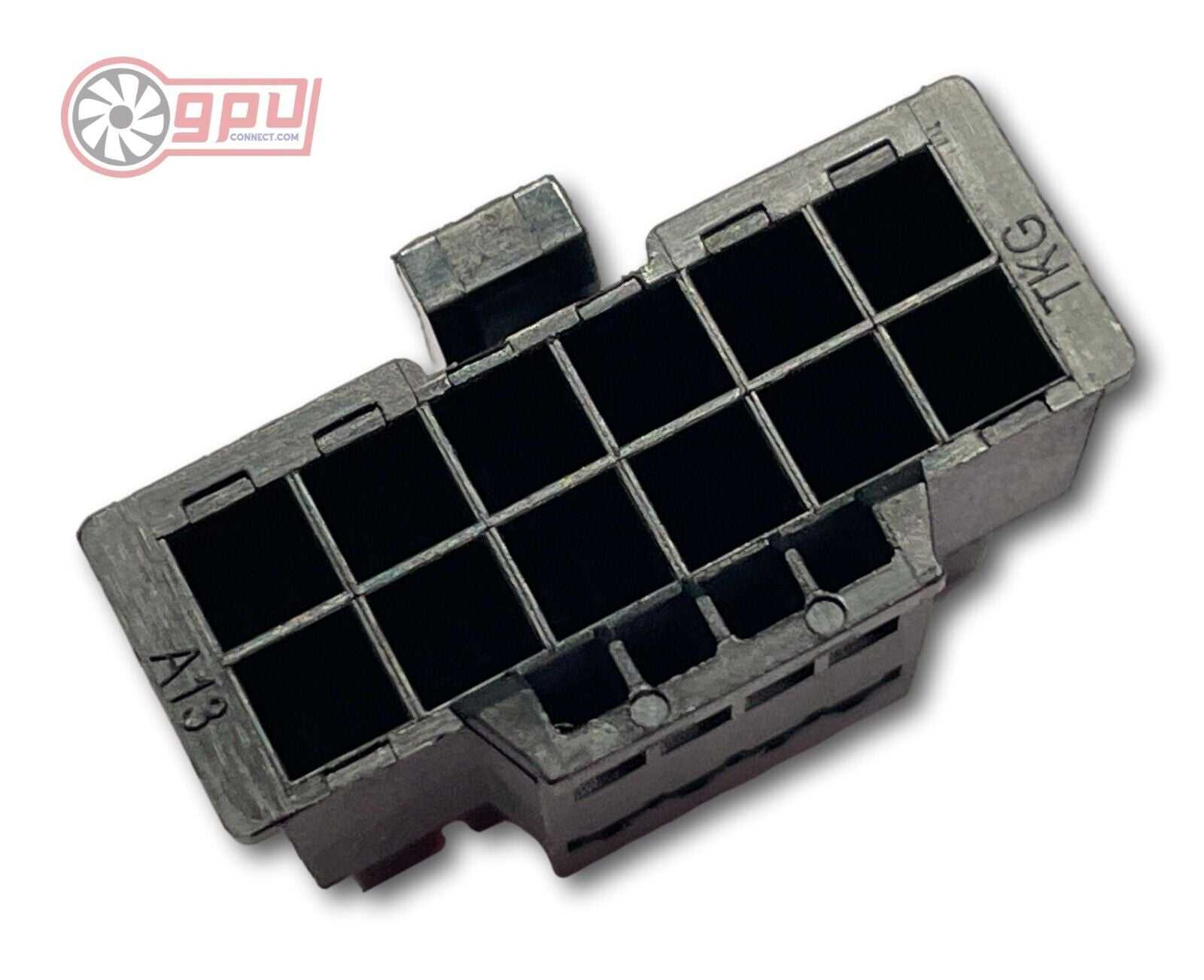

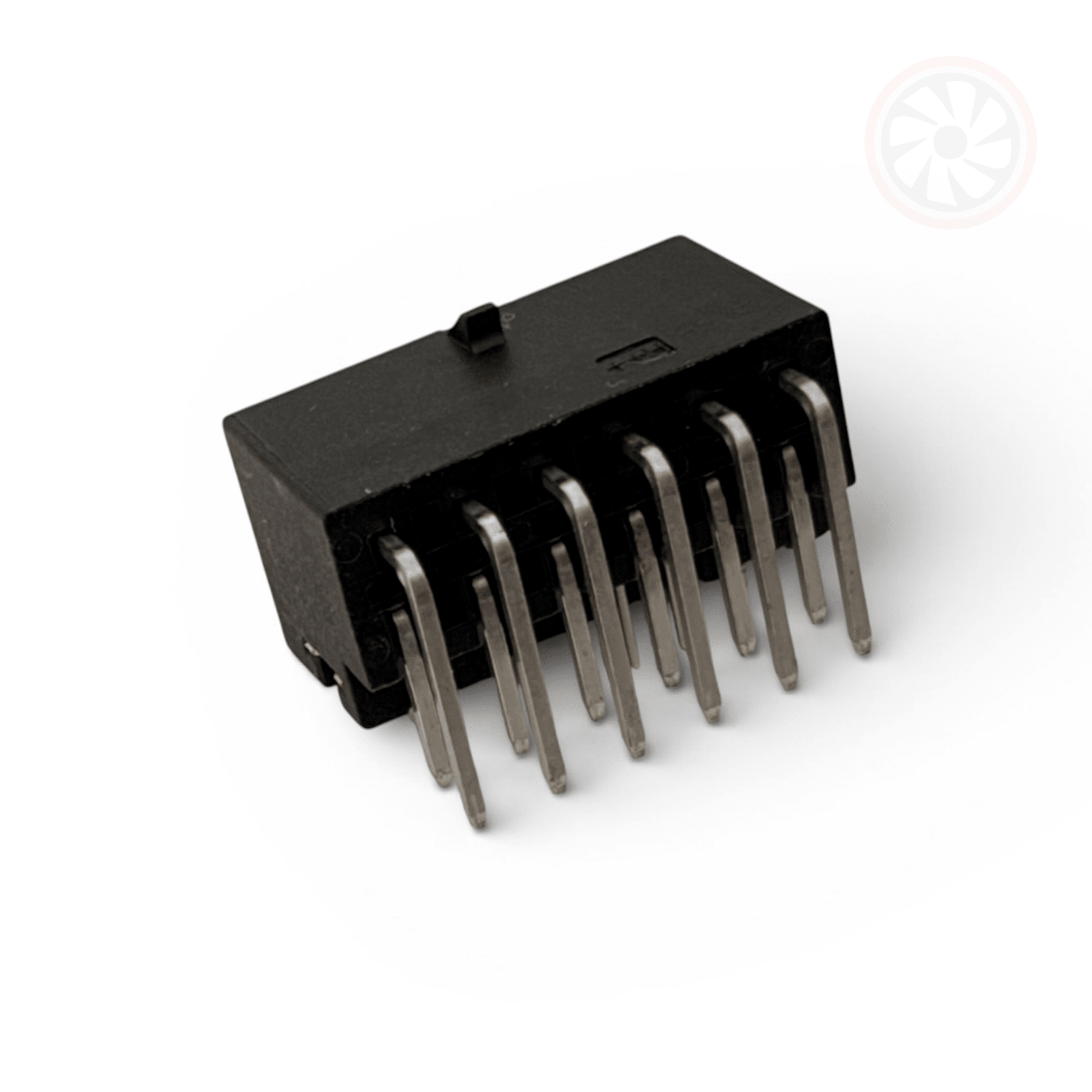

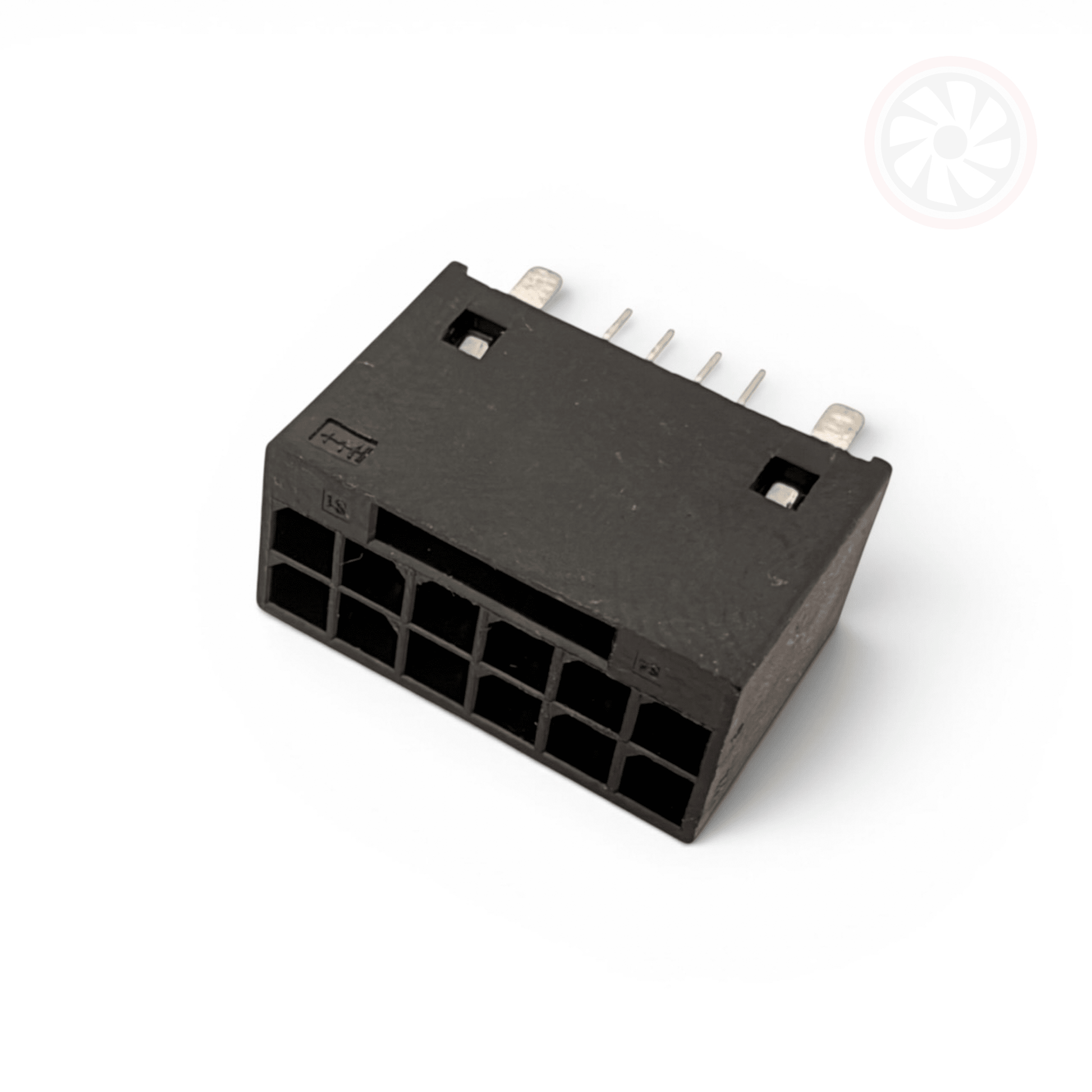

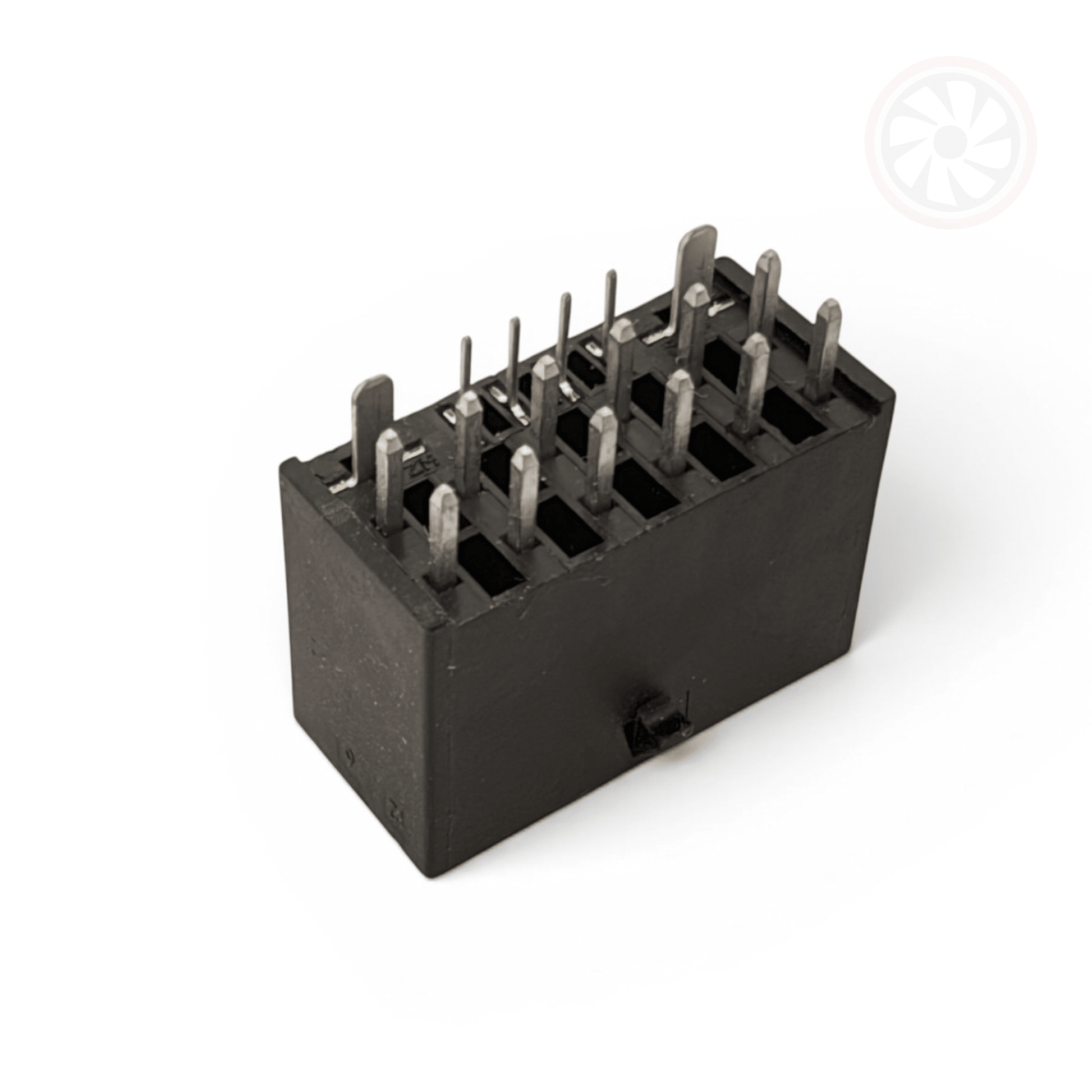

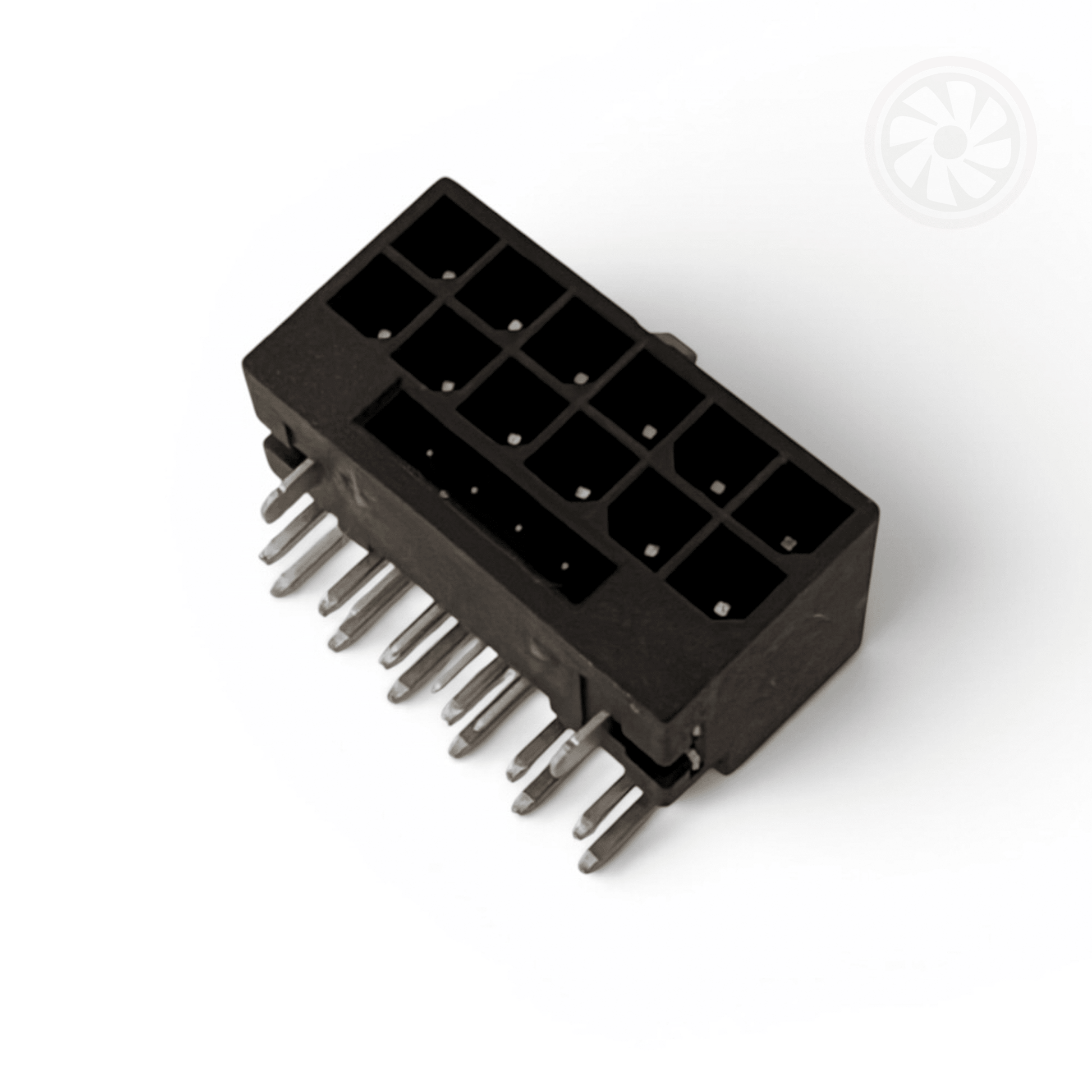

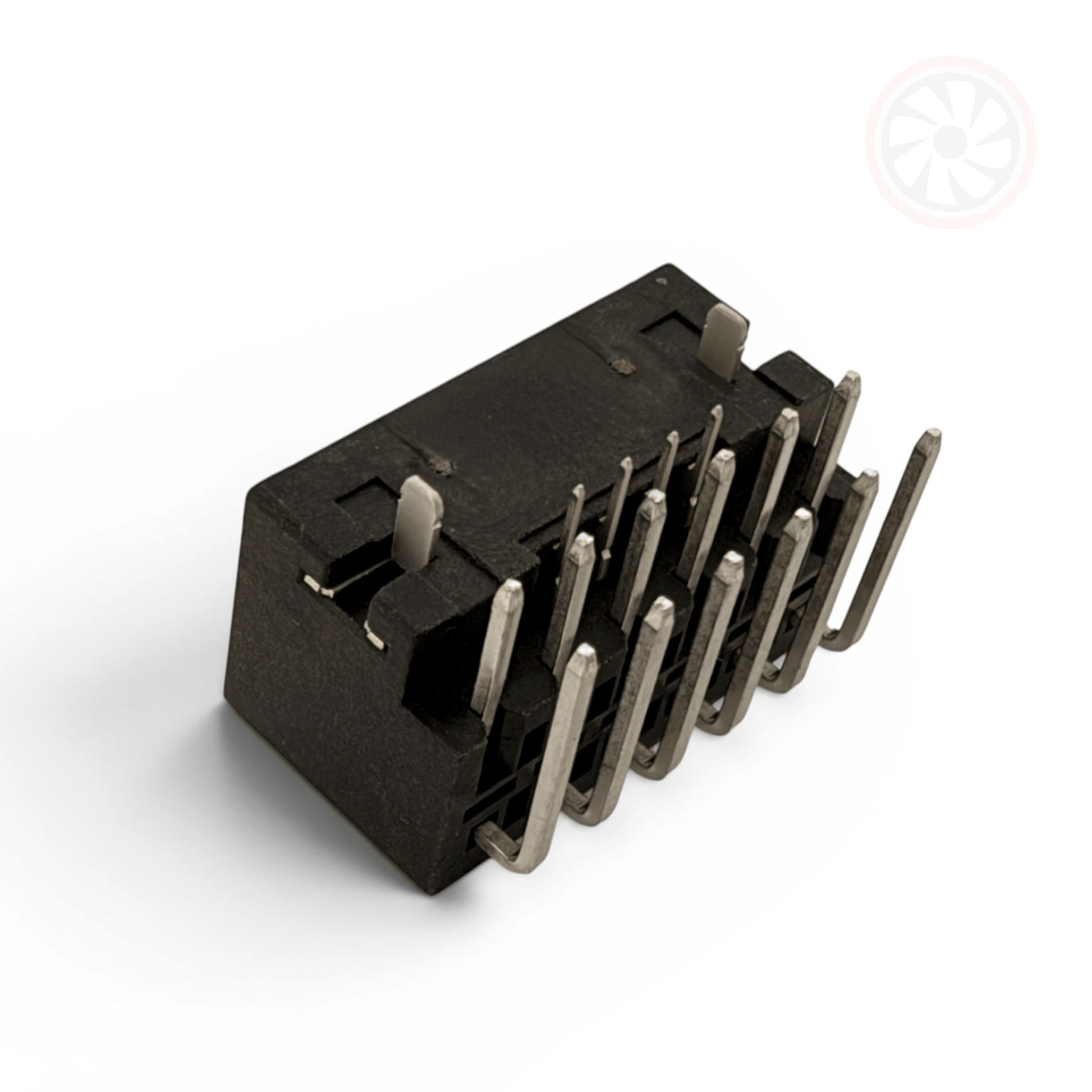

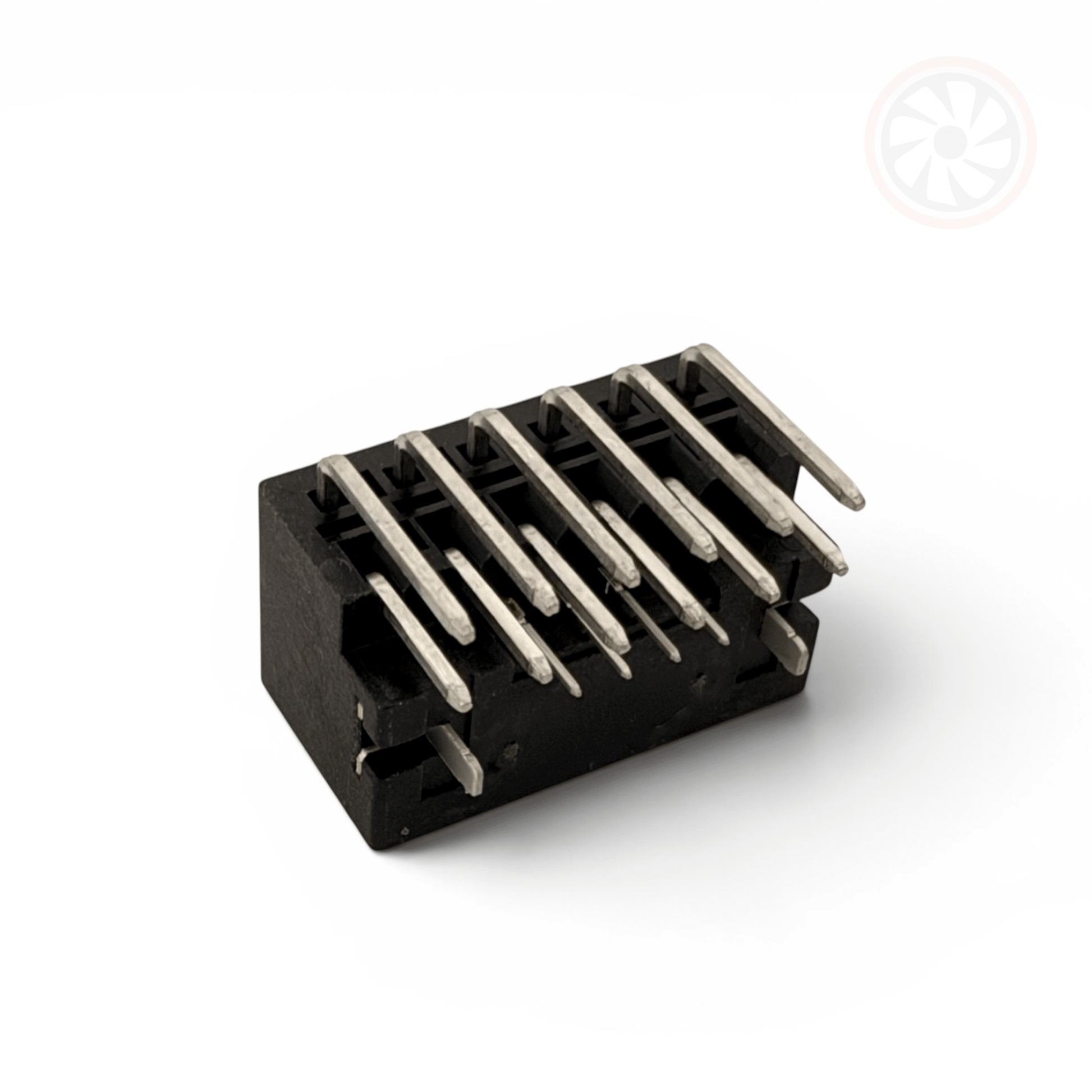

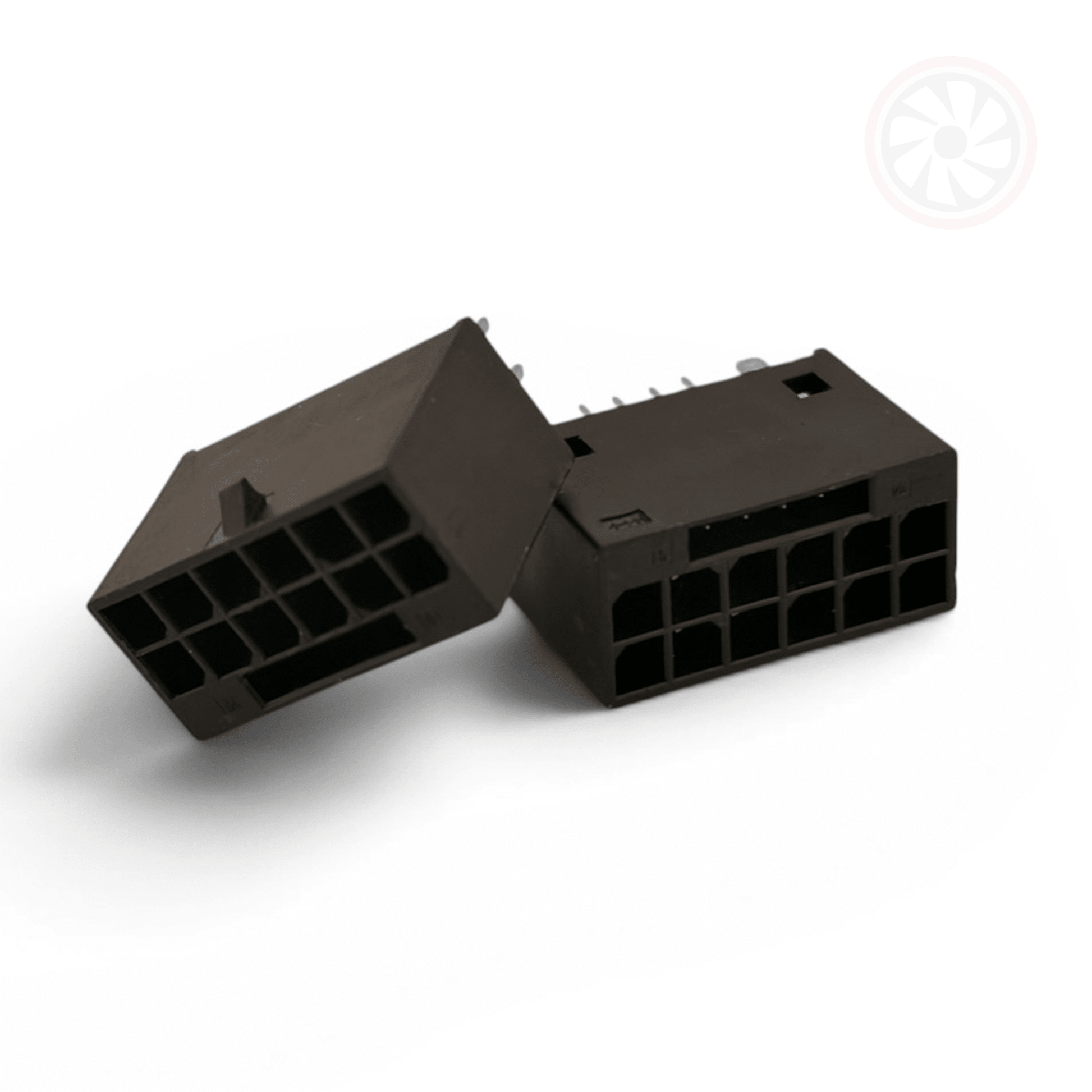

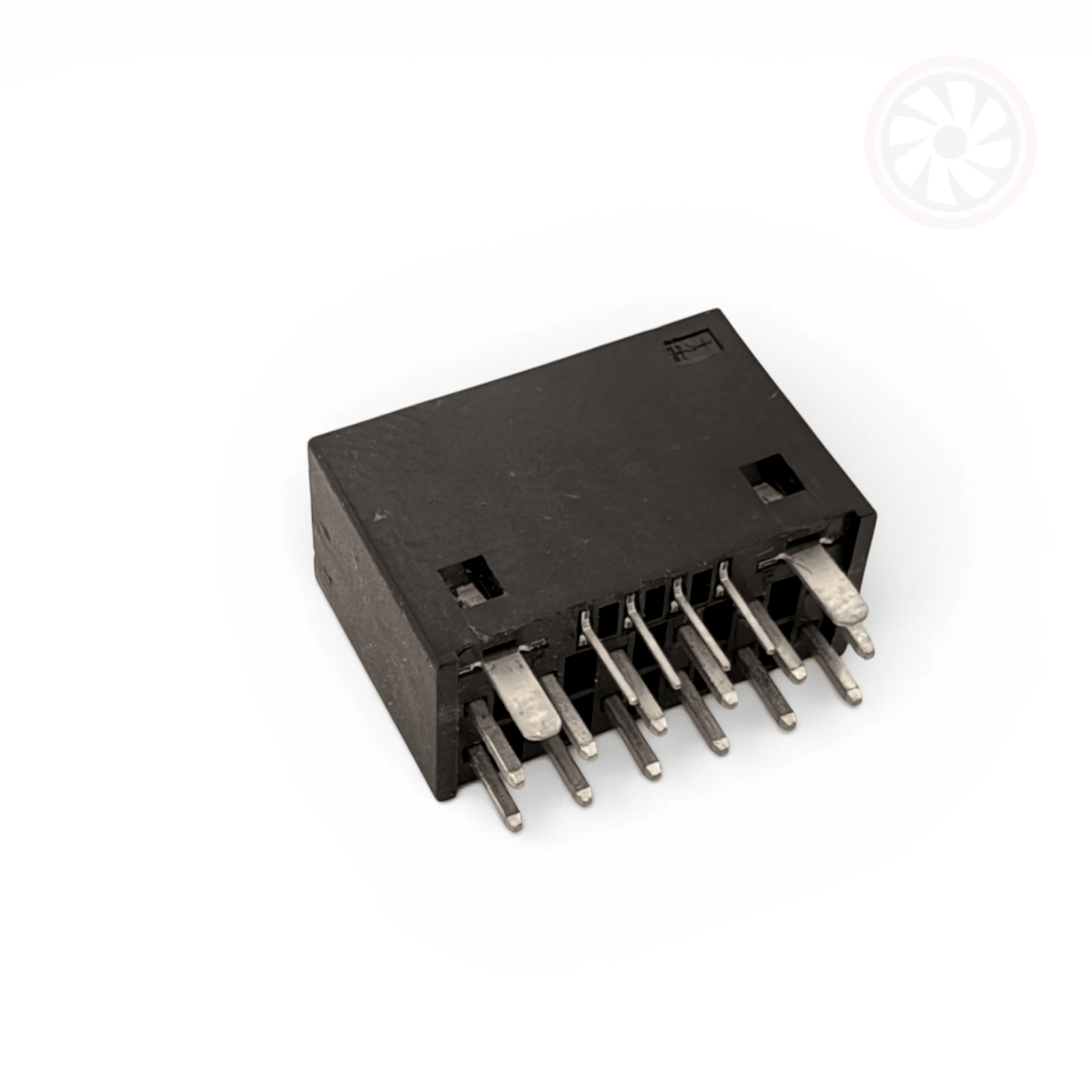

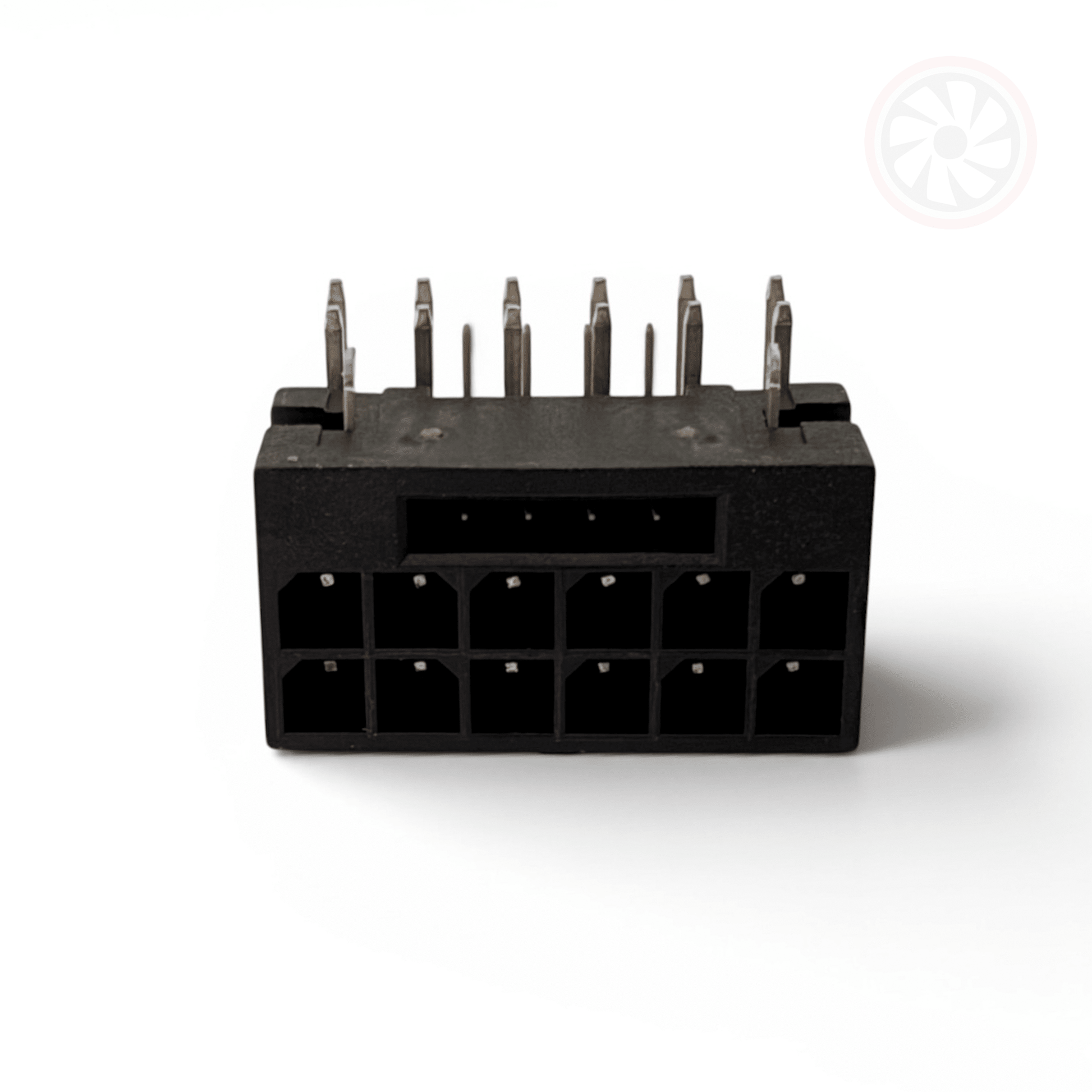

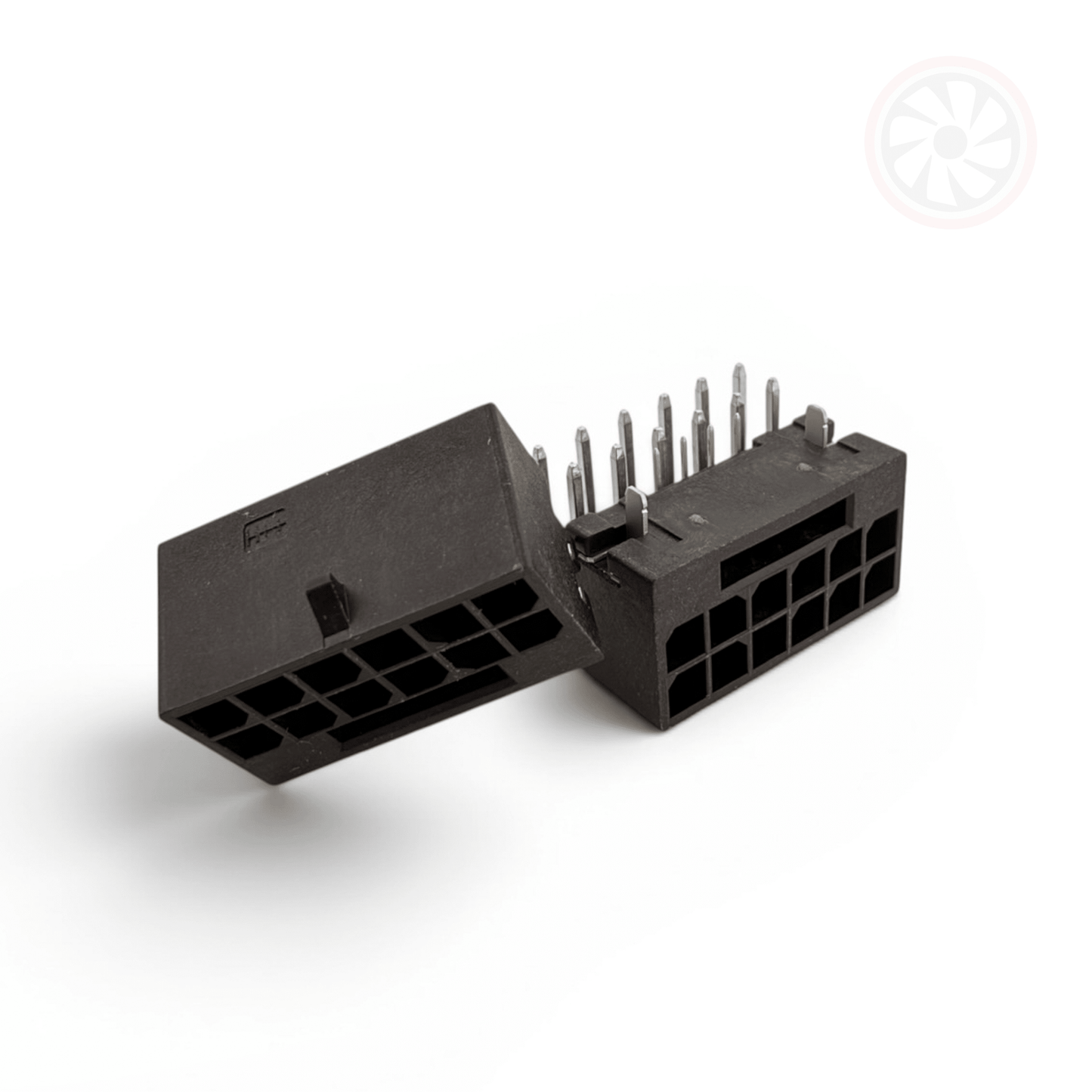

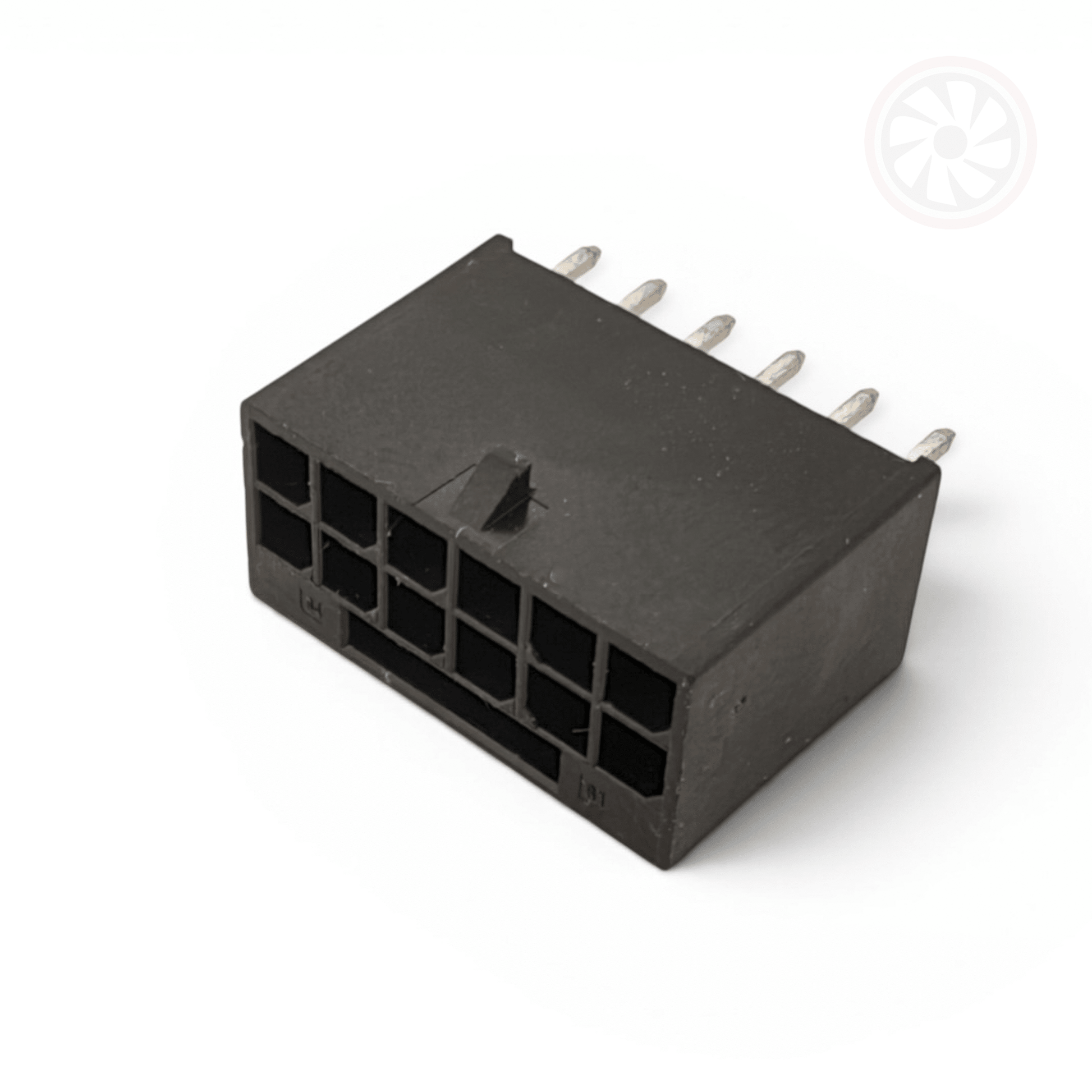

16-Pin 12VHPWR / 12V-2x6 H++ ATX PCIE 5.0 Power Connector Replacement Socket Header

High-quality replacement 16-pin PCIe power connector (H++ / 12V-2x6 compatible)

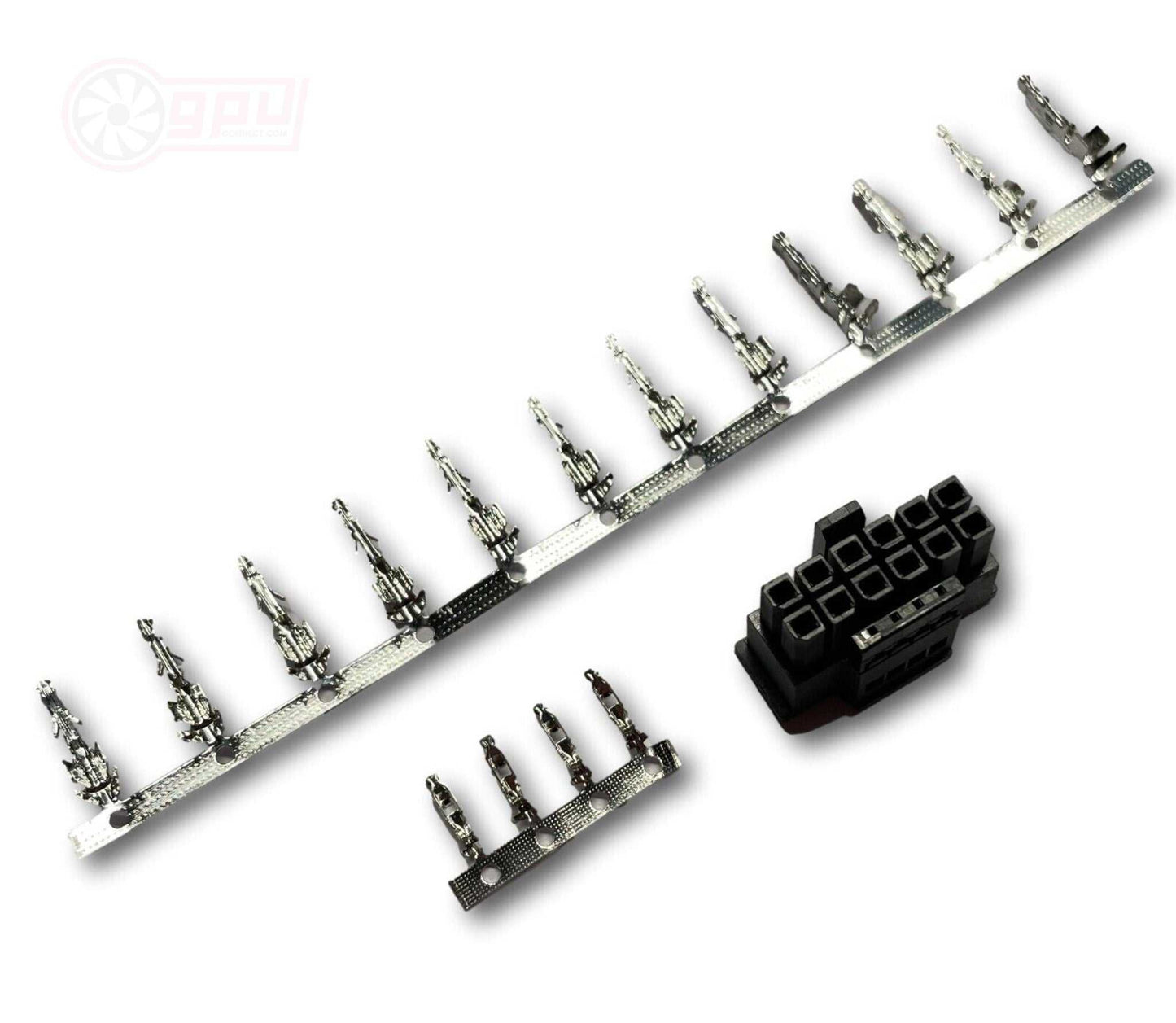

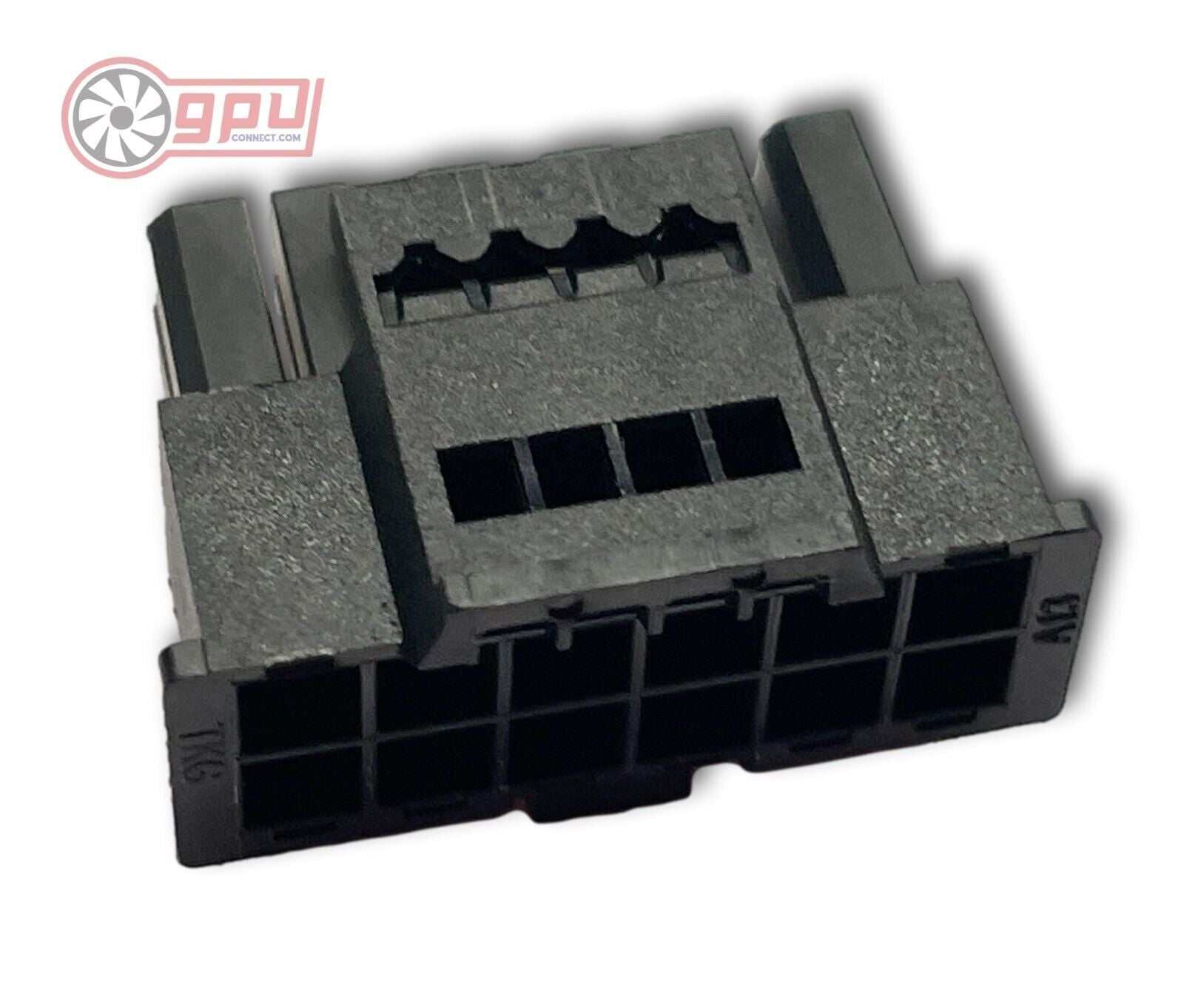

High-quality replacement power socket and connectors for NVIDIA graphics cards using the 16-pin PCIe power interface (12VHPWR / 12V-2x6).

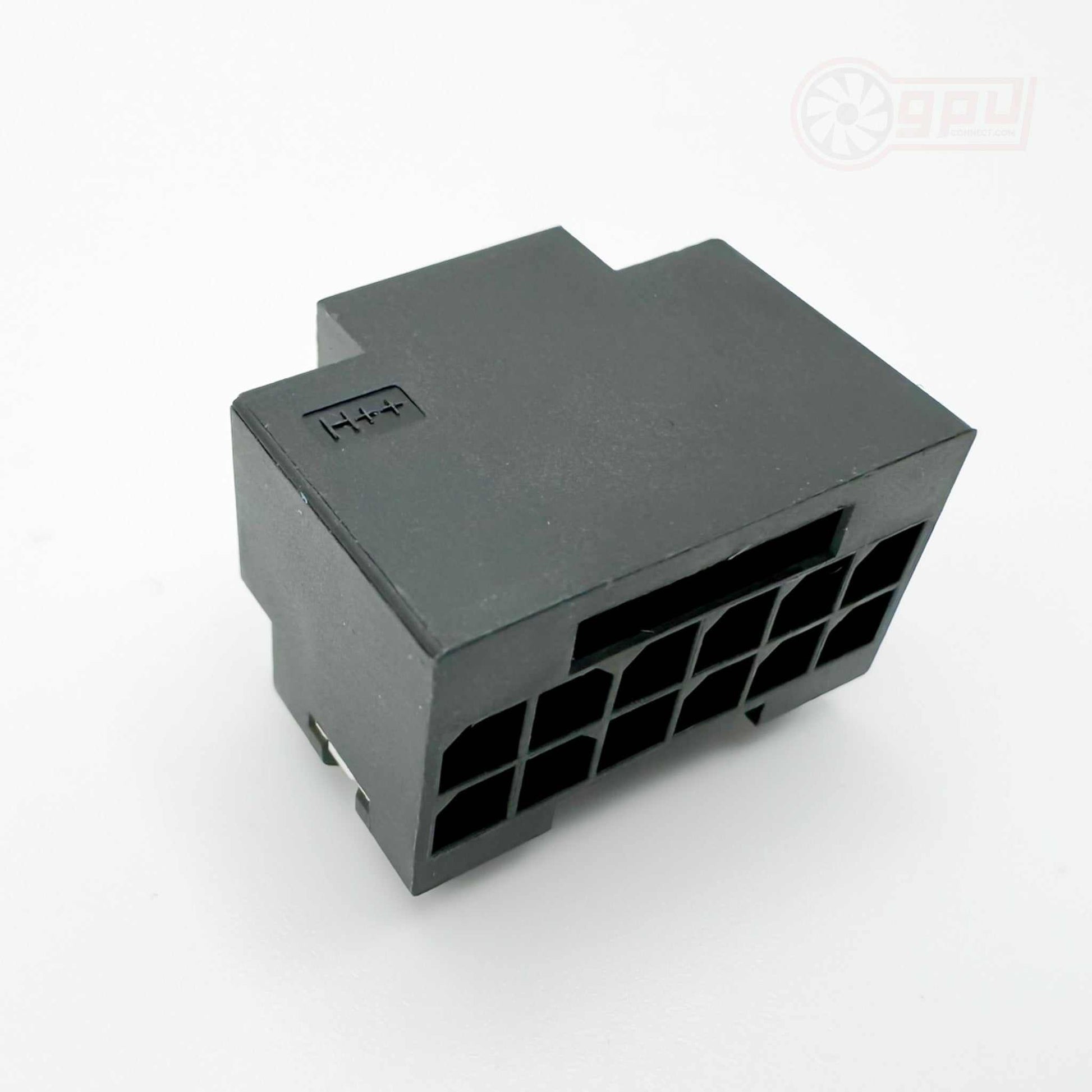

Our sockets feature the latest H++ marking, making them suitable for use with the current 12V-2x6 standard while remaining fully backwards compatible with earlier 12VHPWR applications.

Installation requires soldering. Please only purchase if you are confident carrying out the repair or have access to a qualified technician.

Before purchasing, please carefully compare the connector with your original part, including the orientation, keying and cable exit angle, to ensure compatibility.

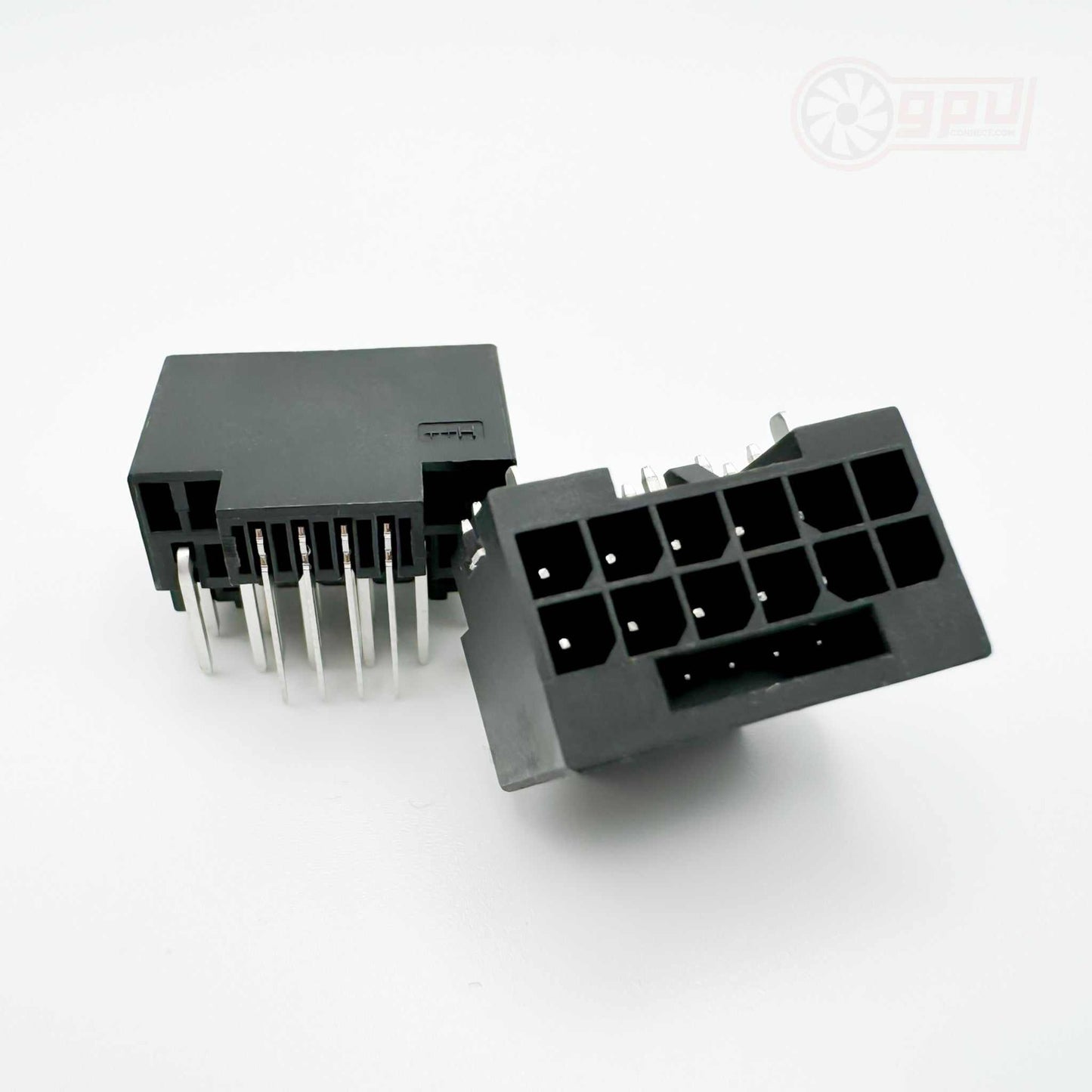

Note: H++ markings apply only to the sockets (left, right and straight).

What is the 12VHPWR / 12V-2x6 connector?

The 16-pin PCIe power connector was introduced with ATX 3.0 to provide up to 600W of power through a single compact connector. It combines 12 power contacts and 4 sense contacts to allow compatible graphics cards and power supplies to negotiate the available power.

The latest revision of this connector, commonly referred to as 12V-2x6, uses H++ identification markings and is fully backwards compatible with existing 12VHPWR equipment. It is designed for compatibility with modern ATX 3.1 power supplies and the latest NVIDIA RTX graphics cards, while continuing to support earlier compatible hardware.

Repair Information

A damaged, worn or poorly connected 16-pin power connector can lead to excessive heat generation and permanent damage to the connector. If your graphics card has suffered connector damage, these replacement parts provide a high-quality solution for professional repair.

Please note: Correct installation is essential. Damage caused by improper soldering, poor alignment, contamination or an incomplete connector insertion will not be prevented simply by replacing the connector. If you are unfamiliar with this type of repair, we strongly recommend seeking assistance from a qualified electronics repair technician.
