Zotac / PNY / Leadtek / Palit Turbine Blower Nvidia RTX GPU Fan - 73mm

Zotac / PNY / Leadtek / Palit Turbine Blower Nvidia RTX GPU Fan - 73mm

RTX 2070 Series, RTX 3070 Series, RTX 3080 Series, and RTX 3090 Series

For: Universal, Palit, PNY, Leadtek, and Zotac
Power Connector: 4 Pin

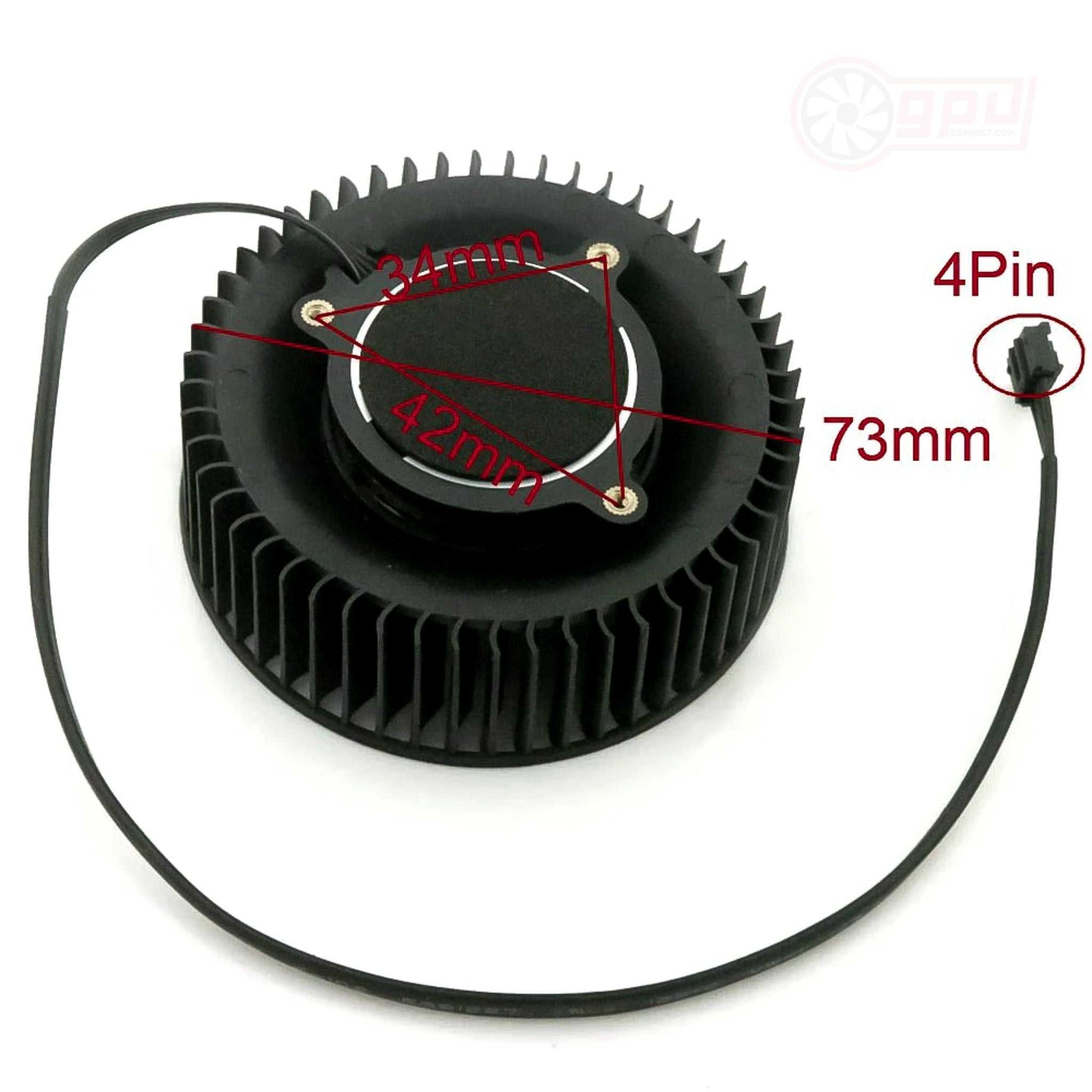

Dimensions: 73 mm
Depth: 25 mm
Mounting Distance: 42 x 34 x 34 mm
Part Number(s): TH7525B2H-PAA02
Rating: 12V @ 1.8A

SKU:TU-23KBL73-F

UK Express Shipping   Express Shipping Item - more info
Regular price £24.95 GBP
Regular price Sale price £24.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Blower style turbine fan used on nvidia graphics cards from a range of manufacturers.  There are a number of fans that look similar if not identical, however please carefully check the width and mounting dimensions carefully before purchase.

Please check compatibility list below for more information.

View full details

Collapsible content

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

ZOTAC GeForce RTX 2080 Ti 11GB Blower
ZOTAC GeForce RTX 2080 Super Blower
PNY GeForce RTX 2080 SUPER 8GB Blower
PNY GeForce RTX 2080 Ti 11GB Blower
Palit GeForce RTX 2070/2070S Blower Series
LEADTEK RTX 3070 Hyper Brain Series
LEADTEK RTX 3080 Hyper Brain Series
LEADTEK RTX 3090 Hyper Brain Series


This list is NOT EXHAUSTIVE. This cooler has Universal compatibility based on the OEM Blower design of some cards however please CAREFULLY CHECK DIMENSIONS for suitability, there are many cards that use similar coolers that do not match the mounting dimensions. Any questions, please ask!

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
