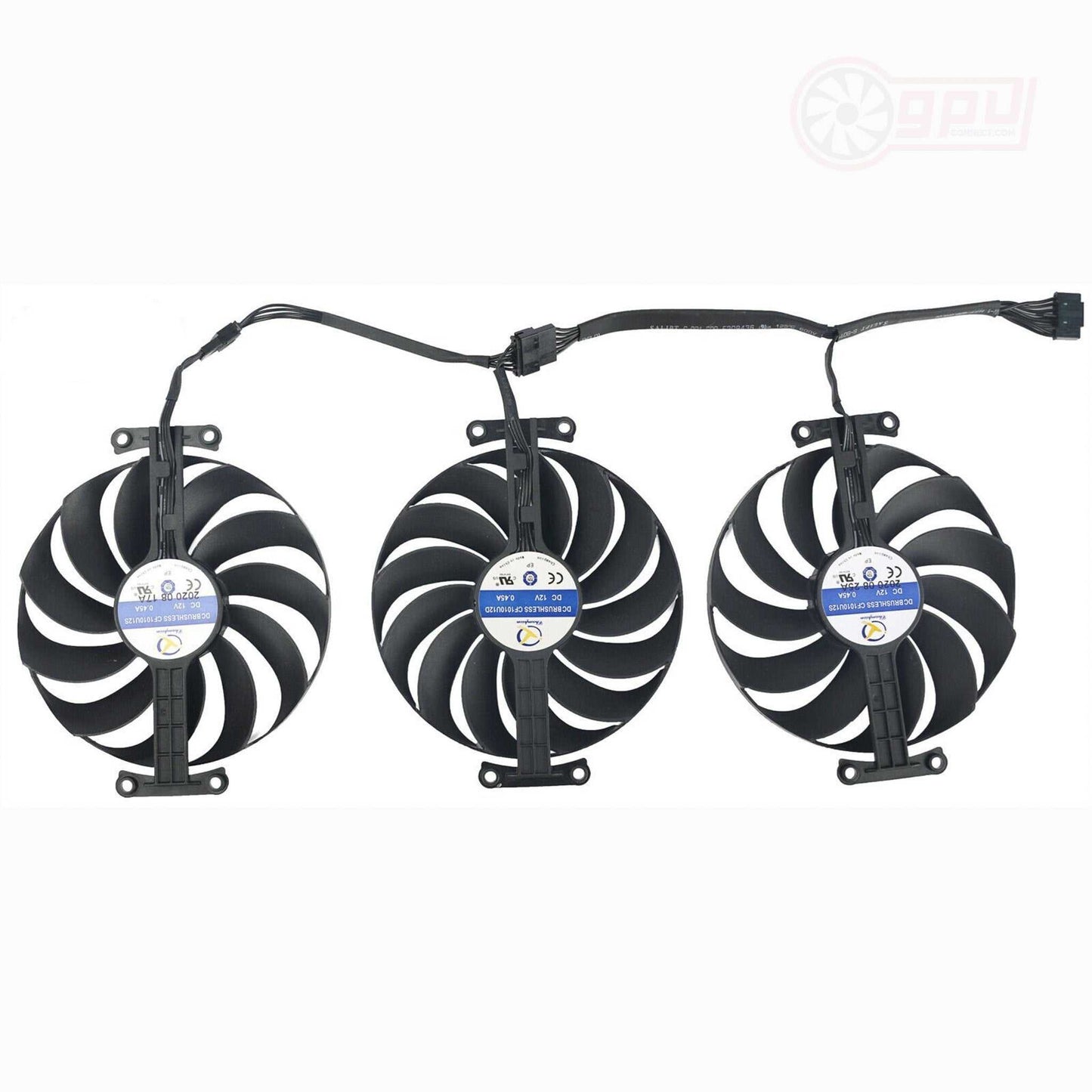

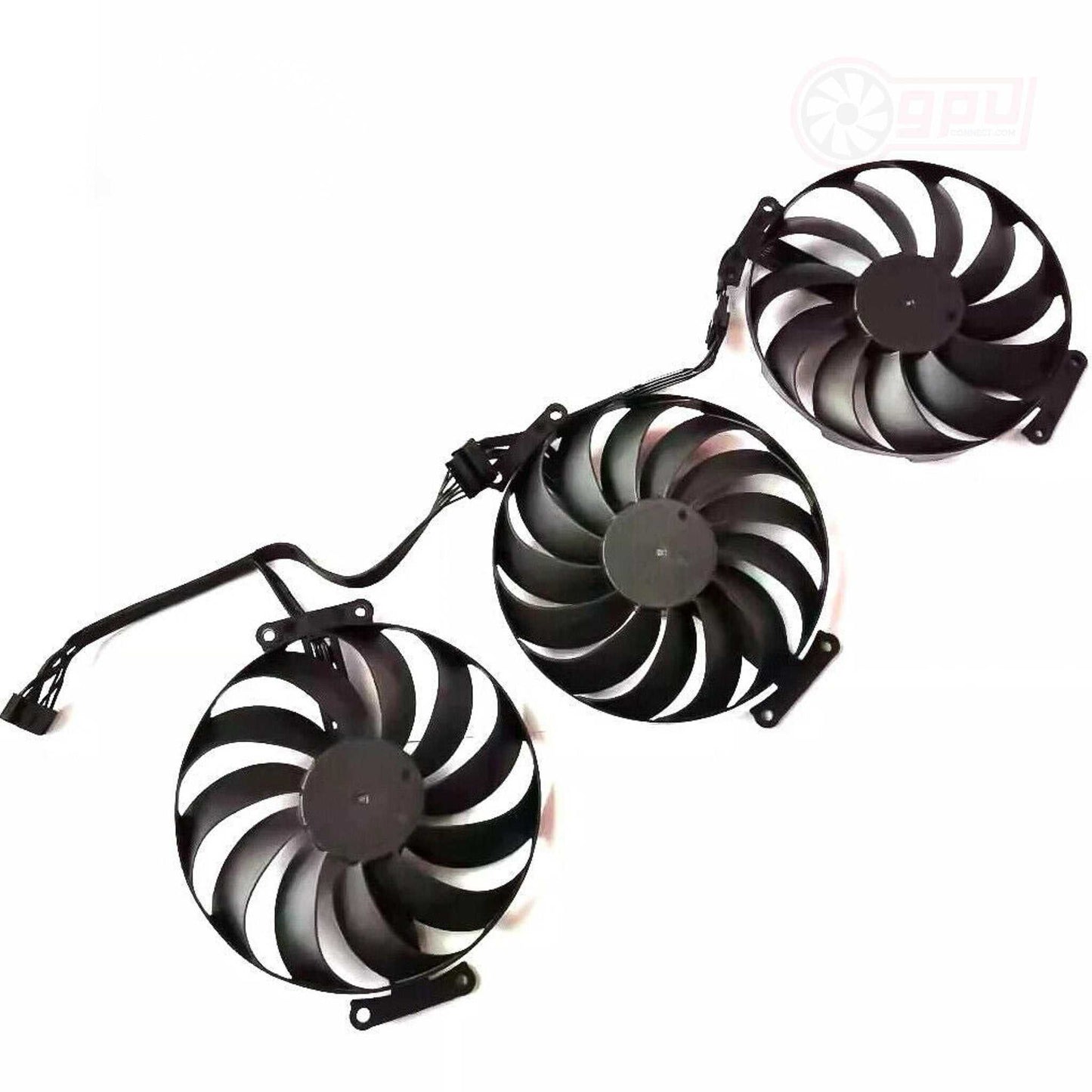

ASUS ROG STRIX RTX 3060 3080 Ti 3090 Replacement Fans

ASUS ROG STRIX RTX 3060 3080 Ti 3090 Replacement Fans

RTX 3060 Series, RTX 3070 Series, RTX 3080 Series, and RTX 3090 Series

For: Asus

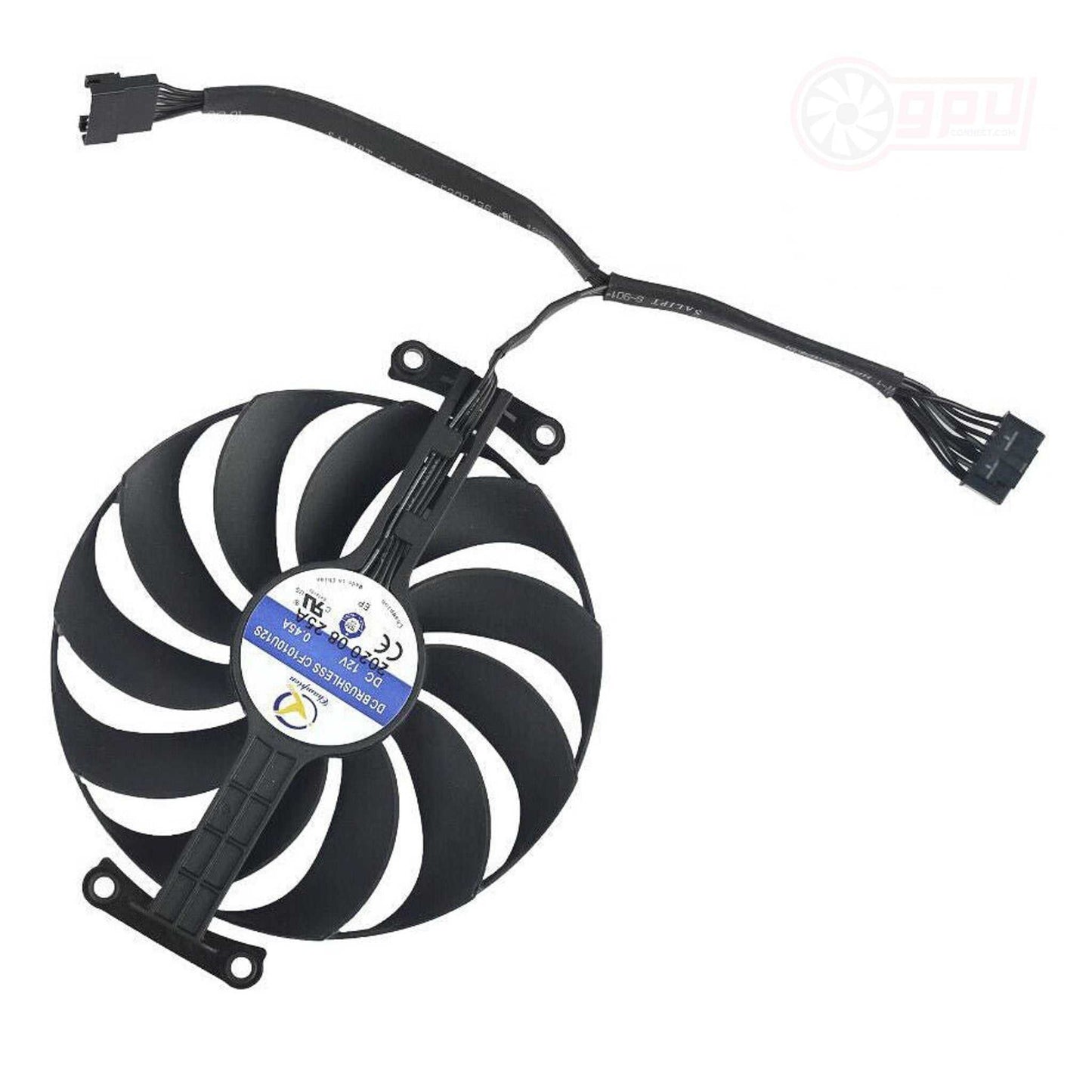

Power Connector: 7 Pin
Dimensions: 95mm
Depth: 12mm
Mounting Distance: 105 x 26 mm (to rectangle)

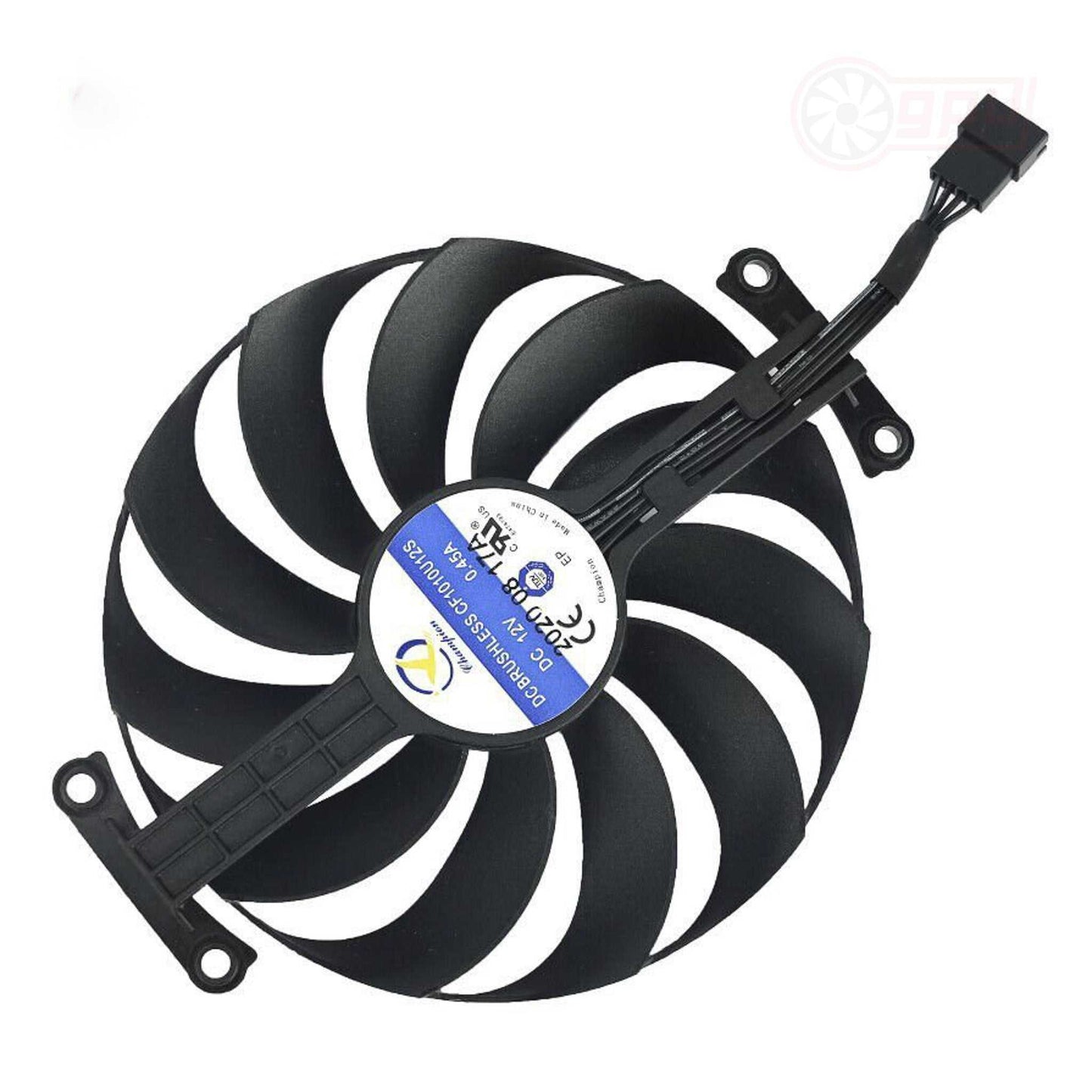

Part Number(s): CF1010U12D (Ball Bearing)
Rating: 12V @ 0.45A

AS-3K-STRIX-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
£19.95 GBP
£0.00 GBP £19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

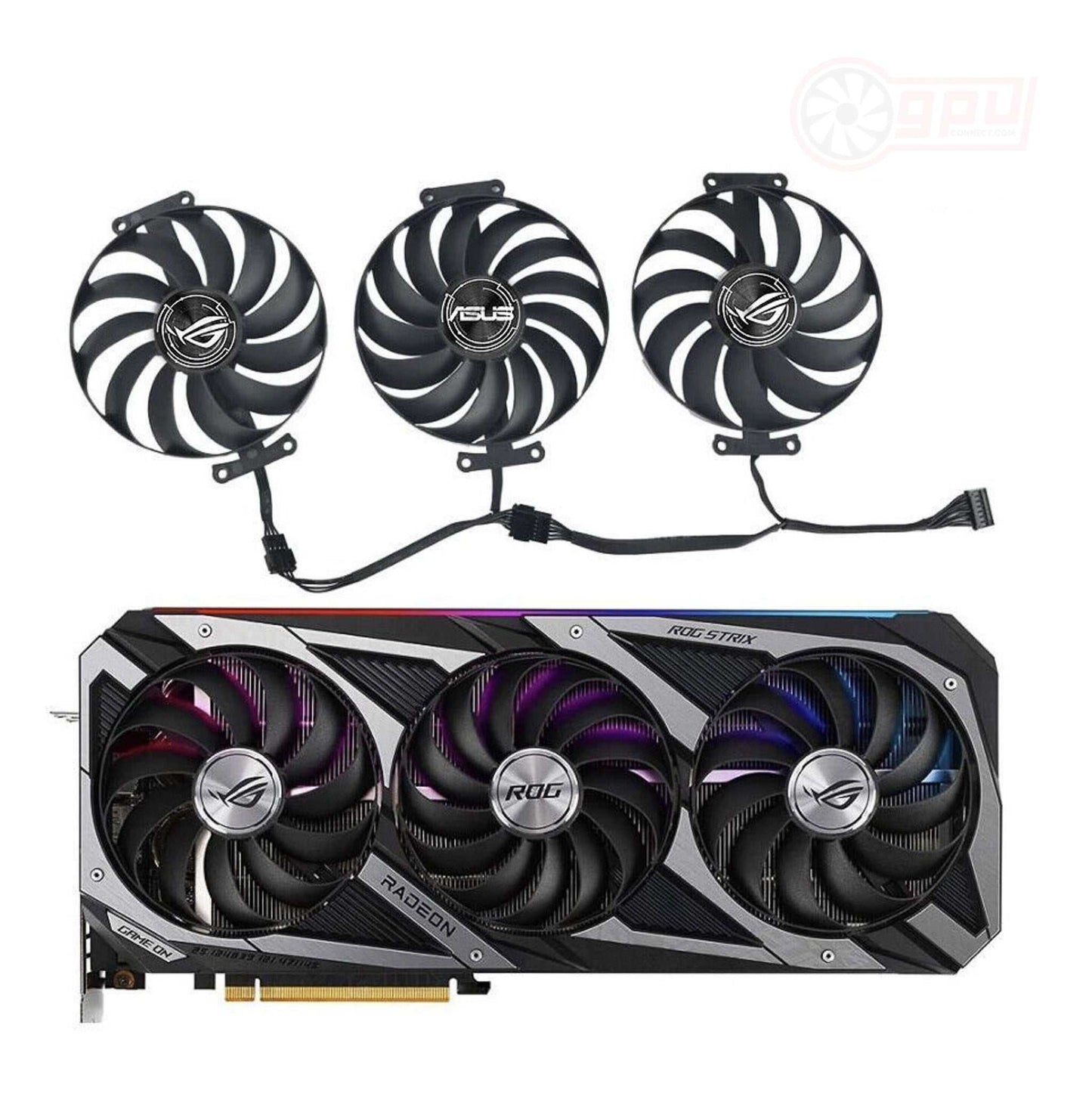

This is a replacement cooling fan set for the ASUS ROG STRIX RTX 3060 3080 and RX 6900 XT.  Stocked in the UK and shipped worldwide with free delivery options.
View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

ASUS ROG STRIX GeForce RTX 3080 V2 OC Edition 10GB GDDR6X
ASUS ROG STRIX GeForce RTX 3080 V2 10GB GDDR6X
ASUS ROG STRIX GeForce RTX 3060 Ti V2 OC Edition 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3060 Ti V2 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3070 V2 OC Edition 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3070 V2 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3070 Ti 8GB GDDR6X
ASUS ROG STRIX GeForce RTX 3070 Ti OC Edition 8GB GDDR6X
ASUS ROG STRIX GeForce RTX 3080 Ti 12GB GDDR6X
ASUS ROG STRIX GeForce RTX 3080 Ti OC Edition 12GB GDDR6X
ASUS ROG STRIX GeForce RTX 3060 Ti 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3060 Ti OC Edition 8GB GDDR6
ASUS ROG STRIX GeForce RTX 3070 buffed-up
ASUS ROG STRIX GeForce RTX 3090 buffed-up

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
