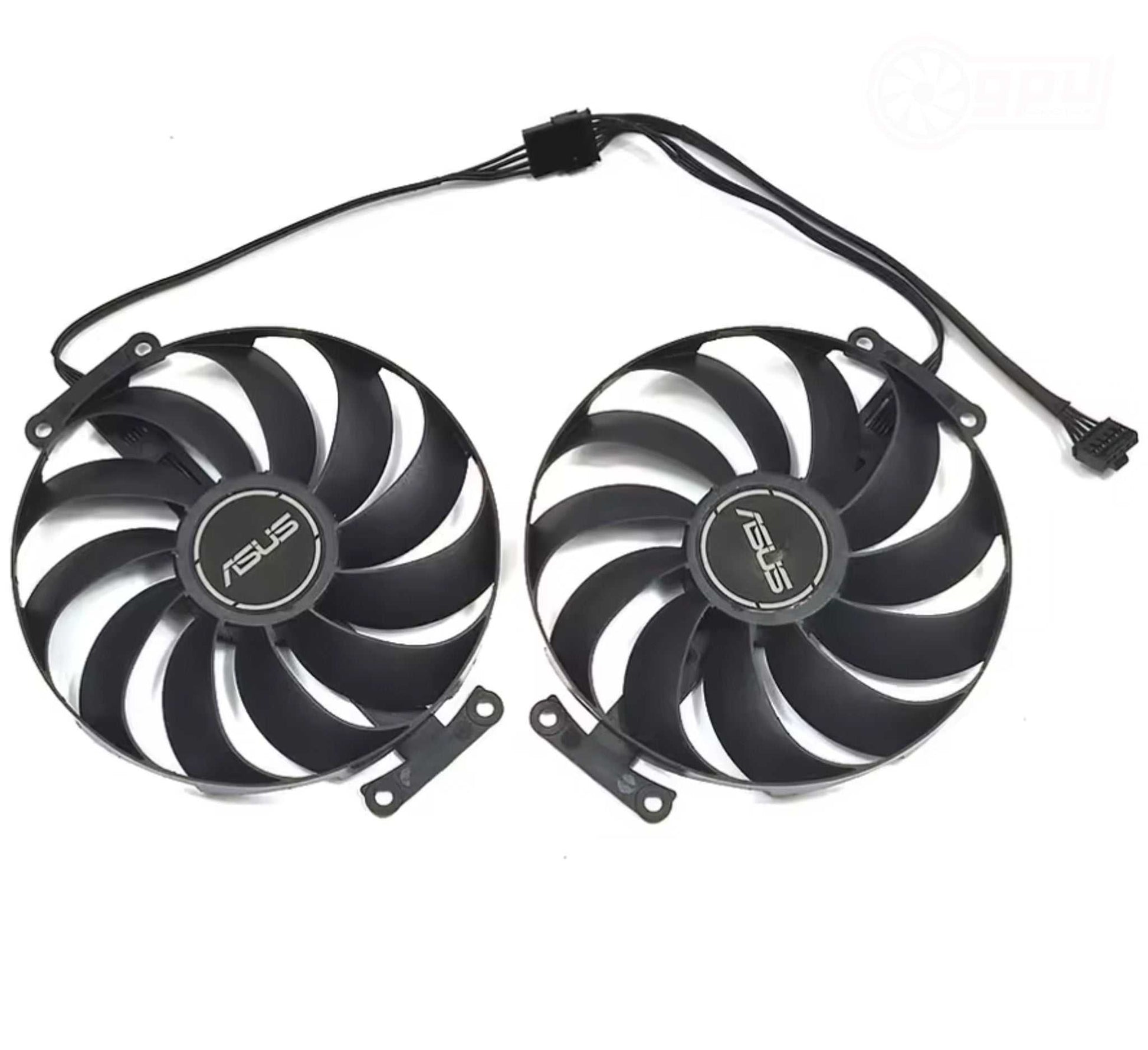

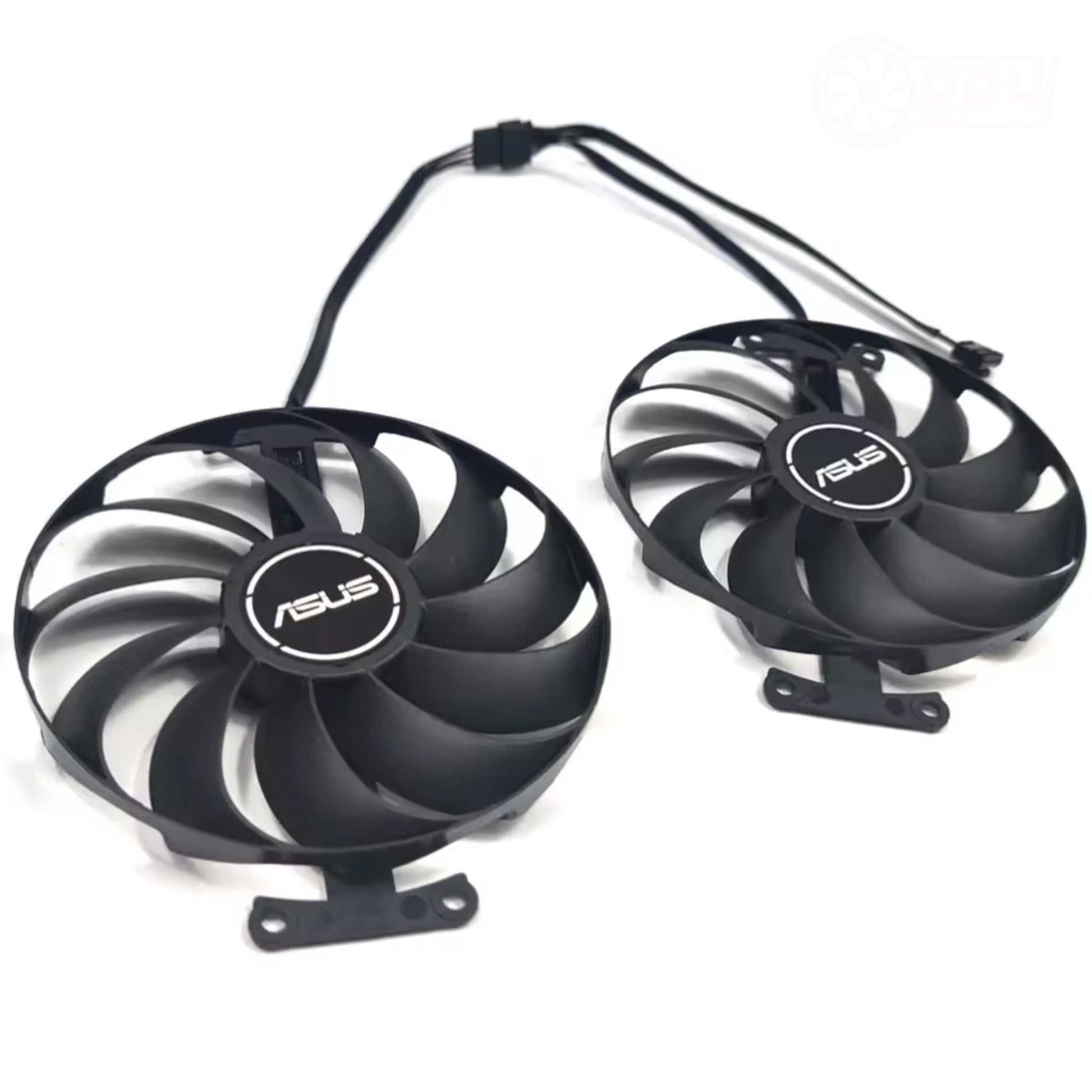

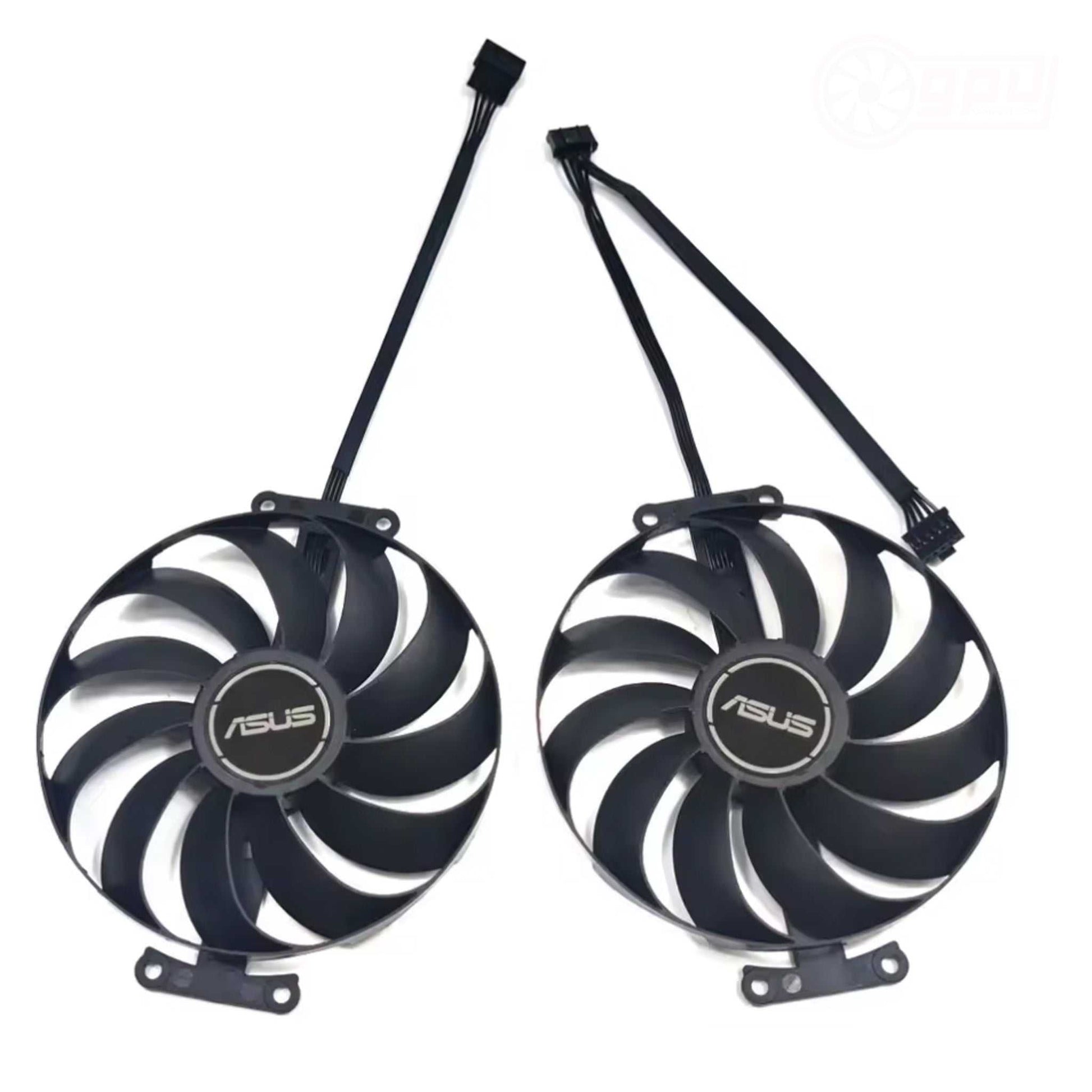

ASUS RX 6750 6700 6650 6600 XT DUAL Replacement GPU Fans

ASUS RX 6750 6700 6650 6600 XT DUAL Replacement GPU Fans

RX 6750 Series, RX 6700 Series, RX 6650 Series, and RX 6600 Series

For: Asus
Power Connector: 5 Pin

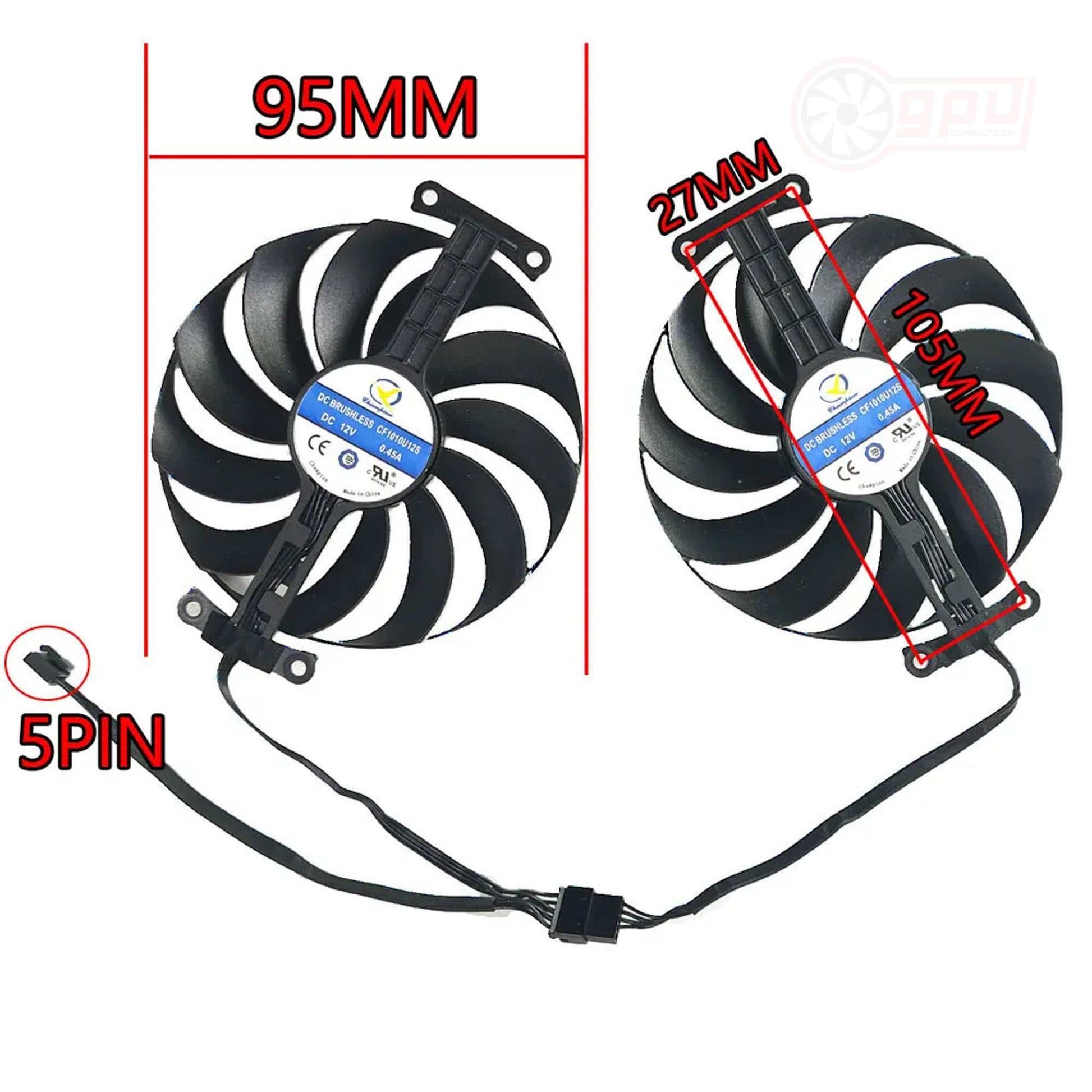

Dimensions: 95 mm
Depth: 12 mm
Mounting Distance: 105 x 27mm (Square)
Part Number(s): CF1010U12S
Rating: 12V @ 0.45A

AS-6600DUAL-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
£19.95 GBP
£0.00 GBP £19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

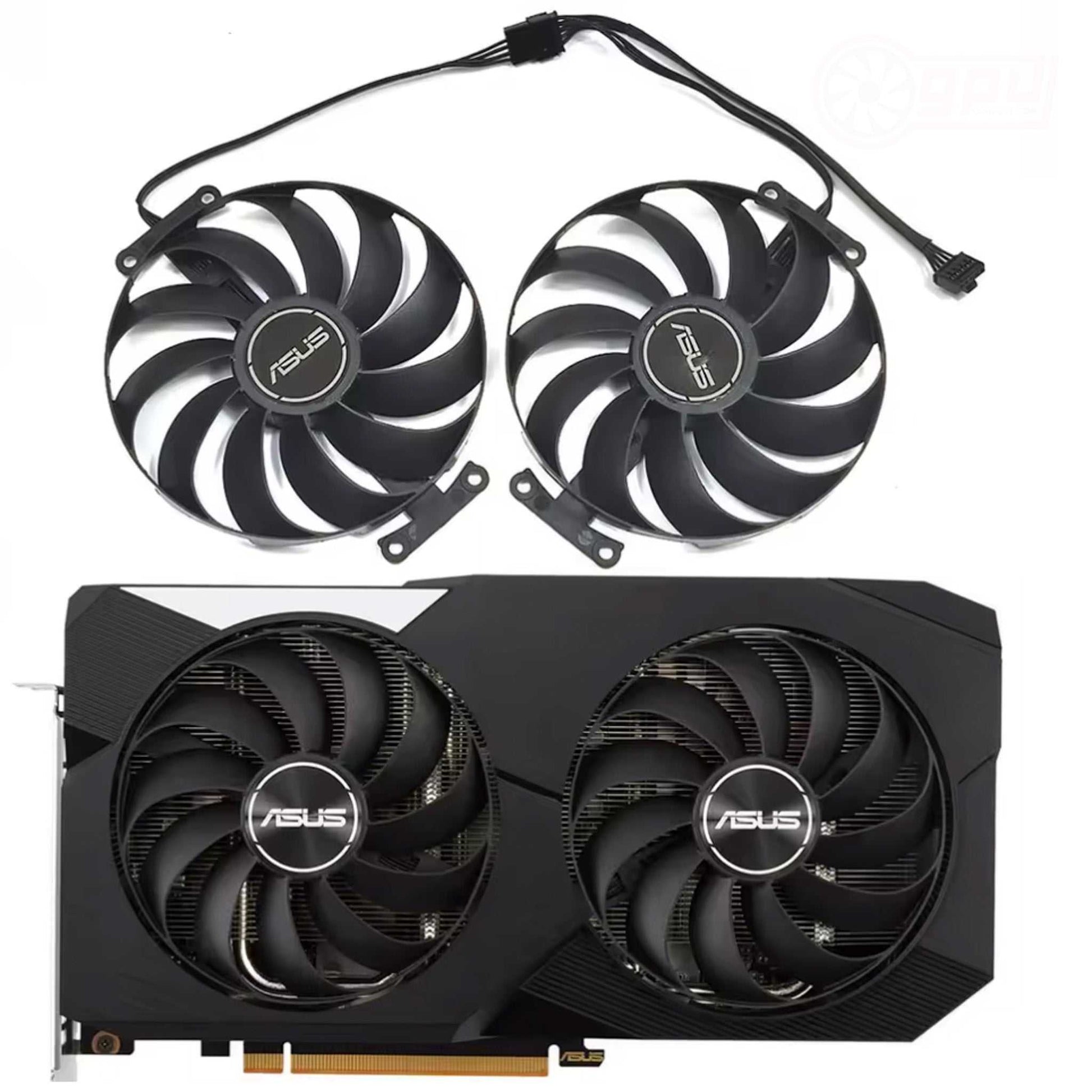

This is high quality replacement cooler set compatible with the ASUS Radeon RX 6750 6700 6650 6600 XT Series graphics cards and the perfect replacement for poor performing, damaged or faulty graphics card coolers.

Note: This is a 5-Pin fan set, please check this is compatible with your existing fan set.  If your fan set is 7-Pin please see this version

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

ASUS Radeon DUAL-RX 6600
ASUS Radeon DUAL-RX 6600XT
ASUS Radeon DUAL-RX 6700XT
ASUS Radeon DUAL-RX 6650XT
ASUS Radeon DUAL-RX 6750XT

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
