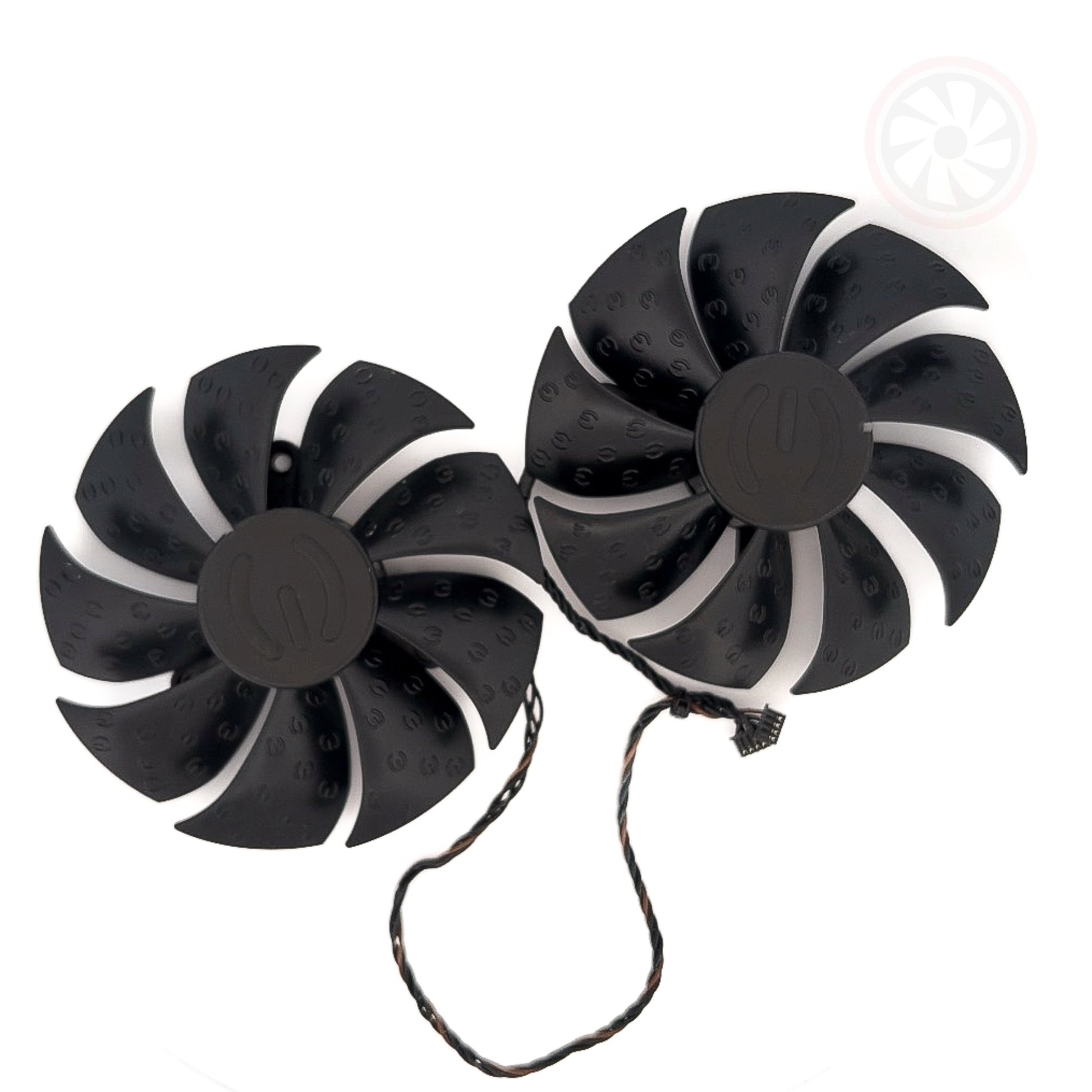

EVGA RTX 2060 2070 2080 2080Ti SUPER XC Replacement Fans (15mm)

EVGA RTX 2060 2070 2080 2080Ti SUPER XC Replacement Fans (15mm)

RTX 2060 Series, RTX 2070 Series, and RTX 2080 Series

For: EVGA
Power Connector: 4 Pin
Dimensions: 87mm
Depth: 15mm
Mounting Distance: 42 x 42 x 42mm (Triangle)
Part Number(s): PLA09215S12H
Rating: 12V @ 0.55A

SKU:EV-2K-SUPER-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
Regular price £19.95 GBP
Regular price £0.00 GBP Sale price £19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers. Please check dimensions before purchase.

Note: This fan is 15mm depth blade. Please check as depending on your model you may have a 20mm blade instead (see here)


    View full details

    Collapsible content

    Compatibility Guide

    The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

    EVGA RTX 2060 SUPER XC Gaming / 08G-P4-3162-KR
    EVGA RTX 2070 SUPER XC
    EVGA RTX 2070 SUPER XC BLACK
    EVGA RTX 2070 XC BLACK Edition Gaming / 08G-P4-2071-KR
    EVGA RTX 2070 XC Gaming / 08G-P4-2172-KR
    EVGA RTX 2080 Ti XC Gaming / 11G-P4-2382-KR
    EVGA RTX 2080 SUPER XC Gaming / 08G-P4-3183-KR
    EVGA RTX 2080 XC Gaming / 08G-P4-2183-KR
    EVGA RTX 2080 BLACK Edition Gaming / 08G-P4-2081-KR
    EVGA RTX 2080 SUPER BLACK Edition Gaming / 08G-P4-3081-KR
    EVGA RTX 2080 Ti BLACK Edition Gaming / 11G-P4-2281-KR

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here

    Installation

    Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

    Please ensure you keep note of the screw replacement locations as you do along.

    The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

    At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

    Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

    Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
