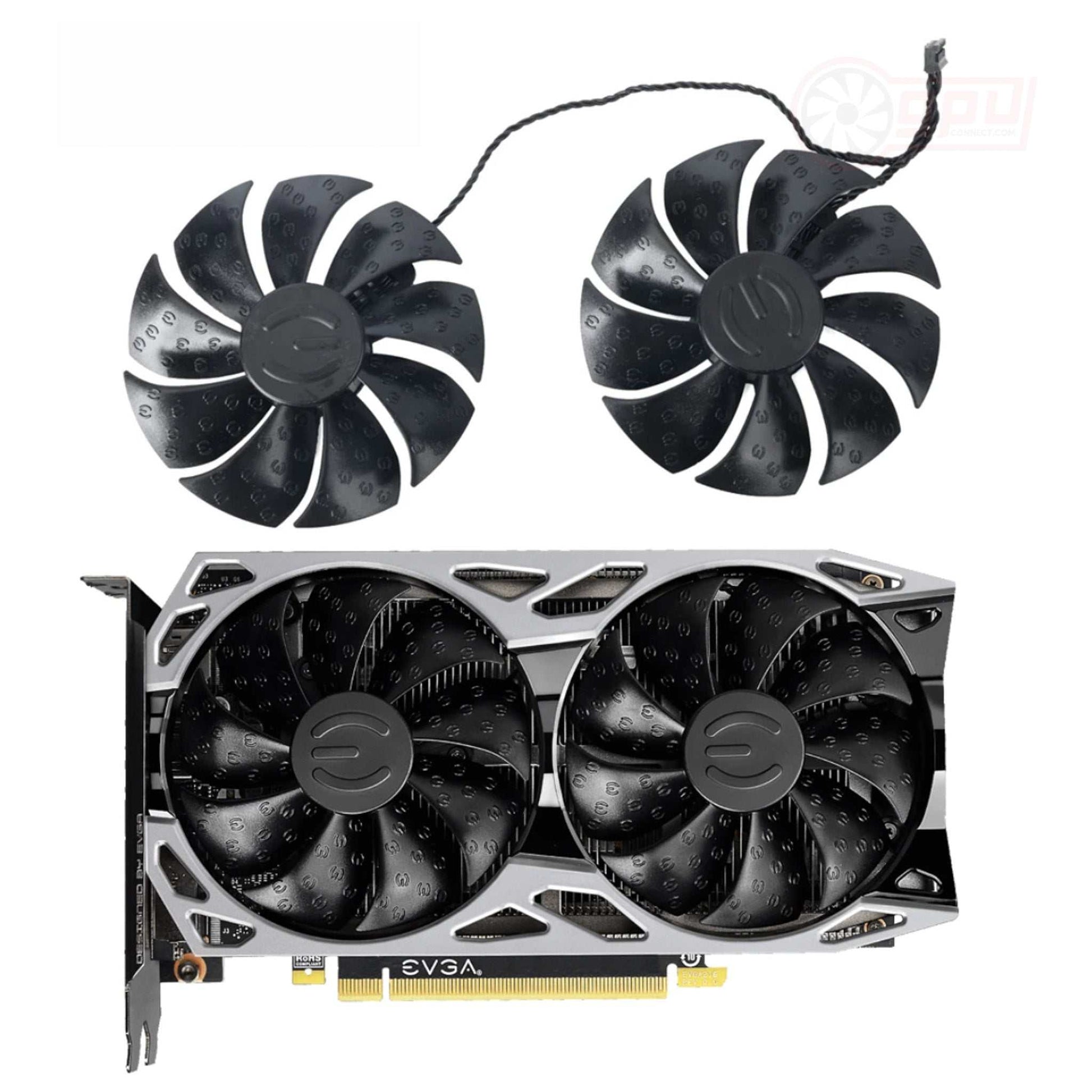

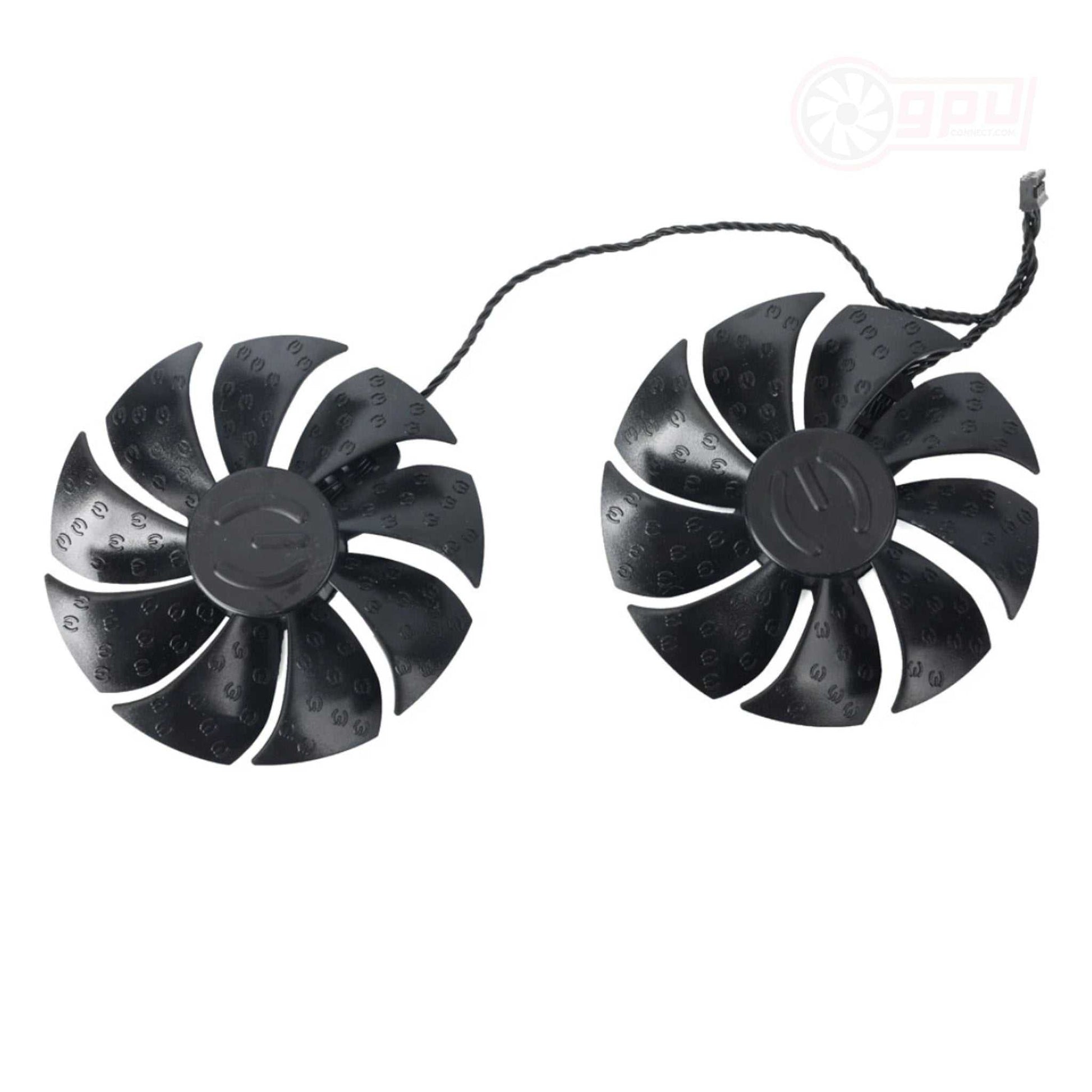

EVGA RTX 2060 KO GTX 1660 Ti 1650 1660 SC ULTRA Gaming Replacement Fans

EVGA RTX 2060 KO GTX 1660 Ti 1650 1660 SC ULTRA Gaming Replacement Fans

GTX 1650 Series, GTX 1660 Series, and RTX 2060 Series

For: EVGA
Power Connector: 4 Pin

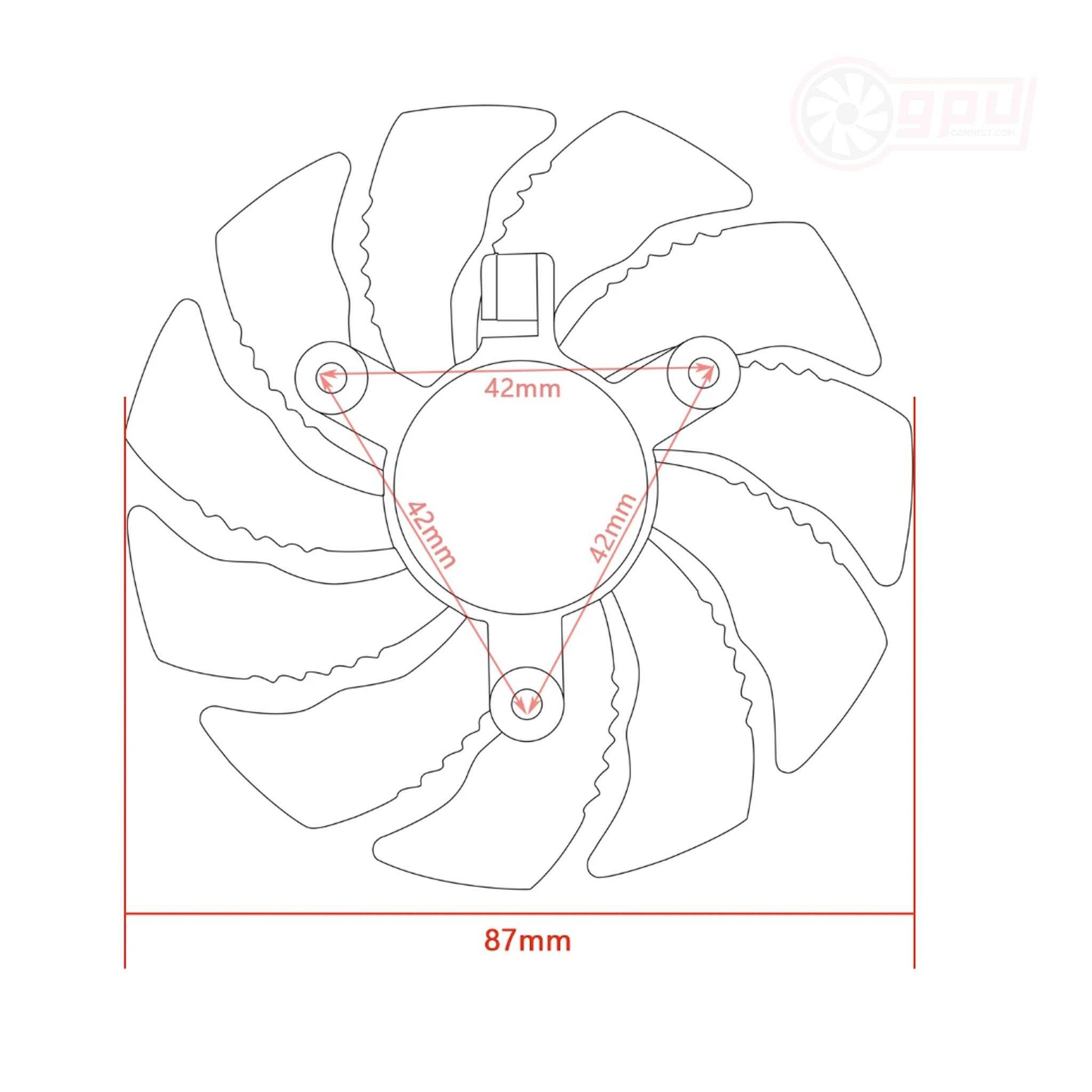

Dimensions: 87mm
Depth: 15mm
Mounting Distance: 42 x 42 x 42mm (Triangle)

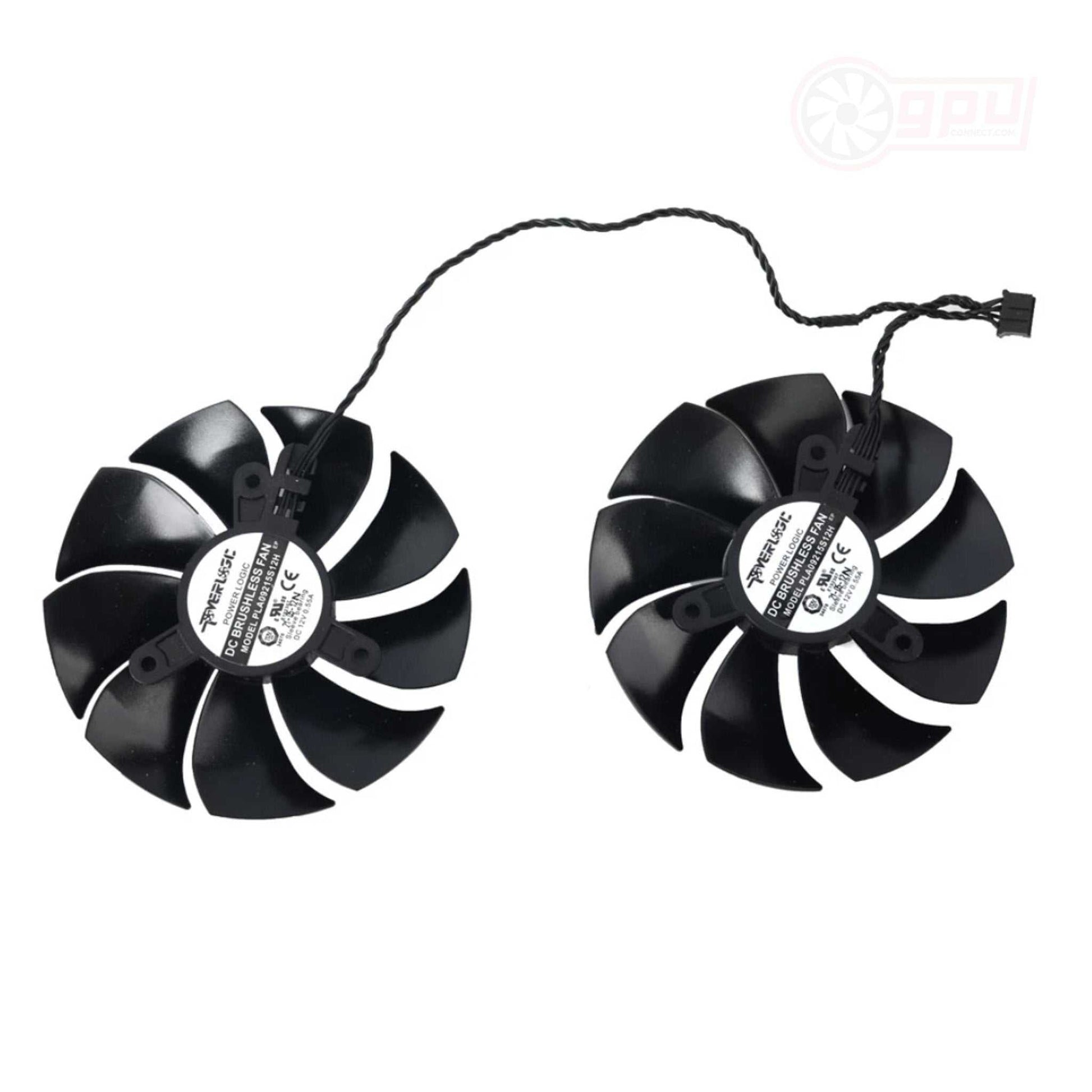

Part Number(s): PLA09215S12H
Rating: 12V @ 0.55A (Sleeve Bearing)

EV-1K66-F

UK Express Shipping   Express Shipping Item - more info
£33.95 GBP
£39.95 GBP £33.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers.
View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

EVGA GeForce RTX 2060 KO ULTRA GAMING
EVGA GeForce RTX 2060 KO GAMING
EVGA GeForce GTX 1660 Ti SC ULTRA GAMING
EVGA GeForce GTX 1660 SUPER SC ULTRA BLACK GAMING
EVGA GeForce GTX 1660 SUPER SC ULTRA GAMING
EVGA GeForce GTX 1660 SC ULTRA BLACK GAMING
EVGA GeForce GTX 1660 SC ULTRA GAMING
EVGA GeForce GTX 1650 SC ULTRA GAMING
EVGA GeForce GTX 1650 SC ULTRA BLACK GAMING
EVGA GeForce GTX 1650 SUPER SC ULTRA BLACK GAMING
EVGA GeForce GTX 1650 SUPER SC ULTRA GAMING

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.

Returns

If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.
