Gigabyte RTX 3060 2070 2060 GTX 1660 Ti EAGLE/SUPER WINDFORCE Fan

Gigabyte RTX 3060 2070 2060 GTX 1660 Ti EAGLE/SUPER WINDFORCE Fan

RTX 3060 Series, RTX 2060 Series, RTX 2070 Series, GTX 1650 Series, and GTX 1660 Series

For: Gigabyte
Power Connector: 4 Pin
Dimensions: 95 mm
Depth: 10 mm
Mounting Distance: 40 x 40 x 40 mm (triangle)

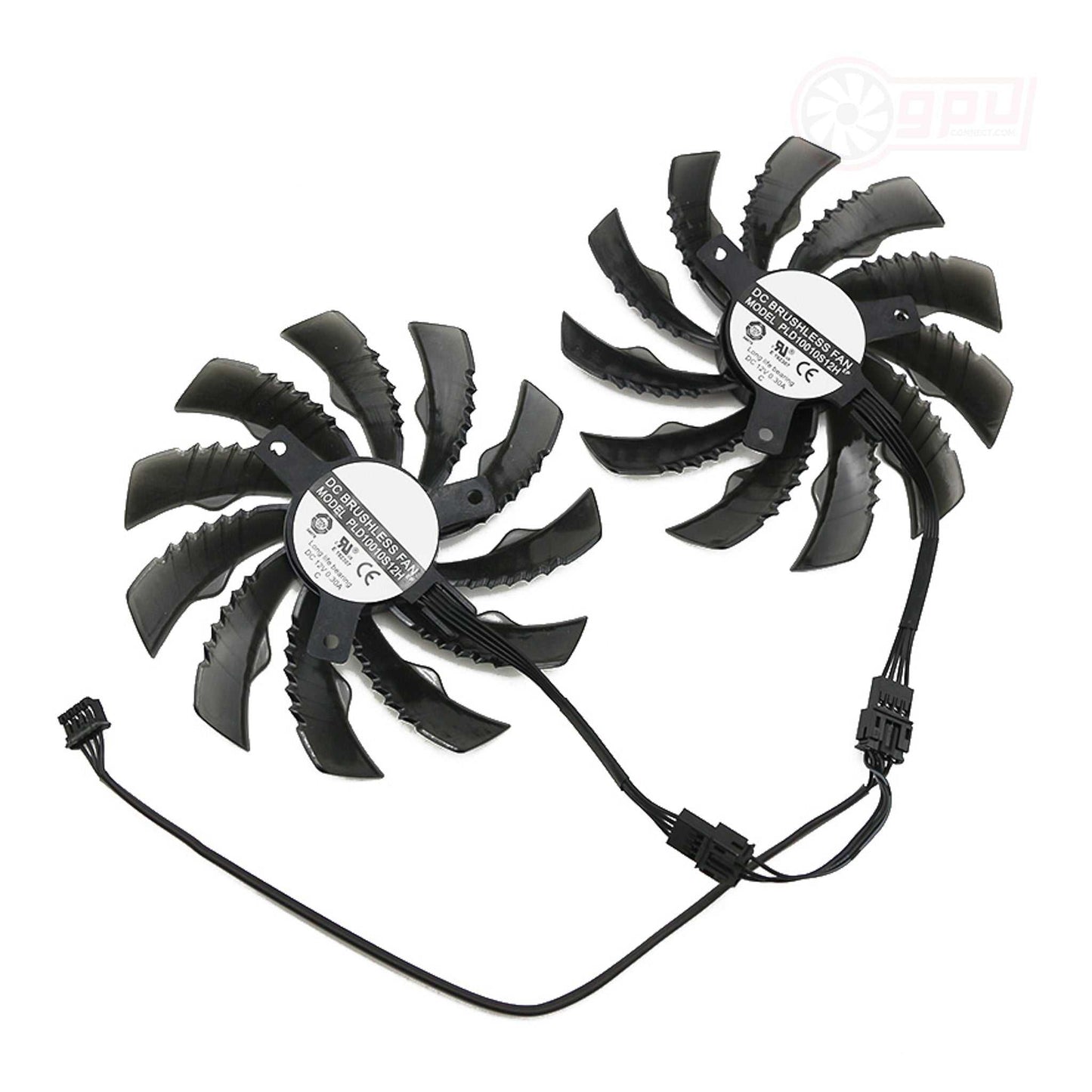

Part Number(s): PLD10010S12H
Rating: 0.3A @ 12V

GB-2070WIN-F

UK Express Shipping   Express Shipping Item - more info
Type
£19.95 GBP
£19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers.

Note: There are multiple cards from Gigabyte with similar fans, but not identical. Please check your cards fans are identical to those pictured and measurements.

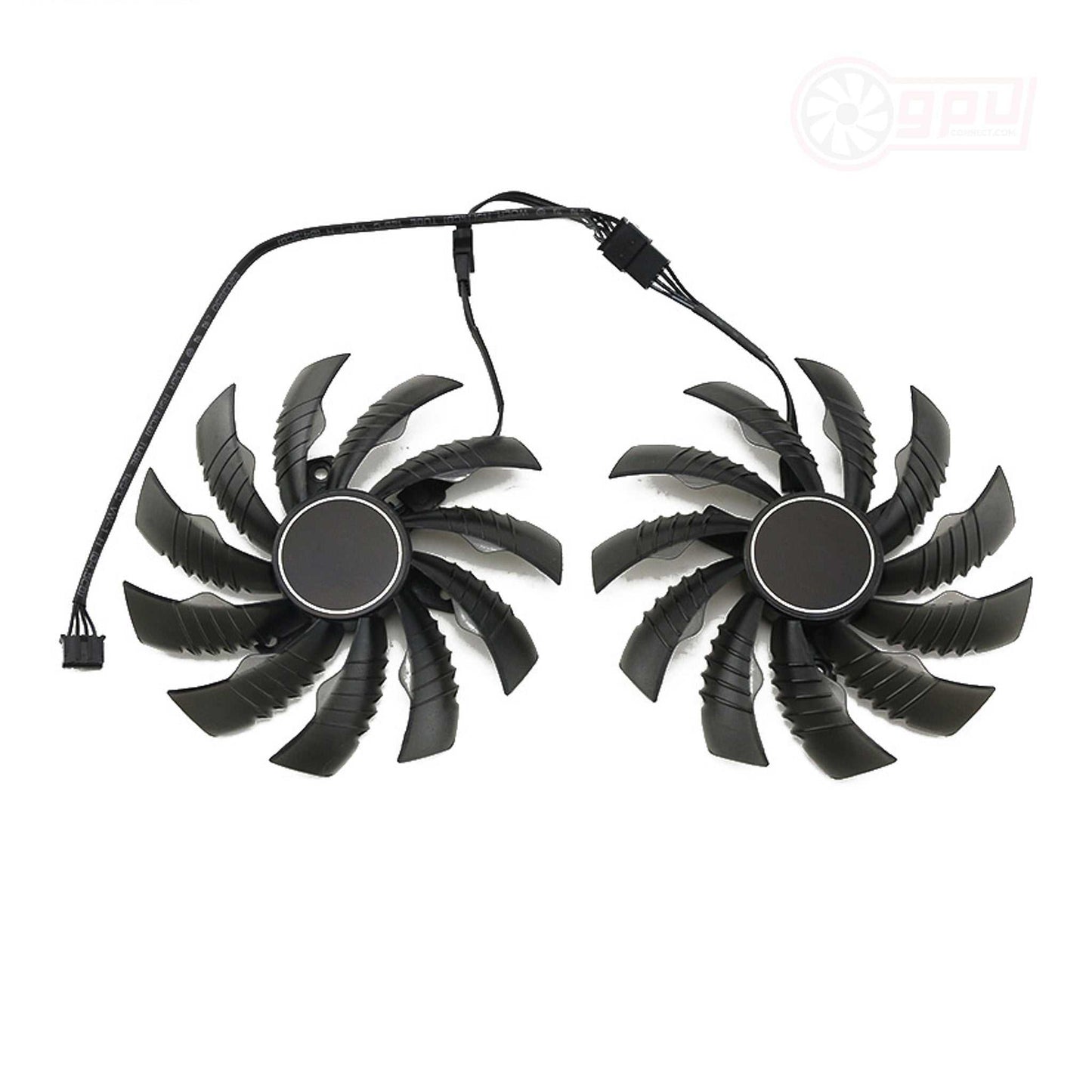

Each version is supplied as full sets of 2 Fans (note the blades differ in direction!)
Compatibility Guide 2060 1
View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

Gigabyte GTX 1660 Ti WINDFORCE OC 6G
Gigabyte GTX 1650 GAMING OC 4G
Gigabyte RTX 2060 WINDFORCE 6G
Gigabyte RTX 2060 WINDFORCE OC 6G
Gigabyte RTX 2070 WINDFORCE 2X 8G
Gigabyte RTX 2070 WINDFORCE OC 2X 8G
Gigabyte RTX 2060 SUPER WINDFORCE OC 8G
Gigabyte RTX 3060 EAGLE
Gigabyte RTX 3060 Ti EAGLE

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
