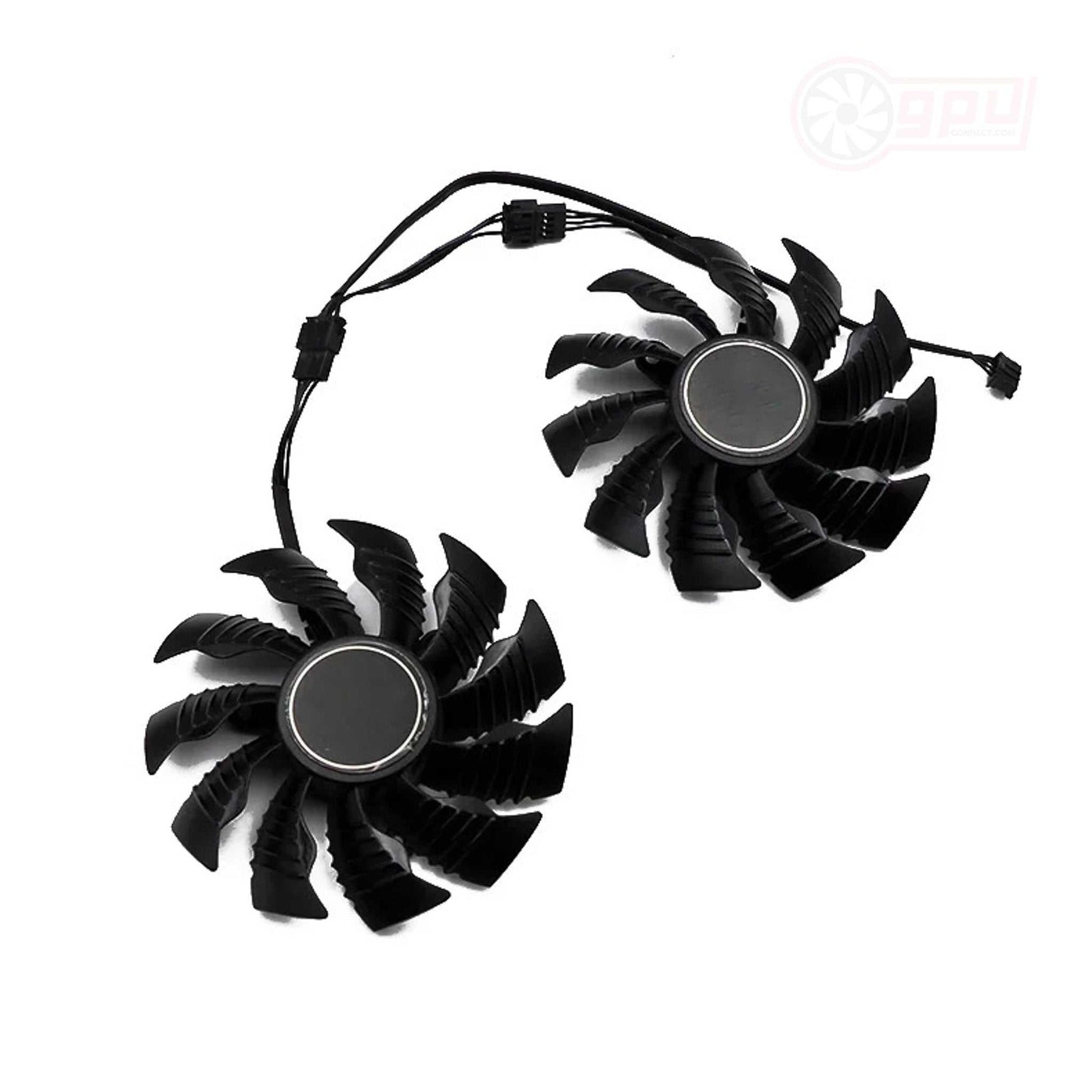

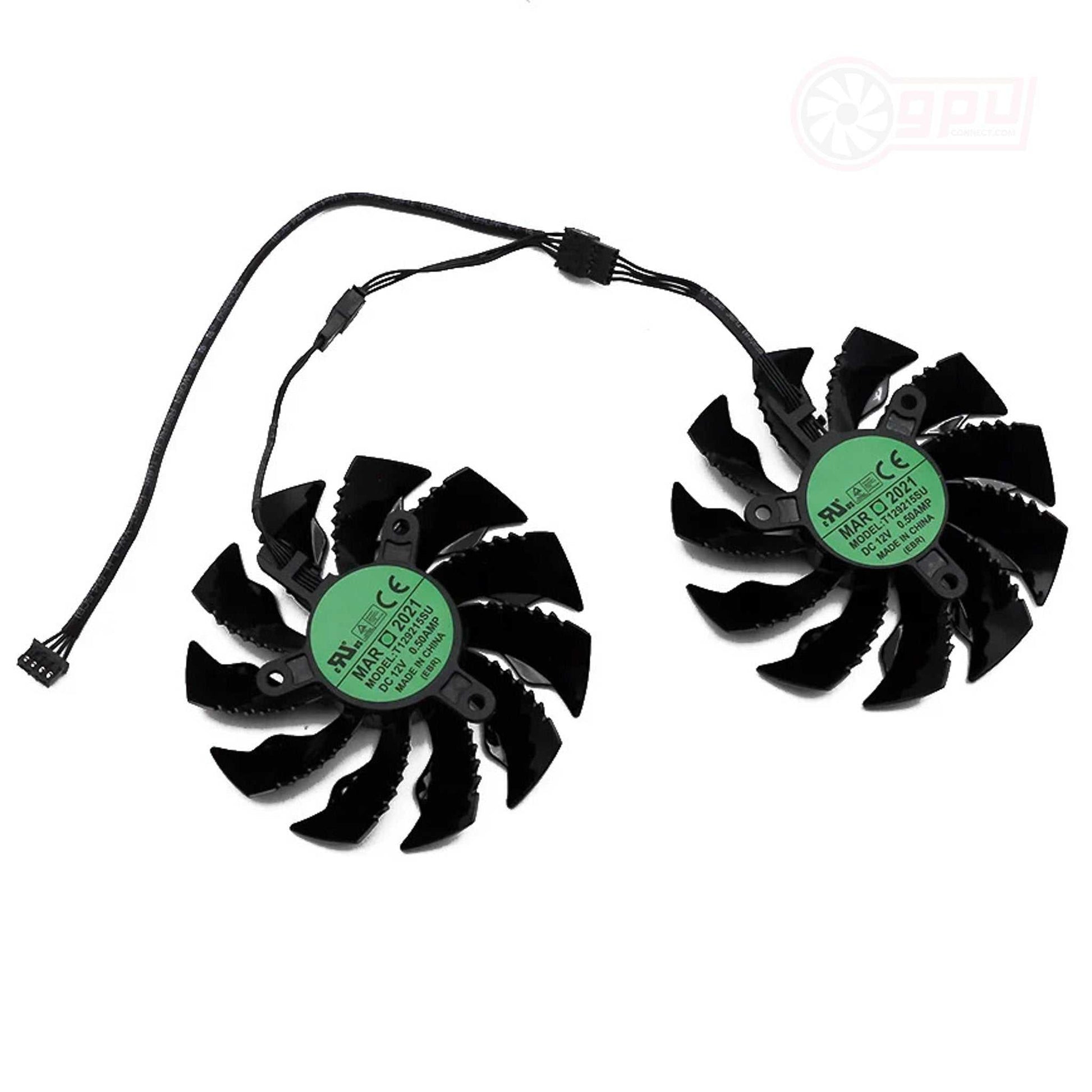

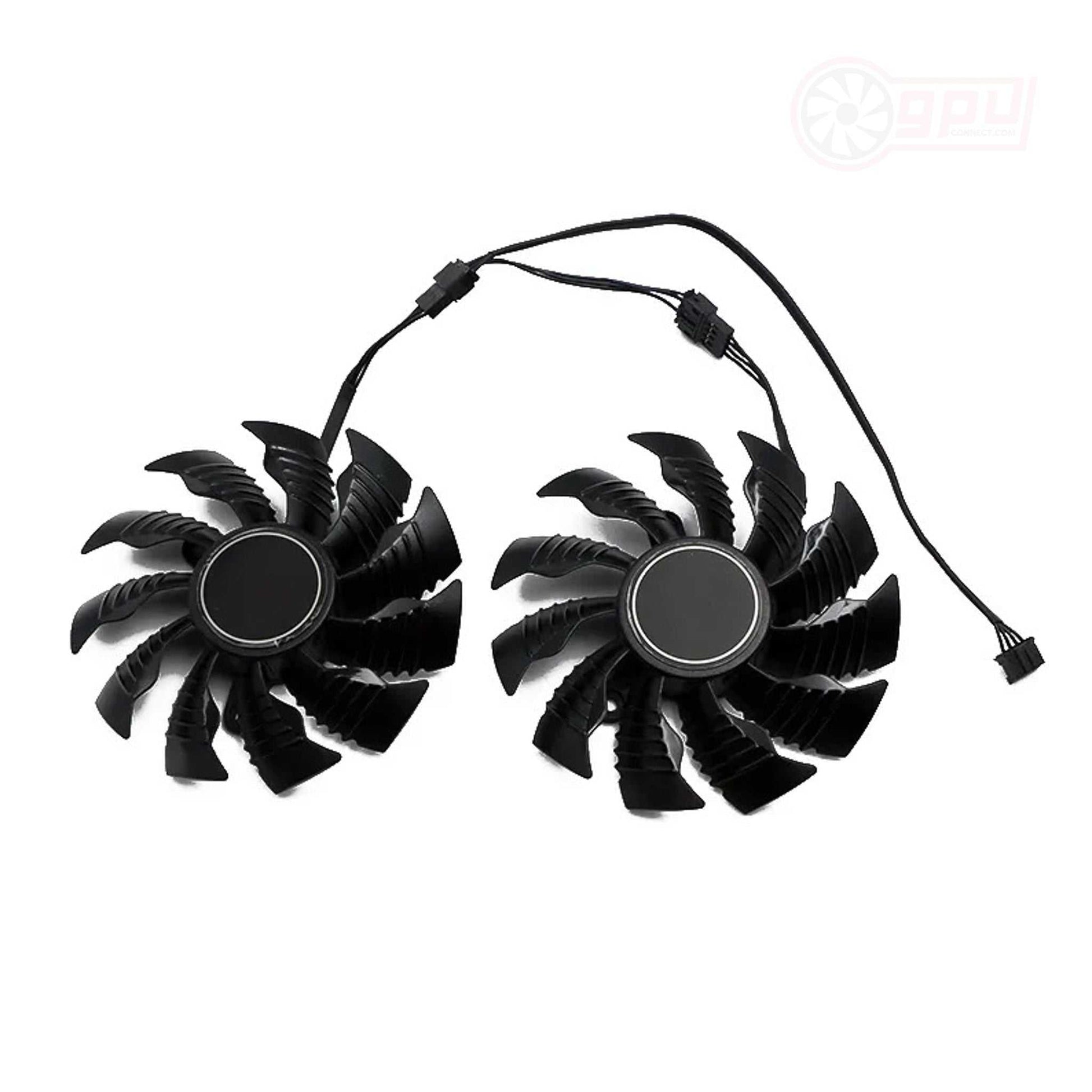

Gigabyte GTX 960 950 / R9 390 380 GPU Fan Set

Gigabyte GTX 960 950 / R9 390 380 GPU Fan Set

GTX 960 Series, GTX 950 Series, R9 390 Series, and R9 380 Series

For: Gigabyte
Power Connector: 4 Pin (Universal)
Dimensions: 87 mm
Depth: 15 mm
Mounting Distance: 42 x 42 x 42 mm
Part Number(s): T129215SU
Rating: 12V @ 0.5A

GB-960390-F

Standard Shipping Standard Shipping Item - more info
£19.95 GBP
£19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

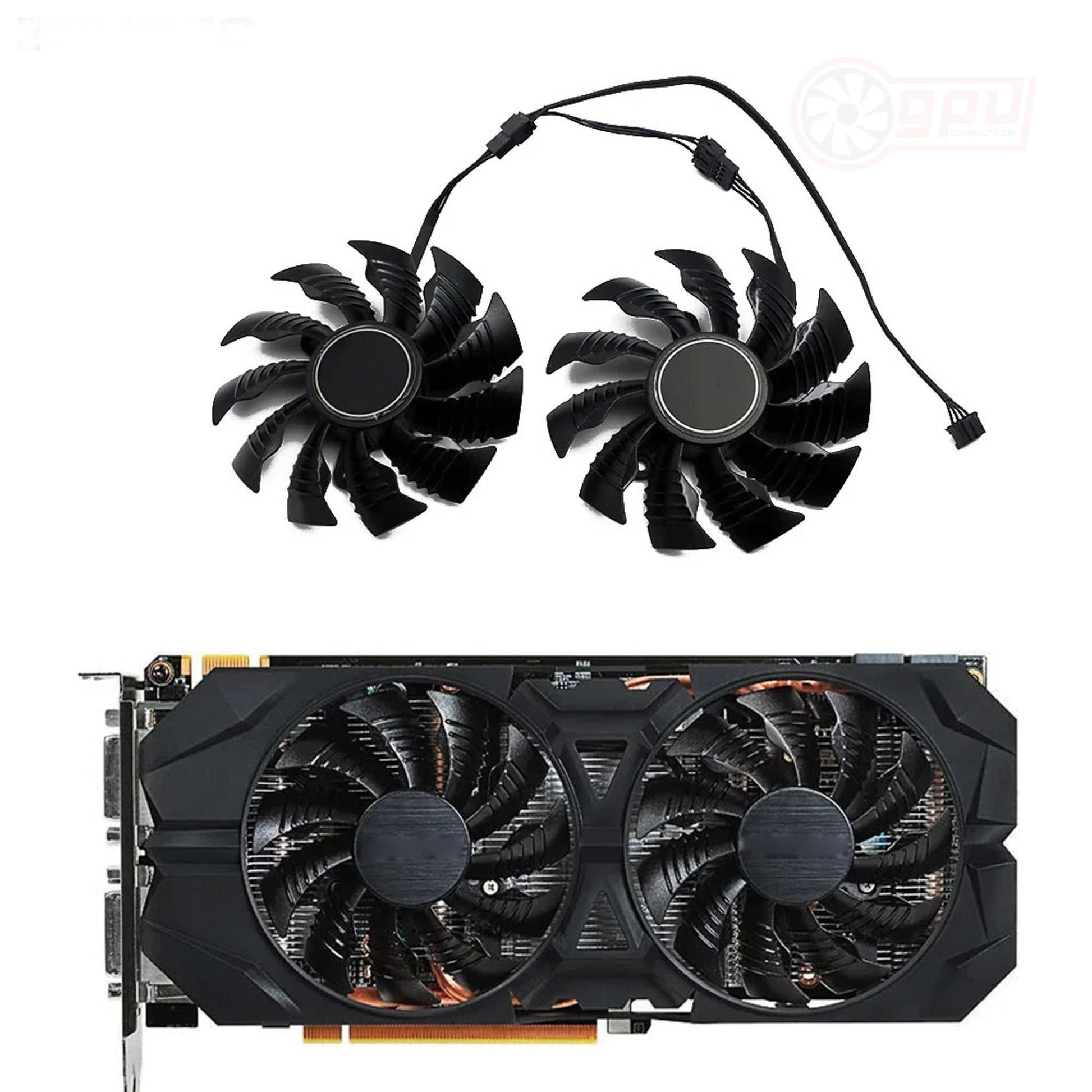

This is a replacement fan (single) for poor performing, damaged or faulty graphics card coolers based on the Gigabyte GTX 960 / 950 and R9 390 380 Series. This is a like for like replacement with the original fan, and can be replaced with a little DIY.
View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

N960WF2OC-2GD
GV-N960WF2OC-4GD
GV-R938G1
GTX 950 Xtreme Gaming

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
