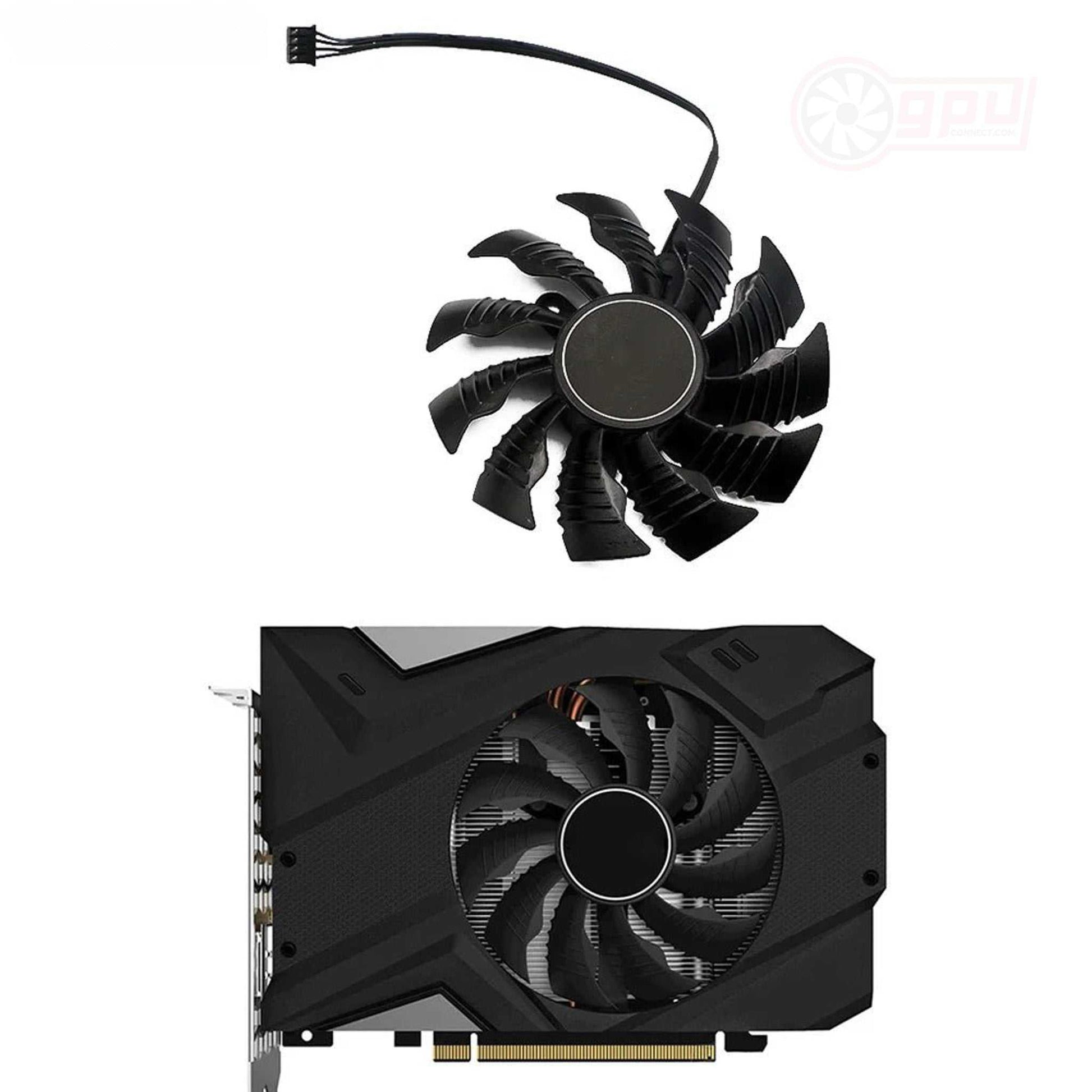

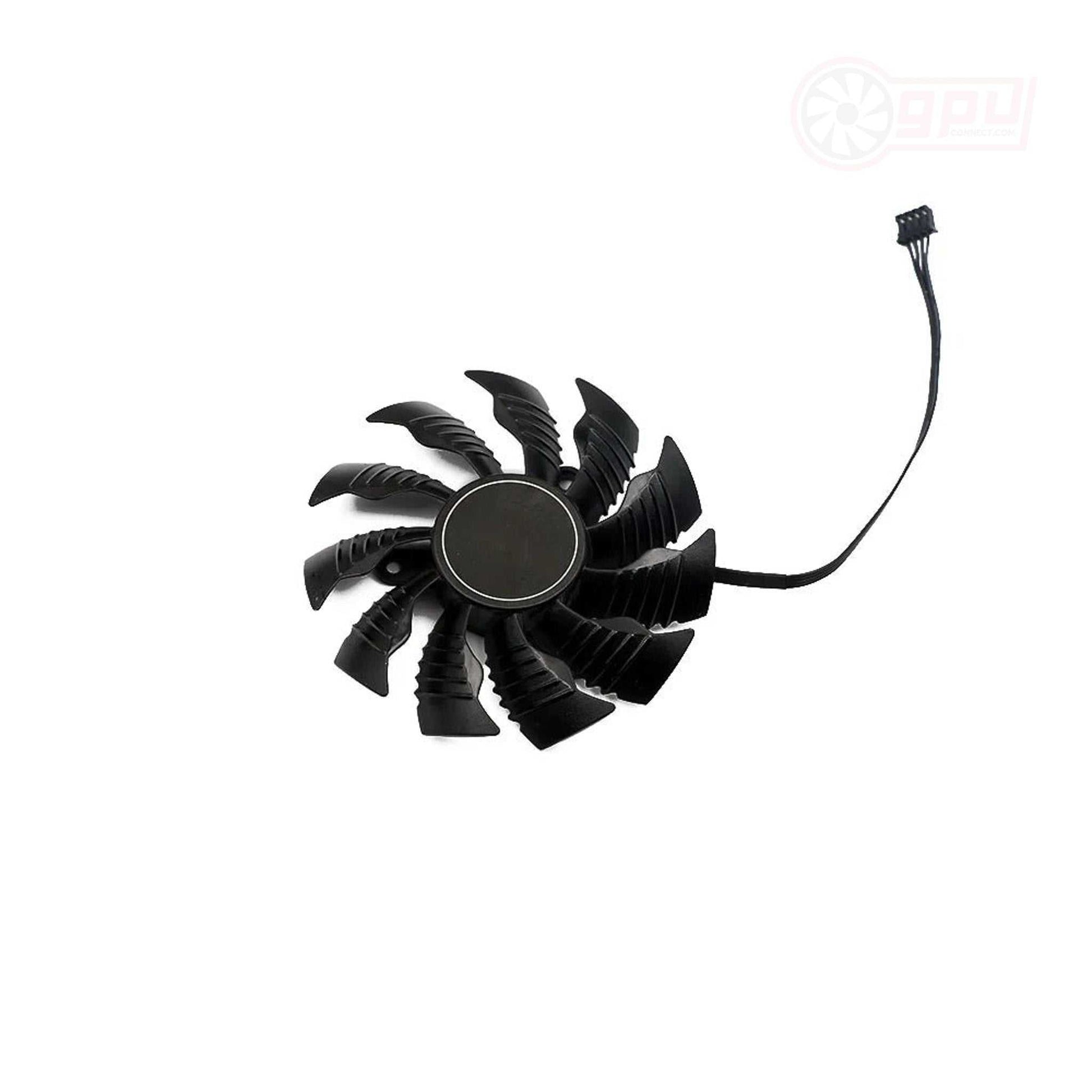

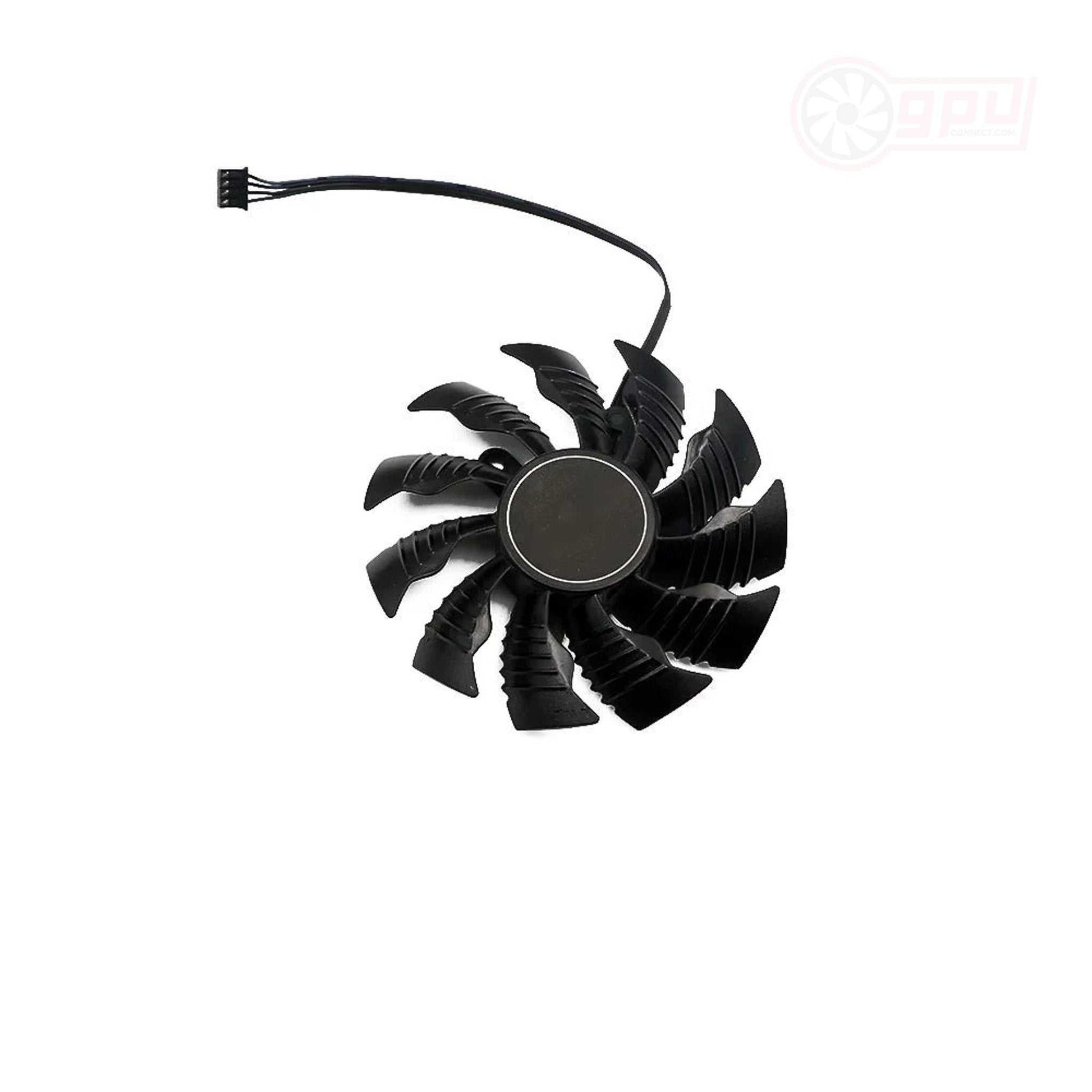

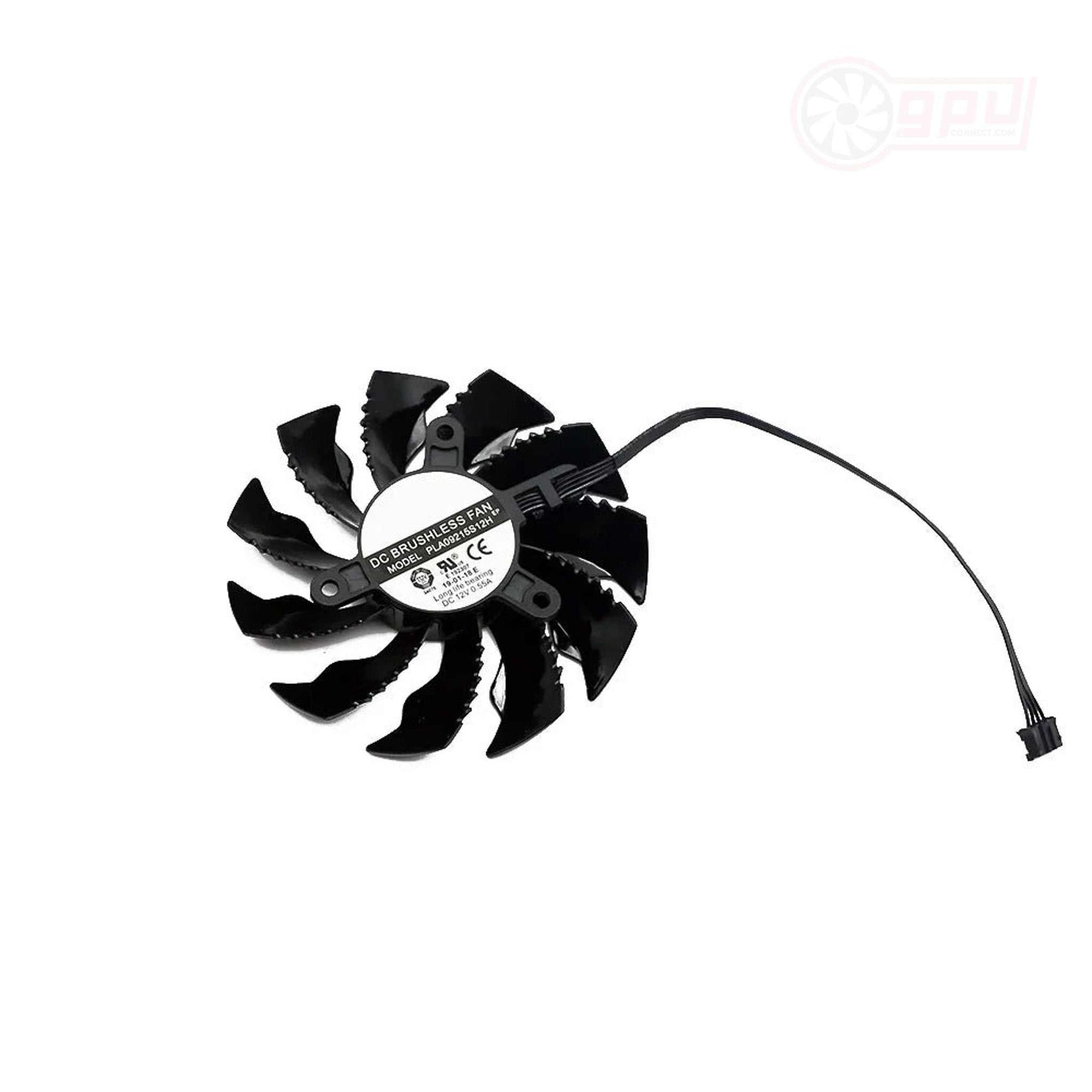

Gigabyte RTX 2060 2070 / GTX 1660 1660Ti SUPER Mini ITX OC GPU Fan

Gigabyte RTX 2060 2070 / GTX 1660 1660Ti SUPER Mini ITX OC GPU Fan

RTX 2070 Series, RTX 2060 Series, and GTX 1660 Series

For: Gigabyte
Power Connector: 4 Pin
Dimensions:
Depth: TBC
Mounting Distance: 42 x 42 x 42 mm
Part Number(s): PLA09215S12H
Rating: 12V @ 0.55A

GB-2KSMINI-F

Standard Shipping Standard Shipping Item - more info
£14.95 GBP
£14.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty Gigabyte Mini ITX RTX 2060 / 2070 and GTX 1660 / 1660Ti GPU Fans. This is a like for like replacement with the original fan set, and can be replaced with a little DIY.

Please check dimension and model compatibility before purchase.

Note: this cannot be used on the 1060/70/80 series cards which is a separate product.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

GIGABYTE GeForce RTX 2070 MINI ITX 8G (and V2)
GIGABYTE Geforce RTX 2060 MINI ITX 6G / OC
GIGABYTE GeForce GTX 1660 MINI ITX OC 6G
GIGABYTE GeForce GTX 1660 SUPER MINI ITX 6G / OC
GIGABYTE GeForce GTX 1660 Ti MINI ITX 6G / OC

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
