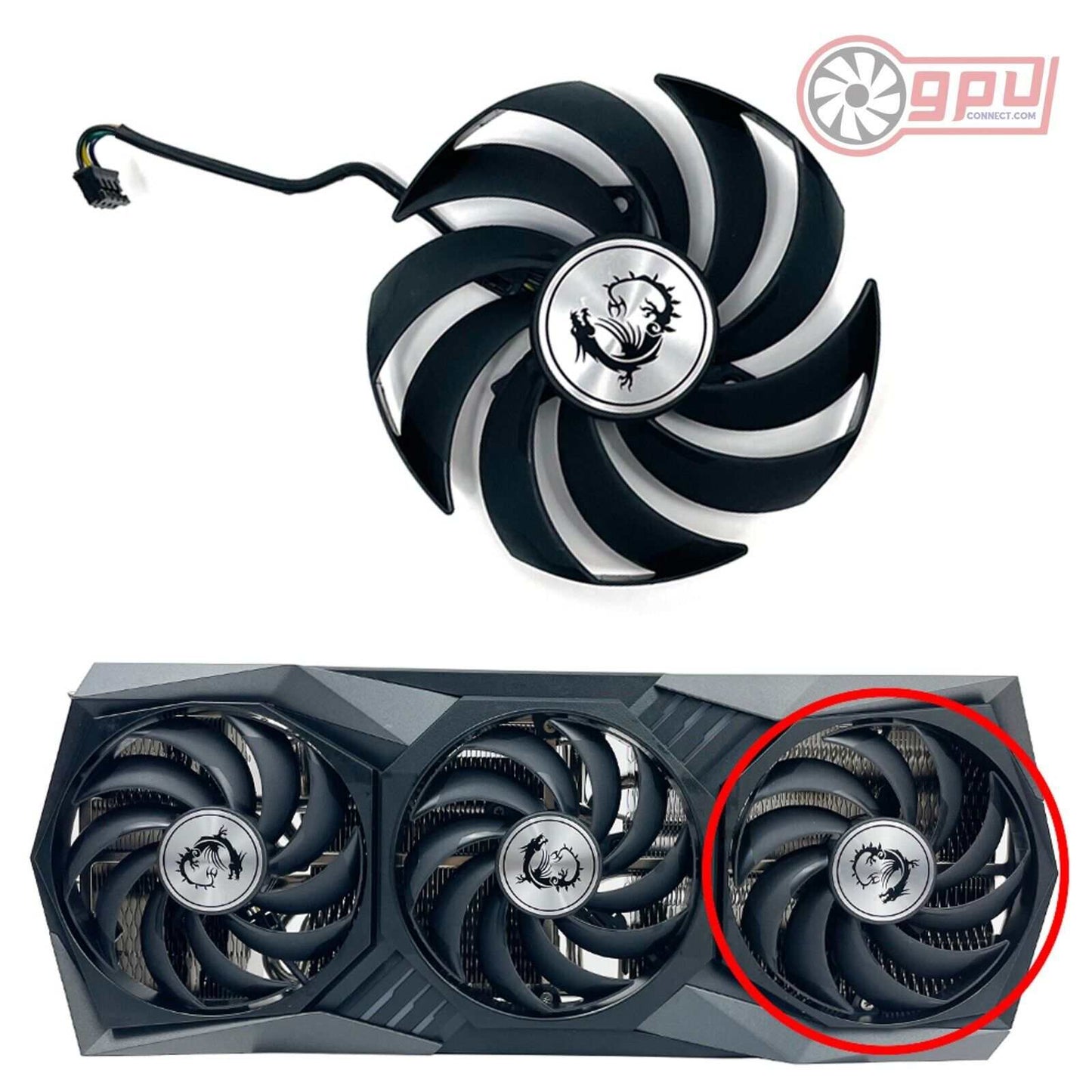

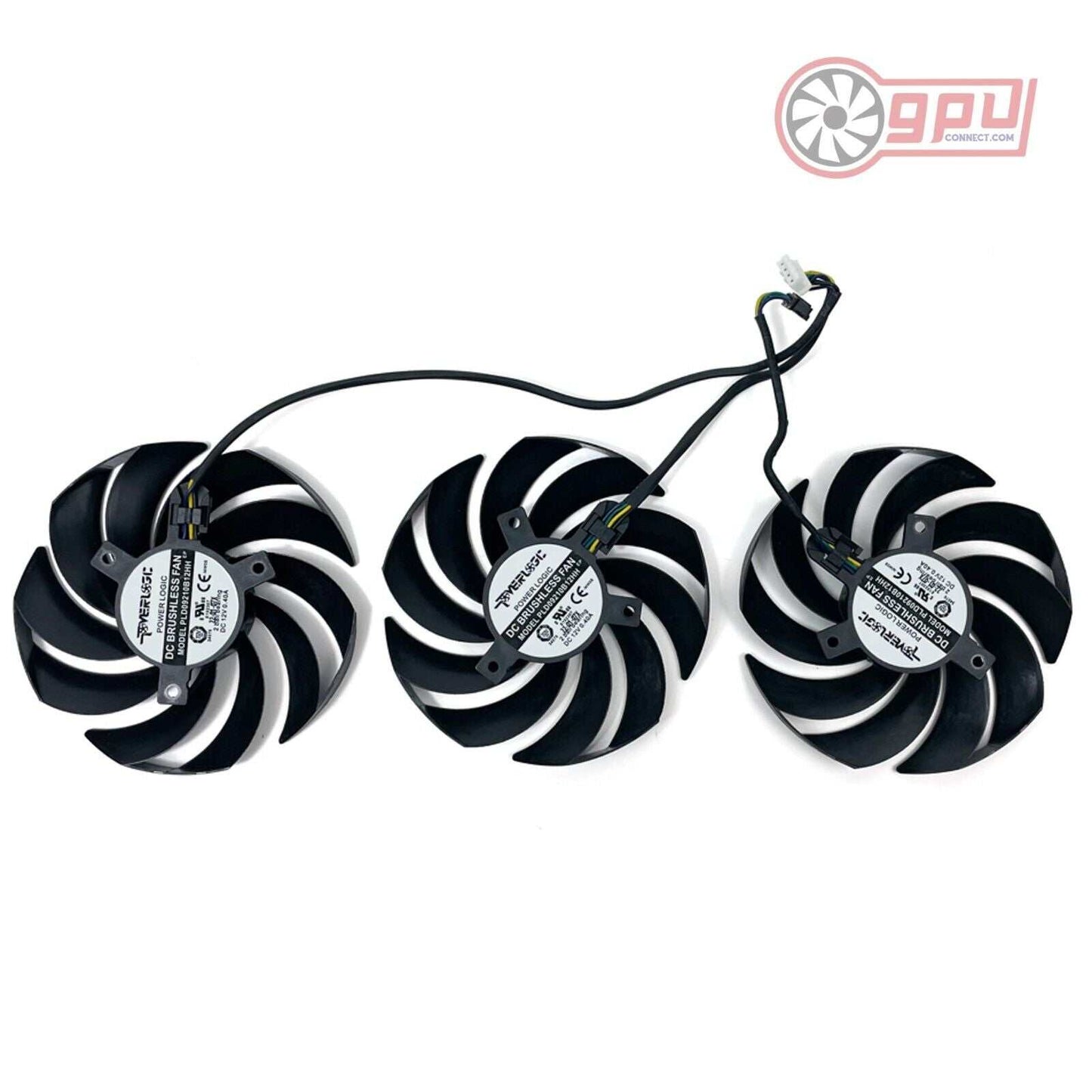

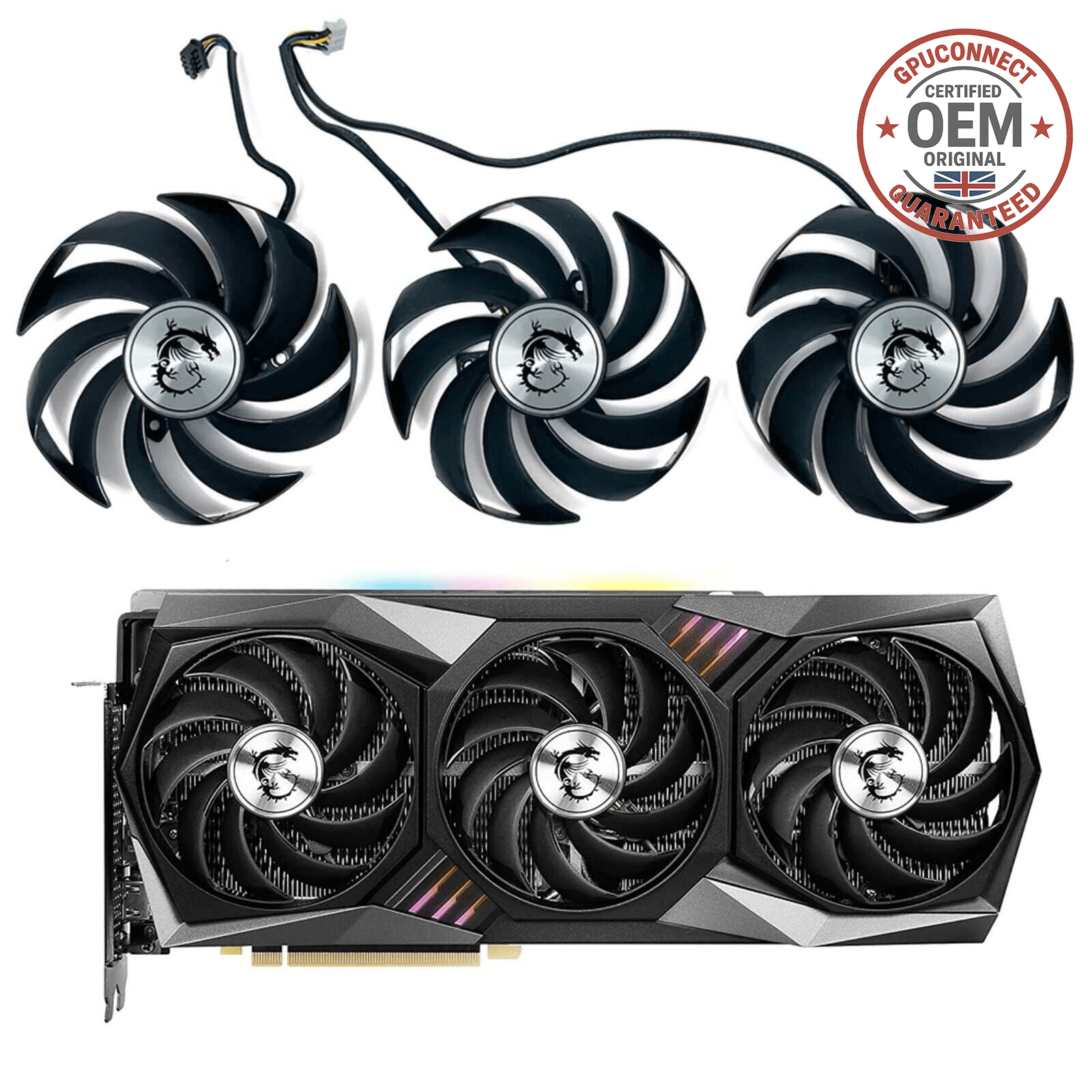

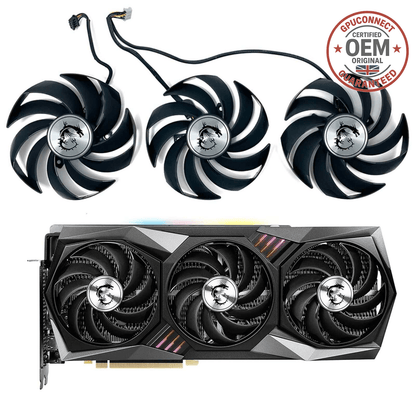

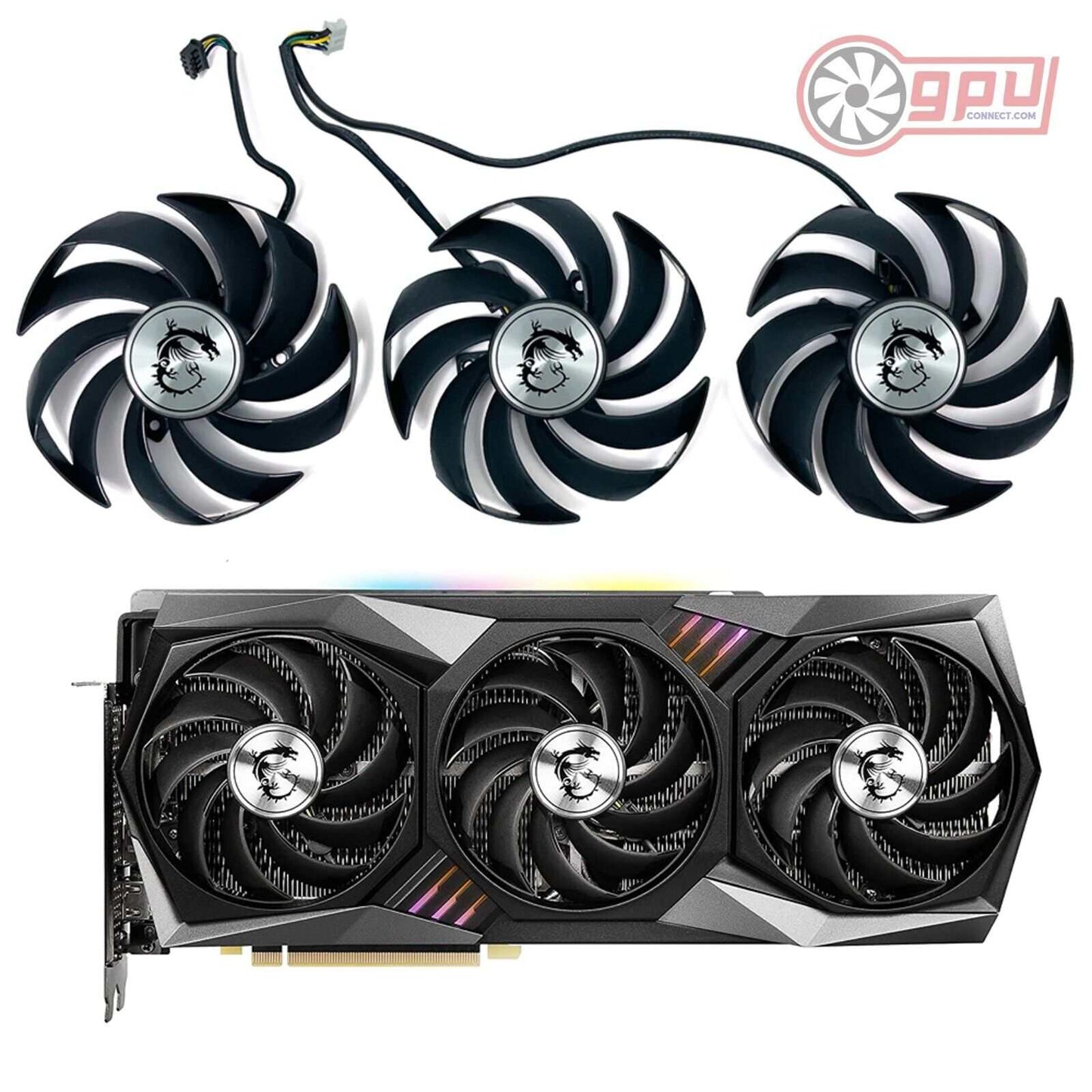

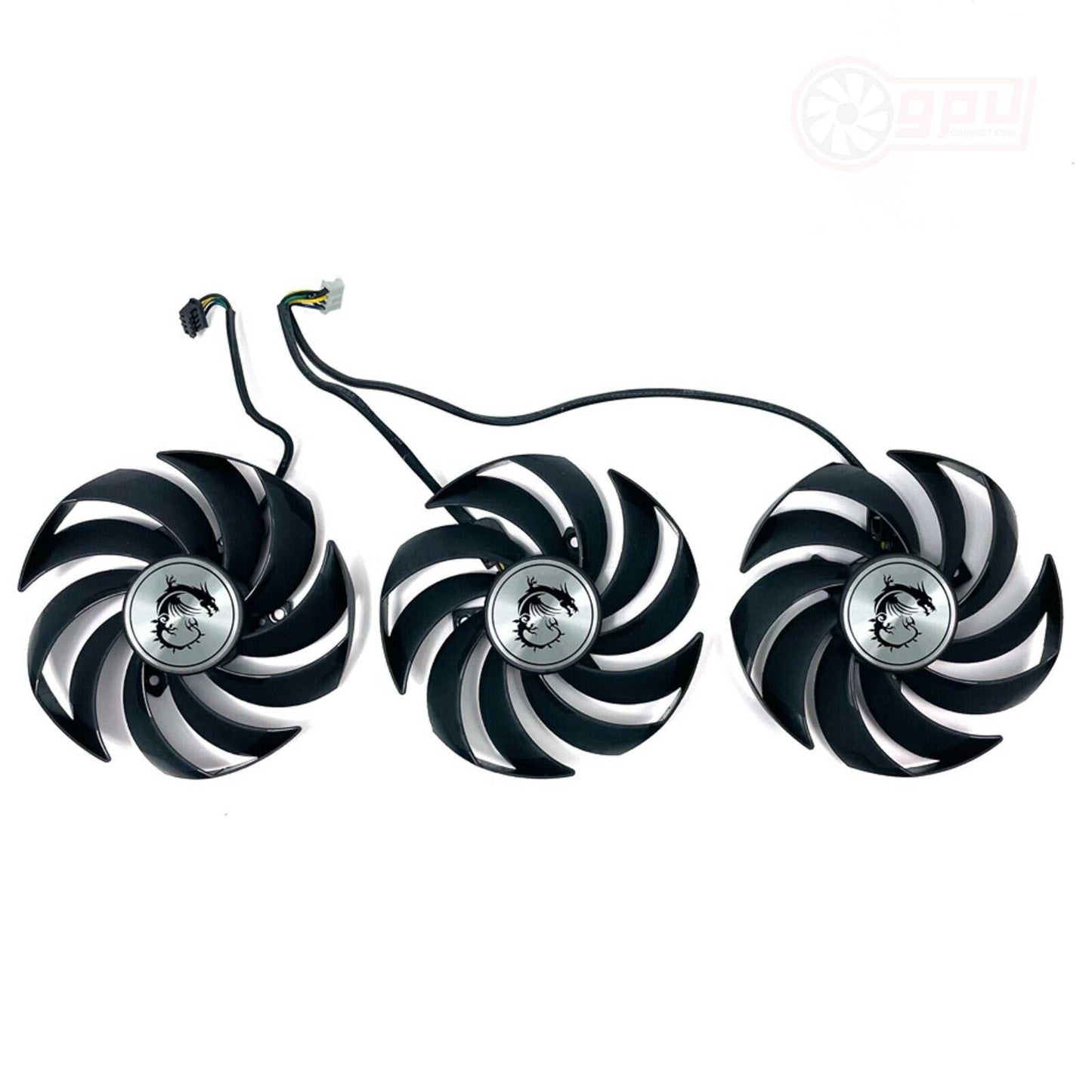

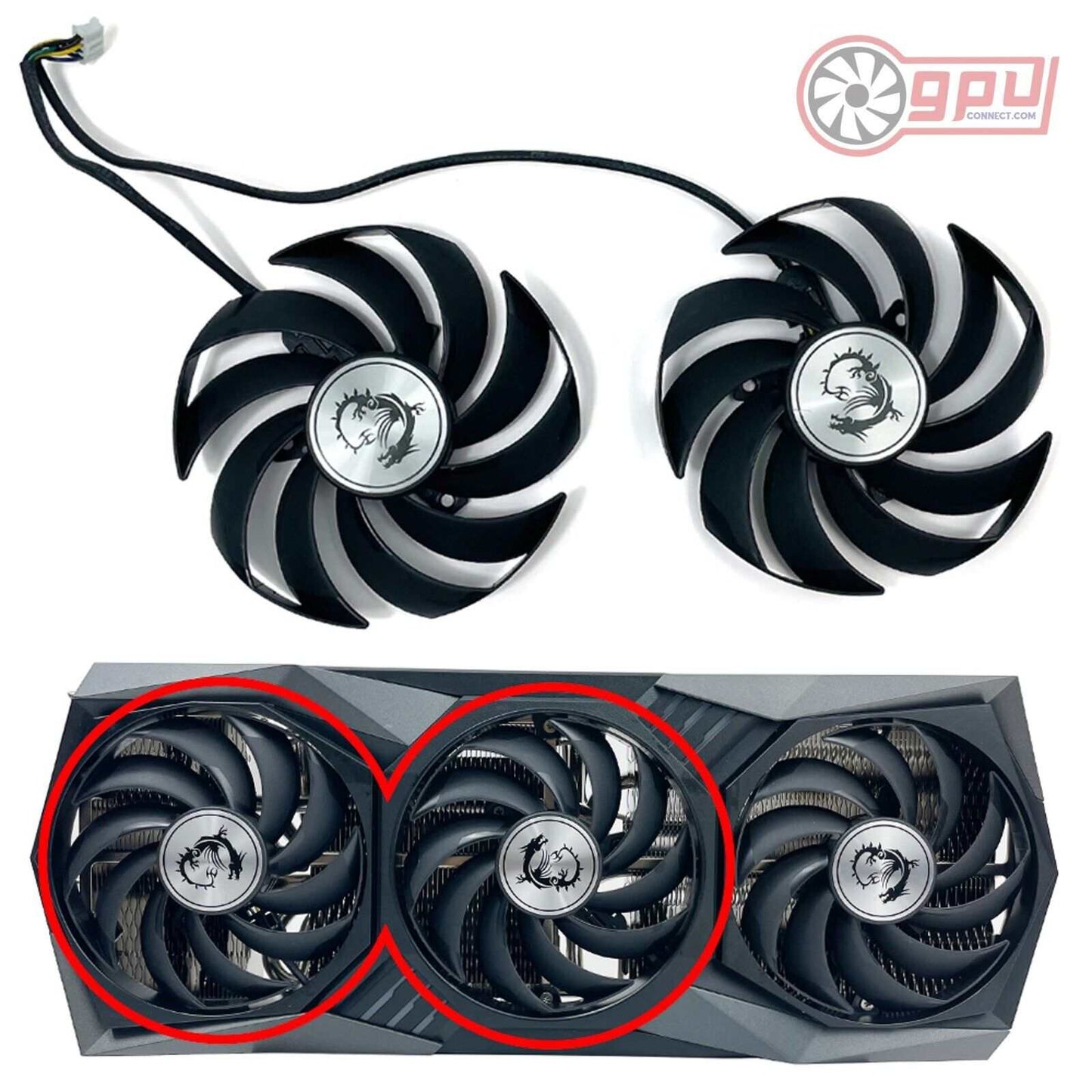

MSI RTX 3060 3070 3080 3090 Ti GAMING X TRIO Fan

MSI RTX 3060 3070 3080 3090 Ti GAMING X TRIO Fan

RTX 3060 Series, RTX 3070 Series, RTX 3080 Series, and RTX 3090 Series

For: MSI
Power Connector: 4 Pin
Dimensions: 90 mm
Depth: 14.5 mm
Mounting Distance: 40 x 40 x 40 mm (in triangle)
Part Number(s): PLD09210B12HH
Rating: 12V @ 0.4A (Ball Bearing)

MS-3K-TRIO-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
£19.95 GBP
£19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

GPU fan set for poor performing, damaged or faulty RTX 3060, 3070, 3080, and 3090Ti GAMING X TRIO graphics card coolers. This is a like for like replacement with the original fan set, and can be replaced with a little DIY.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

MSI RTX 3090 GAMING X TRIO 24G
MSI RTX 3090 GAMING TRIO 24G
MSI RTX 3090 Ti 24GB GAMING X TRIO
MSI RTX 3080 GAMING Z TRIO 10G LHR
MSI RTX 3080 GAMING X TRIO 10G
MSI RTX 3080 GAMING TRIO 10G
MSI RTX 3080 Ti GAMING X TRIO 12G
MSI RTX 3080 Ti GAMING TRIO 12G
MSI RTX 3070 Ti GAMING TRIO 8G
MSI RTX 3070 Ti GAMING X TRIO 8G
MSI RTX 3070 GAMING Z TRIO 8G LHR
MSI RTX 3070 GAMING X TRIO
MSI RTX 3070 GAMING TRIO
MSI RTX 3060 GAMING X TRIO 12G
MSI RTX 3060 GAMING TRIO 12G
MSI RTX 3060 Ti GAMING X TRIO

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
