MSI GeForce GTX 1080 1080Ti 1070 1070Ti 1060 ARMOR GPU Fan Set
MSI GeForce GTX 1080 1080Ti 1070 1070Ti 1060 ARMOR GPU Fan Set
GTX 1060 Series, GTX 1070 Series, and GTX 1080 Series
For: MSI

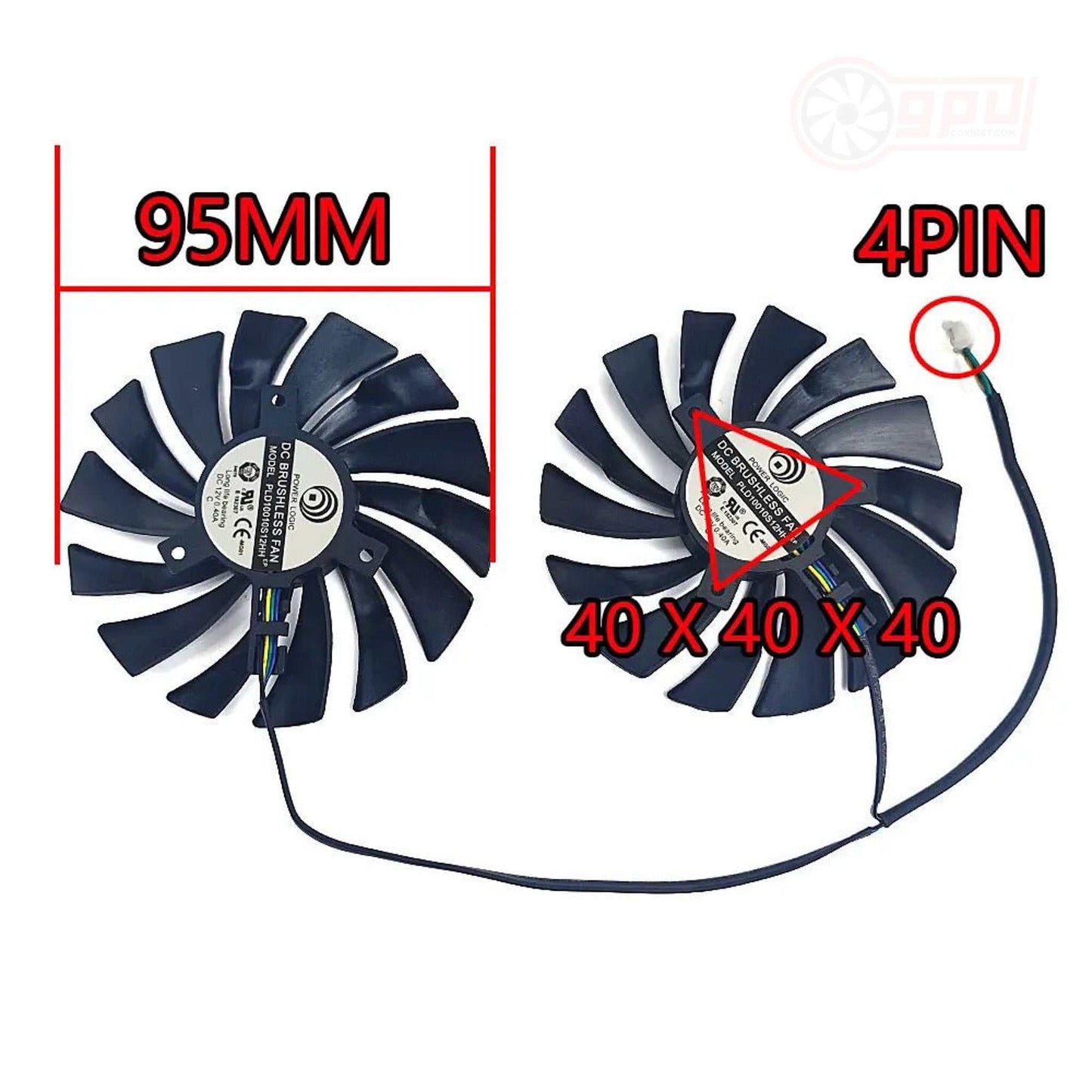

Power Connector: 4 Pin
Dimensions: 95 mm
Depth: 15 mm
Mounting Distance: 40 x 40 x 40 mm

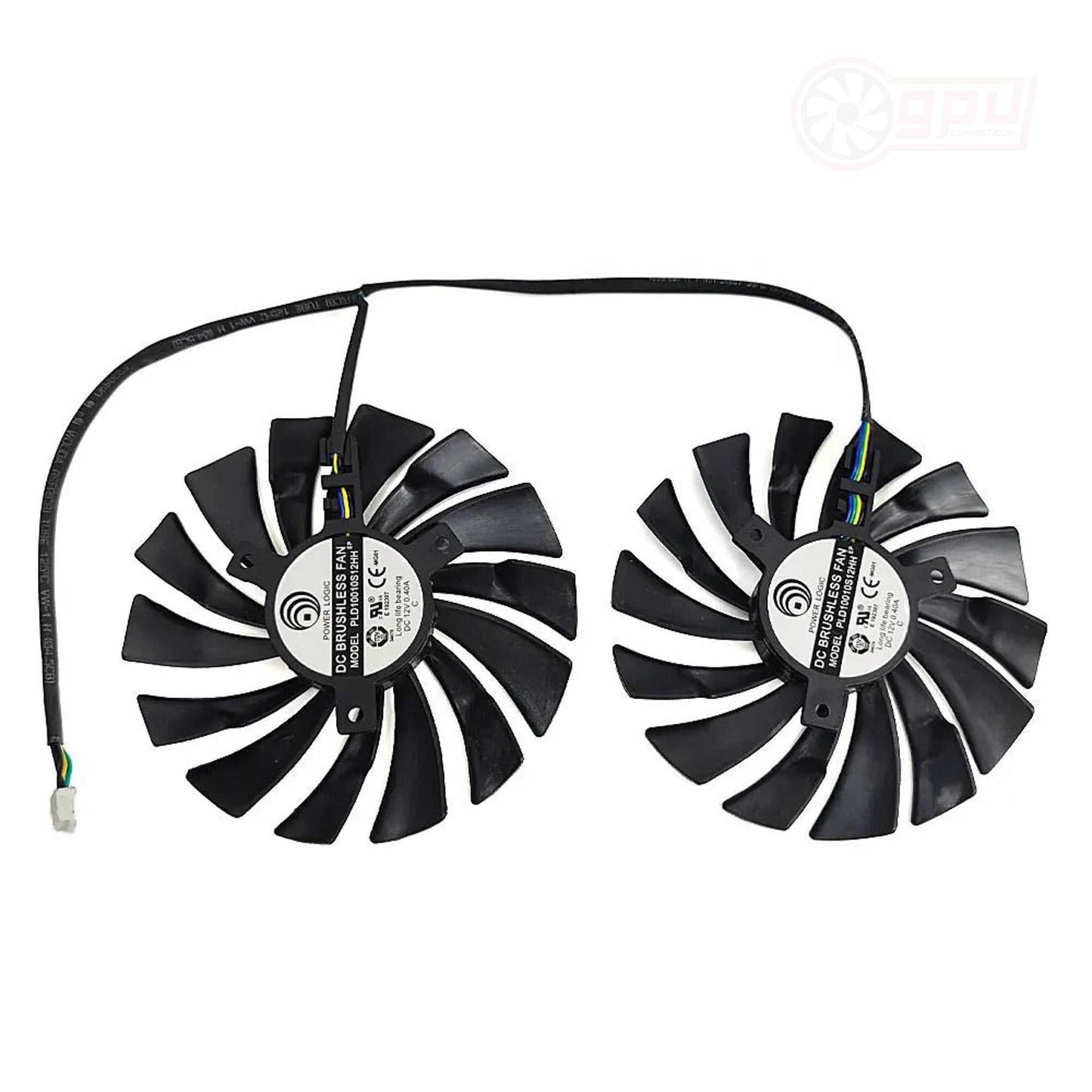

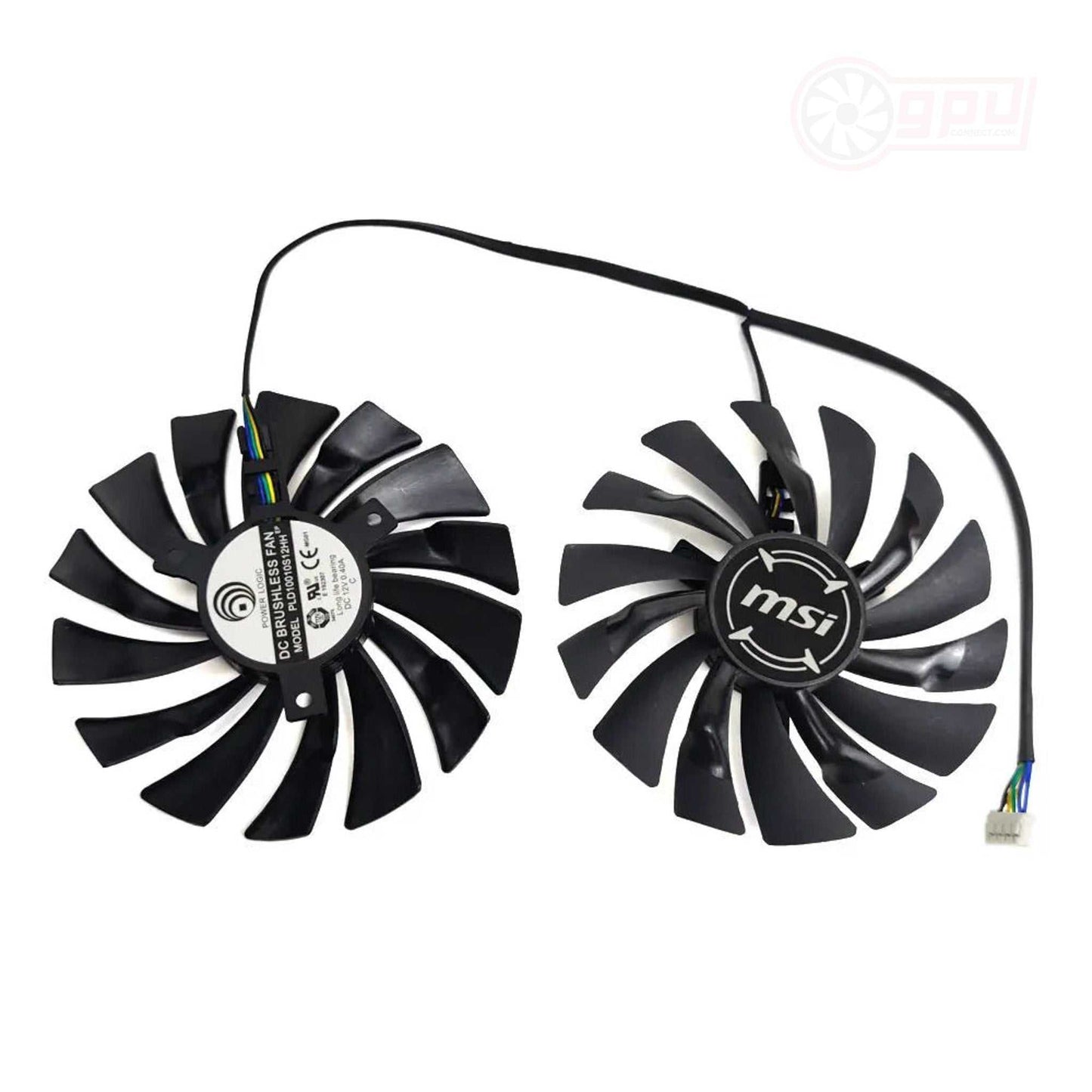

Part Number(s): PLD10010S12HH
Rating: 12V @ 0.4A
SKU:MS-1KARMOR-F

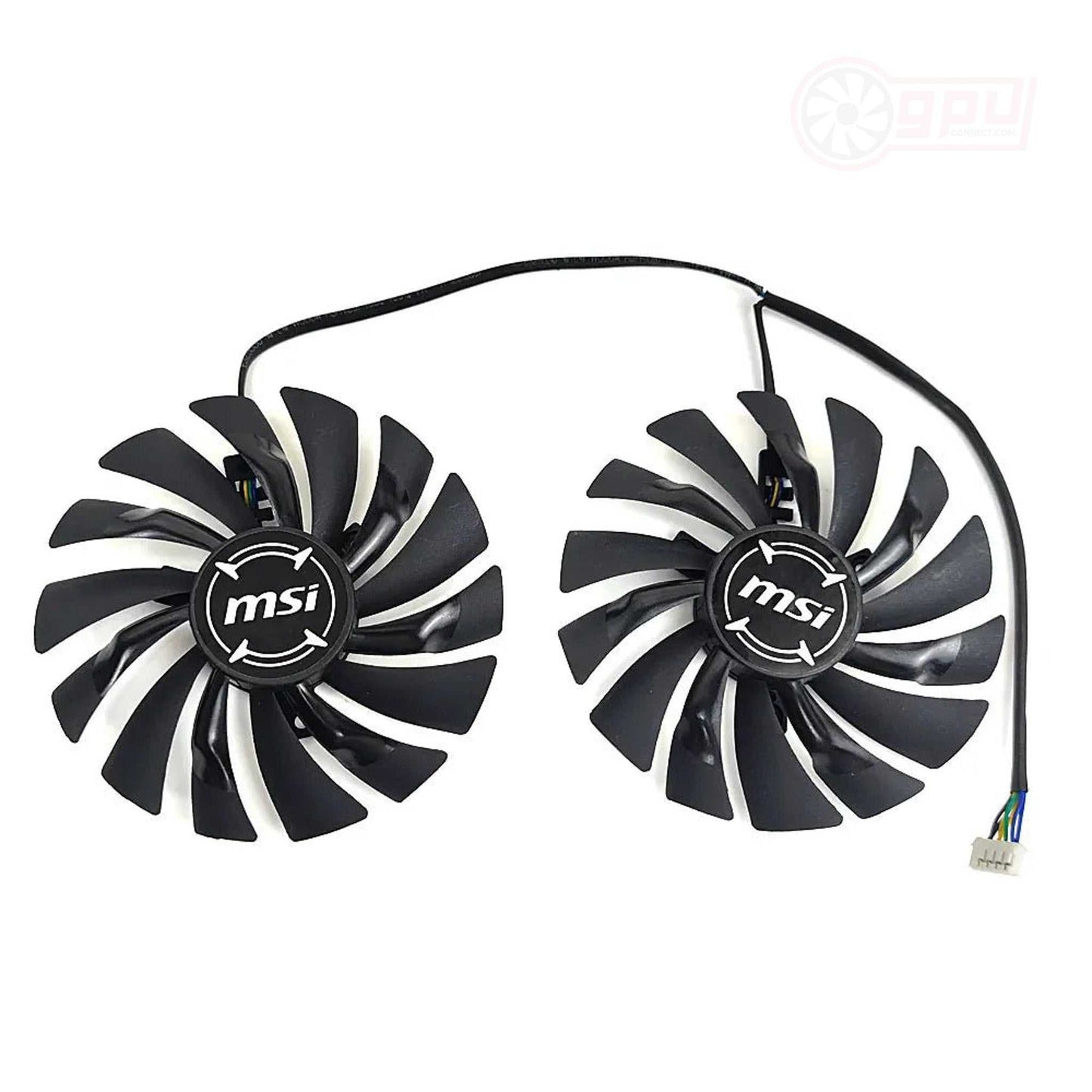

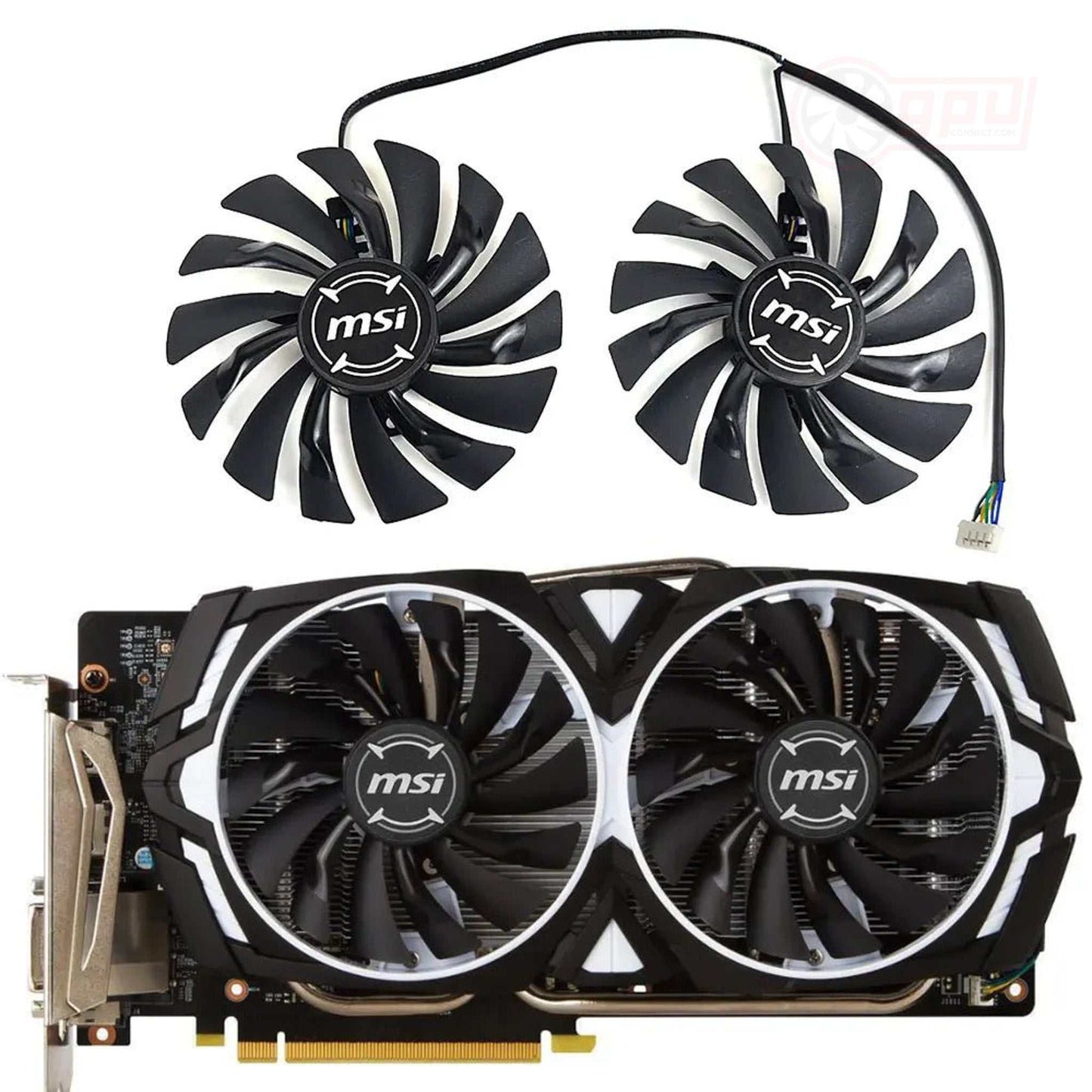

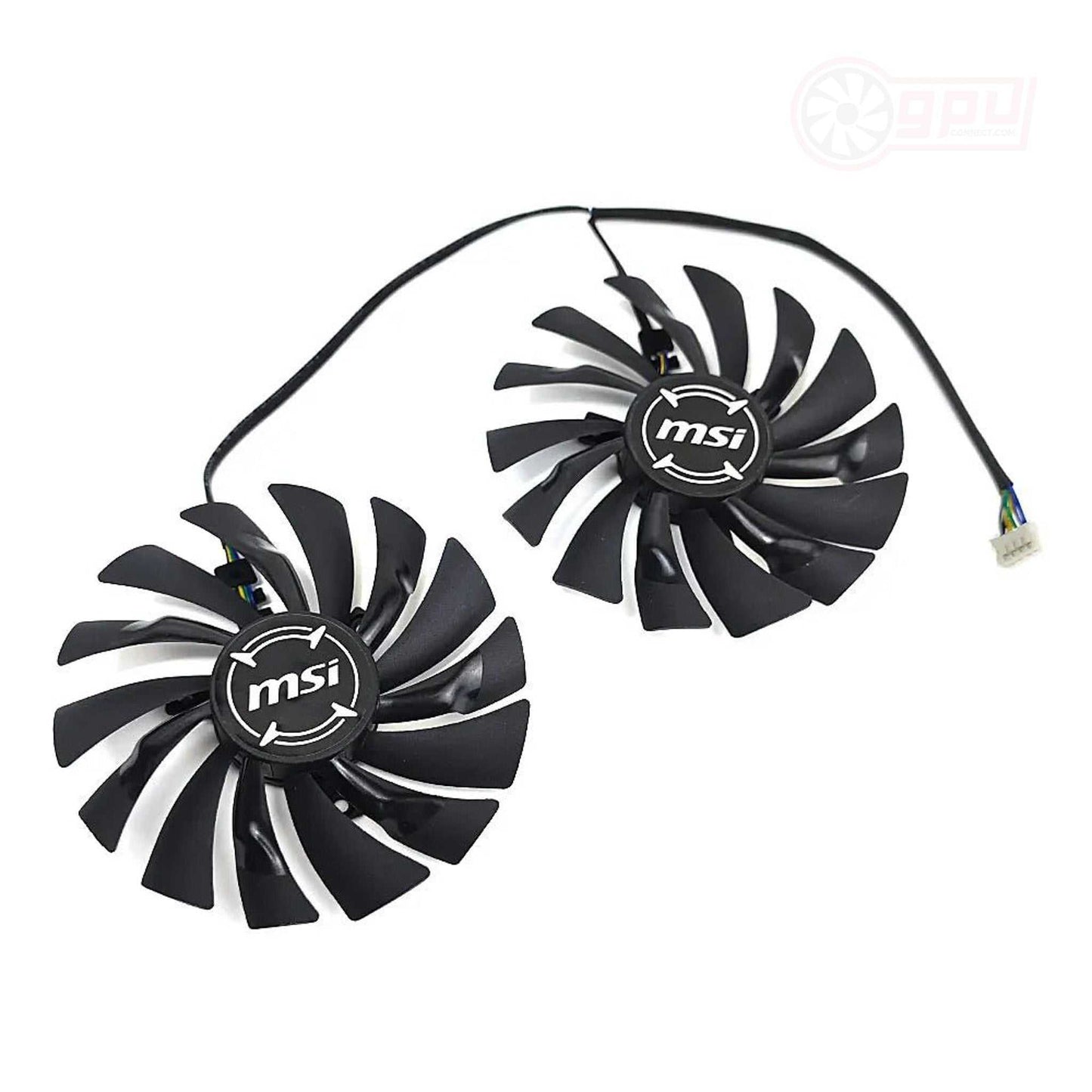

This is a replacement cooler set for poor performing, damaged or faulty MSI GeForce GTX 1080, 1080Ti, 1070, 1070Ti, and 1060 ARMOR GPU GPU Fans. card coolers. Please check dimensions before purchase.
Share
Collapsible content
Compatibility Guide
The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:
MSI GeForce GTX 1060 ARMOR 3G OC
MSI GeForce GTX 1060 ARMOR 3G OCV1
MSI GeForce GTX 1070 ARMOR 8G OC
MSI GeForce GTX 1070 Ti ARMOR 8G OC
MSI GeForce GTX 1080 ARMOR 8G
MSI GeForce GTX 1080 ARMOR 8G OC
MSI GeForce GTX 1080Ti ARMOR 11G OC
Shipping Information
Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.
- UK - 1-4 working days (Depending on method selected)
- Europe - 3-7 working days (typical)
- USA - 6-7 working days (typical)
- Australia - 6-7 working days (typical)
- Other - 6-12 working days (typical)
Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.
For full information on shipping times please click here
Installation
Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.
Please ensure you keep note of the screw replacement locations as you do along.
The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).
At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.
Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.
Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
