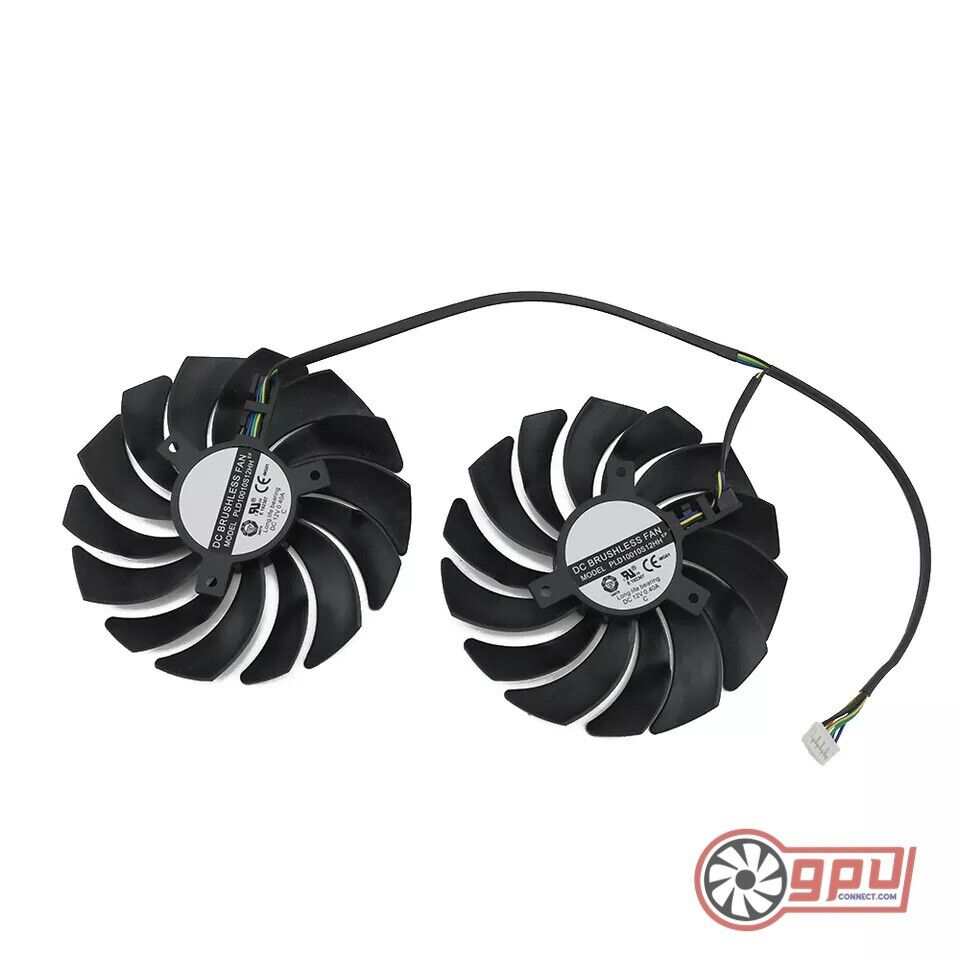

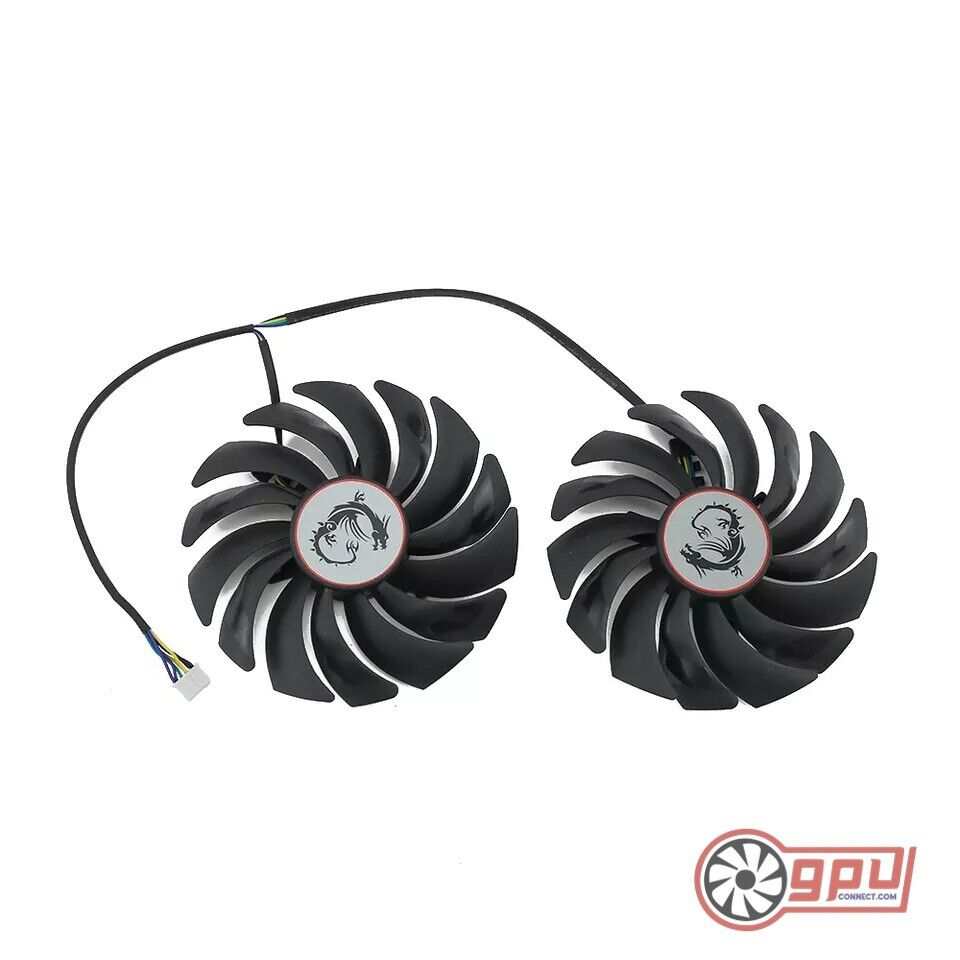

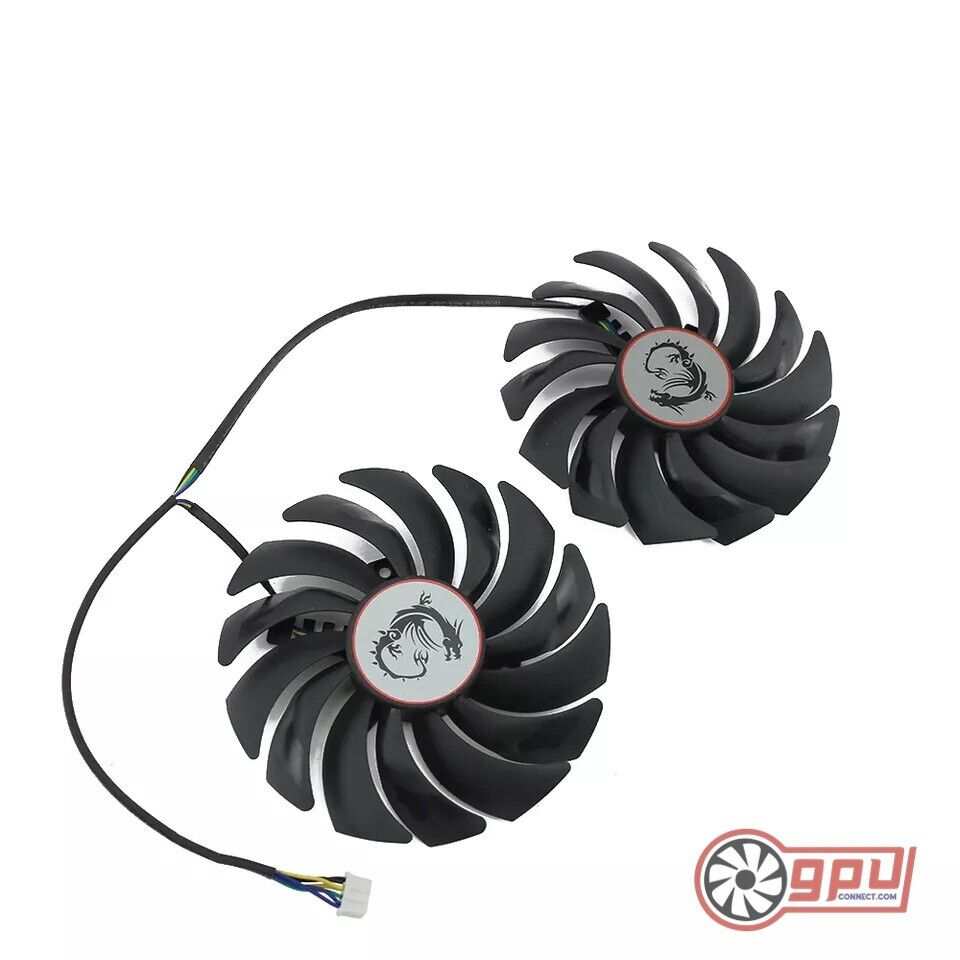

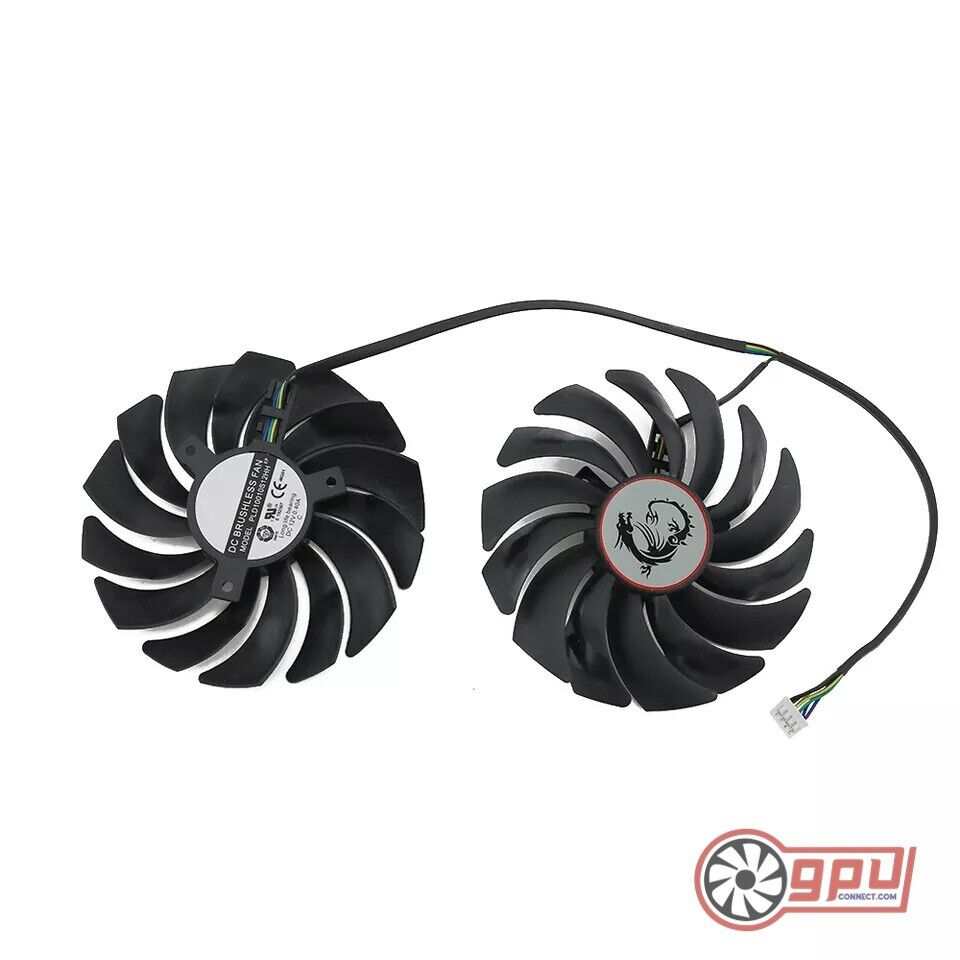

MSI GTX 1060 1070 1080 Ti 970 980 RX 470 480 570 580 GAMING Fan

MSI GTX 1060 1070 1080 Ti 970 980 RX 470 480 570 580 GAMING Fan

GTX 1050 Series, GTX 1060 Series, GTX 1070 Series, GTX 1080 Series, RX 470 Series, RX 480 Series, RX 570 Series, RX 580 Series, GTX 960 Series, GTX 970 Series, and GTX 980 Series

For: MSI
Power Connector: 4 Pin
Dimensions: 95 mm
Depth: 14 mm
Mounting Distance: 40 x 40 x 40mm
Part Number(s): PLD10010S12HH (Both Fans)
Rating: 12V @ 0.4A

MS-1K-GAMING-F

UK Express Shipping   Express Shipping Item - more info
£14.95 GBP
£0.00 GBP £14.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

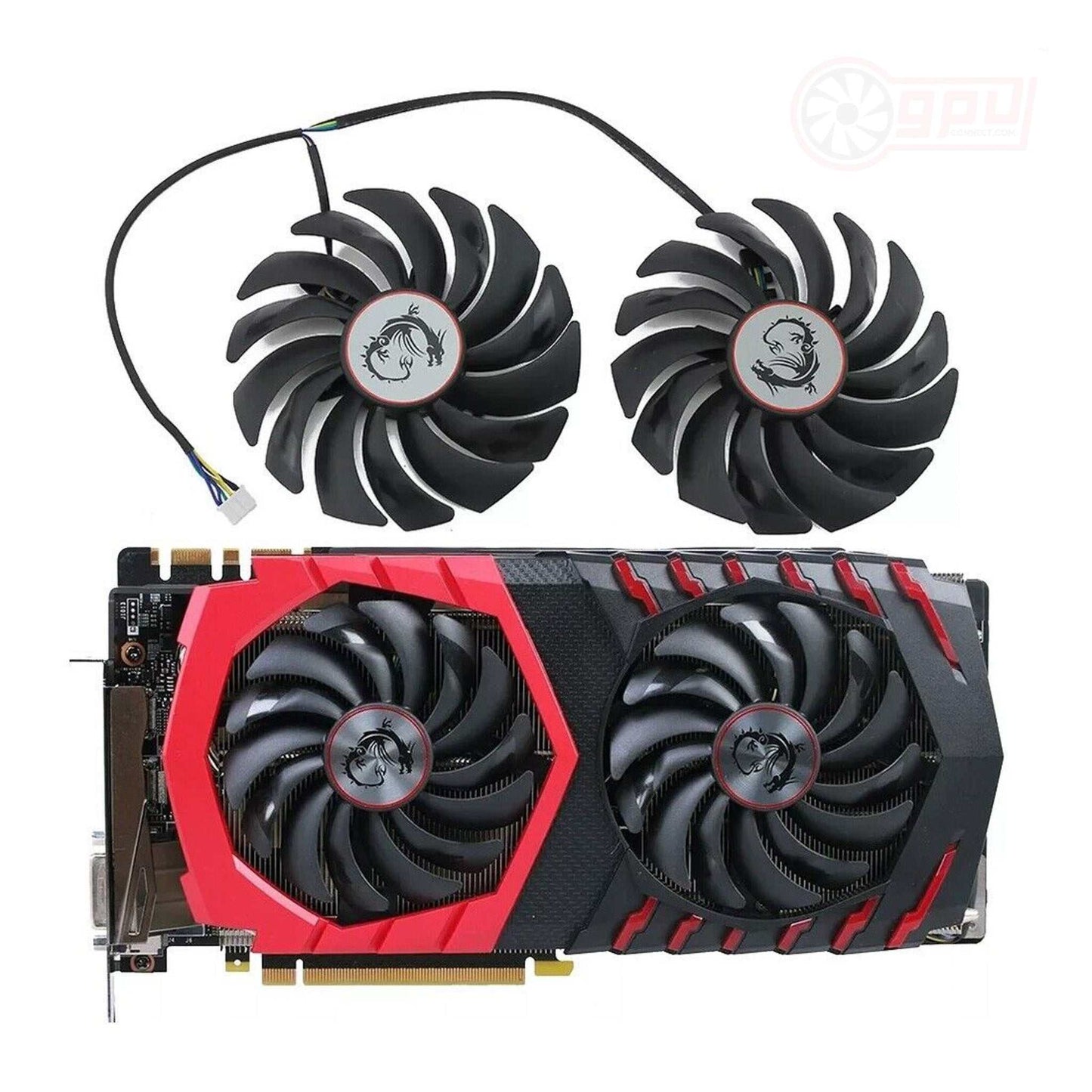

This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers compatible with the MSI GTX 1060 1070 1080 Ti 970 980 and RX 470 480 570 580 GAMING series graphics cards.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

MSI GTX 1080 Ti Gaming
MSI GTX 1080 Gaming Z
MSI GTX 1080 Gaming X
MSI GTX 1080 Gaming
MSI GTX 1070 Ti Gaming
MSI GTX 1070 Gaming X
MSI GTX 1070 Gaming Z
MSI GTX 1070 Gaming
MSI GTX 1060 Gaming X,X+
MSI GTX 1060 Gaming
MSI GTX 1050 Gaming X
MSI RX 580/570 Gaming X, X+
MSI RX 580/570 Gaming
MSI RX 470/480 Gaming
MSI Radeon R9 380 Armor 2X
GTX 980 / 970 / 960

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
