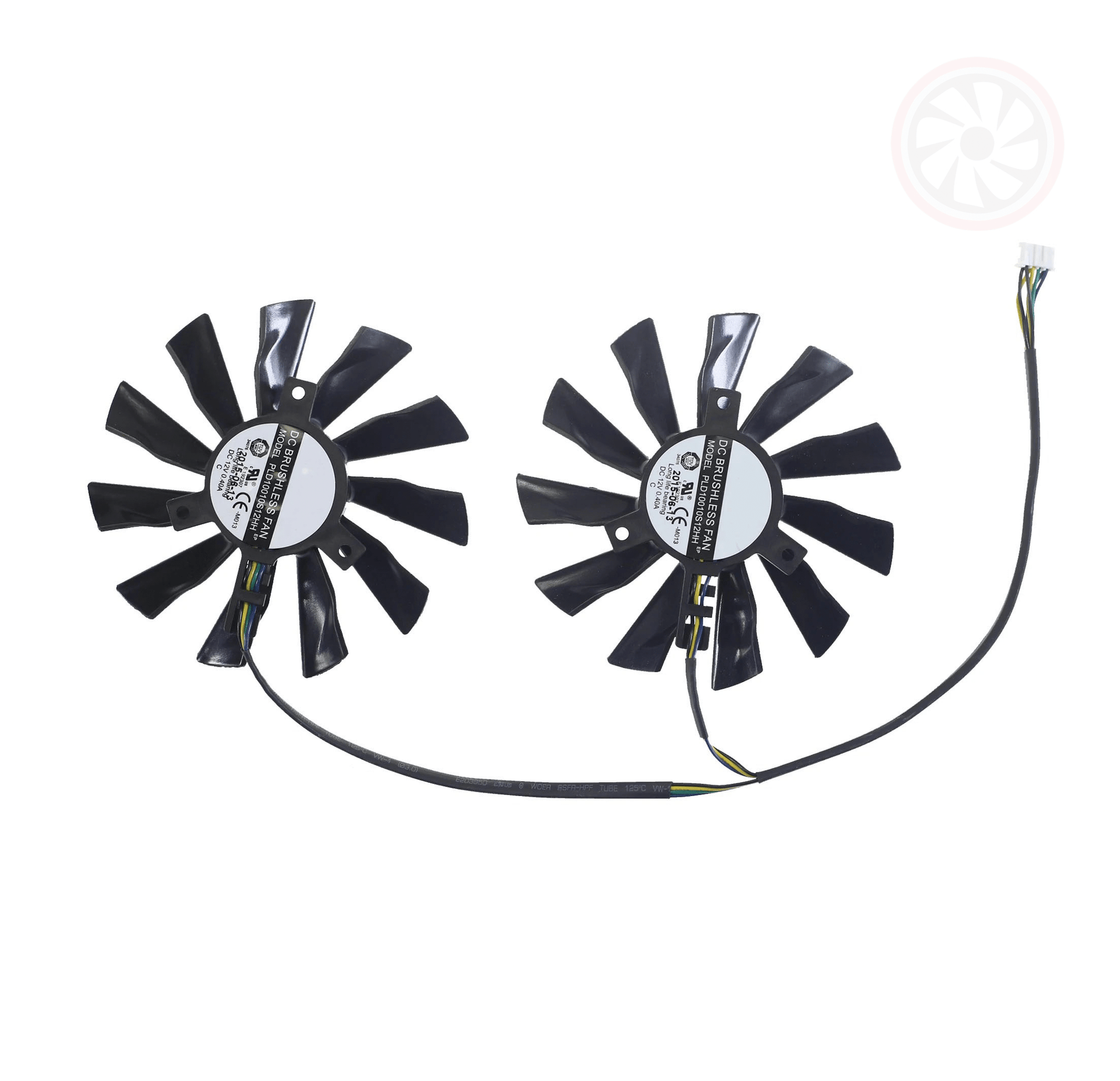

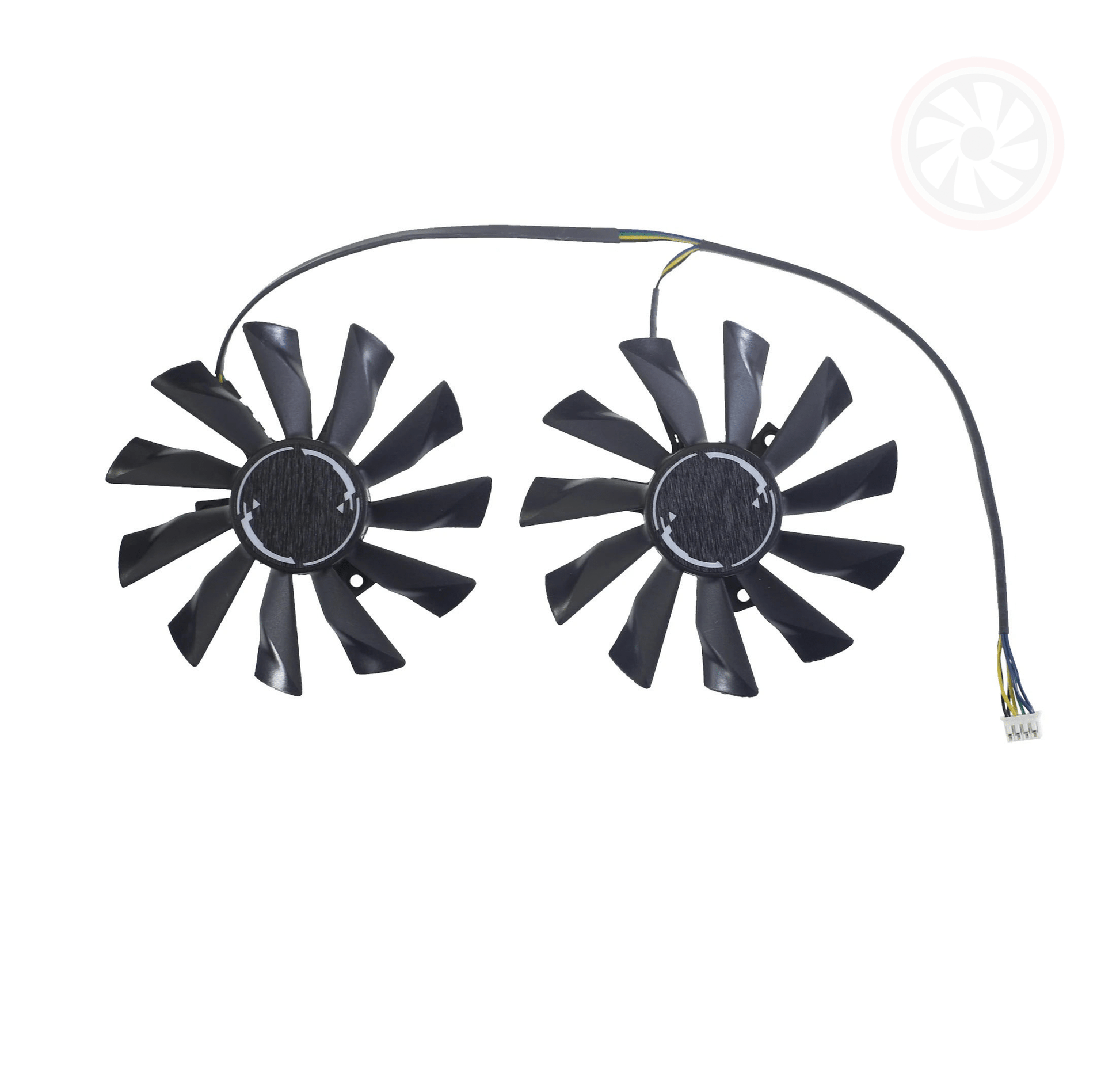

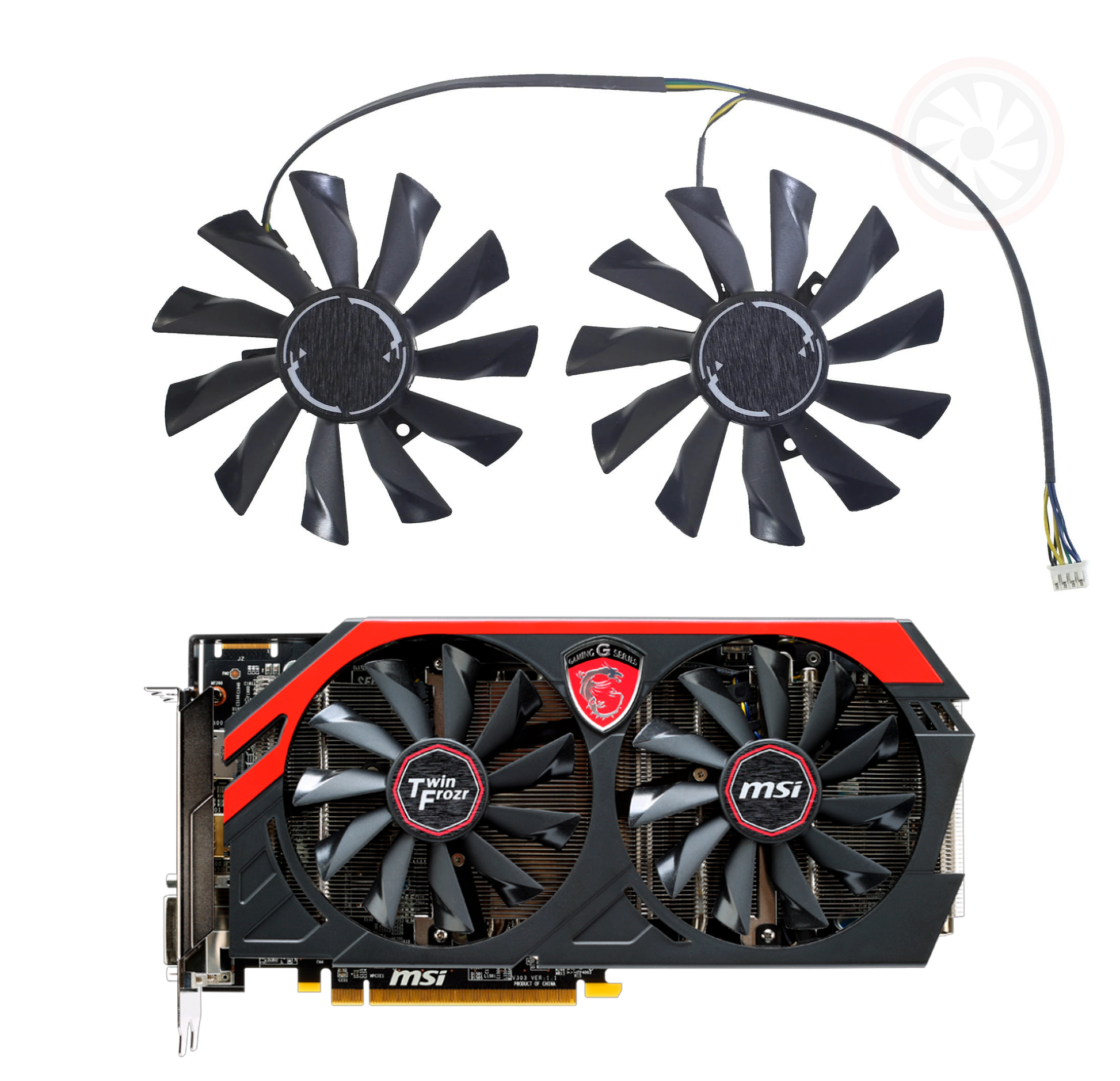

MSI GTX 780Ti 780 760 750Ti R9 290X 290 280X 280 270X Gaming Replacement GPU Fan Set

MSI GTX 780Ti 780 760 750Ti R9 290X 290 280X 280 270X Gaming Replacement GPU Fan Set

GTX 750 Series, GTX 760 Series, GTX 770 Series, GTX 780 Series, R9 270X Series, R9 280X Series, and R9 290X Series

For: MSI
Power Connector: 4 Pin
Dimensions: 95 mm
Depth: 11.5 mm
Mounting Distance: 39 x 39 x 39 mm
Part Number(s): PLD10010S12HH
Rating: 12V @ 0.4A

MS-7C2C-F

UK Express Shipping   Express Shipping Item - more info
£19.95 GBP
£0.00 GBP £19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Replacement GPU fan set for poor performing, damaged or faulty MSI GTX 780Ti 780 760 750Ti and R9 290X 290 280X 280 270X graphics card coolers. Please check dimensions in particular the depth carefully before purchase.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

MSI GTX 780TI GAMING 3G
MSI GTX 780 GAMING
MSI GTX 750 GAMING
MSI N770 2GD5/OC
MSI N770 4GD5/OC
MSI N760 TF 2GD5/OC
MSI N760 HAWK
MSI N750TITF 2GD5/OC
MSI N750 TE 1GD5/OC

MSI R9 290X GAMING 4G
MSI R9 280X GAMING
MSI R9 280X GAMING 3G
MSI R9 280X GAMING 6G
MSI R9 270X GAMING
MSI R9 270X GAMING HAWK
MSI R7 260X GAMING 1G
MSI R9 380 2GD5T OC

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
