NVIDIA GeForce RTX 4090 FE Founders Edition Replacement GPU Fan

NVIDIA GeForce RTX 4090 FE Founders Edition Replacement GPU Fan

RTX 4090 Series

Power Connector: Ribbon Cable
Dimensions: 115 mm
Depth: 15 mm
Mounting Distance: 39 x 28 x 39 x 28 mm

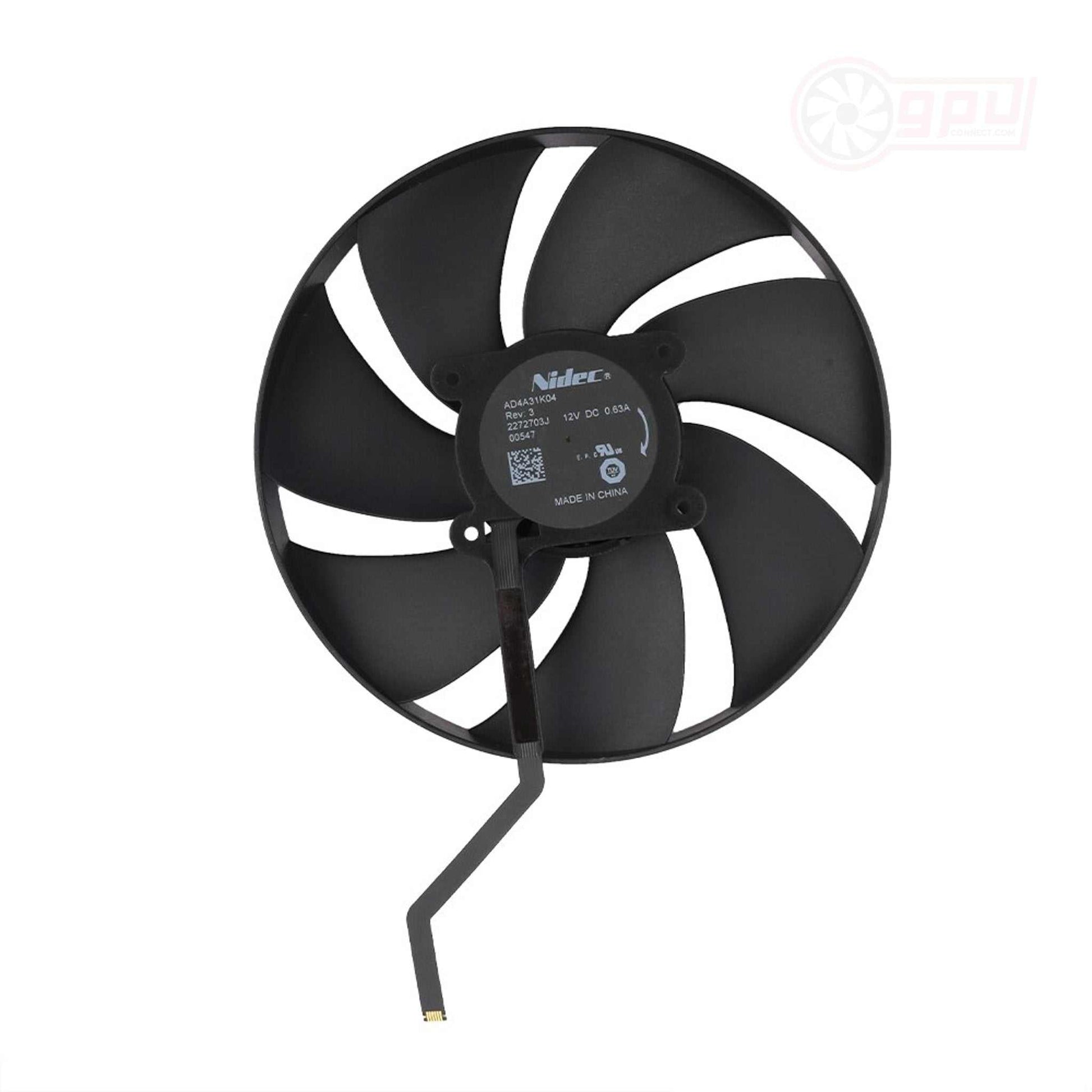

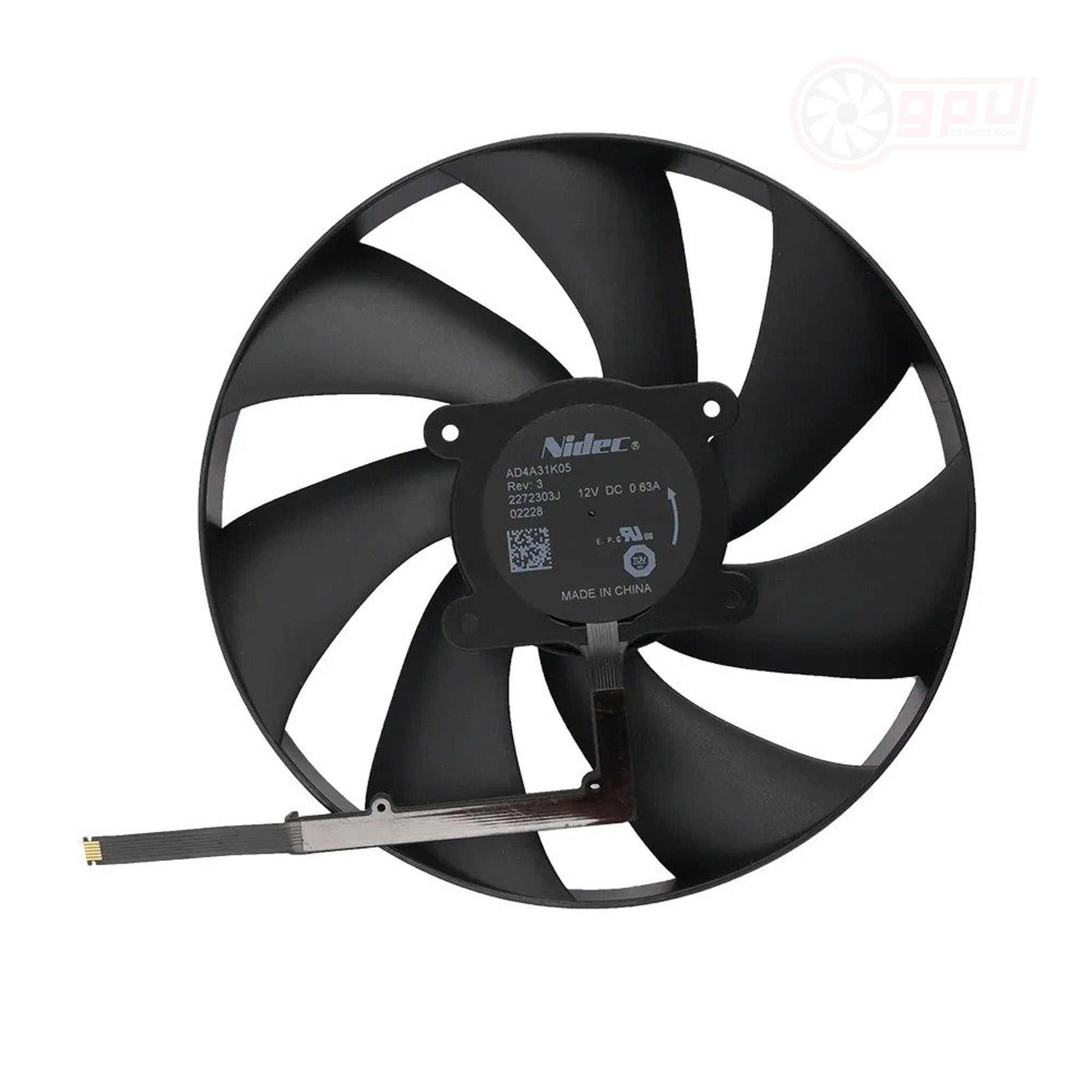

Part Number(s): AD4A31K05 (A) / AD4A31K04 (B)
Rating: 12V @ 0.63A


Standard Shipping Standard Shipping Item - more info
Regular price £39.95 GBP
Regular price Sale price £39.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

This is a replacement cooler set for poor performing, damaged Nvidia RTX 4900 Founders Edition graphics cards.  Part numbers AD4A31K04 AD4A31K05, sold as individual fans or a full set.

    View full details

    Collapsible content

    Compatibility Guide

    The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

    NVIDIA GeForce RTX 4090 Founders Edition

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here


    Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

    Please ensure you keep note of the screw replacement locations as you do along.

    The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

    At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

    Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

    Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.


    If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.
