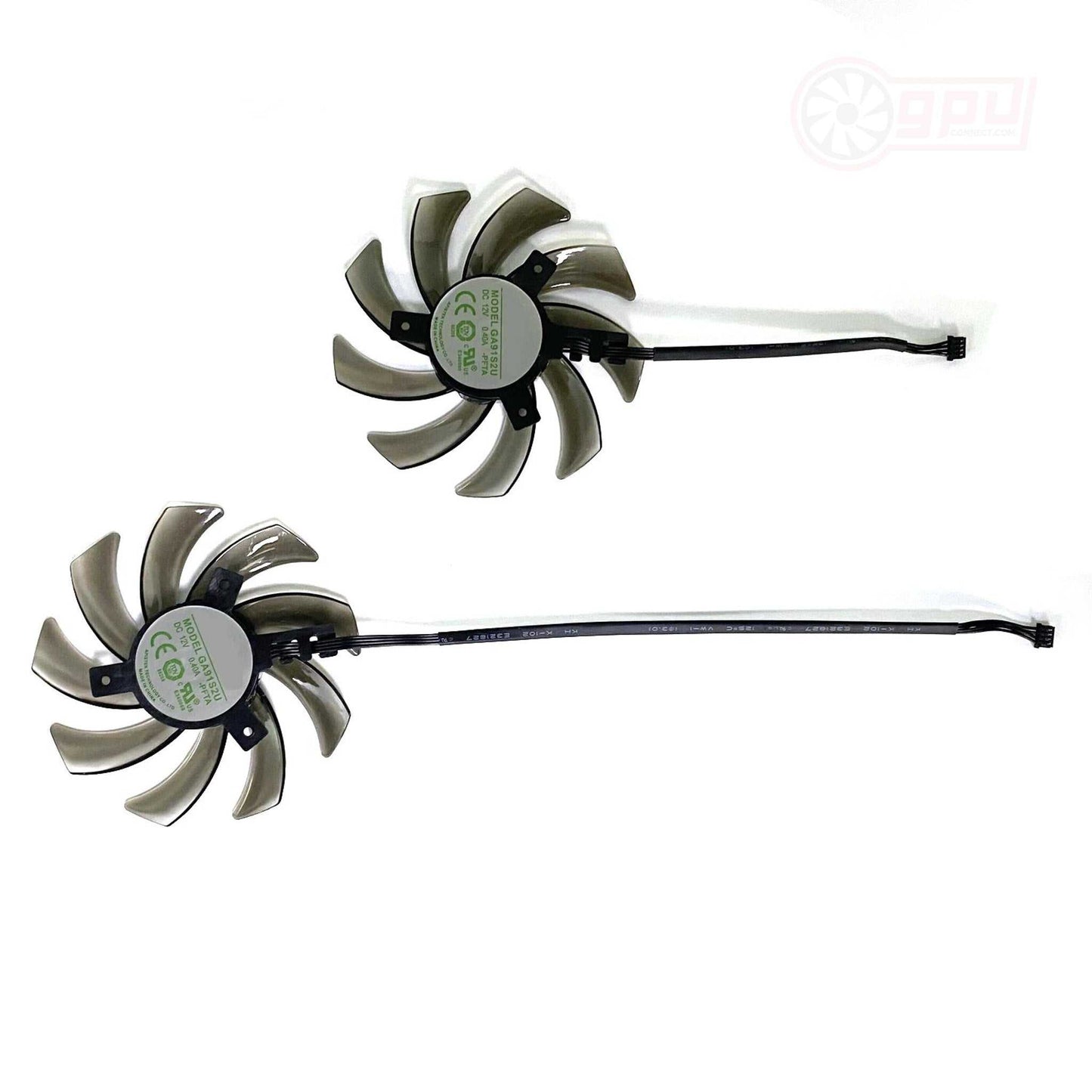

Palit RTX 2060 2070 2080 GTX 1660Ti GamingPro Dual Replacement GPU Fan

RTX 2080 Series, RTX 2070 Series, RTX 2060 Series, and GTX 1660 Series

For: Palit
Power Connector: 4 Pin

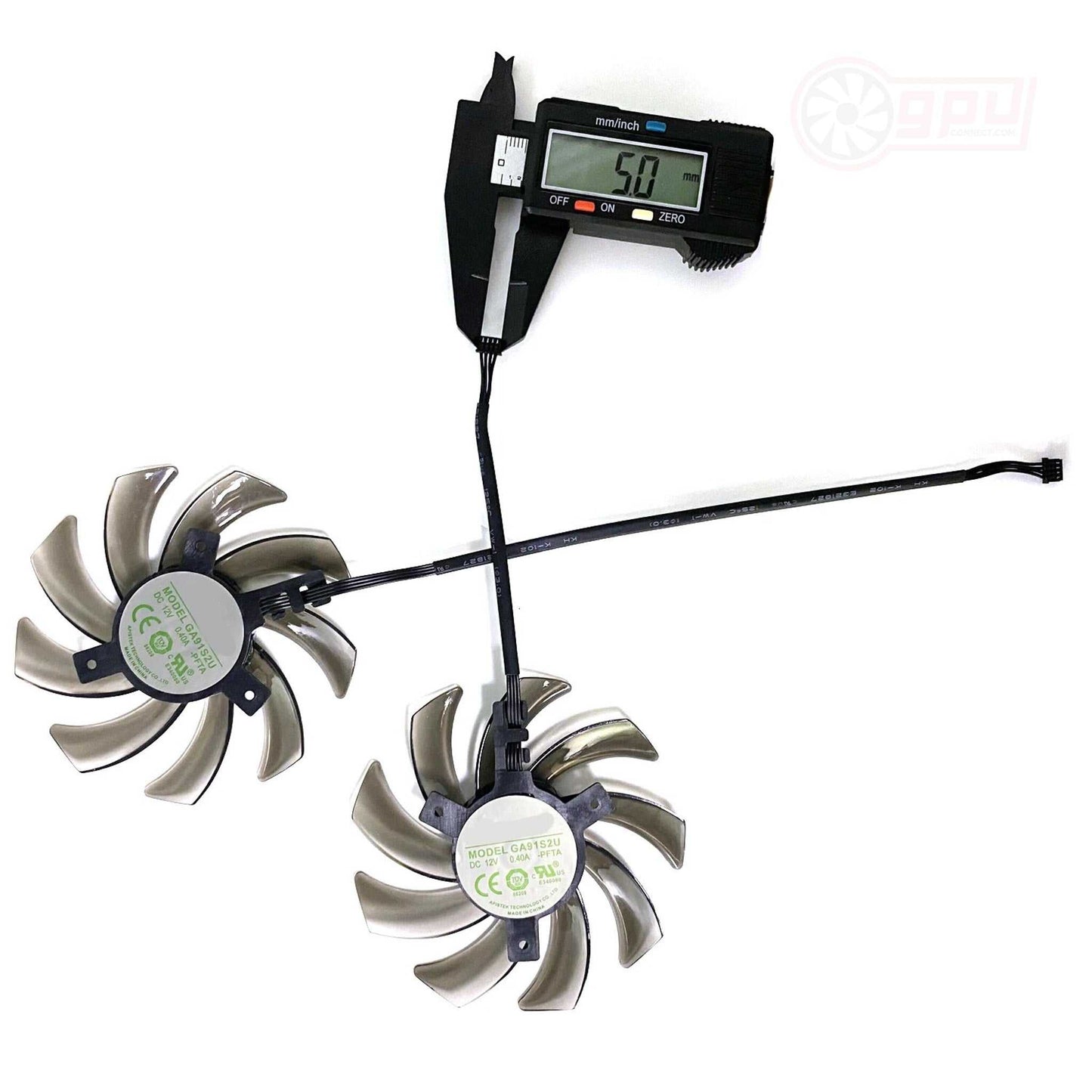

Dimensions: 86 mm
Depth: 10 mm
Mounting Distance: 40 x 40 x 40 mm (triangle)

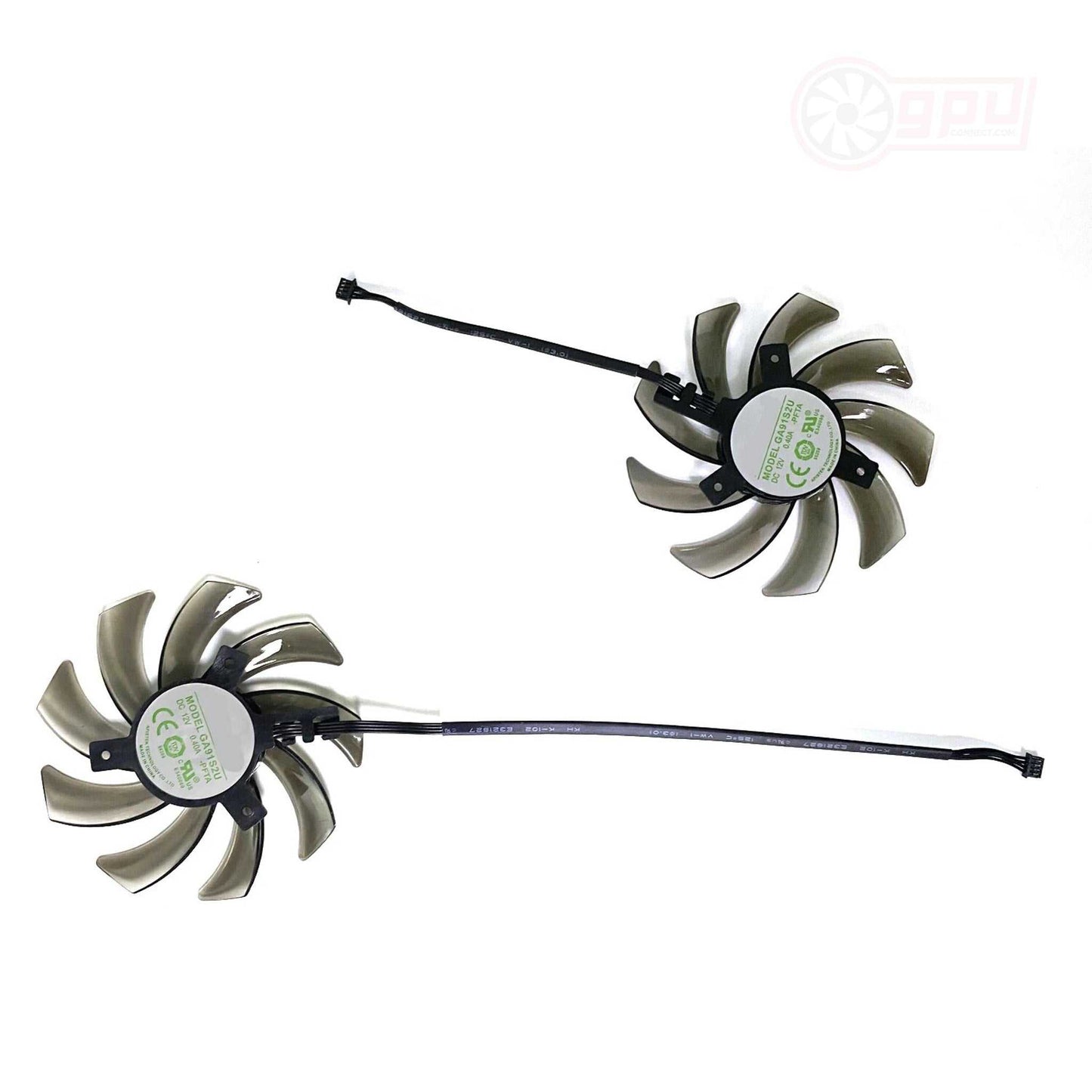

Part Number(s): GA91S2U / TH9210S2H
Rating: 12V @ 0.4A APISTEK / 0.45A TAIHUI

SKU:PL-2KGPD-F

Express Shipping Item - more info

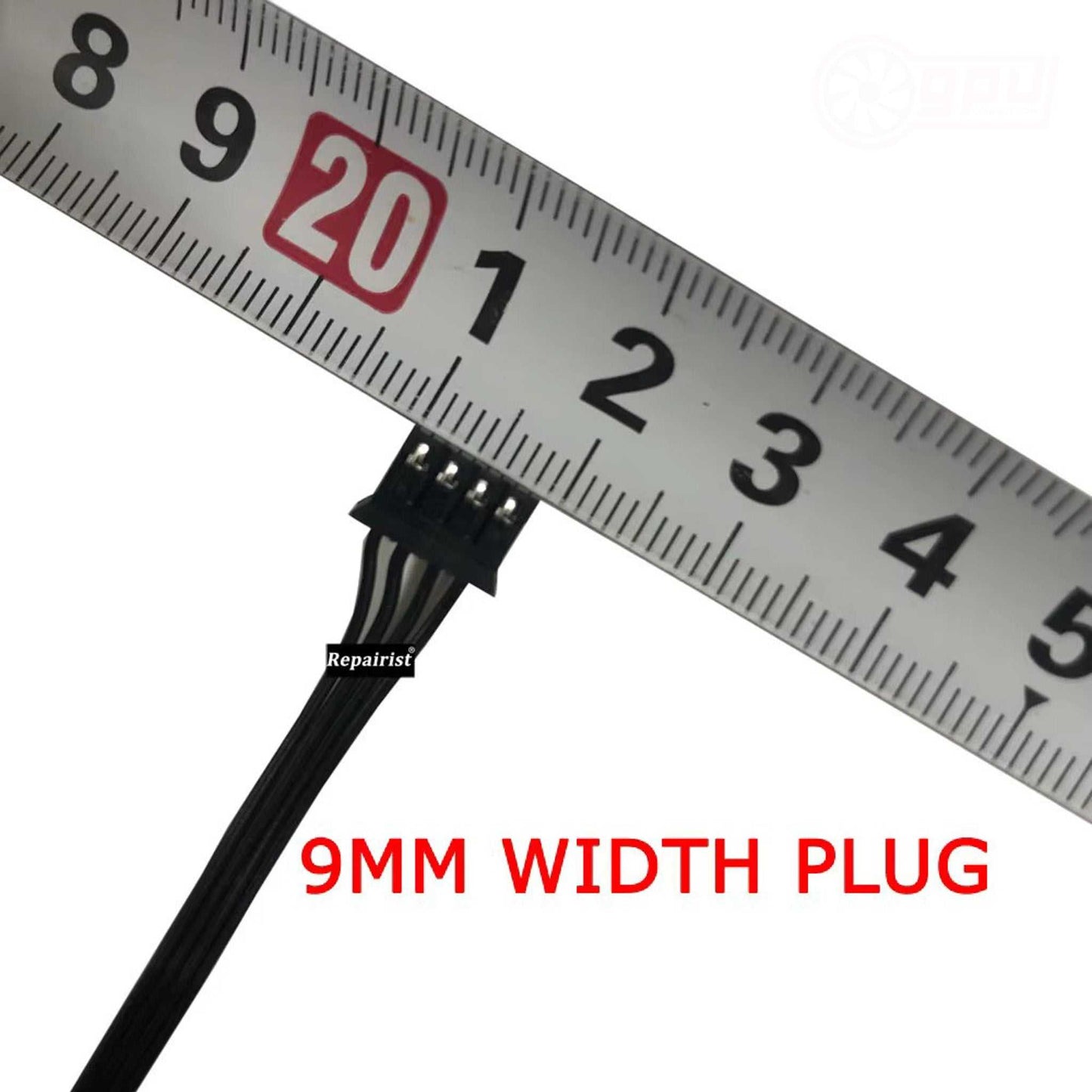

Connector Type 4-Pin / 9.0mm 4-Pin / 5.8mm

Quantity

£19.95 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

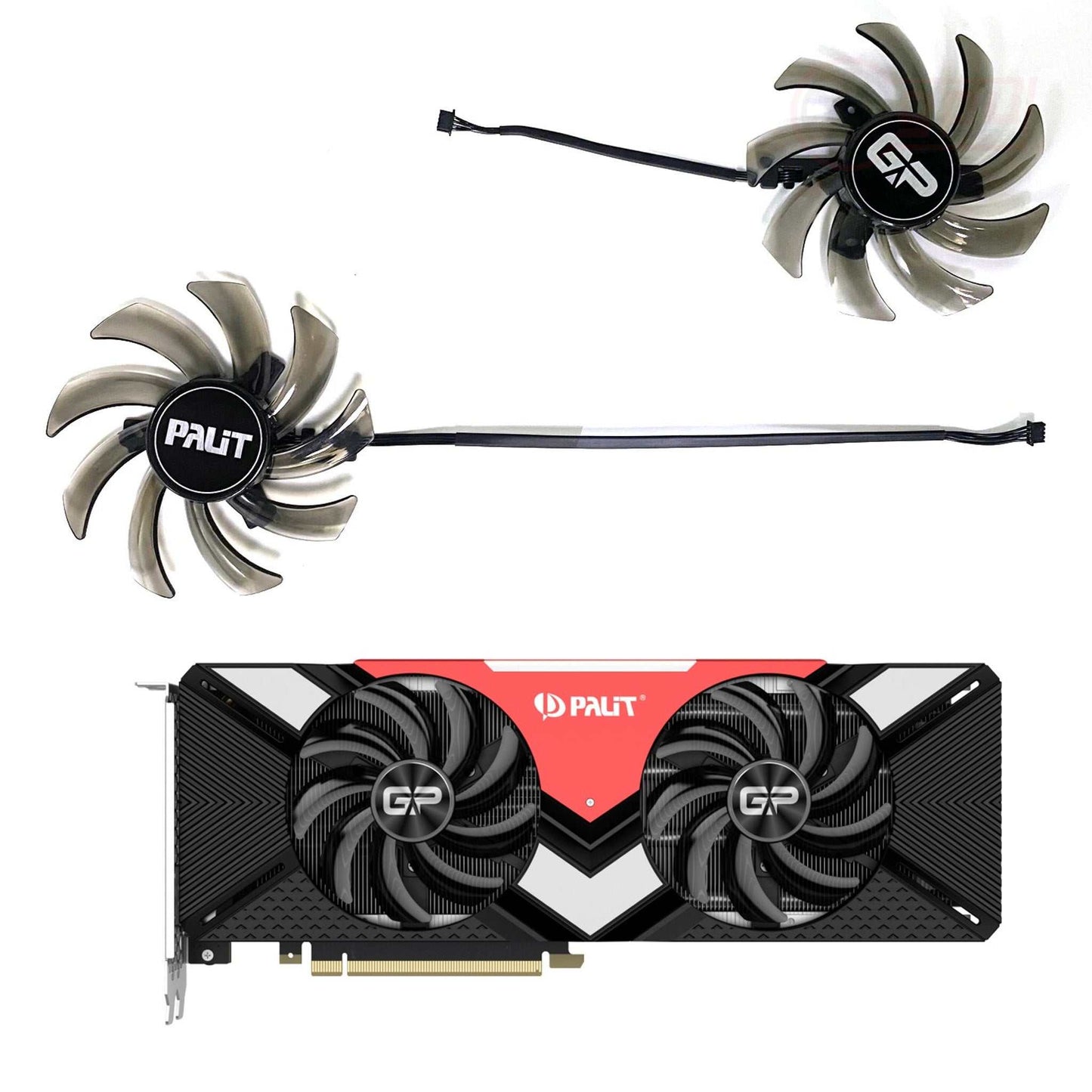

This is a replacement GPU fan set for the Palit RTX 2080 / 2070 / 2060 and 1660 / 1660 Ti GamingPro Dual Series Graphics cards. Replace poor performing, damaged or faulty graphics card coolers with these high quality replacements.

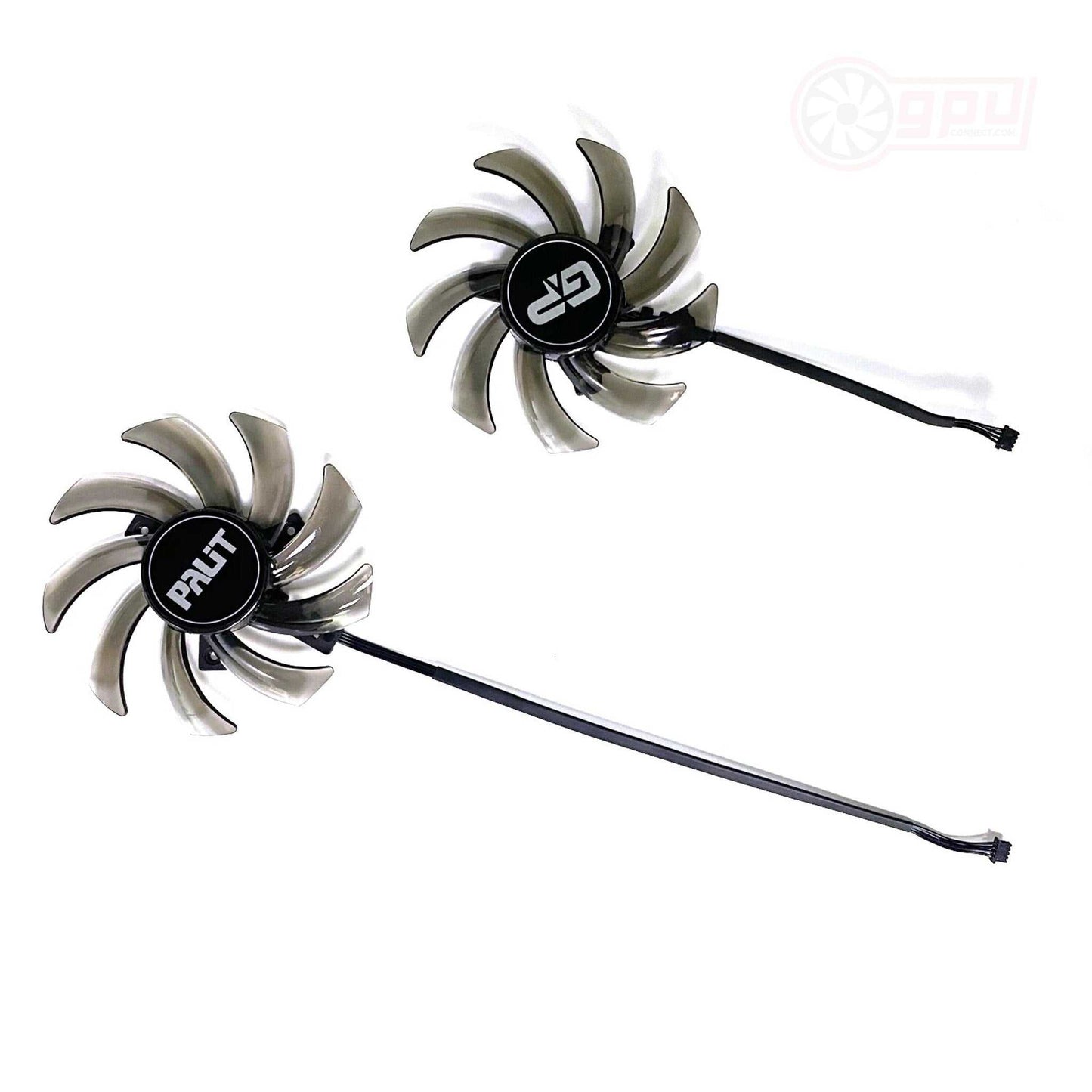

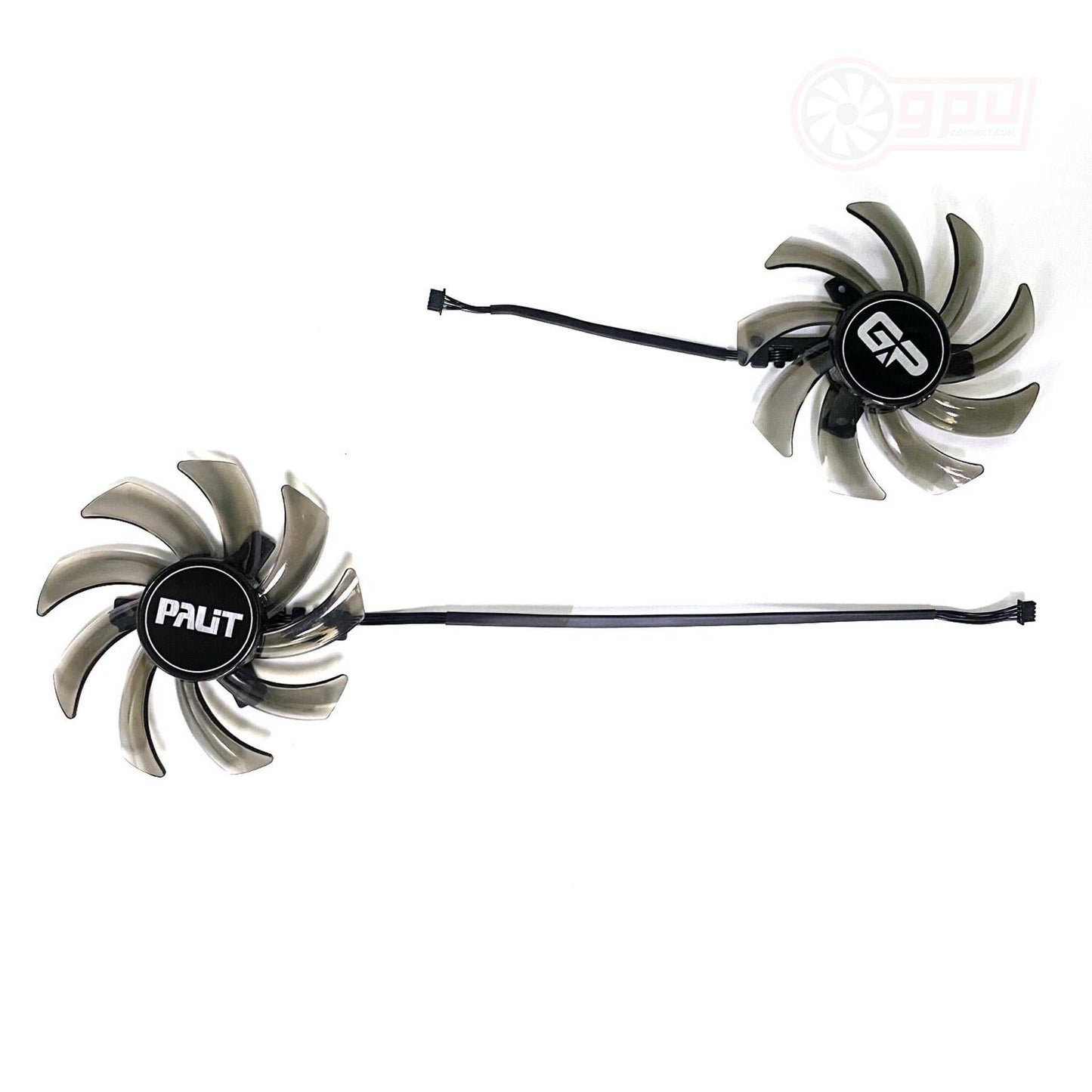

Note: Badges are included however do vary based on stock at any one time, if you have a particular badge requirement do message us before purchase. Generally these are Palit and/or GamingPro branded. Photos should be used for reference only.

Supplied as Apistek or Taihui parts. Both are equivalent and inter-compatible but different branded motors. If you wish to select a specific motor please message before purchase.

View full details

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

UK - 1-4 working days (Depending on method selected)
Europe - 3-7 working days (typical)
USA - 6-7 working days (typical)
Australia - 6-7 working days (typical)
Other - 6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
