APISTEK

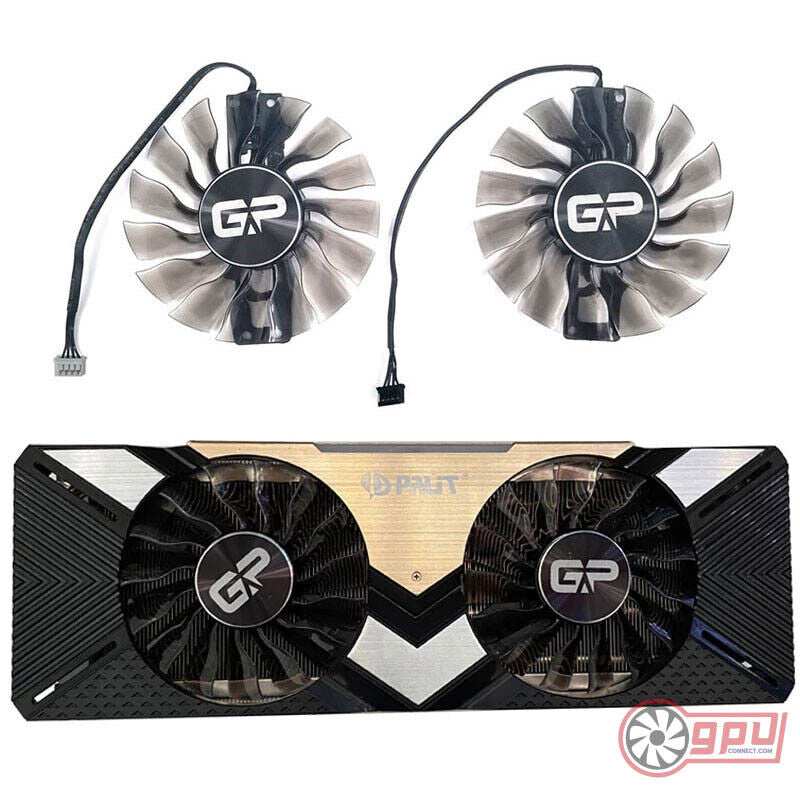

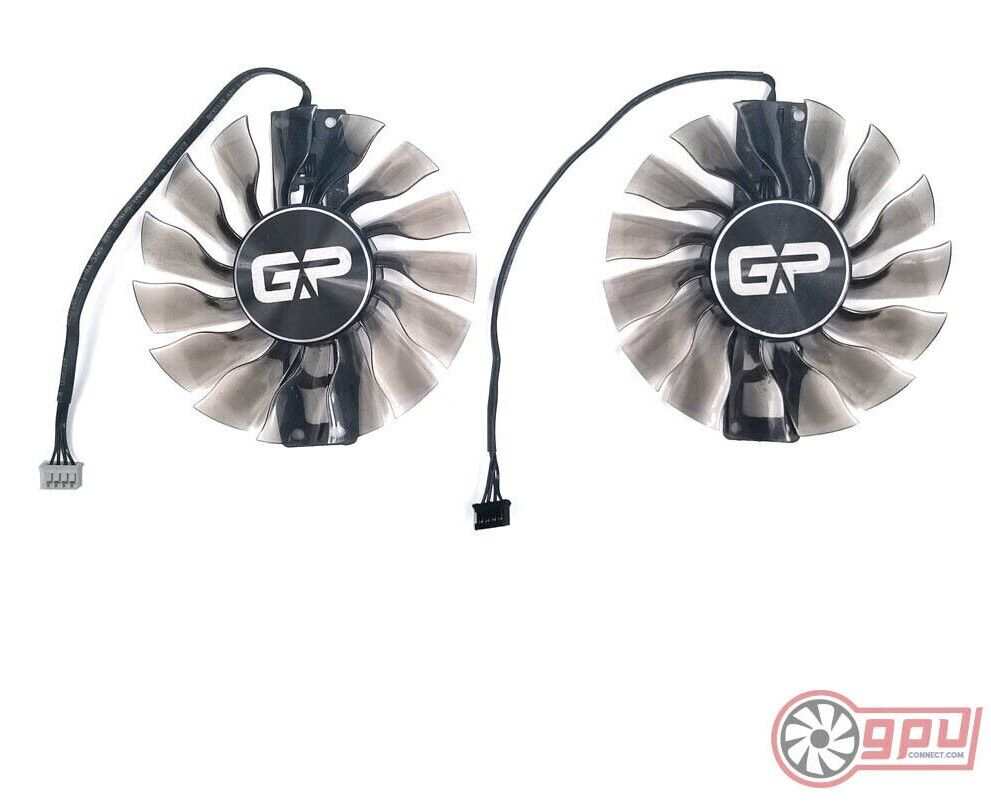

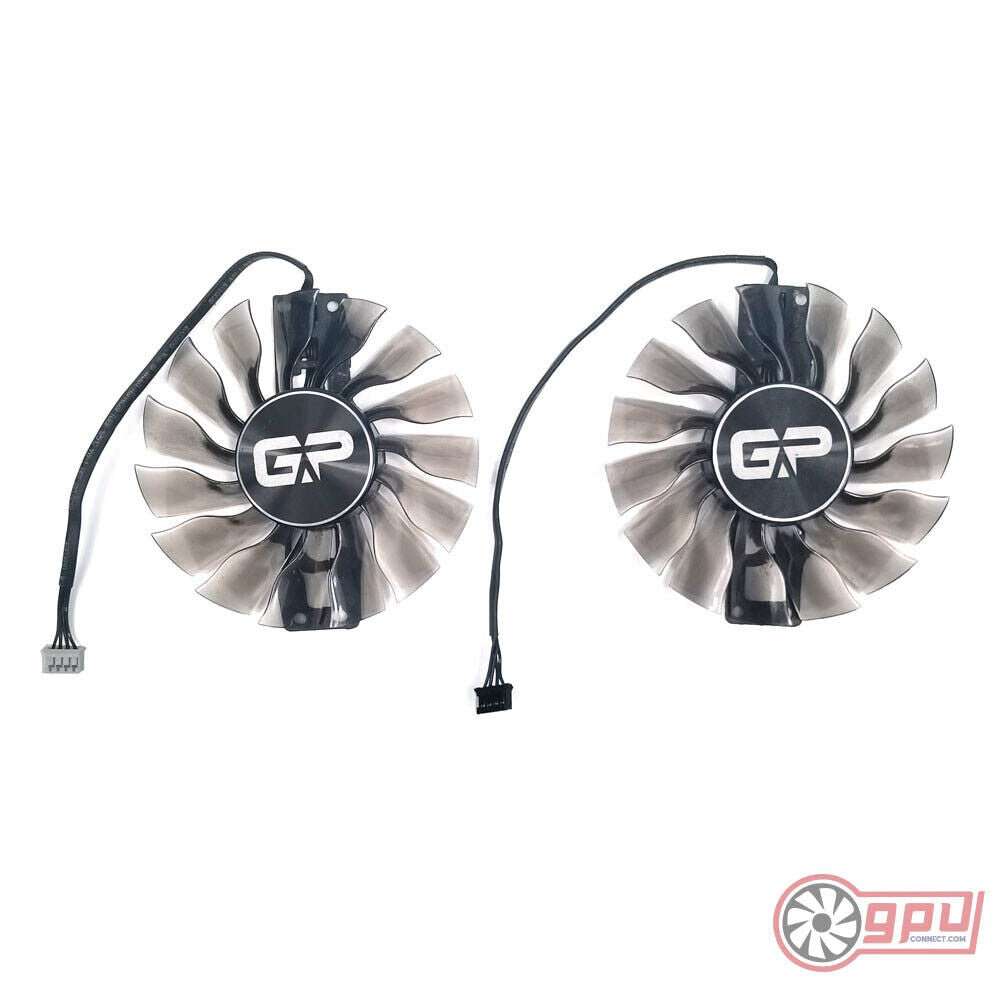

PALIT RTX 2080 Ti GamingPro OC Dual Replacement Fans (GA92S2H)

PALIT RTX 2080 Ti GamingPro OC Dual Replacement Fans (GA92S2H)

RTX 2080 Series

For: Palit
Power Connector: 4 Pin (Micro) and 4 Pin
Dimensions: 88 mm
Depth: 15 mm
Mounting Distance: 11 x 82 x 11 x 82 mm (Rectangle)

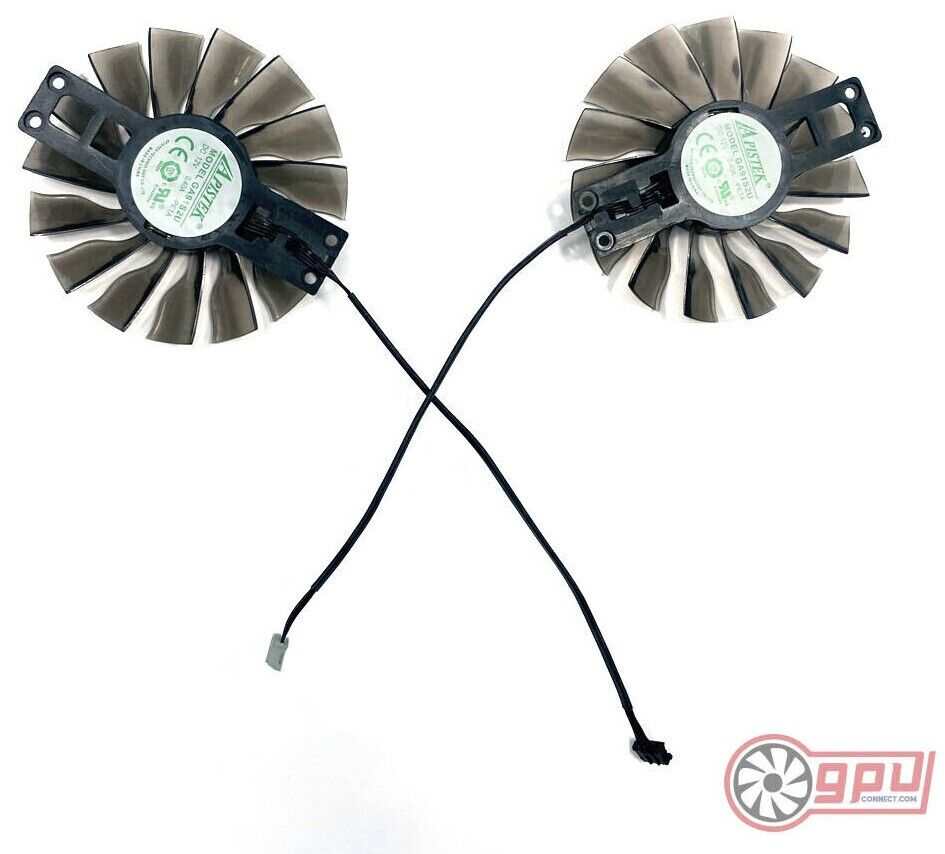

Part Number(s): GA92S2H
Rating: 12V @ 0.35A

SKU:PL-2080G-F

UK Express Shipping   Express Shipping Item - more info
Fan Type
Connector
Regular price £19.95 GBP
Regular price £0.00 GBP Sale price £19.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers. This is a like for like replacement with the original fan set, and can be replaced with a little DIY.

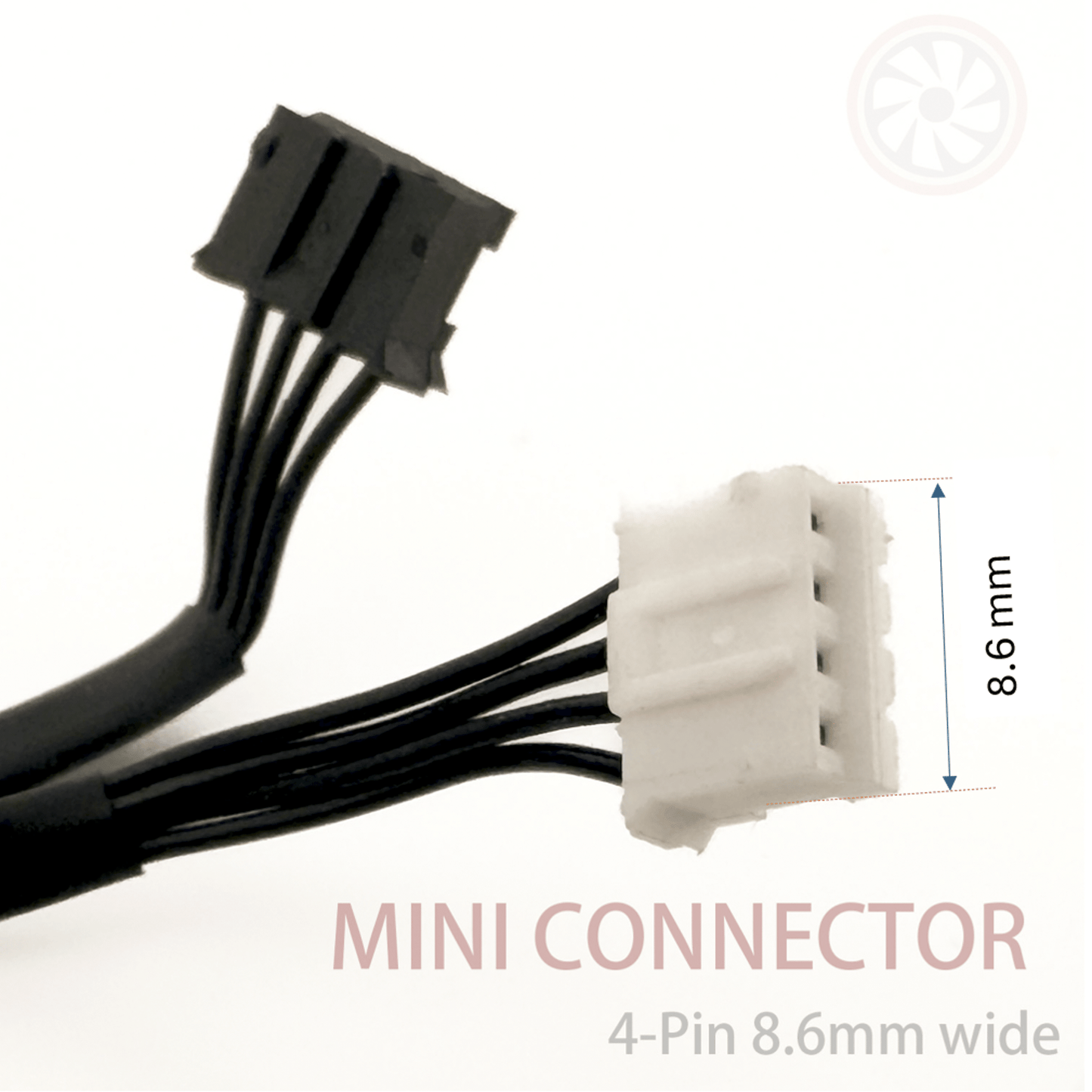

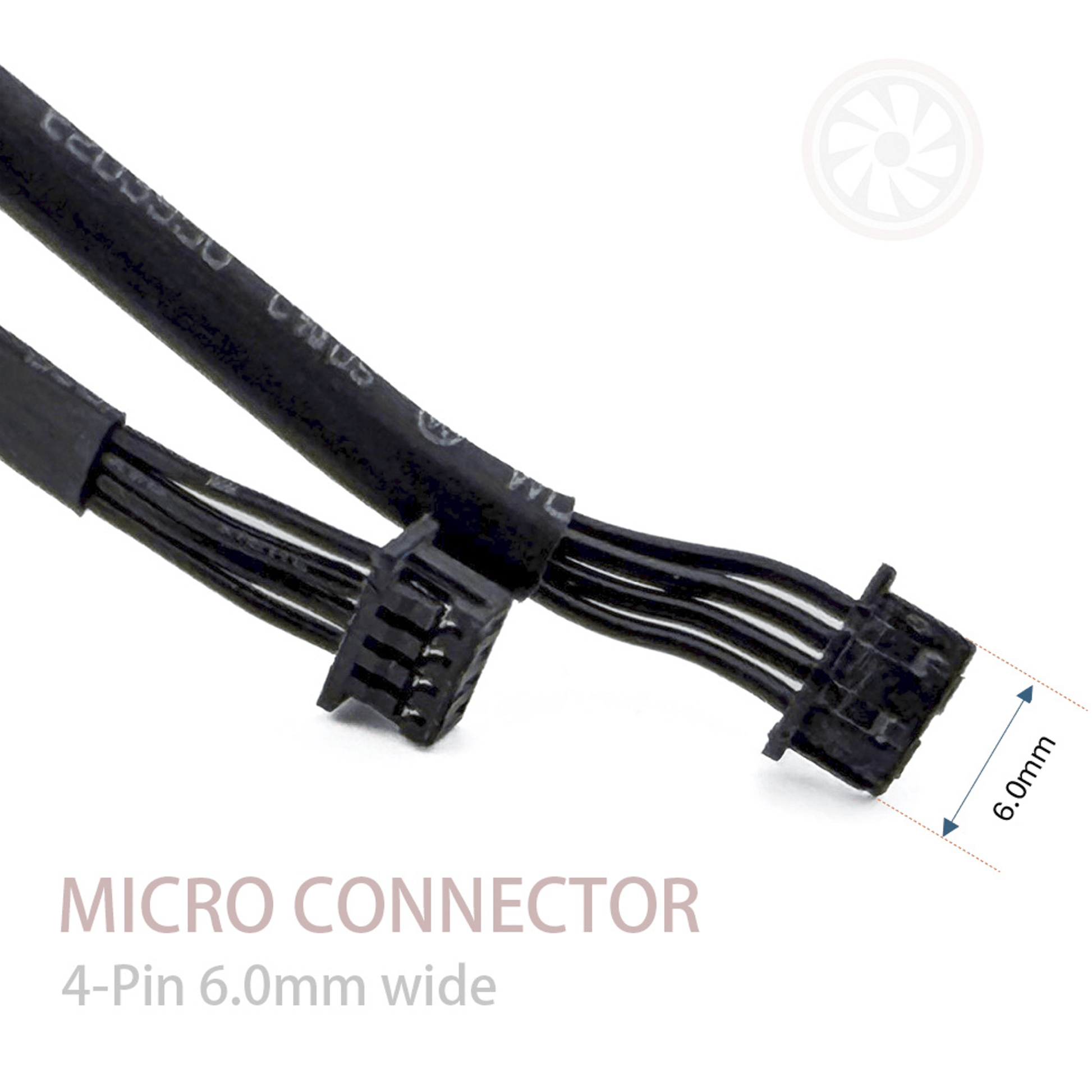

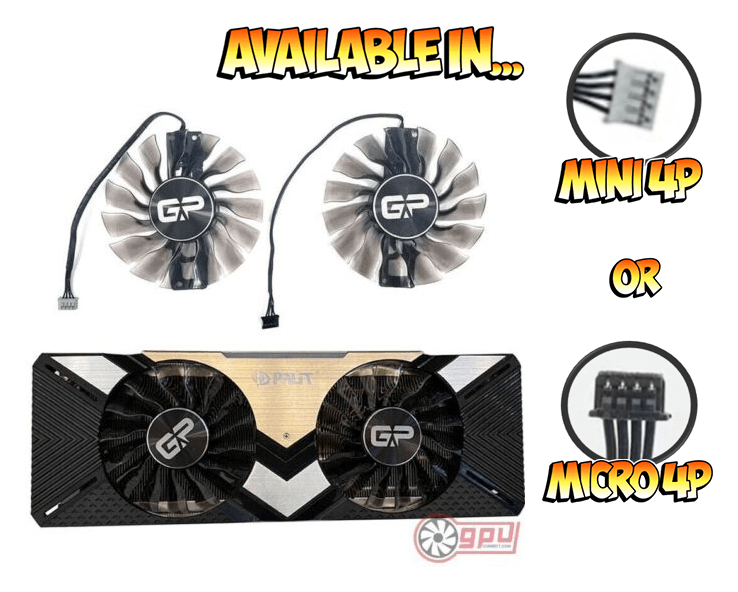

Note: there are 2 versions of this fan, a standard micro 4-Pin connector (very small 4-pin header), and a mini 4-pin connector (standard 4-pin header as seen on most graphics cards).  Please select the correct fan based on your requirement, as versions do vary.  Please ask if any questions on this we can confirm the right part with a photo.


    View full details

    Collapsible content

    Compatibility Guide

    The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

    Palit GeForce RTX™ 2080 Ti GamingPro OC
    Palit GeForce RTX™ 2080 Ti GamingPro
    Palit GeForce RTX™ 2080 Ti Dual

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here

    Installation

    Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

    Please ensure you keep note of the screw replacement locations as you do along.

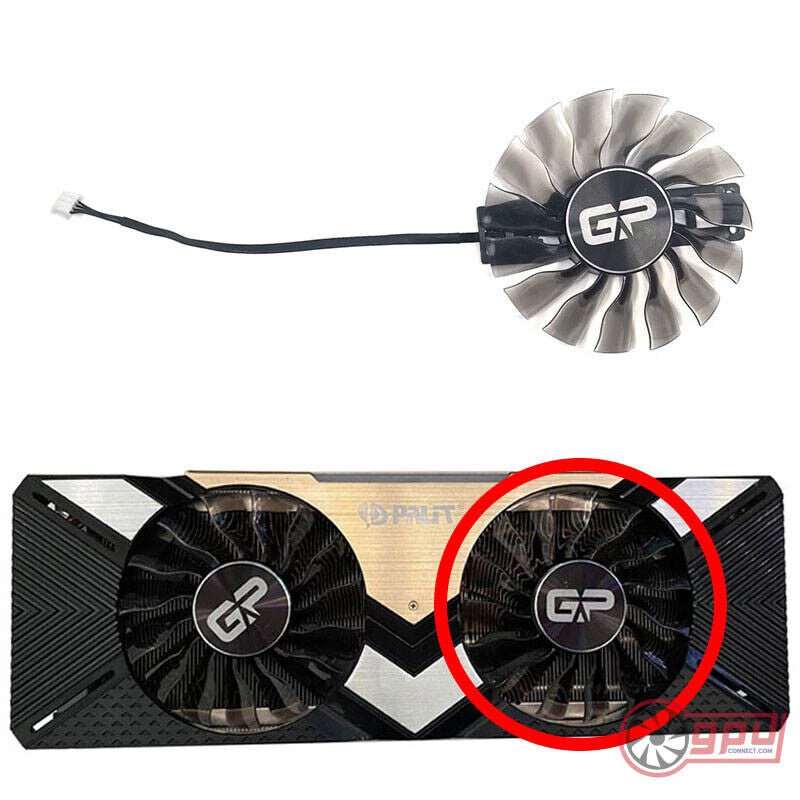

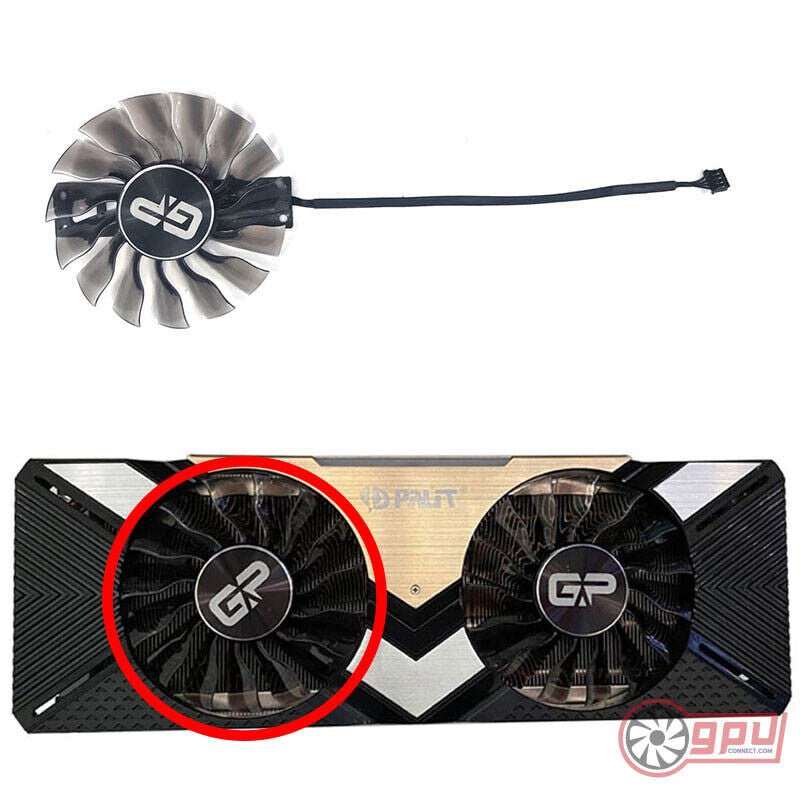

    The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

    At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

    Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

    Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
