Palit RTX 3060 StormX OC GPU ITX Cooler Heat Sink with Fan

Palit RTX 3060 StormX OC GPU ITX Cooler Heat Sink with Fan

RTX 3060 Series

For: Palit and Gainward
Power Connector: 4 Pin
Dimensions: 100 mm
Depth:
Mounting Distance: 55 x 55 x 55 x 55 mm (hole distance)
Part Number(s): FD10015H12S
Rating: 12V @ 0.55A

SKU:PL-STX3K-F/A

Standard Shipping Standard Shipping Item - more info
Version
Regular price £49.95 GBP
Regular price Sale price £49.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

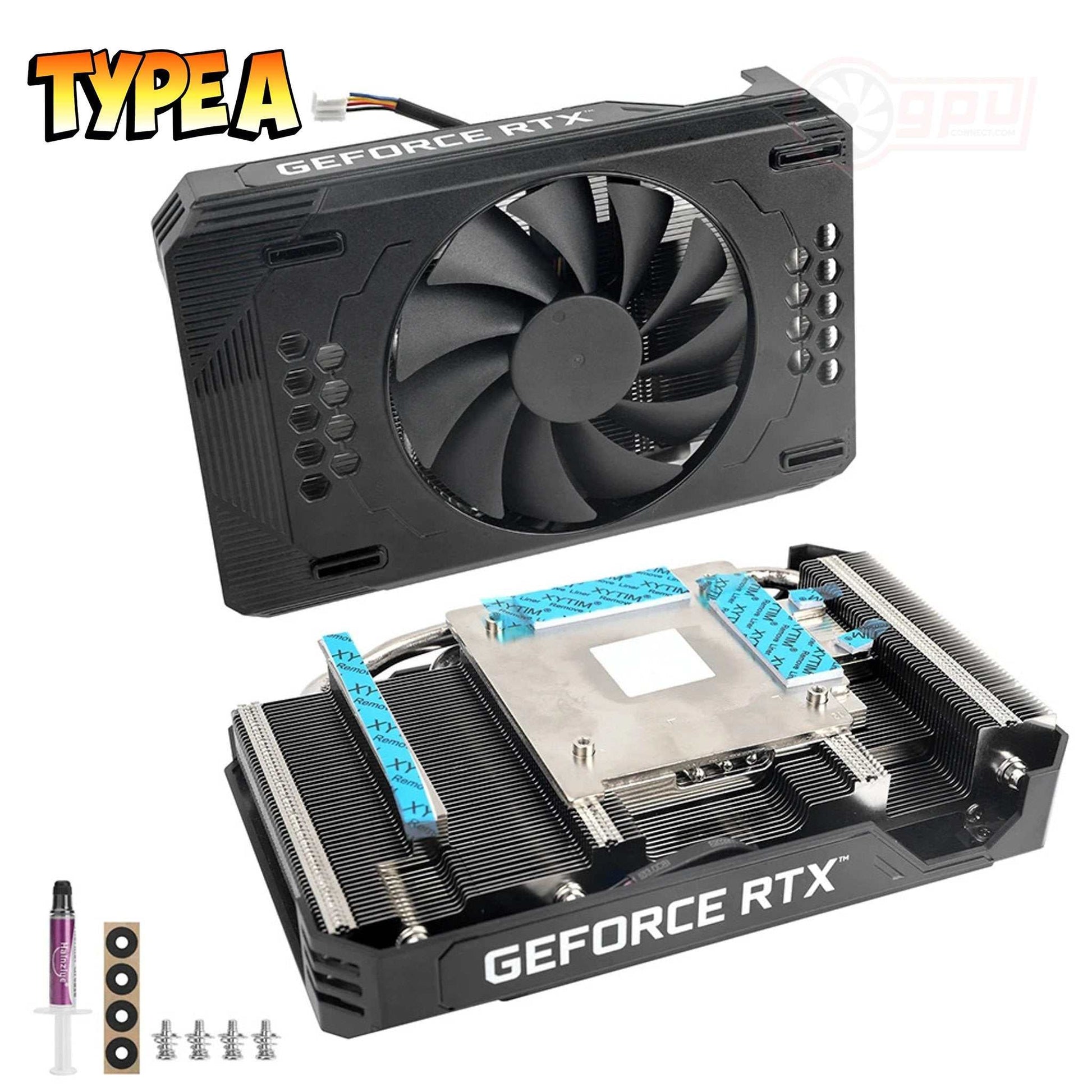

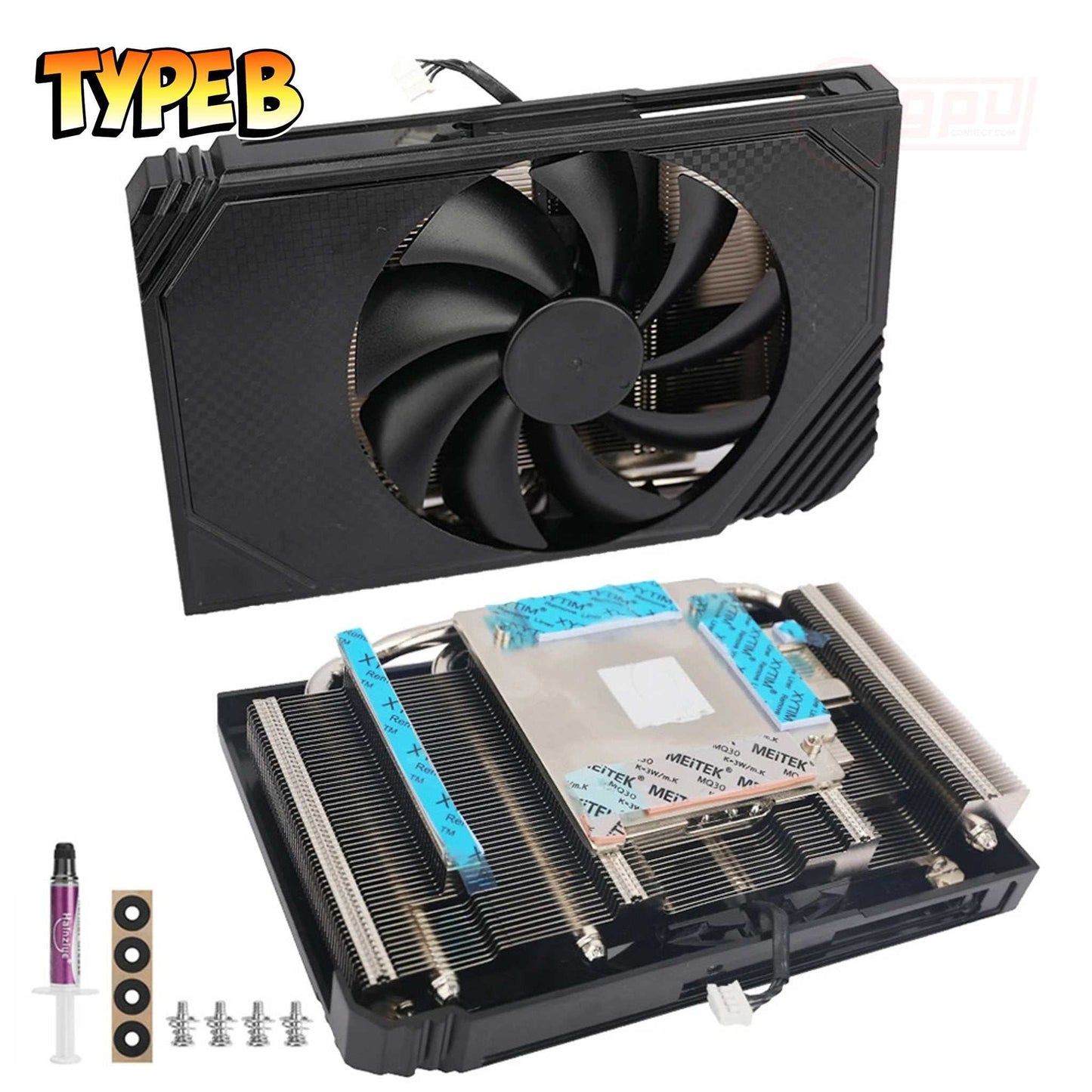

Complete heatsink, shroud and cooling fan replacement for the Palit 3060 StormX Series graphics cards including the 8GB and 12GB models.  This complete set is a ready replacement and includes the parts needed for the replacement.

Replace your worn, damaged or noisy cooler with this pack.  There are different versions of this model so please select the one that is identical to you your current cooler.  Any questions please get in touch.

Note: This cooler has NO RGB Support

View full details

Collapsible content

Compatibility Guide

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

PALiT GeForce RTX 3060 StormX OC
PALiT GeForce RTX 3060 StormX
Gainward RTX 3060 Pegasus
PNY RTX 3060 XLR8 Gaming REVEL EPIC-X (Single Fan)

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
