Replacement Graphics Card Screws GPU VGA Heat Sink Spring M2 / M2.5 / M3
Replacement Graphics Card Screws GPU VGA Heat Sink Spring M2 / M2.5 / M3

Couldn't load pickup availability
Launching our new GPU screw bundle set. Not sure the correct screw size for your GPU retention bracket, then this is the product for you.
Whilst we cannot provide advise on specific card screw sizes, we do bundle the most common 15 screw sizes for graphics cards, ensuring no matter what your card is there is a screw size to fit it.
Each screw size include 4, premium stainless steel, precision made sprung screws of each size. Ensuring compatibility for the vast majority of Nvidia and AMD graphics cards.

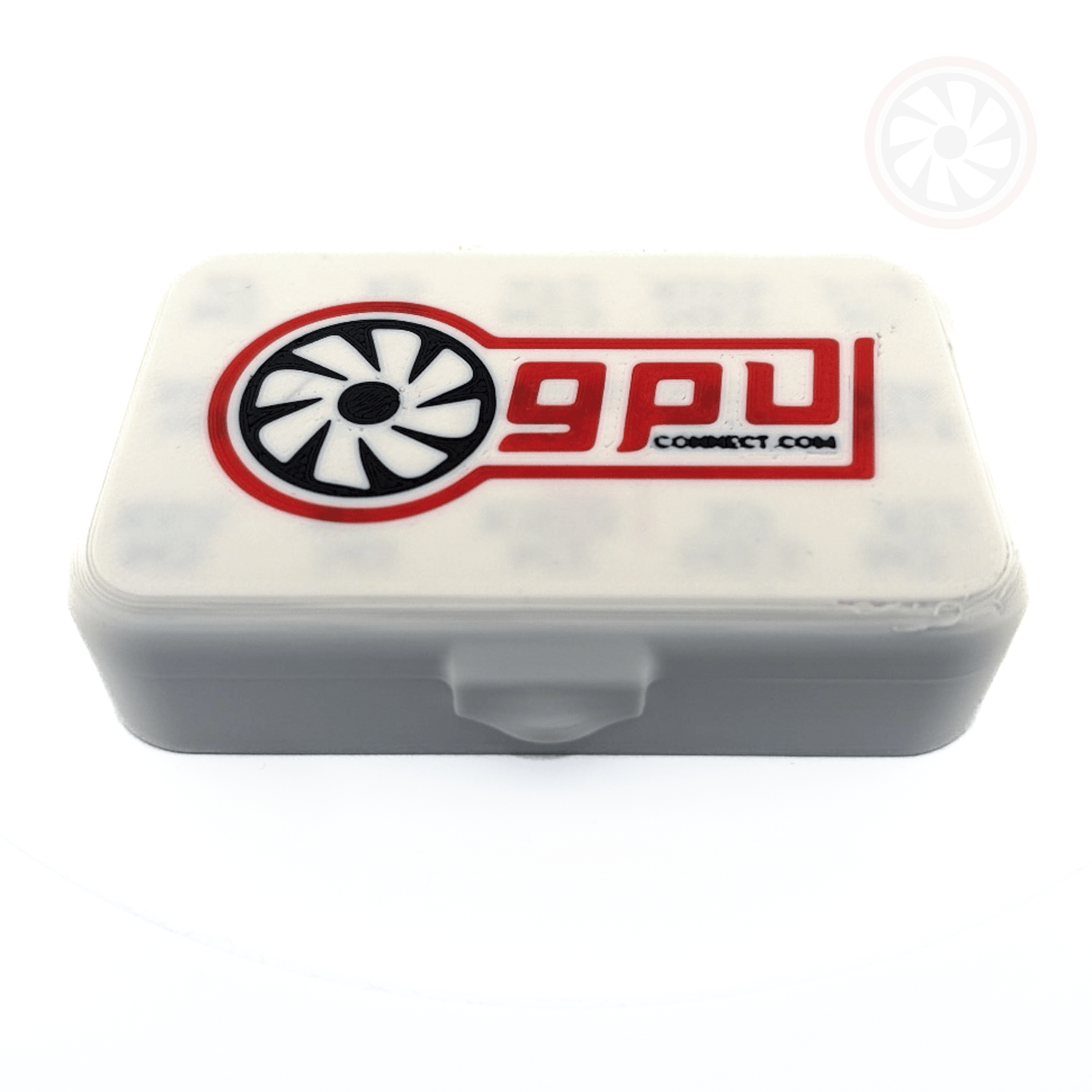

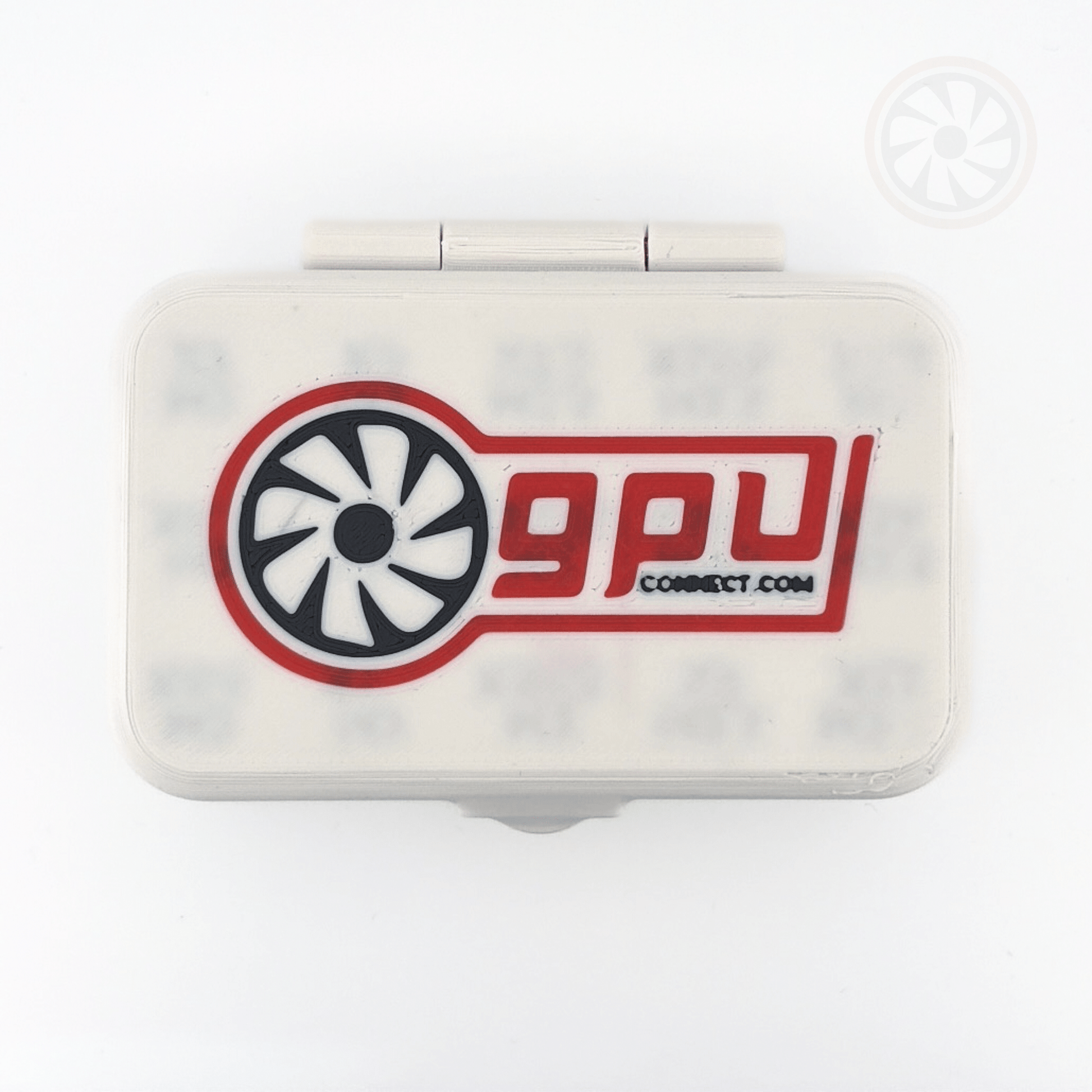

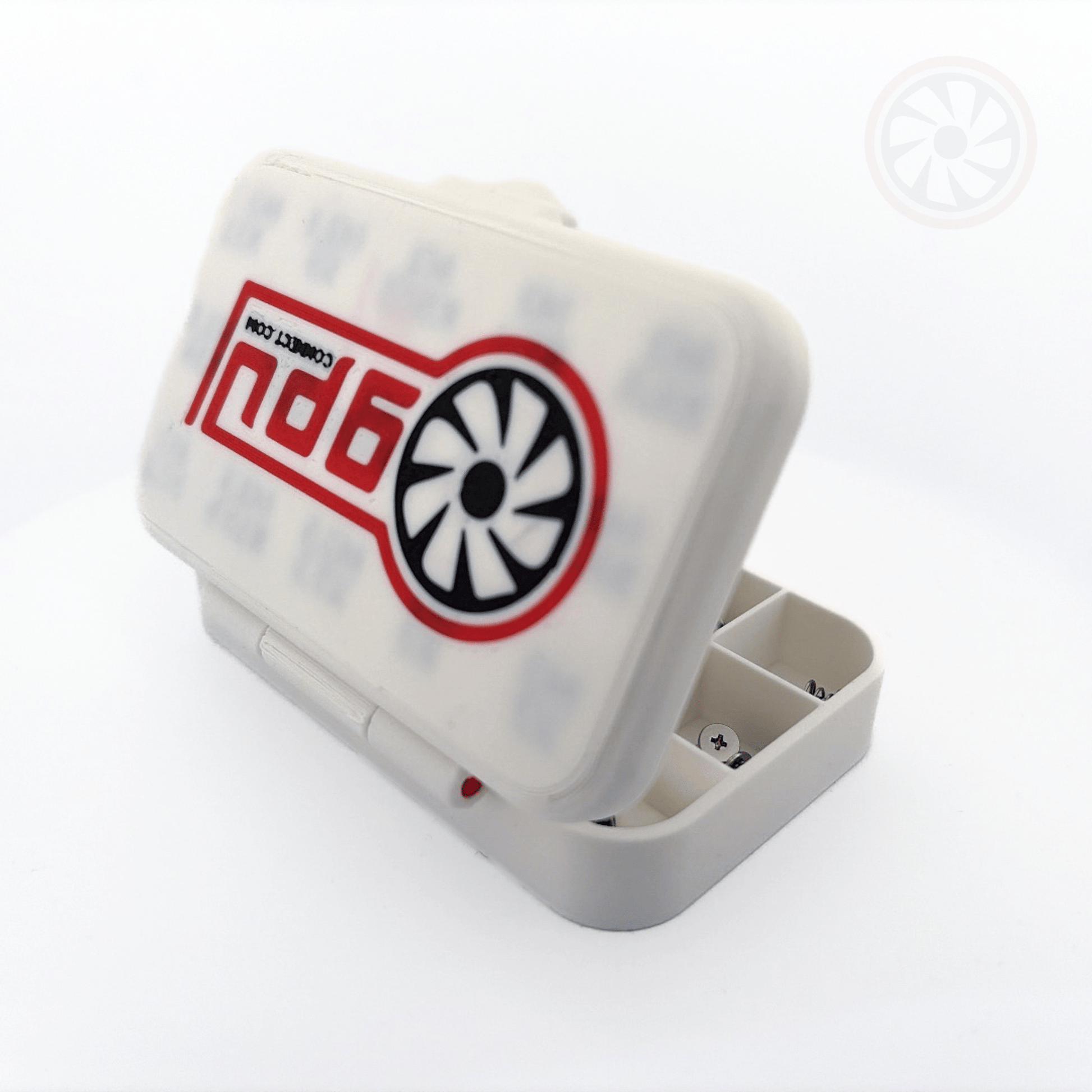

The bundle comes in our custom made 3D printed storage case, for quick identification and storage.

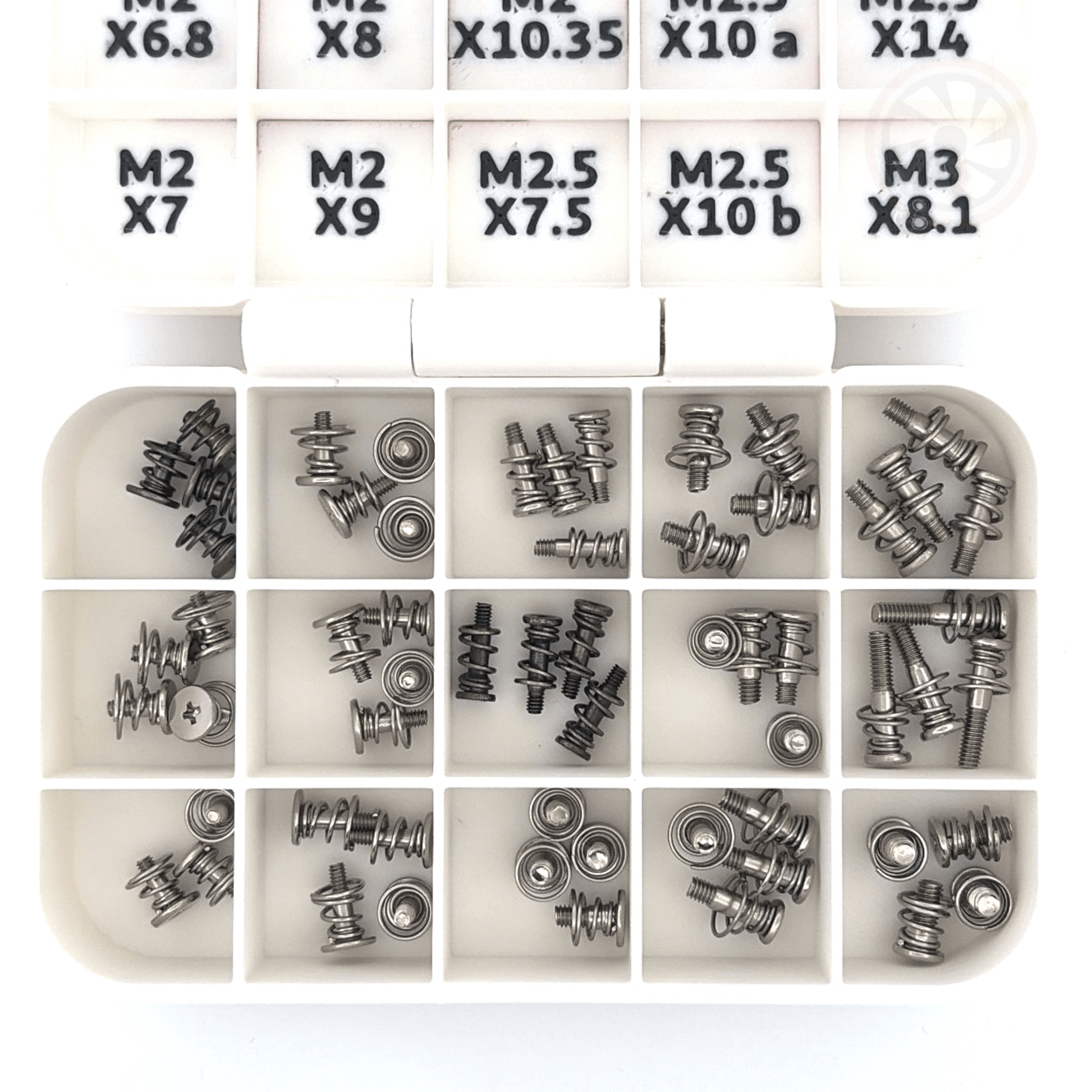

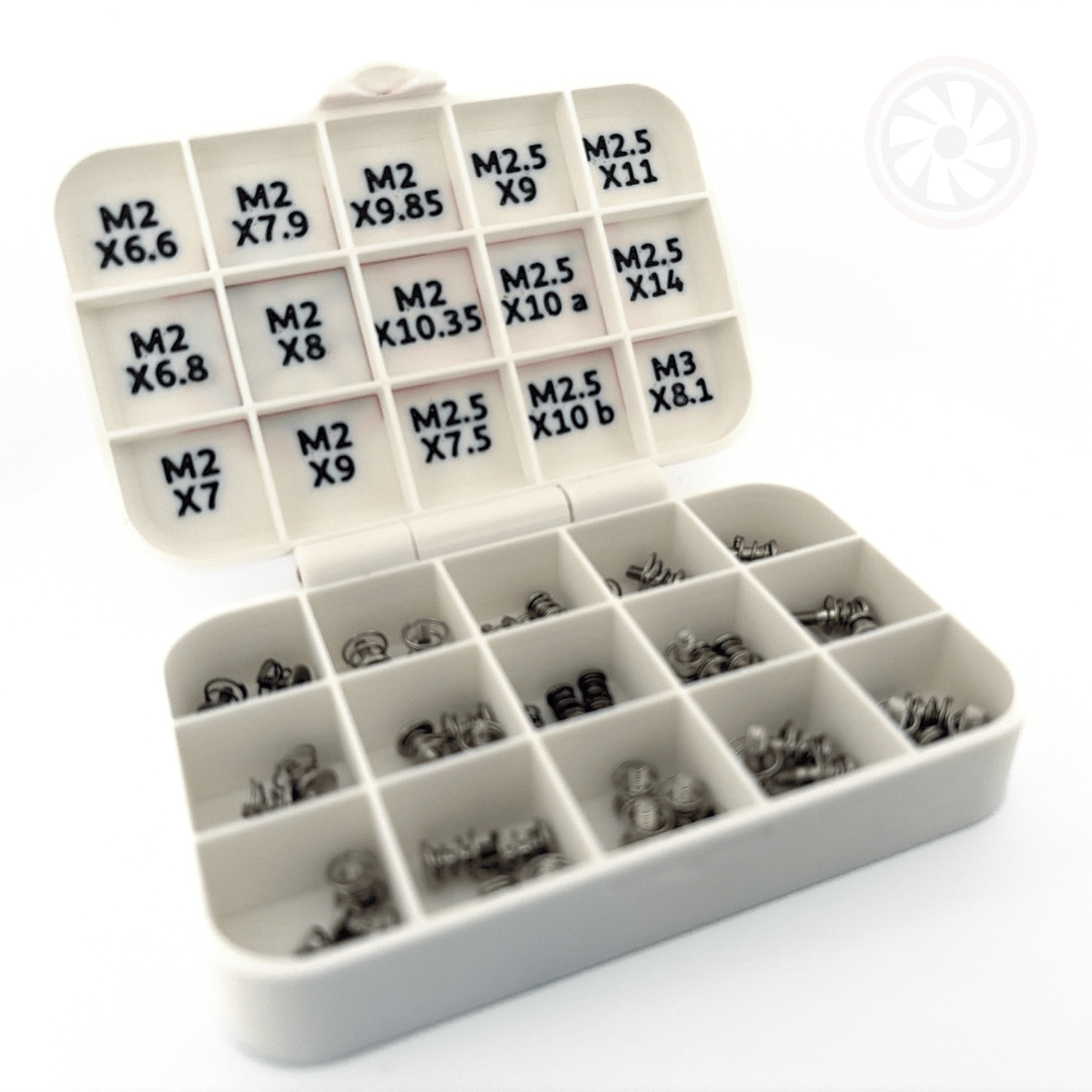

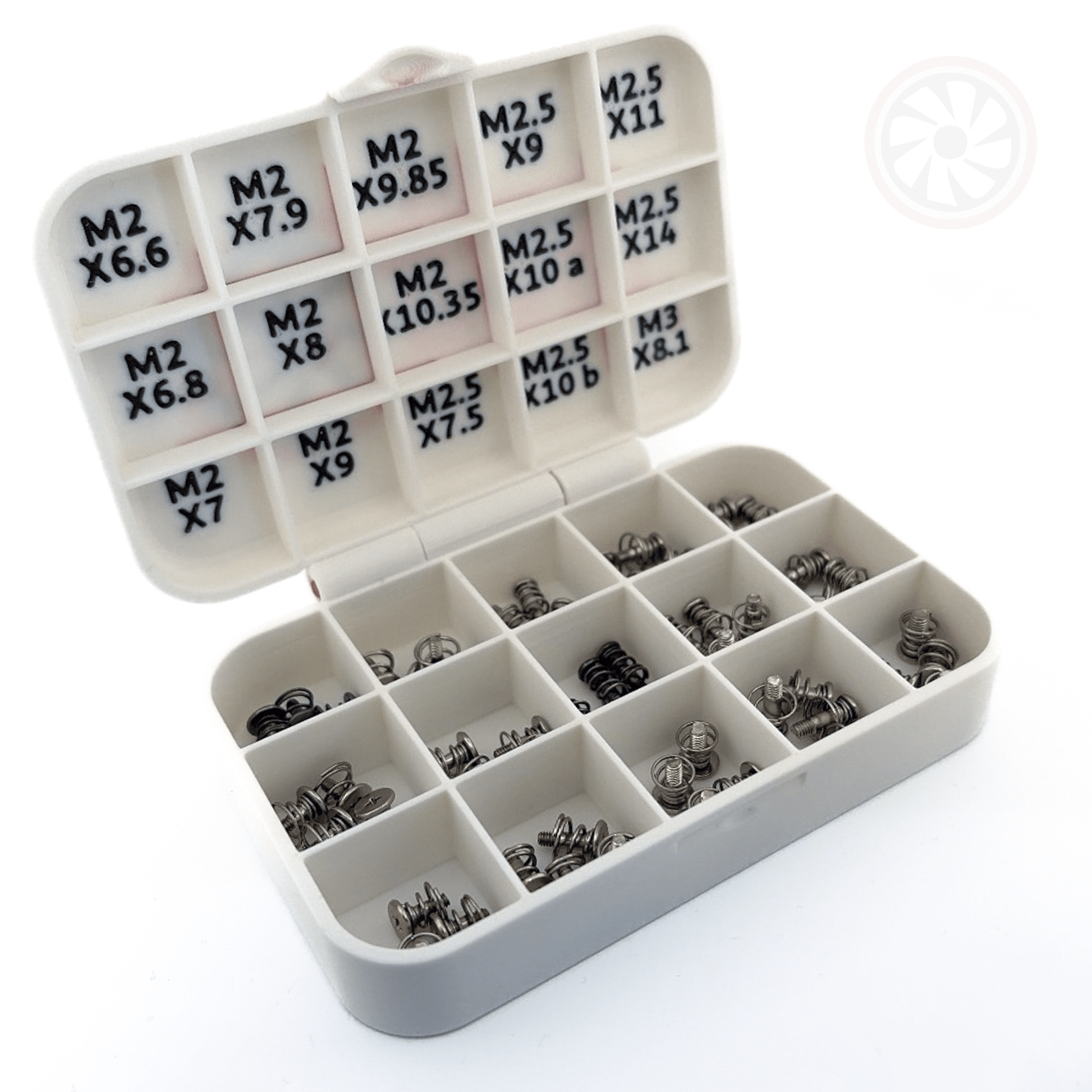

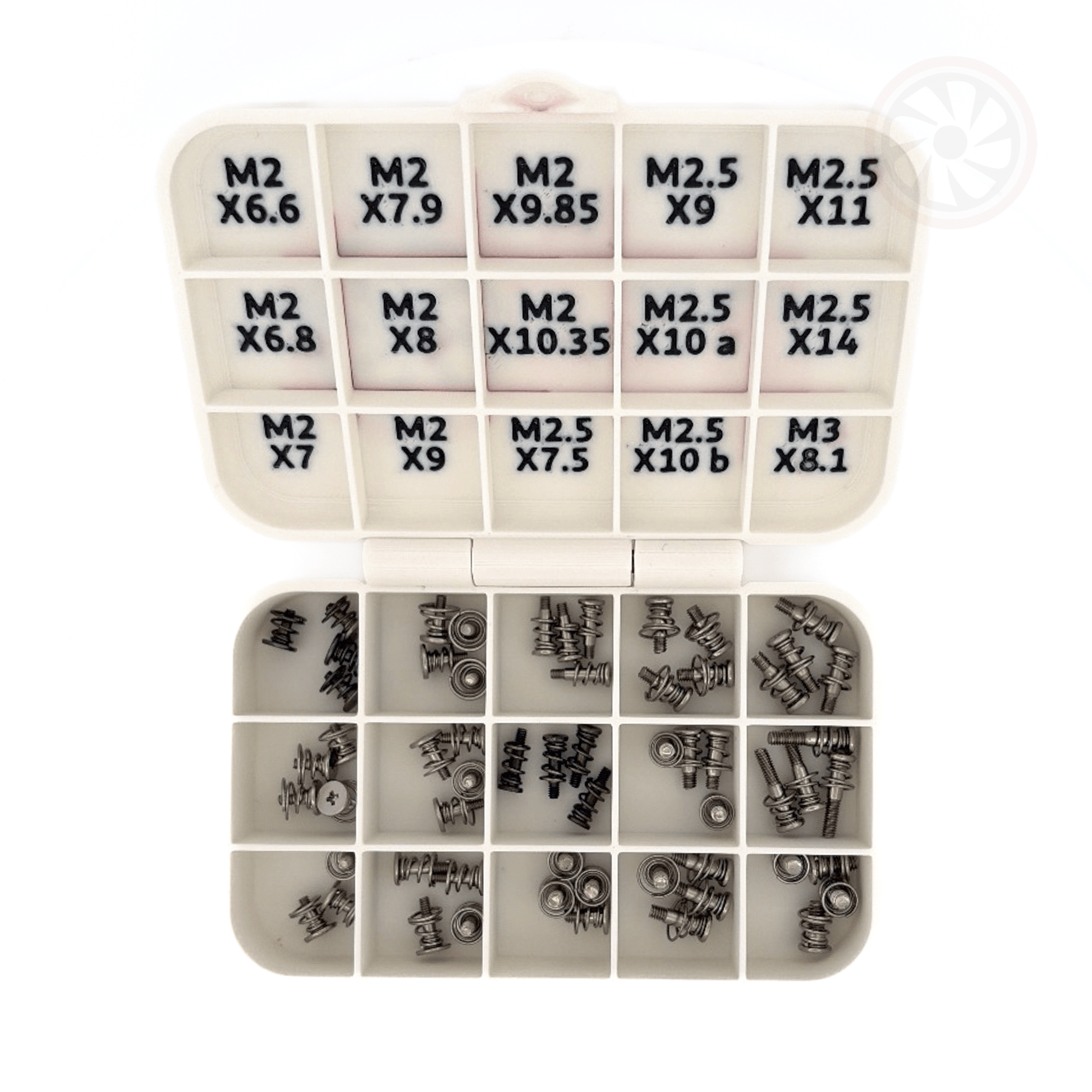

Screw sizes included in the bundle:
- M2 x 6.6
- M2 x 6.8
- M2 x 7
- M2 x 7.9
- M2 x 8
- M2 x 9
- M2 x 9.85
- M2 x 10.35
- M2.5 x 7.5
- M2.5 x 9
- M2.5 x 10 (version A & B)
- M2.5 x 11
- M2.5 x 14
- M3 x 8.1
Share








Check the size

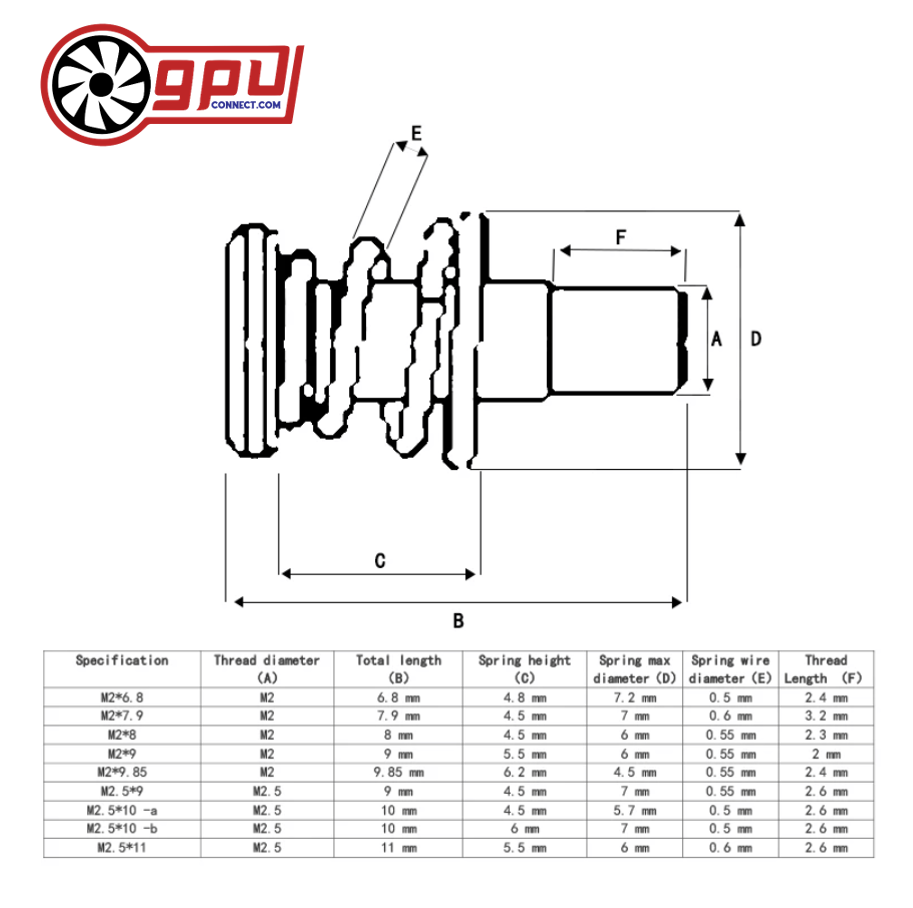

Use the table to identify the correct dimensions for the screw required. Ideally measurements would be taken with a caliper however feel free to email us with photos of the screw you are looking for and we will do our best to match it.
Collapsible content
Dimensions
The size of screw is important on graphics cards to ensure both the right distance of cooler too GPU die and the tension. Please use the table below to identify the correct size required.
Installation
As like for like replacements these can be simply swapped for the existing or missing screw in your GPU installation.
Returns
If you are unsure if the product is compatible or right for you or compatible please ask us! In the unlikely event you need to return we offer hassle free returns. See our returns policy for more information.
