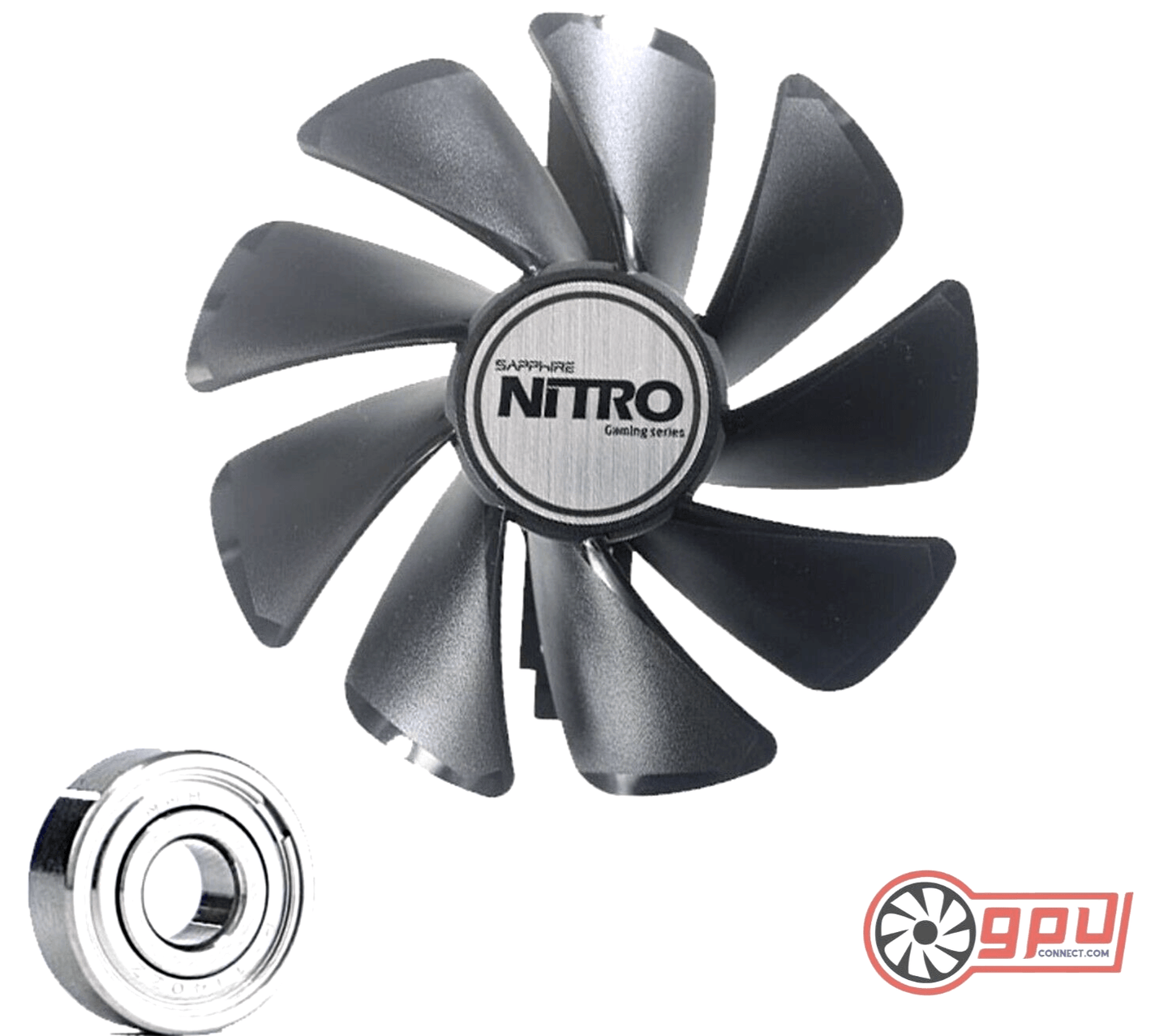

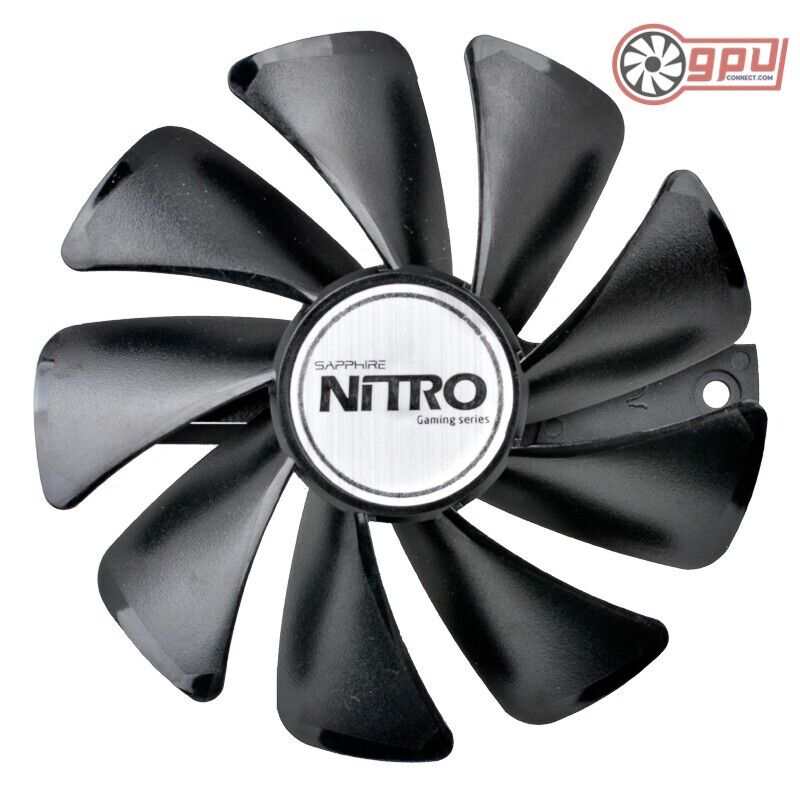

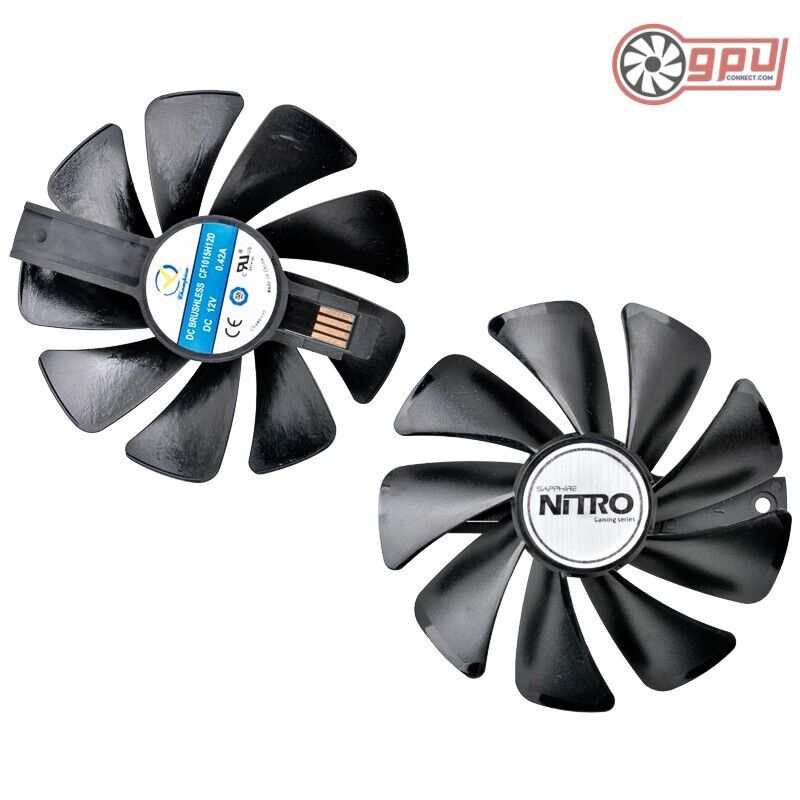

Sapphire NITRO PULSE RX 470 480 570 580 590 Replacement Fan (CF1015H12D)

Sapphire NITRO PULSE RX 470 480 570 580 590 Replacement Fan (CF1015H12D)

RX 470 Series, RX 570 Series, RX 580 Series, and RX 590 Series

For: Sapphire
Power Connector: 4 Pin
Dimensions: 95 mm
Depth: 10 mm
Mounting Distance: Clip Style

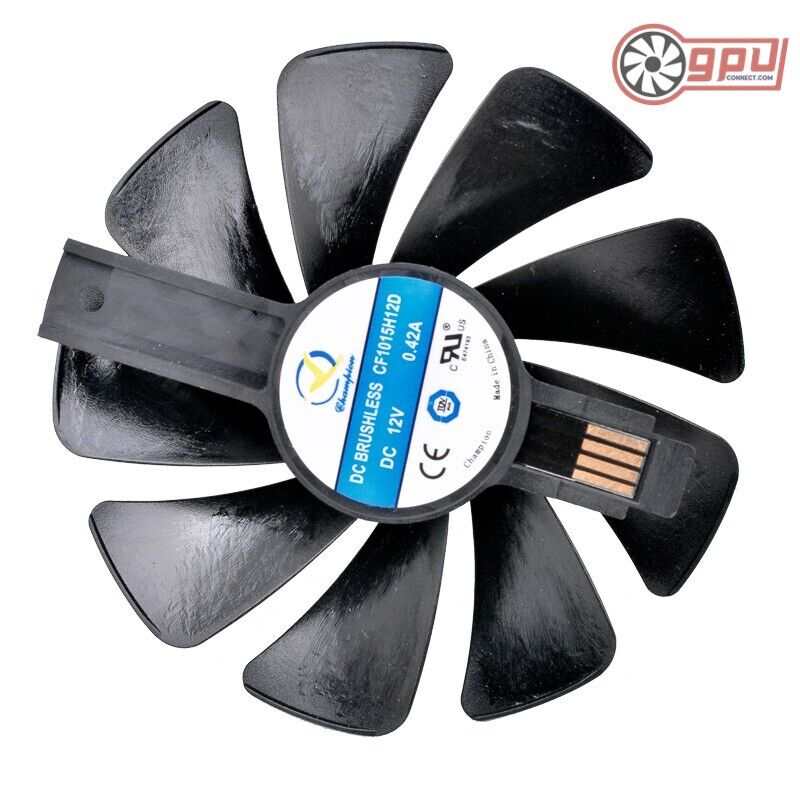

Part Number(s): CF1015H12D
Rating: 12V @ 0.42A / 5W

SF-RX580-F

UK Express Shipping   Express Shipping Item - more info
£8.95 GBP
£0.00 GBP £8.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers. This is a like for like replacement with the original fan set, and can be replaced with a little DIY.


    View full details

    Compatibility Guide

    The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

    Sapphire NITRO+ RX 580
    Sapphire NITRO+ RX 570
    Sapphire NITRO+ RX 480
    Sapphire NITRO+ RX 470
    Sapphire NITRO RX 580
    Sapphire NITRO RX RX 570 Series
    Sapphire PULSE RX 580
    Sapphire PULSE RX 570 Series*
    Sapphire PULSE RX 590 Nitro+ Special Edition

    *Not compatible with ITX Series

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here

    Installation

    Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

    Please ensure you keep note of the screw replacement locations as you do along.

    The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

    At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

    Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

    Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
