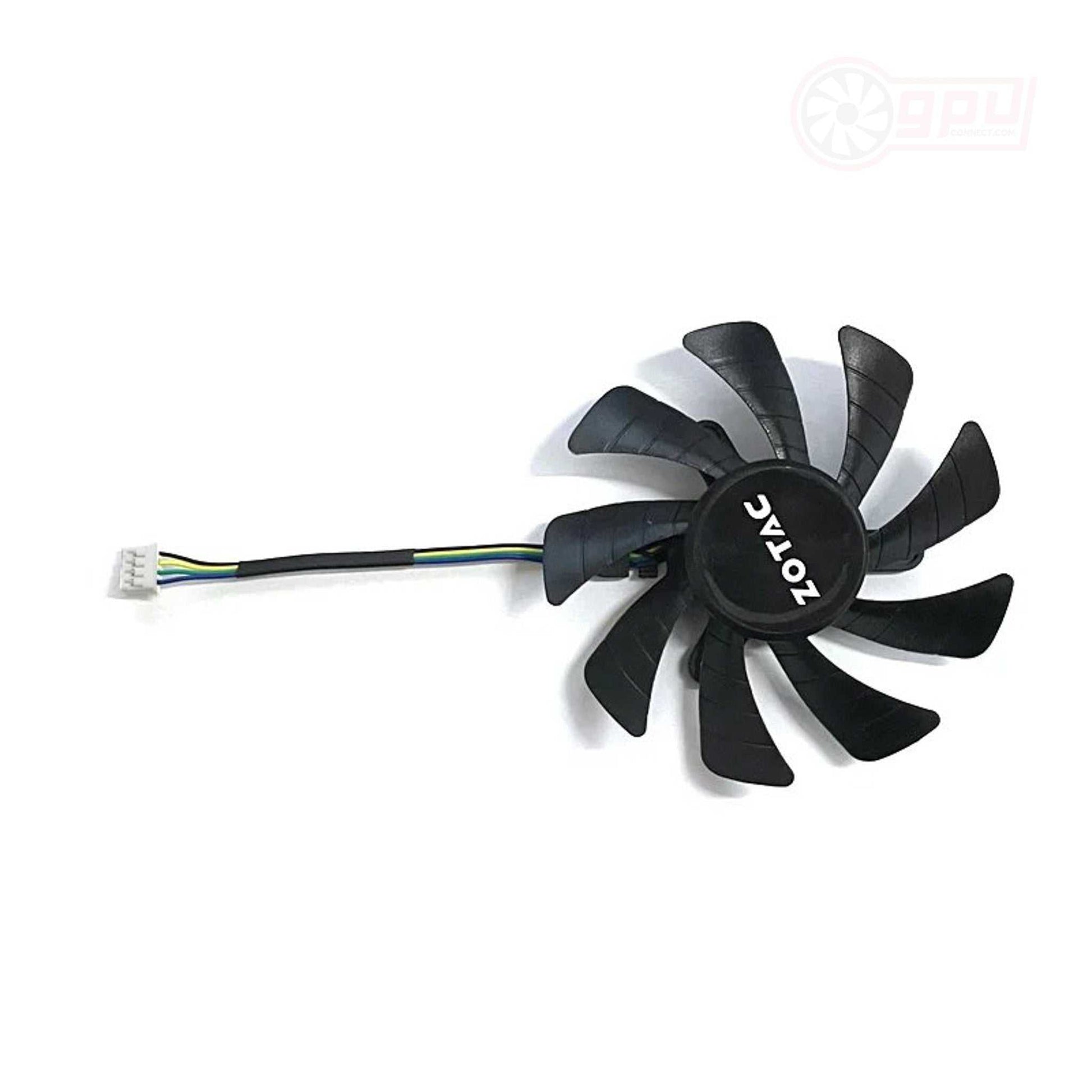

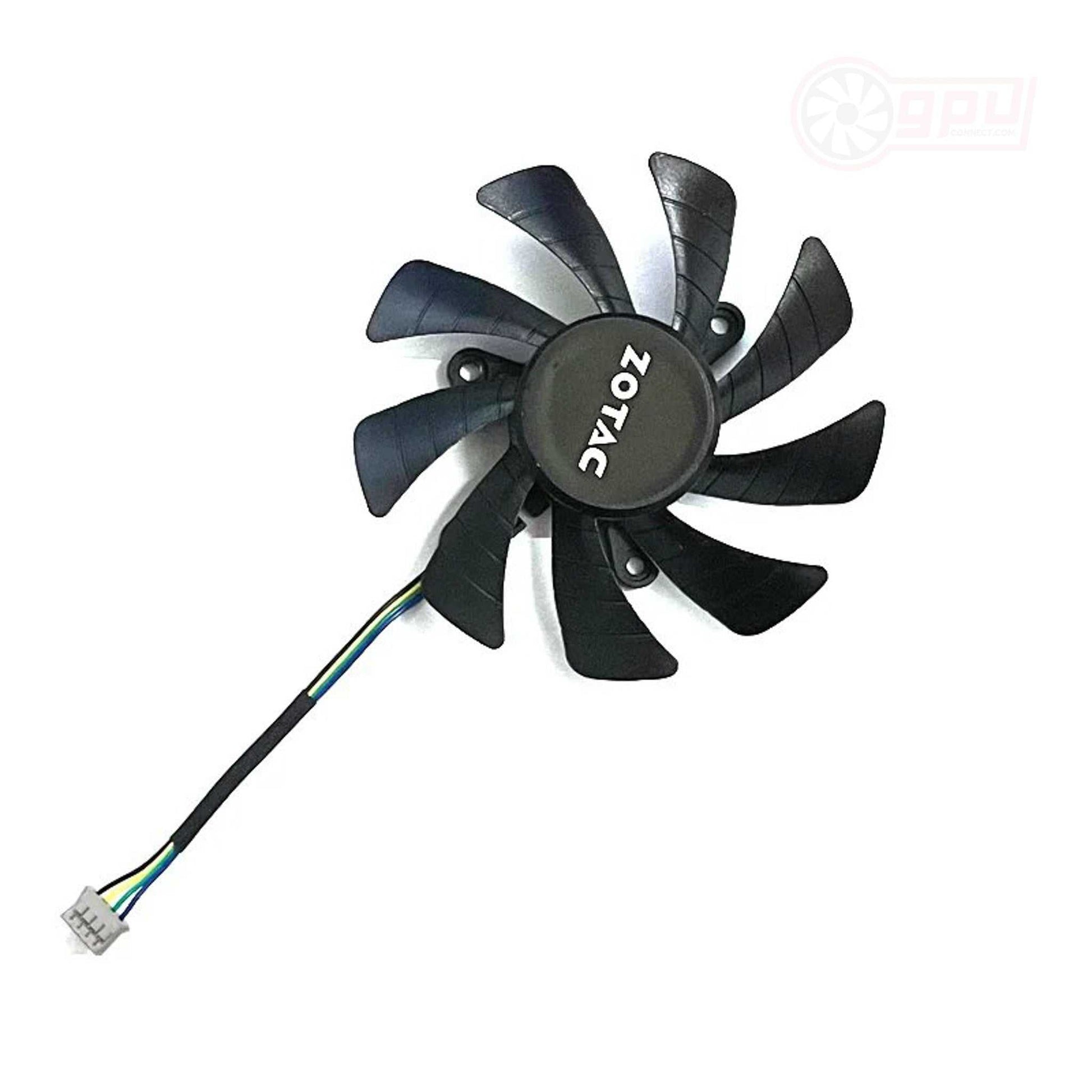

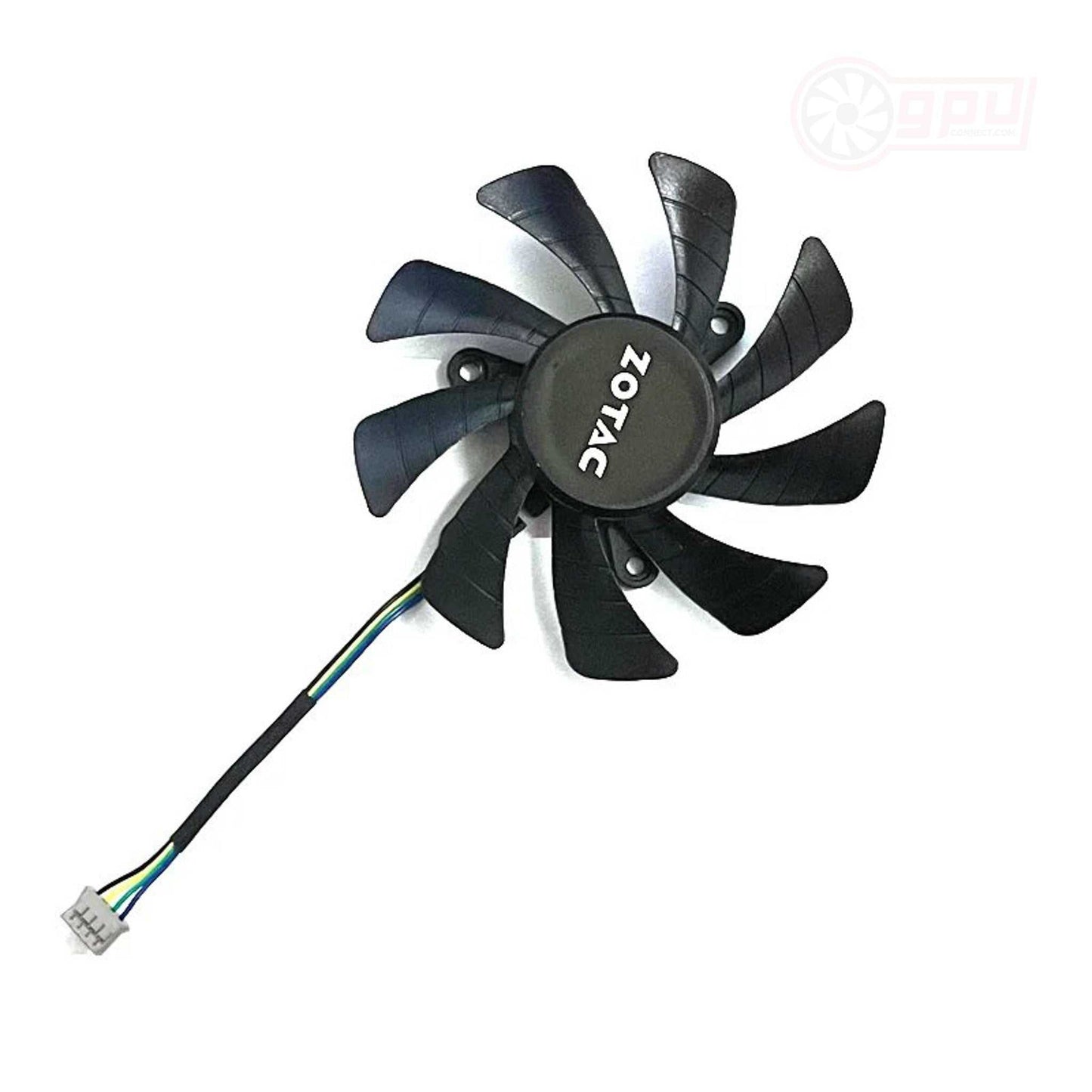

ZOTAC GTX 1060 960 950 ITX Mini Graphics Video Card Cooing Fan

ZOTAC GTX 1060 960 950 ITX Mini Graphics Video Card Cooing Fan

GTX 950 Series, GTX 960 Series, and GTX 1060 Series

For: Zotac
Power Connector: 4 Pin
Dimensions: 85mm
Depth: 12mm
Mounting Distance: 40 x 40 x 40mm / (Alternate 42 x 42 x 42mm)
Part Number(s): T129215SH / (Alternate GA92S2U)
Rating: 12V @ 0.3A

ZO-1KITX-F

UK Express Shipping   Express Shipping Item - more info
Version
£15.95 GBP
£15.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

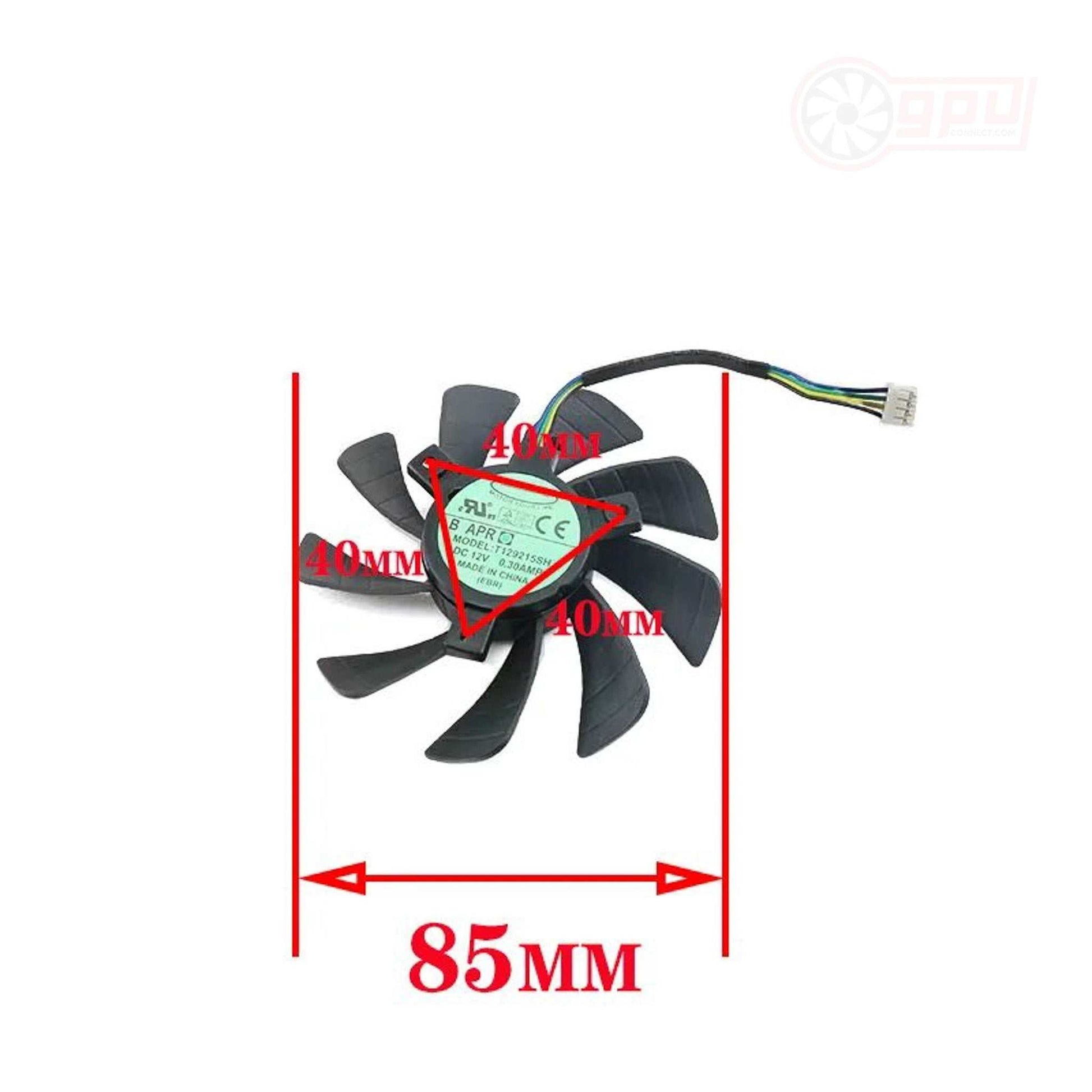

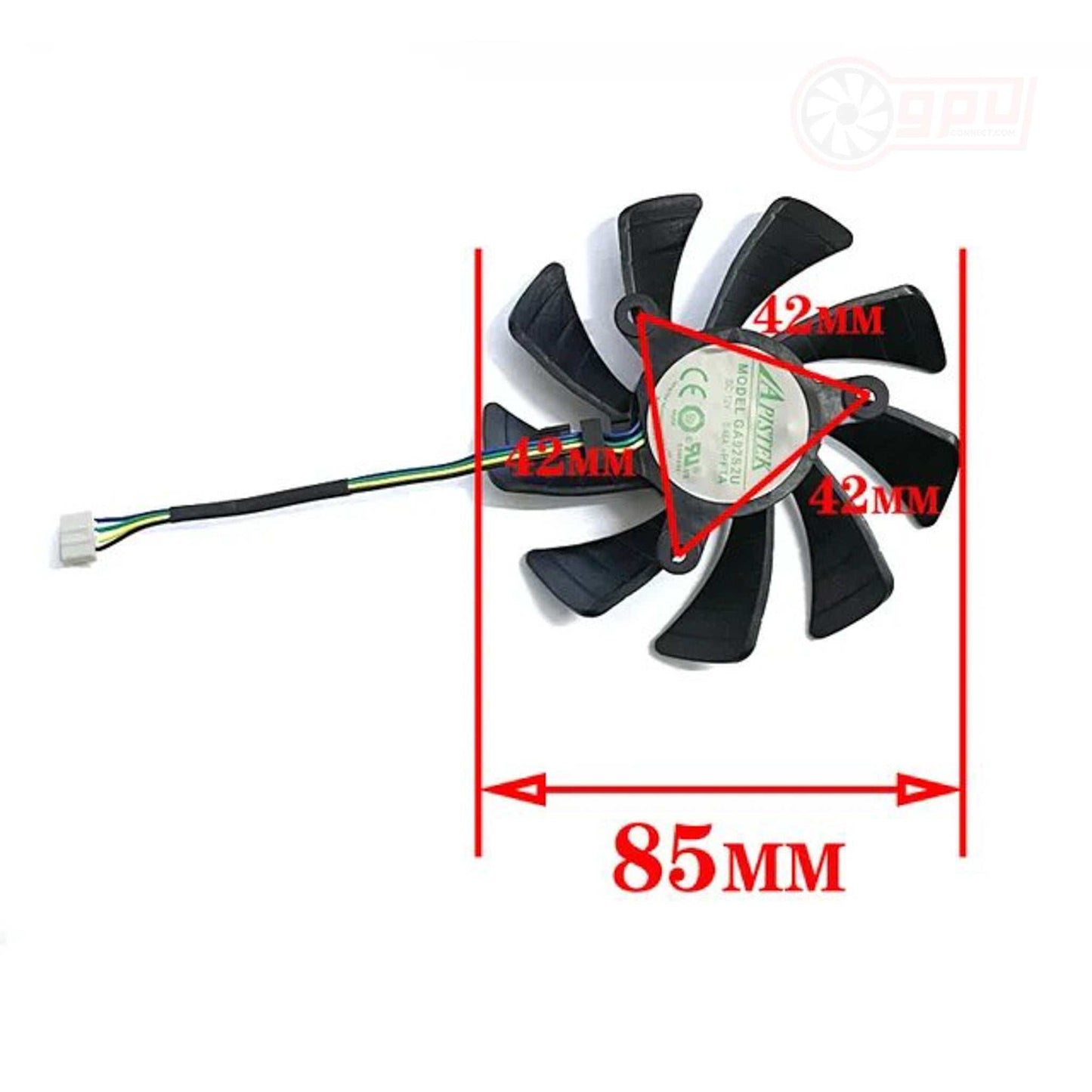

This is a replacement cooler set for poor performing, damaged or faulty ZOTAC GTX 1060 and 960 / 950 ITX Mini graphics card coolers.  There are 2 versions of this fan, the standard Everflow version with 40mm triangle mounting, and the Apistek alternative version with 42mm mounting.  Please check carefully for subtility before purchase.
View full details

Compatibility Guide

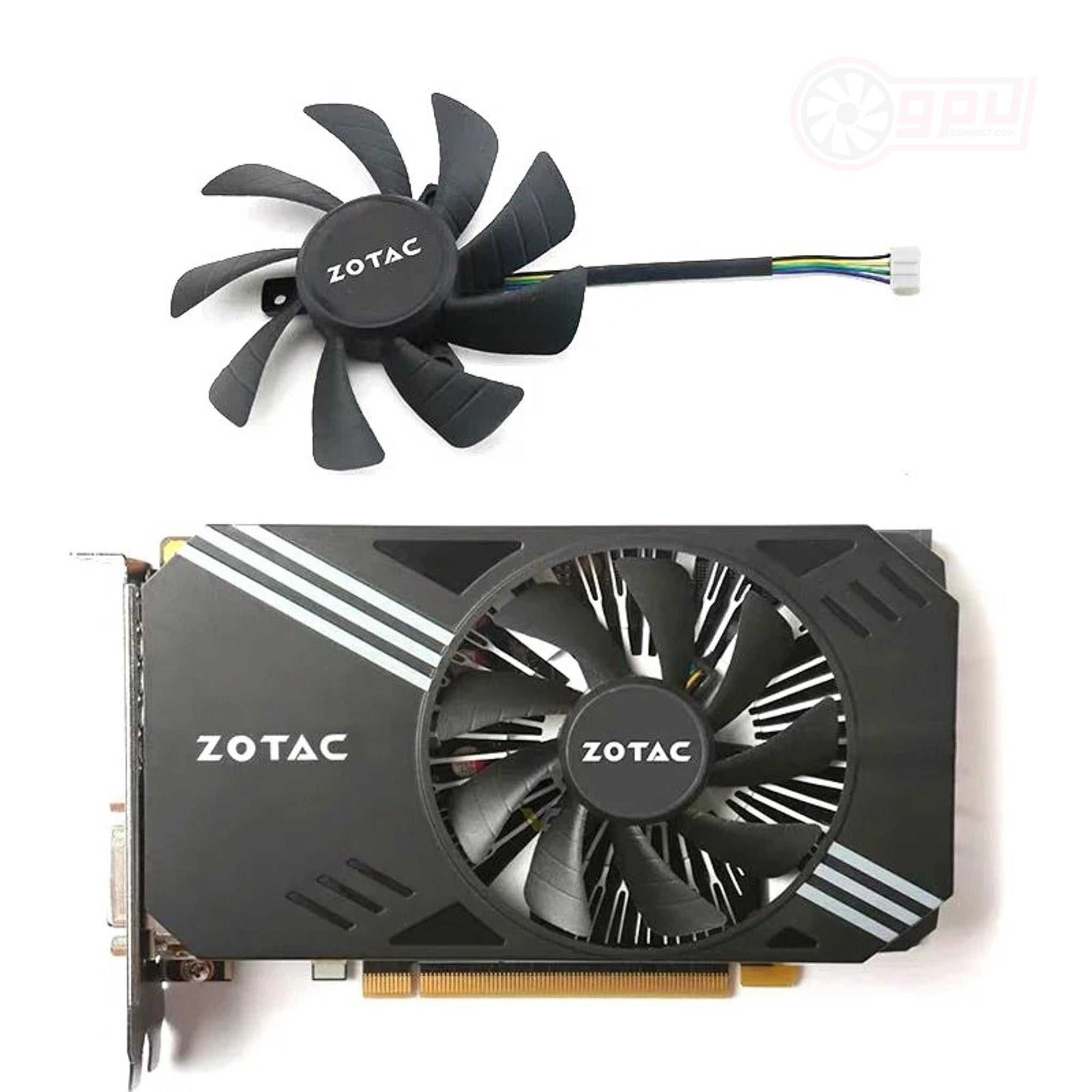

The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

P106-090
For ZOTAC GeForce GTX 1060 Mini ZT-P10600A-10L
For ZOTAC GeForce GTX 960 Single Fan 2GB ZT-90310-10M
For ZOTAC GeForce GTX 950 Low Power ZT-90608-10L

Shipping Information

Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

  • UK - 1-4 working days (Depending on method selected)
  • Europe - 3-7 working days (typical)
  • USA - 6-7 working days (typical)
  • Australia -  6-7 working days (typical)
  • Other -  6-12 working days (typical)

Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

For full information on shipping times please click here

Installation

Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

Please ensure you keep note of the screw replacement locations as you do along.

The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
