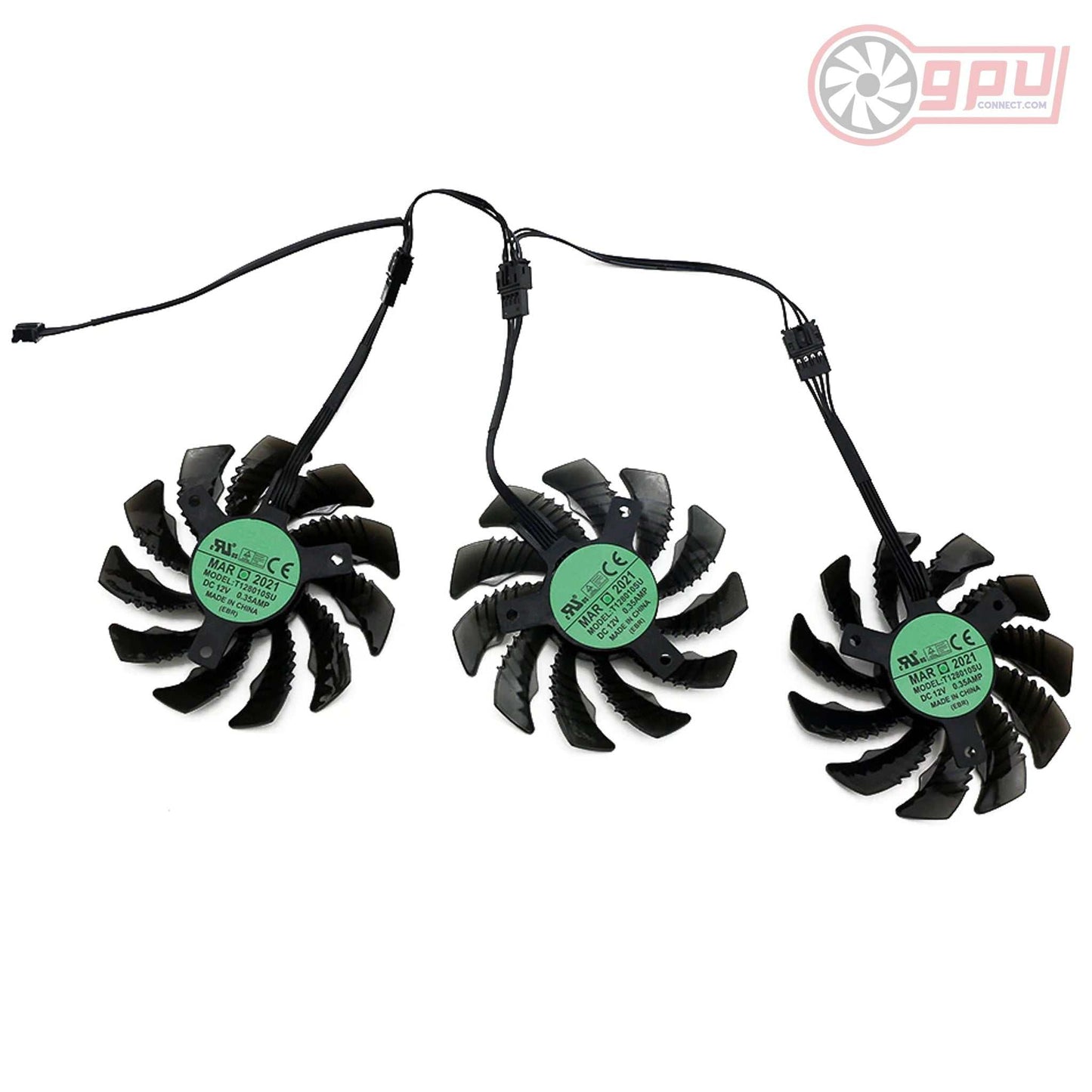

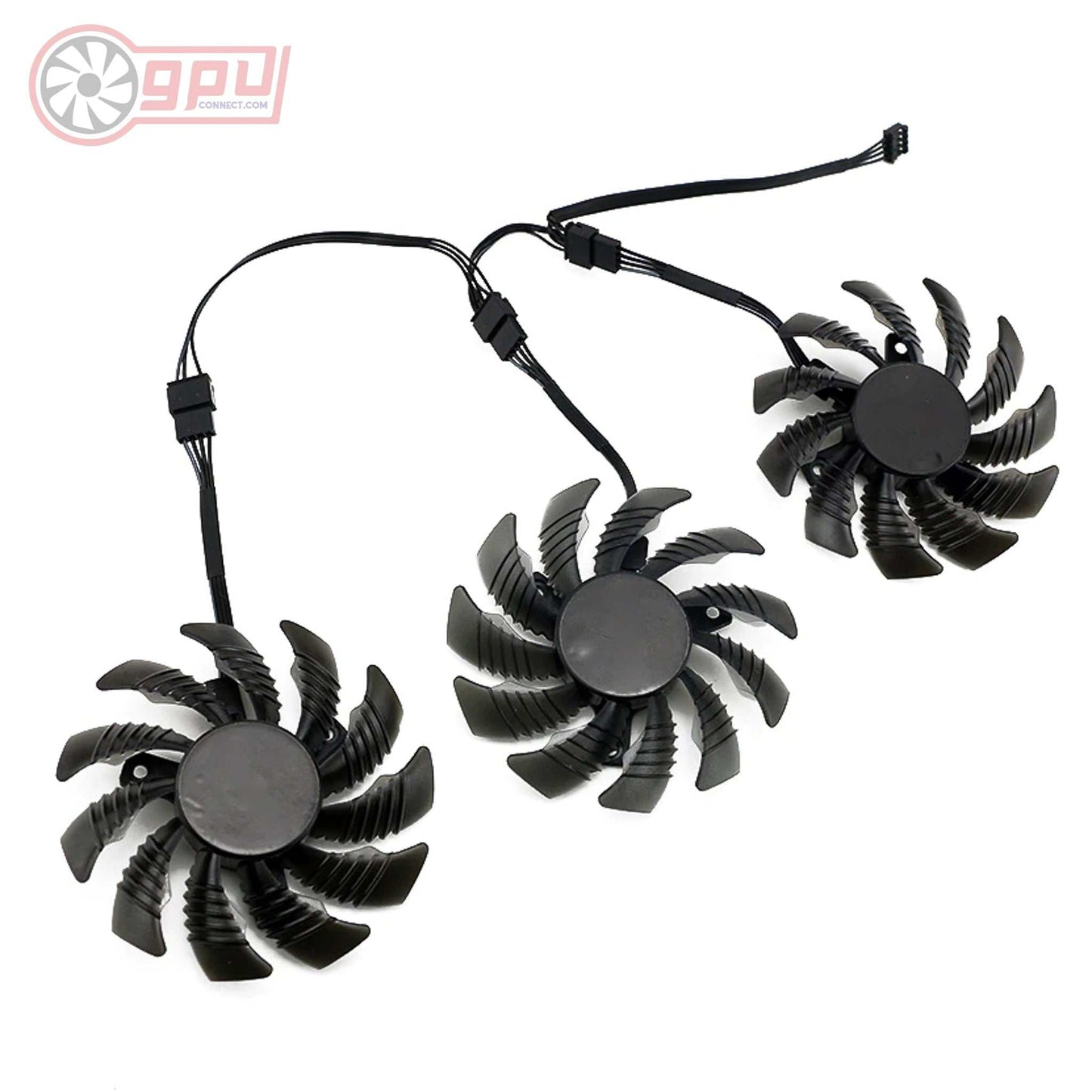

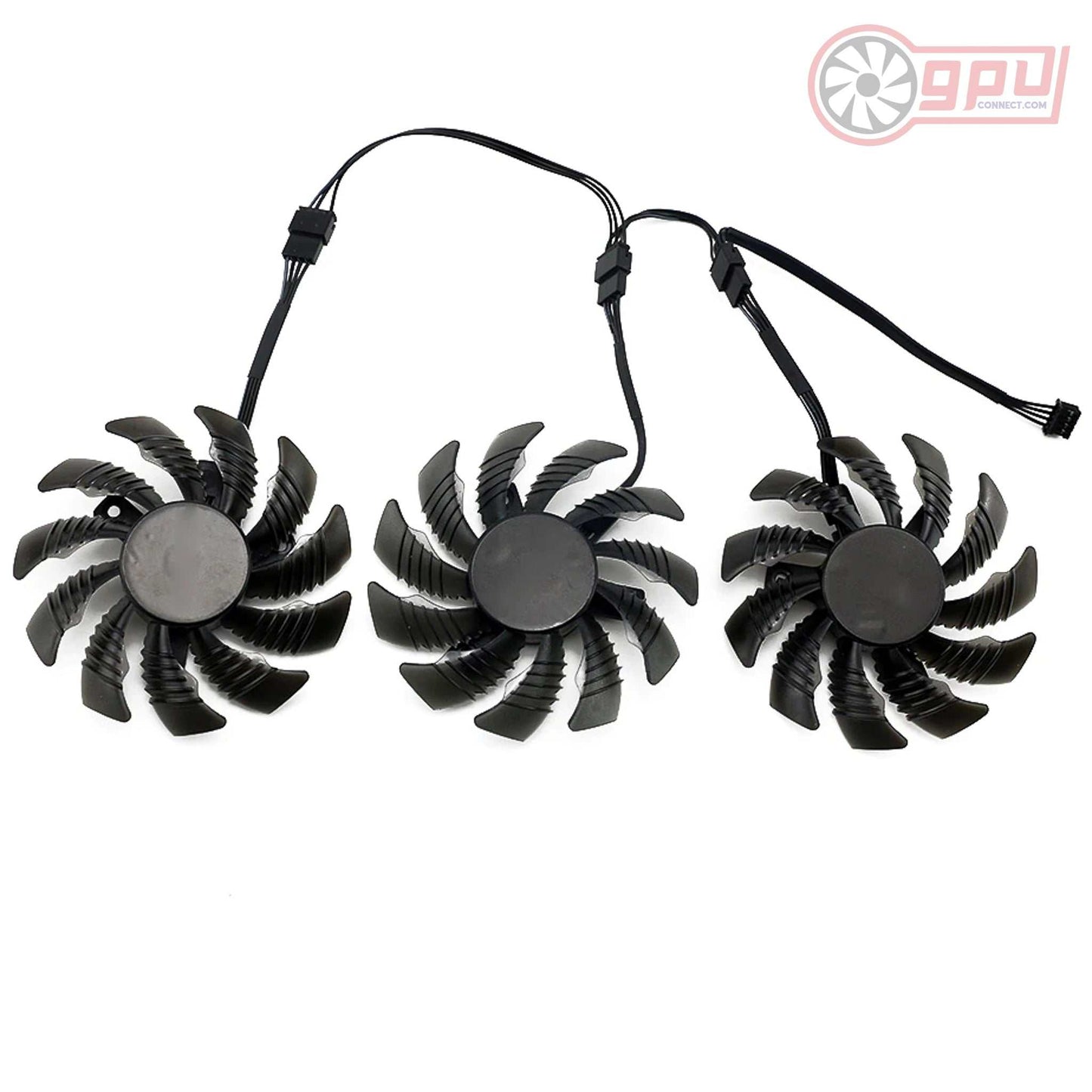

Gigabyte RX 5500 5600 5700 XT Gaming Replacement Fan (78mm)

Gigabyte RX 5500 5600 5700 XT Gaming Replacement Fan (78mm)

RX 5500 Series, RX 5600 Series, and RX 5700 Series

For: Gigabyte
Power Connector: 4 Pin
Dimensions: 78 mm
Depth: 10 mm
Mounting Distance: 40 x 40 x 40 mm (triangle)
Part Number(s): T128010SU
Rating: 0.35A @ 12V

GB-5700XT-F

Standard Shipping Standard Shipping Item - more info
£29.95 GBP
£29.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is a replacement cooler set for poor performing, damaged or faulty graphics card coolers.  Please check dimension and model compatibility before purchase.

The separate wiring loom is included when a full set is purchased.

Important note: There are very similar fans which have different dimensions, please check the cooler you require is 78mm diameter (opposed to the very similar 82mm). Also note the mounting hold distance of 40mm.  Use the compatibility guide as reference.

    View full details

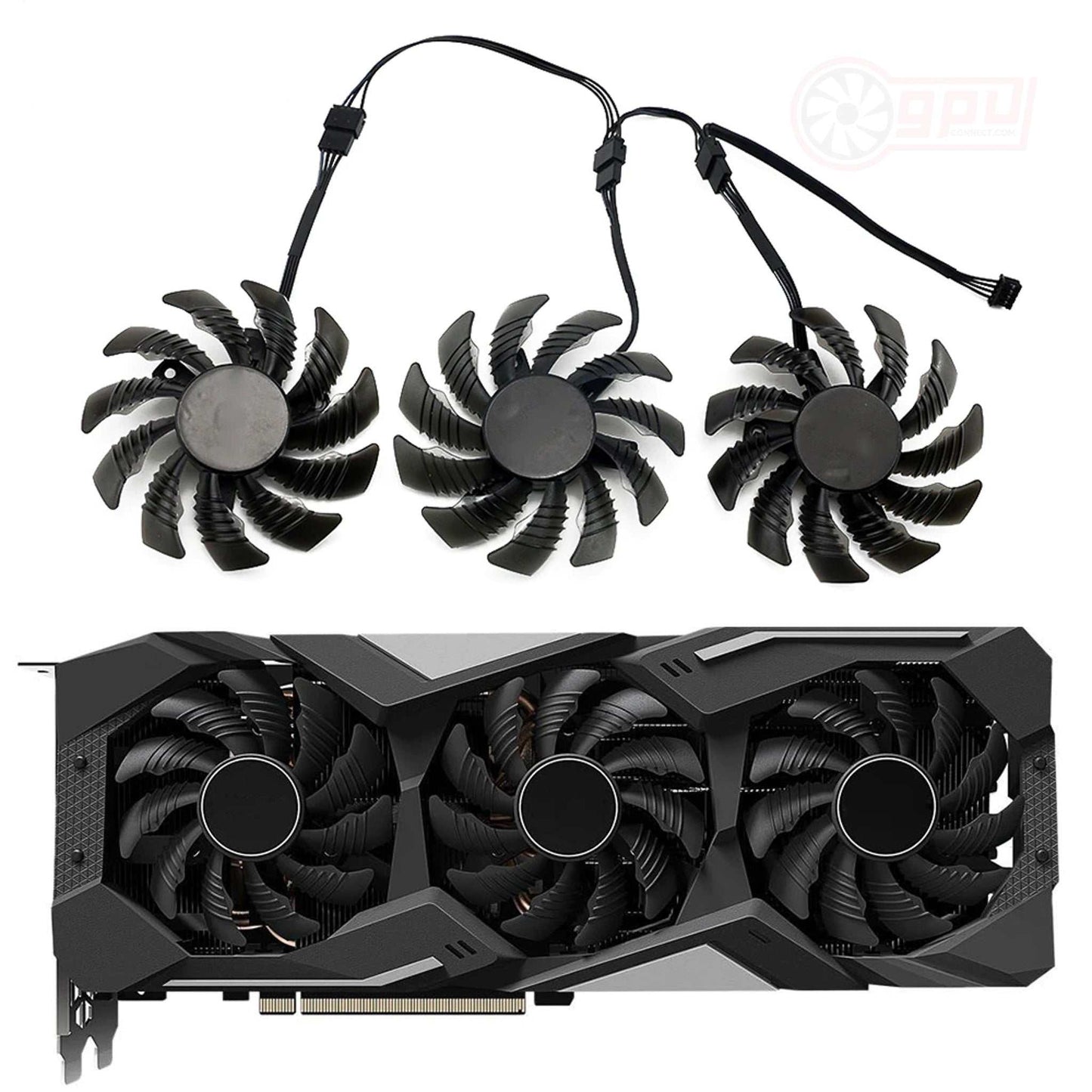

    Compatibility Guide

    The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:

    Gigabyte AMD Radeon RX 5700 Gaming
    Gigabyte RX 5700 XT Gaming
    Gigabyte RX 5600 XT Gaming
    Gigabyte RX 5500 XT Gaming

    Shipping Information

    Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.

    • UK - 1-4 working days (Depending on method selected)
    • Europe - 3-7 working days (typical)
    • USA - 6-7 working days (typical)
    • Australia -  6-7 working days (typical)
    • Other -  6-12 working days (typical)

    Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.

    For full information on shipping times please click here

    Installation

    Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.

    Please ensure you keep note of the screw replacement locations as you do along.

    The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).

    At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.

    Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.

    Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
