MSI GeForce RTX 4060 TI / 4070 VENTUS 3X GPU Fans
MSI GeForce RTX 4060 TI / 4070 VENTUS 3X GPU Fans
RTX 4070 Series and RTX 4060 Series
For: MSI
Power Connector: 4 Pin
Dimensions: 91 mm
Depth: 14 mm
Mounting Distance: 40 x 40 x 40 mm (triangle)
Part Number(s): PLD09210S12HH
Rating: 12V @ 0.4A
SKU:MS-4KV3X-F

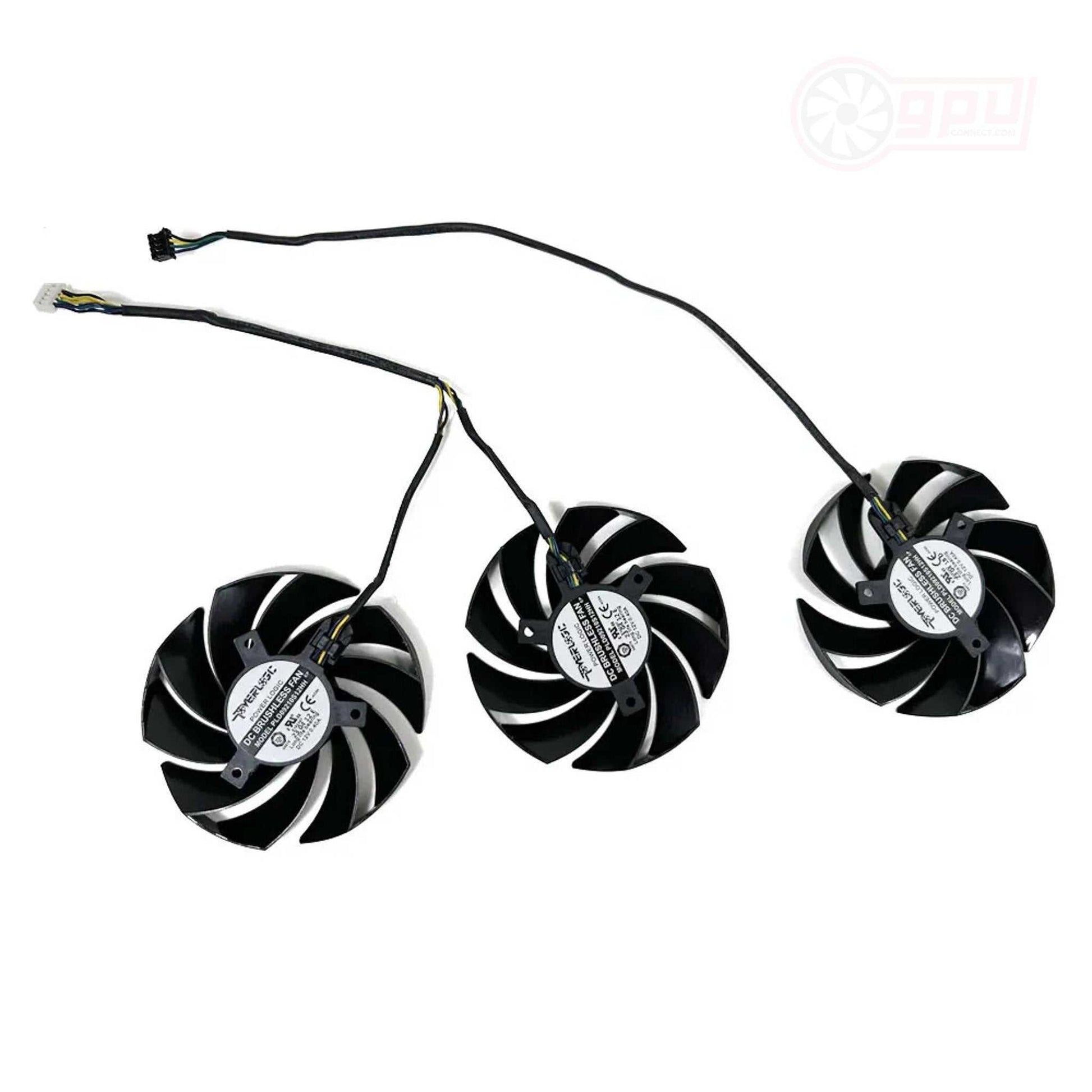

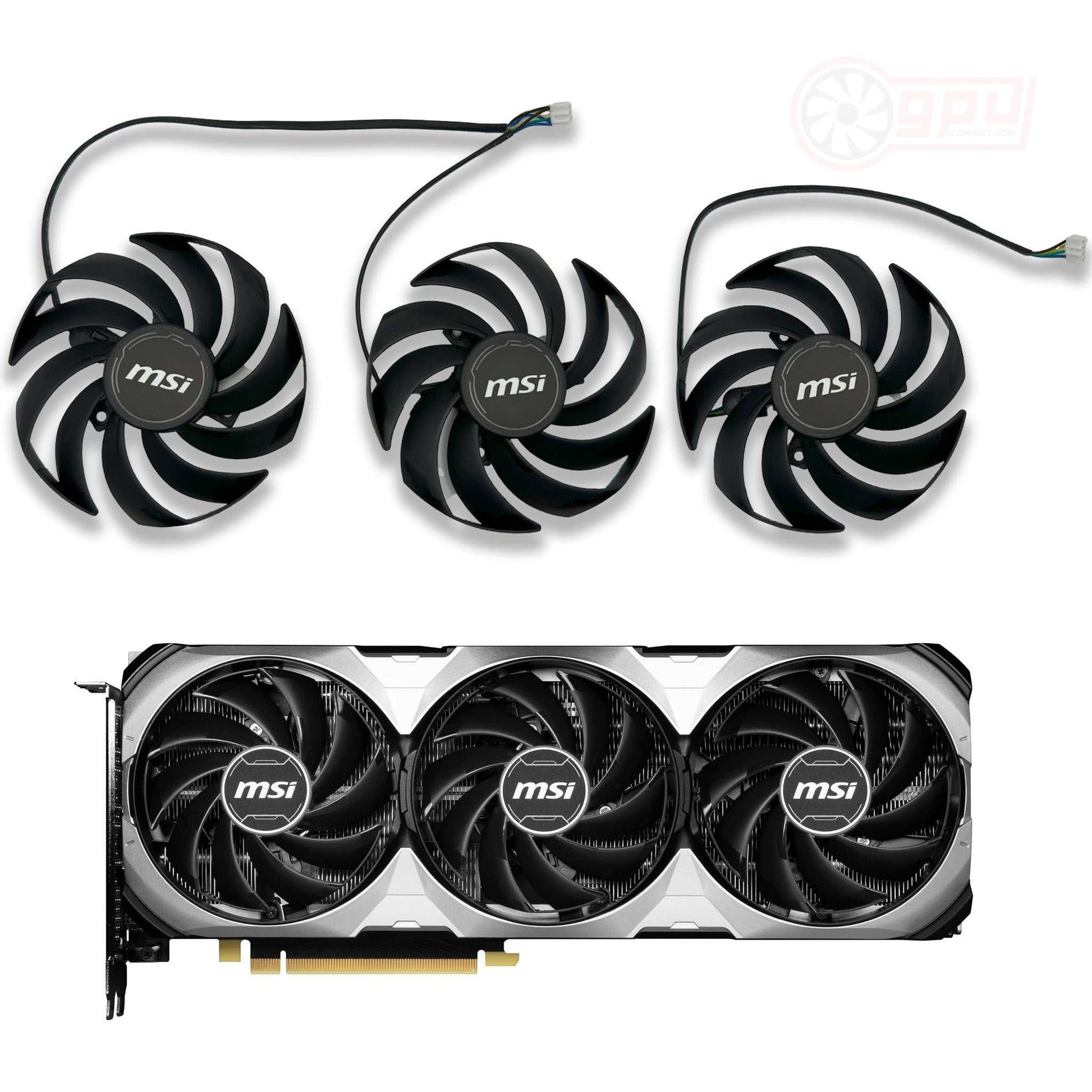

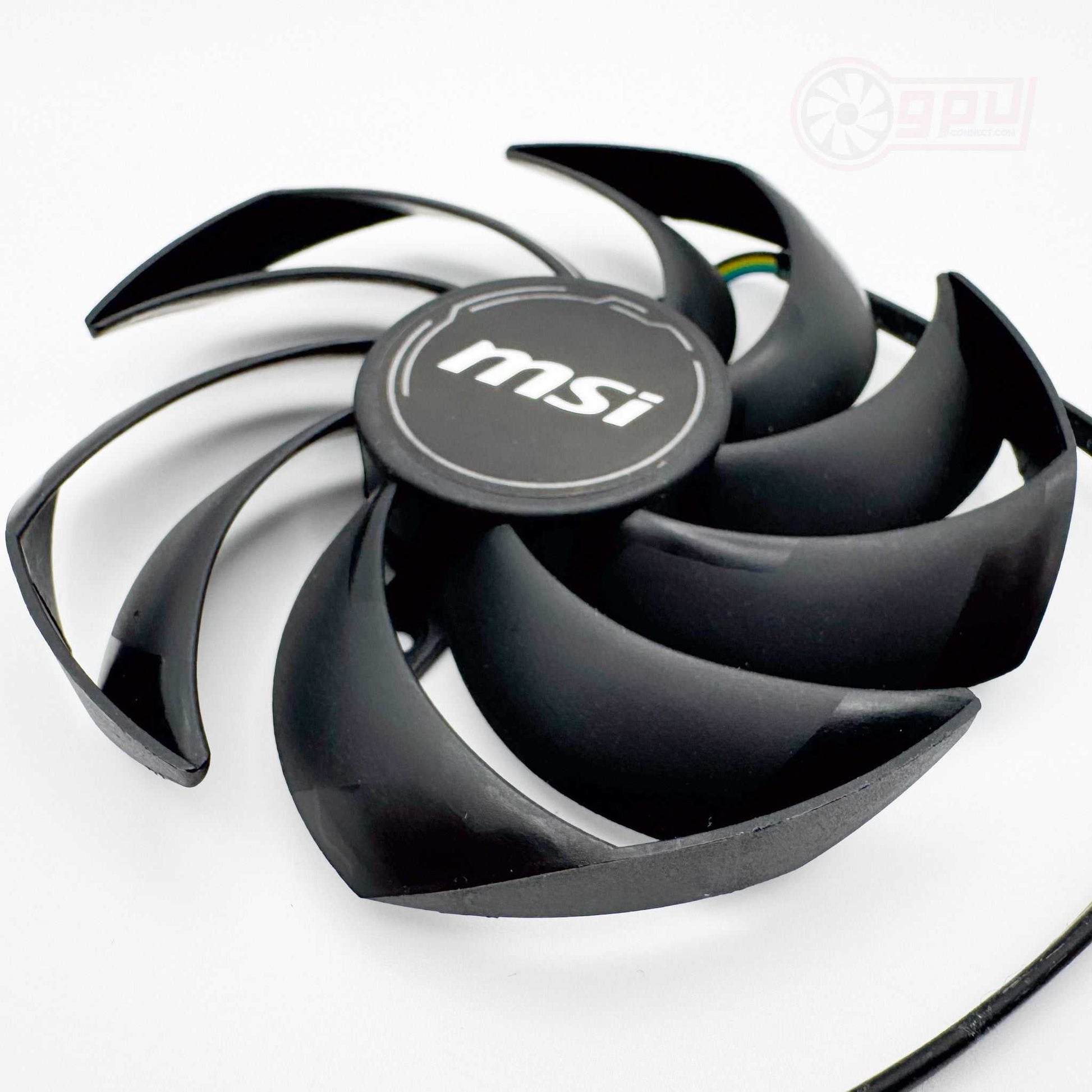

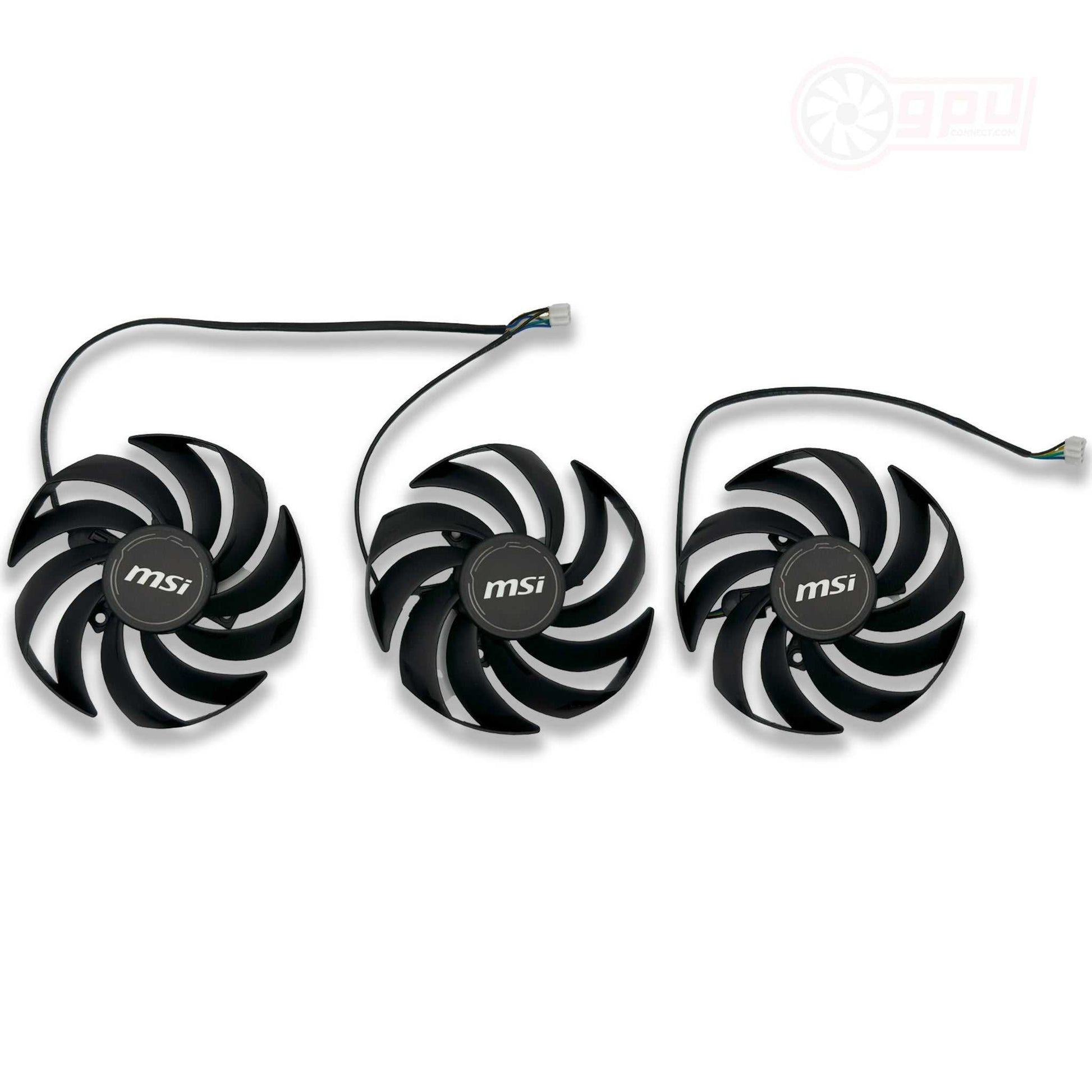

This is a replacement cooler set for poor performing, damaged or faulty MSI GeForce RTX 4060 TI / 4070 VENTUS 3X graphics card fans.
Share
Collapsible content
Compatibility Guide
The following products are compatible with this fan set however please use this only as a guide and still check the part number, specifications and visual images carefully before purchasing:
MSI GeForce RTX 4060 VENTUS 3X 12G
MSI GeForce RTX 4070 VENTUS 3X 12G
MSI GeForce RTX 4060 TI VENTUS 3X 12G
MSI GeForce RTX 4070 TI VENTUS 3X 12G OC
Shipping Information
Where the Express Shipping Icon is shown on a listing, this item will be shipped from the UK warehouse directly. Next day shipping is available, however this must be selected and paid for at checkout.
- UK - 1-4 working days (Depending on method selected)
- Europe - 3-7 working days (typical)
- USA - 6-7 working days (typical)
- Australia - 6-7 working days (typical)
- Other - 6-12 working days (typical)
Where an item is Standard Shipping (defined with a blue WORLD logo), this item is not held in stock and will be direct shipped from our suppliers, and alternative shipping times apply.
For full information on shipping times please click here
Installation
Installation for fans will required the existing shroud to be removed. This would usually be the removal of 4-8 small phillips screws (cross head) and will require a hobbiest screwdriver. After the shroud is removed you will likely need to remove the fan(s) from the headsink, usually with screws between the fins or to the outer edge of the fan retaining brackets.
Please ensure you keep note of the screw replacement locations as you do along.
The previous fans will need disconnecting from both the graphics board and if changing an individual fan from the daisy chain connection(s).
At this point the new fan(s) should be swapped in the respective locations, and the process complete in reverse.
Ensure you check the fans are the same size and dimensions when replacing, and the connections are correct.
Note: Incorrect installation could damage your fan or GPU, please ensure you have the right part and experience before attempting the replacement.
